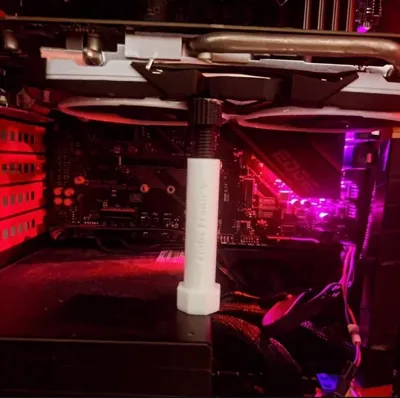

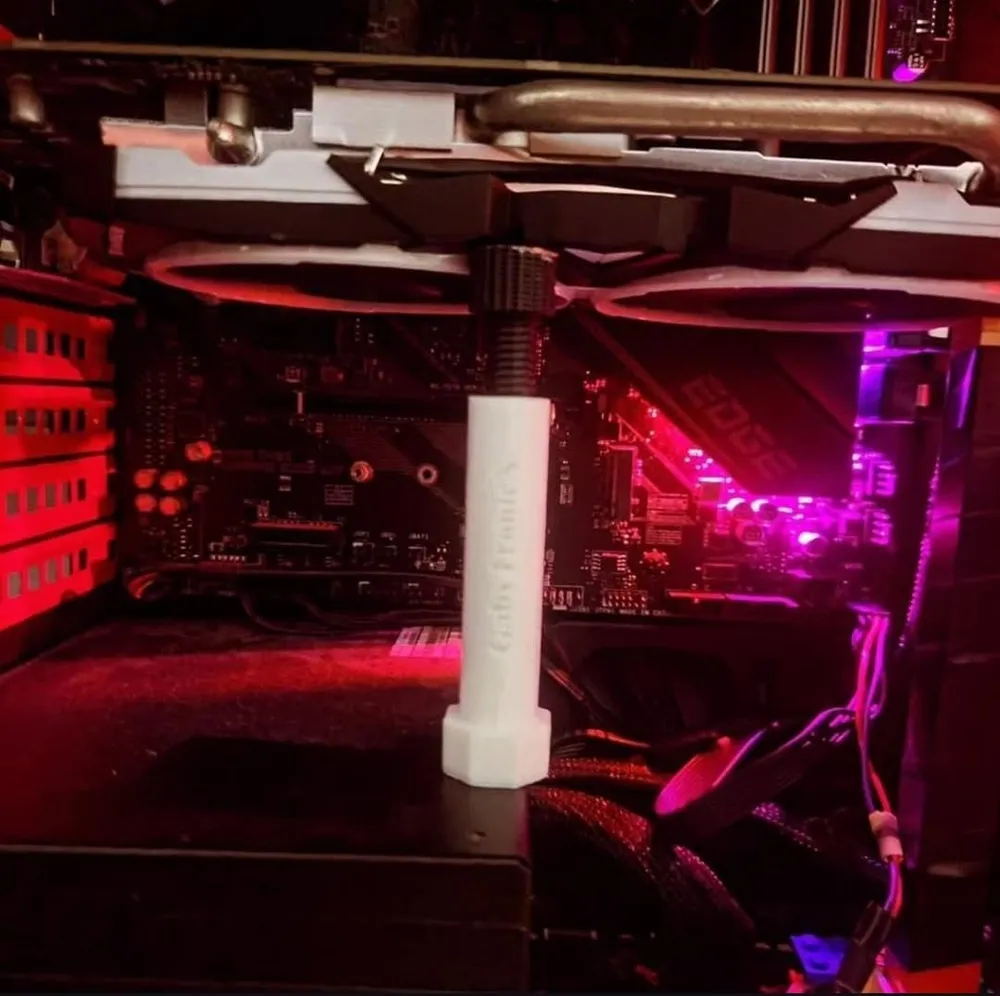

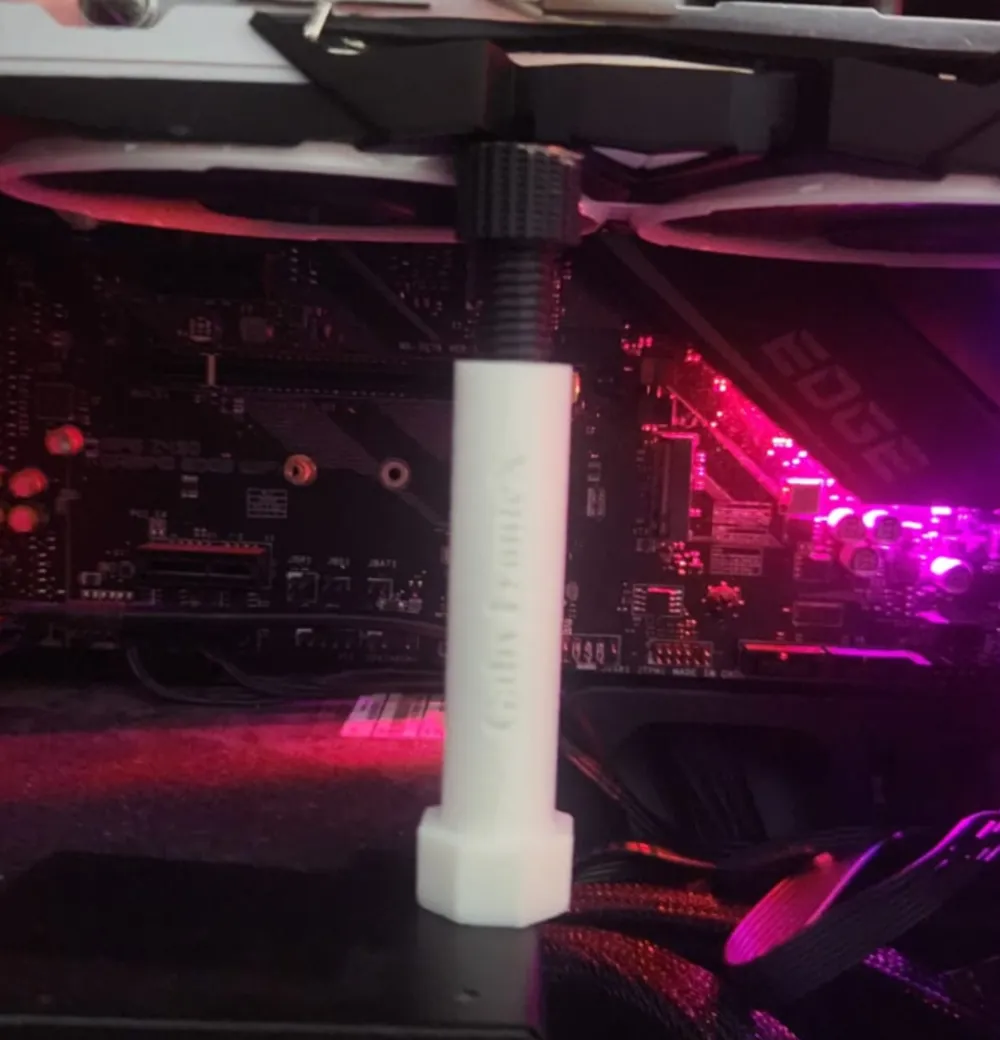

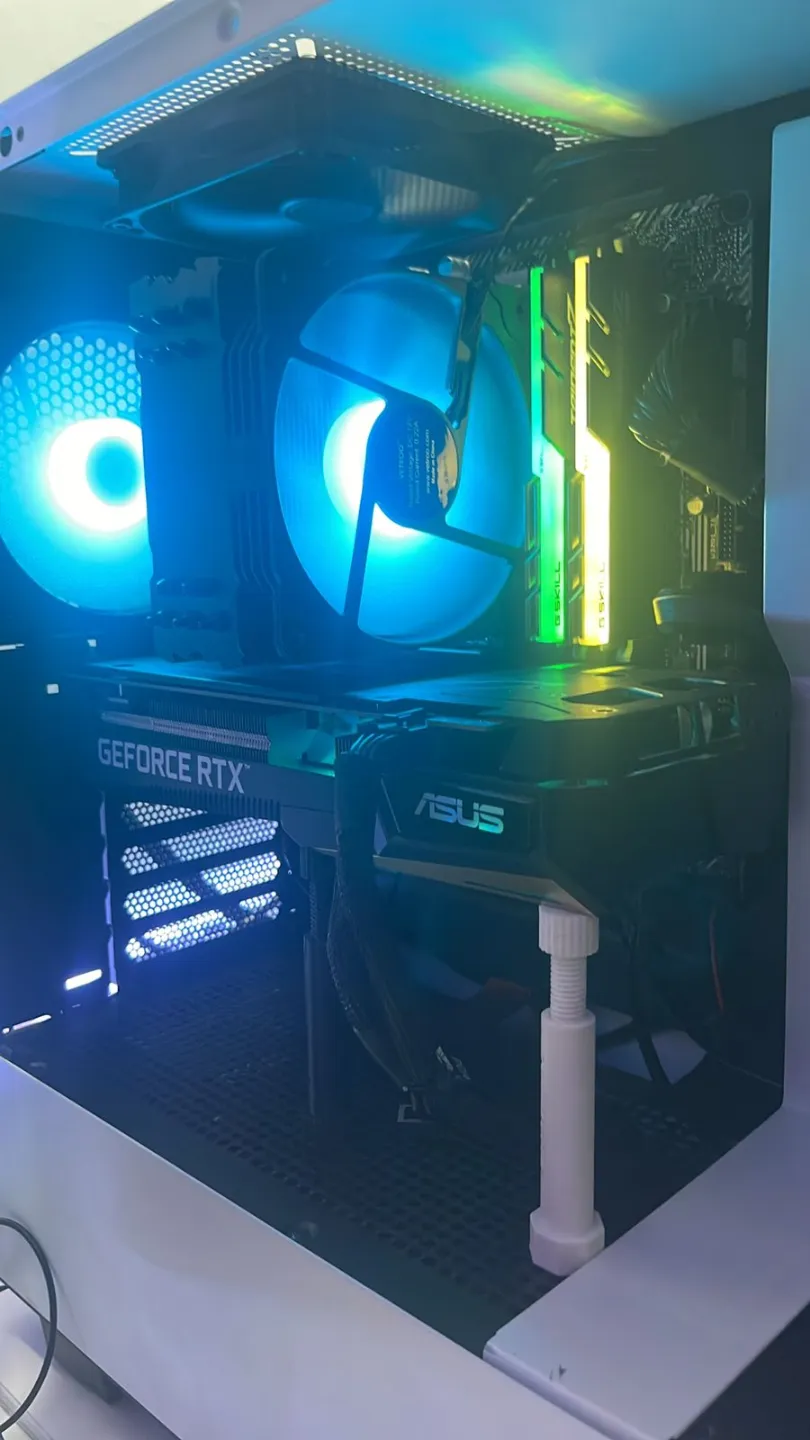

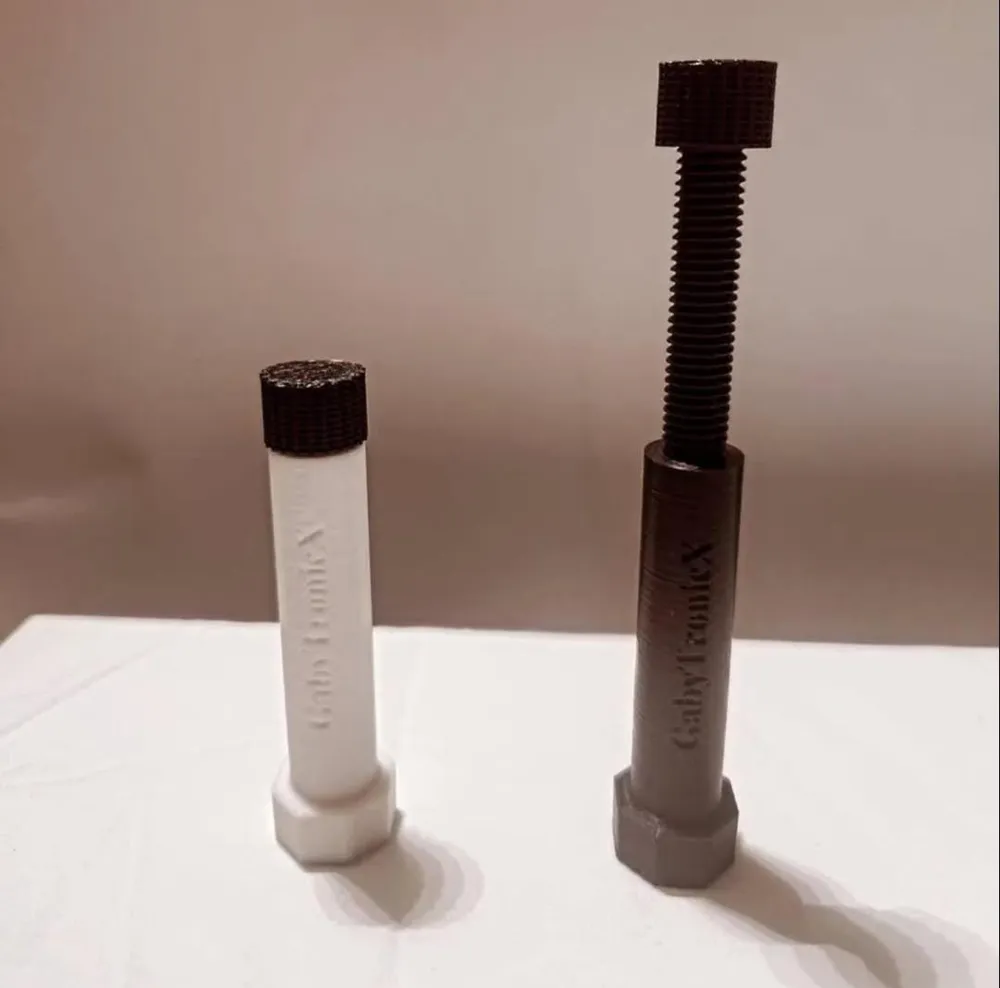

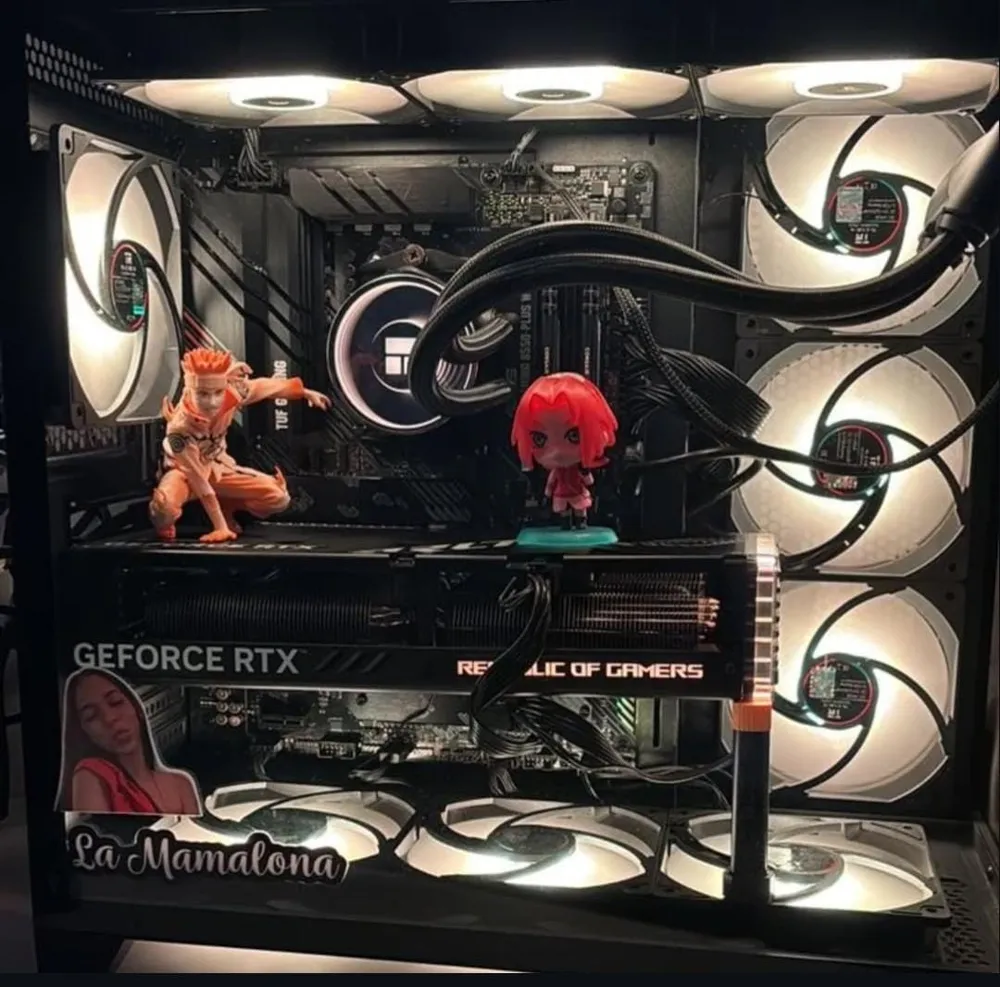

This is a graphics card holder, designed by me, GabyTronicX. There are 2 models: Combo A &amp; Combo B.&nbsp;Combo A is the first version; some people told me it would slip, so I designed a non-slip TPU piece to place it as if it were a &#34;Cover&#34;.&nbsp;Combo B is the second version; it has space under the base, to place the non-slip TPU piece and make it more aesthetic and not visible.&nbsp;Recommended configuration: - 0.12mm layer height.- 4 perimeters. - 15% Gyroid infill. - I recommend Brim if you are going to print at high speeds. - No supports, except for model B, which has support only on the part in contact with the bed.&nbsp;ig: gabytronicx&nbsp;Este es un soporte para tarjetas graficas, diseñado por mi, GabyTronicX. Hay 2 modelos: Combo A &amp; Combo B.&nbsp;El combo A es la primera versión; algunos me dijeron que se resbalaba, así que diseñé una pieza antideslizante en TPU para colocarsela como si fuera un &#34;Cover&#34;.&nbsp;El combo B es la segunda version; Cuenta con espacio debajo de la base, para colocar la pieza antideslizante en TPU y que sea mas estetica y no se vea.&nbsp;Configuración recomendada: - Altura de capa de 0.12mm.- 4 perimetros. - Relleno Giroide al 15%. - Recomiendo Brim si vas a imprimir a altas velocidades. - Sin soportes, a excepcion del modelo B, el cual lleva soporte solo en la parte en contacto con la cama.&nbsp;ig: gabytronicx

This is a graphics card holder, designed by me, GabyTronicX. Two models are available: Combo A &amp; Combo B.&nbsp;Combo A is the initial iteration; some users reported slippage, prompting the design of a non-slip TPU cover.&nbsp;Combo B, the second iteration, incorporates an under-base cavity for the non-slip TPU component, enhancing aesthetics and concealing it from view.&nbsp;Recommended print settings: - 0.12mm layer height.- 4 perimeters. - 15% Gyroid infill. - A brim is recommended for high-speed printing. - Supports are unnecessary, except for model B, which requires support only on the bed-contacting section.&nbsp;ig: gabytronicx&nbsp;This is a graphics card holder, designed by me, GabyTronicX. Two models are available: Combo A &amp; Combo B.&nbsp;Combo A is the first version; some users reported slippage, so I designed a non-slip TPU piece to function as a cover.&nbsp;Combo B is the second version; it features an under-base cavity to house the non-slip TPU piece, improving aesthetics and rendering it invisible.&nbsp;Recommended settings: - 0.12mm layer height.- 4 perimeters. - 15% Gyroid infill. - A brim is recommended for high-speed printing. - No supports are needed, except for model B, which requires support only on the bed-contacting portion.&nbsp;ig: gabytronicx

0.12mm layer, 4 walls, 15% infill

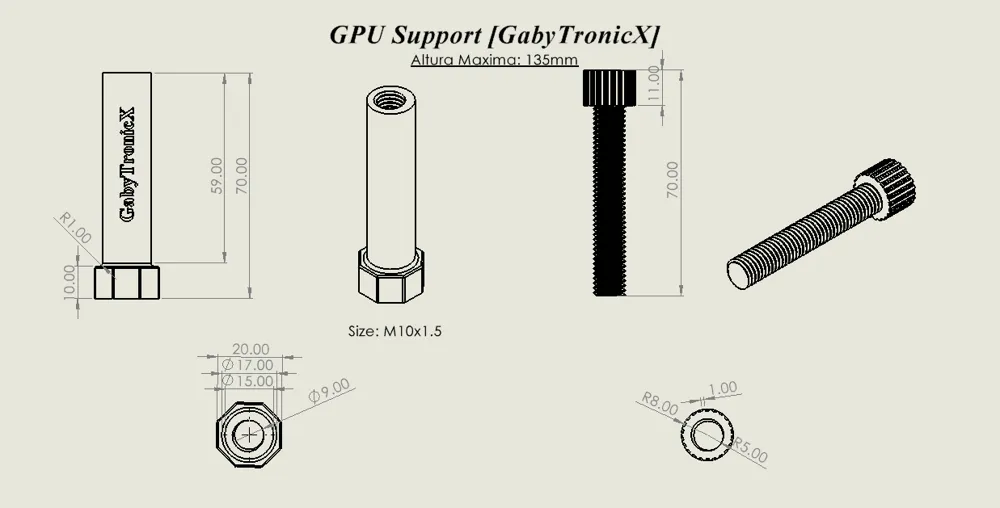

This is a graphics card holder, designed by me, GabyTronicX. There are 2 models: Combo A &amp; Combo B. &nbsp;Combo A is the first version; some people told me it would slip, so I designed a non-slip TPU piece to place it as if it were a &#34;Cover&#34;. &nbsp;Combo B is the second version; it has space under the base, to place the non-slip TPU piece and make it more aesthetic and not visible. &nbsp;Minimum height: 85mm Maximum height: 130mm&nbsp;Recommended configuration: - 0.12mm layer height. - 4 perimeters - 15% Gyroid infill. - I recommend Brim if you are going to print at high speeds. - No supports, except for model B, which has support only on the part in contact with the bed. &nbsp;ig: gabytronicx&nbsp;Este es un soporte para tarjetas graficas, diseñado por mi, GabyTronicX. Hay 2 modelos: Combo A &amp; Combo B.&nbsp;El combo A es la primera versión; algunos me dijeron que se resbalaba, así que diseñé una pieza antideslizante en TPU para colocarsela como si fuera un &#34;Cover&#34;.&nbsp;El combo B es la segunda version; Cuenta con espacio debajo de la base, para colocar la pieza antideslizante en TPU y que sea mas estetica y no se vea.&nbsp;Altura Minima: 85mm Altura Maxima: 130mm&nbsp;Configuración recomendada: - Altura de capa de 0.12mm. - 4 perimetros - Relleno Giroide al 15%. - Recomiendo Brim si vas a imprimir a altas velocidades. - Sin soportes, a excepcion del modelo B, el cual lleva soporte solo en la parte en contacto con la cama.&nbsp;ig: gabytronicx

This is a graphics card holder, designed by me, @GabyTronicX. Two models are available: Combo A and Combo B.Combo A, the initial iteration, prompted feedback regarding slippage. Consequently, I designed an anti-slip TPU component functioning as a cover.Combo B, the subsequent version, incorporates a recessed base to discreetly house the anti-slip TPU piece, enhancing aesthetics.Minimum Height: 85mm Maximum Height: 130mmRecommended Configuration:- 0.12mm layer height.- 4 perimeters- 15% Gyroid infill.- A brim is recommended for high-speed printing.- No supports are needed, except for model B, which requires support only on the bed-contacting section.ig: @gabytronicx
