BB Ball Tweezers - PreTensioned
BB Ball Tweezers - PreTensioned
Designer
38 min
1 plate
4.9(13)

BB Ball Tweezers - UnTensioned
BB Ball Tweezers - UnTensioned
Designer
37 min
1 plate
4.5(2)

Open in Bambu Studio
Boost
37
88
33
6
148
90
Released

Description

I recently found that due to an unfortunate ball to fingers size ratio the latter make for poor actuators when it comes to handling tiny balls.
At a nominal diameter of 6mm not only are these balls tiny, but they're also very slippery.

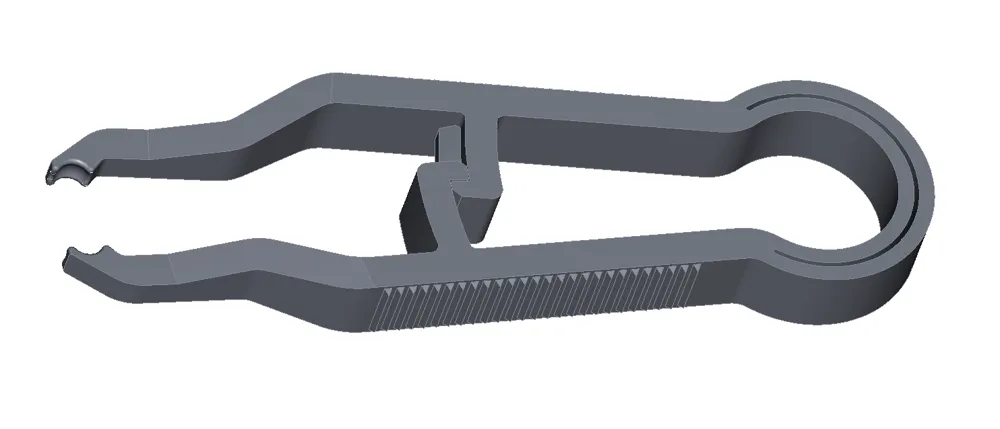

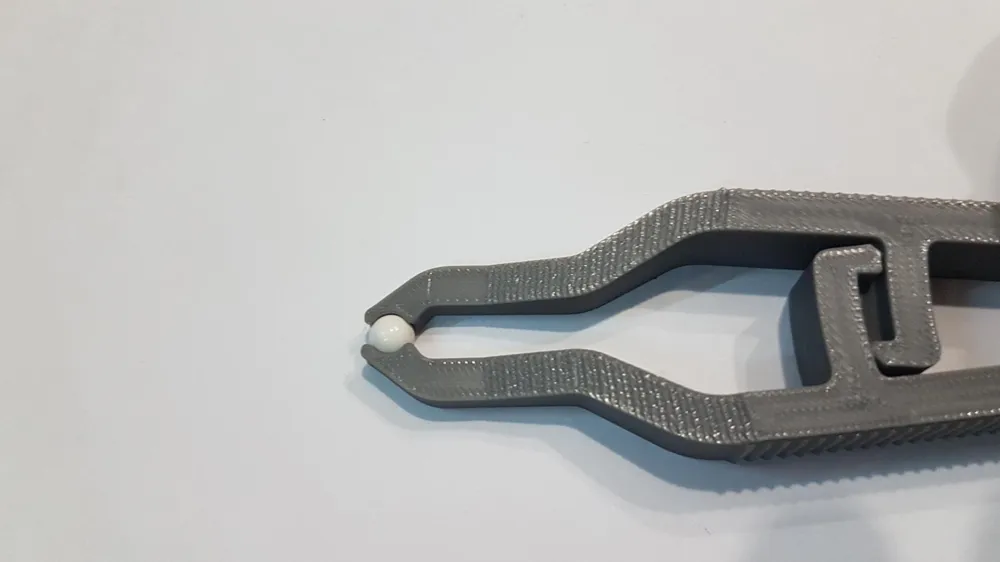

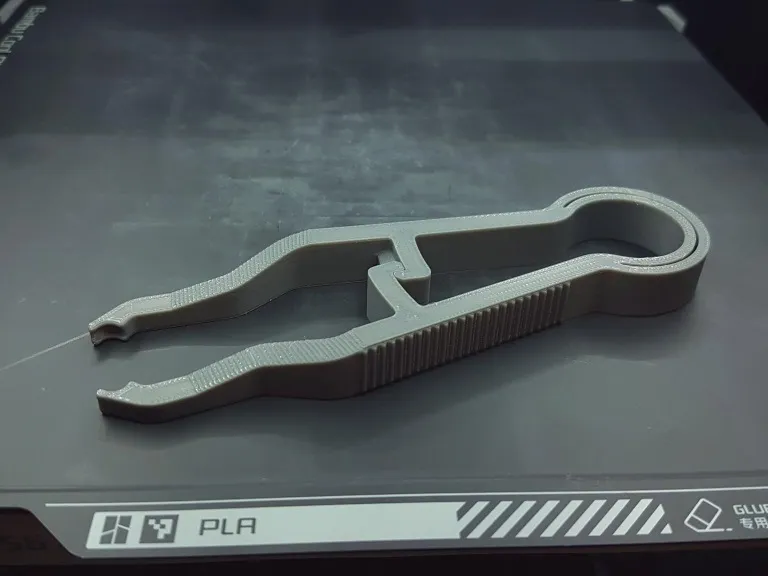

In order to improve ball handling I designed some tweezers in two versions, one of them with an open spring design, the other with a similar spring, but pre-tensioned.
I find both of them to be useful in different scenarios.



The only setting I changed is 3 external walls to strengthen the spring tension and reduce creep (theoretically).
To that end I would suggest to unhook the pre-tensioner whenever it's not in use.

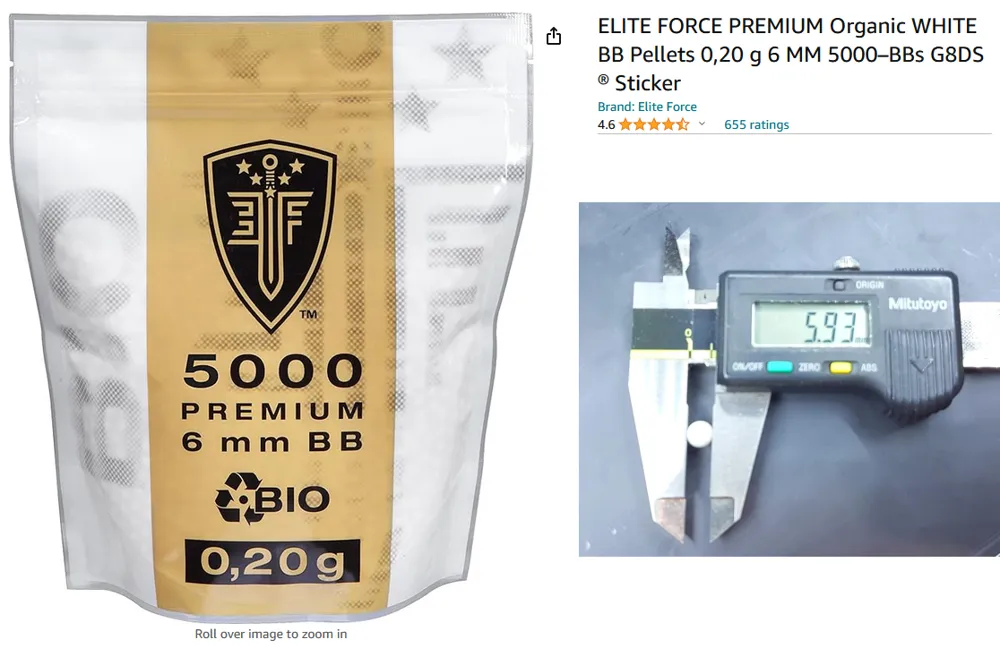

See attached image for the balls I use.

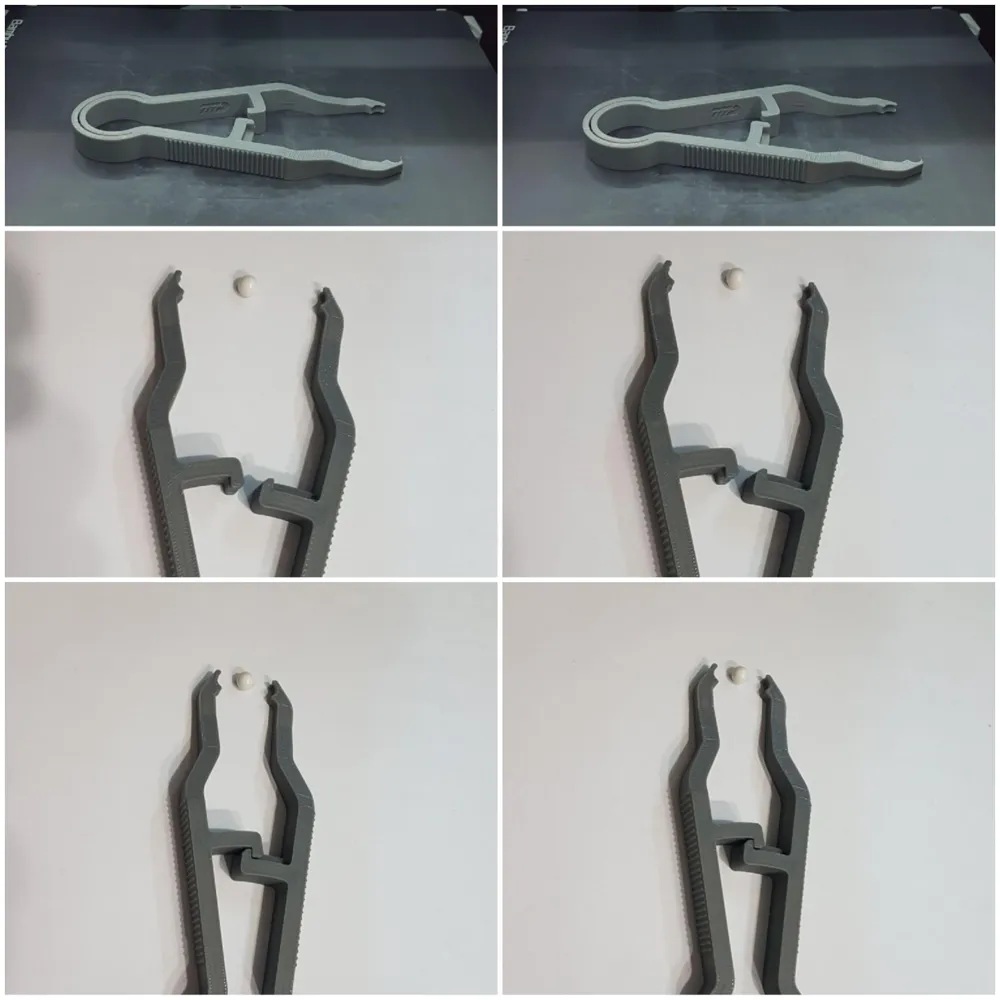

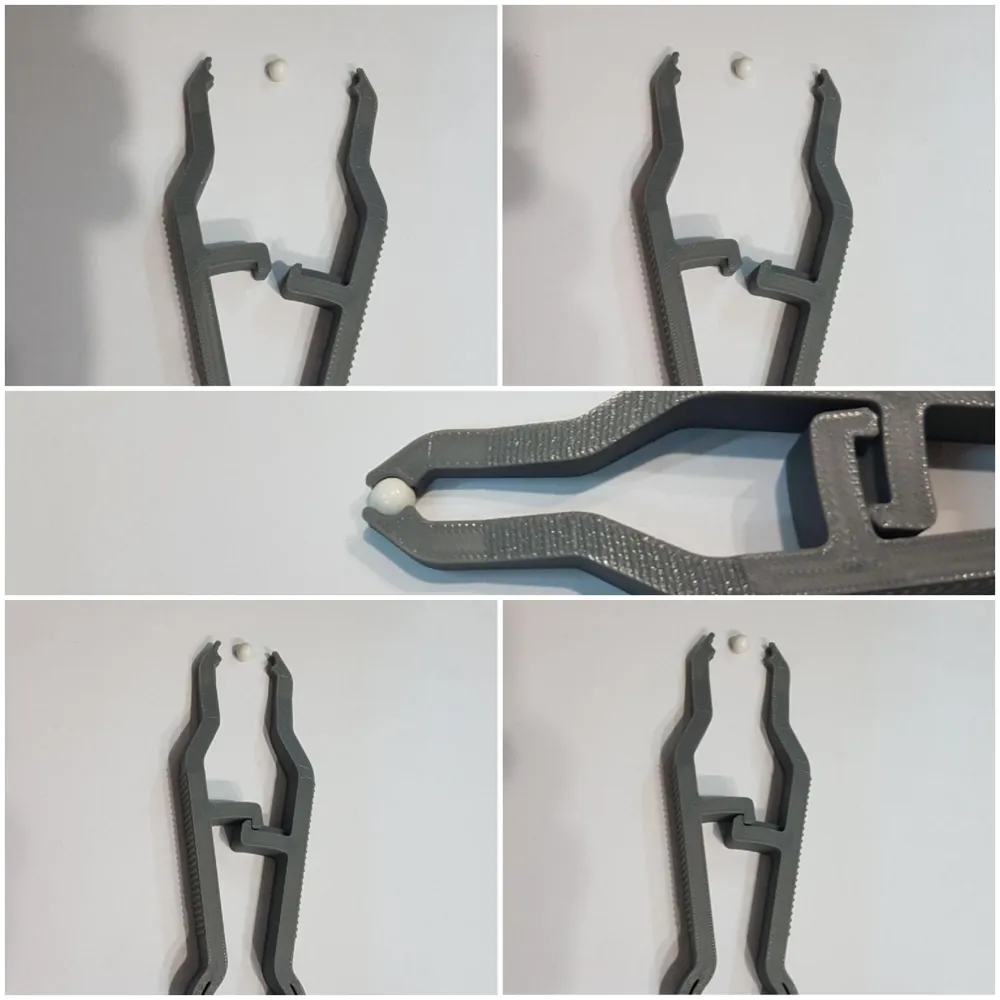

As ever, any 3D images are of the cross-eyed denomination.
Link: https://en.wikipedia.org/wiki/Stereoscopy
