Samsung SPen UPGRADE Sleeve

Summary

If you're like me, and use your note/ultra series Samsung to jot notes down during class then surely you'll appreciate a full sized pen!

Do your hands cramp when jotting a metric Ton of workload with the slim but feature packed Spen? Ever thought to yourself; "I wish I had more girth?

Well, you've come to the right page.

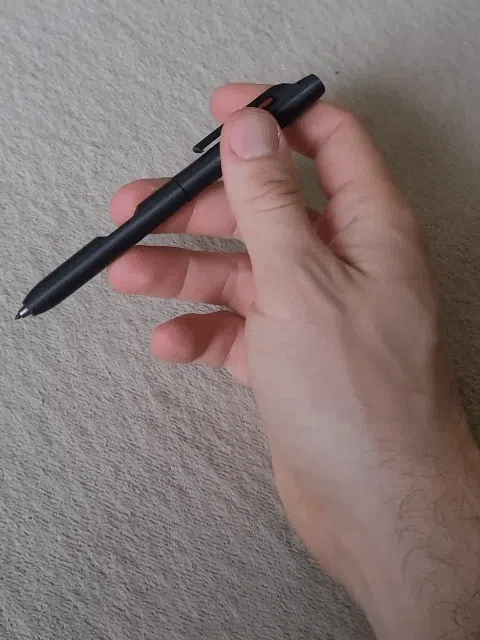

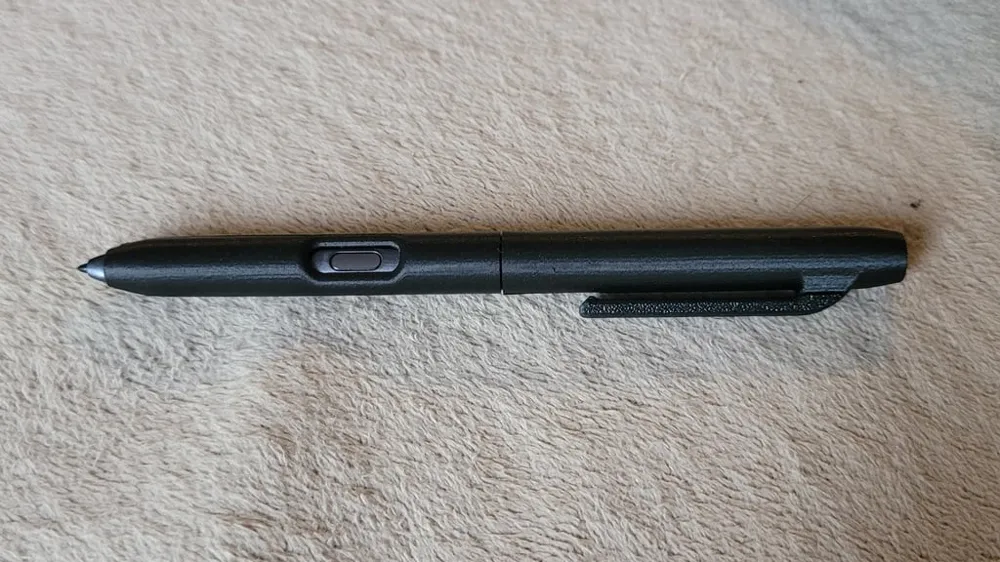

I designed this stylish SPen sleeve to carry around with me during class or if I'm getting into an intense doodle. It's comfortable, looks and feels great.

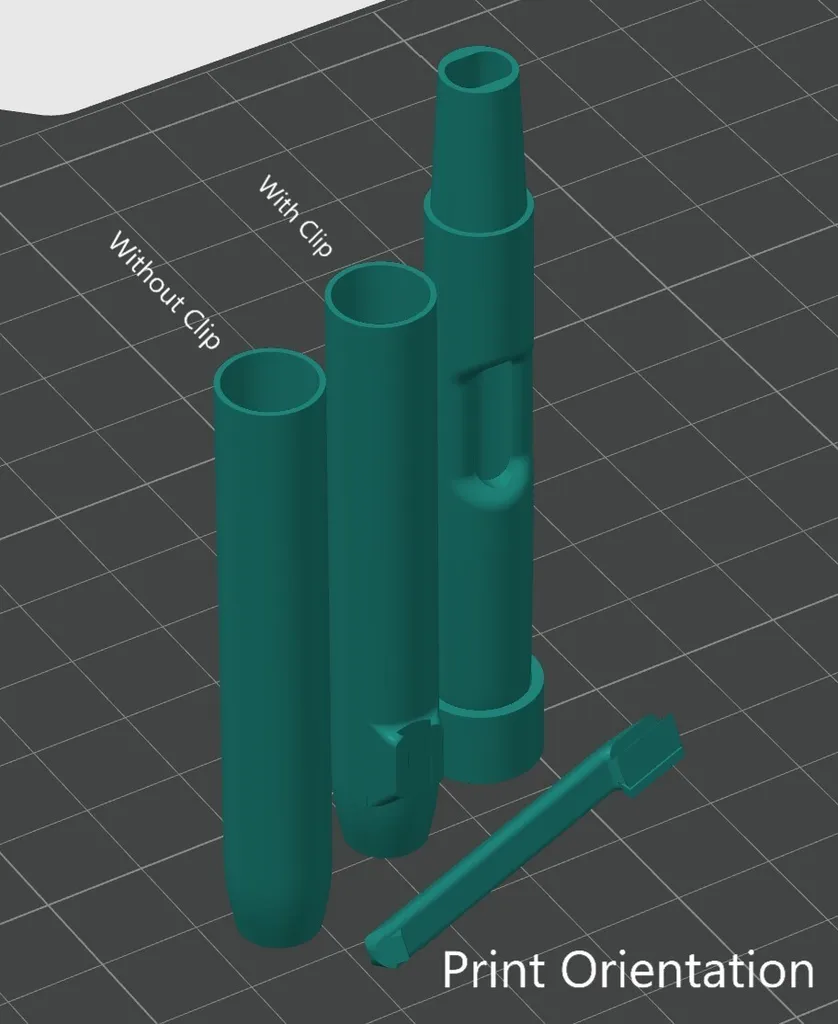

I've included two end caps in the .3MF Files, one with a clip and one without. Choose to your liking.

I've tested the fitment with Note 20, S22 Ultra, and S24 Ultra Spens.

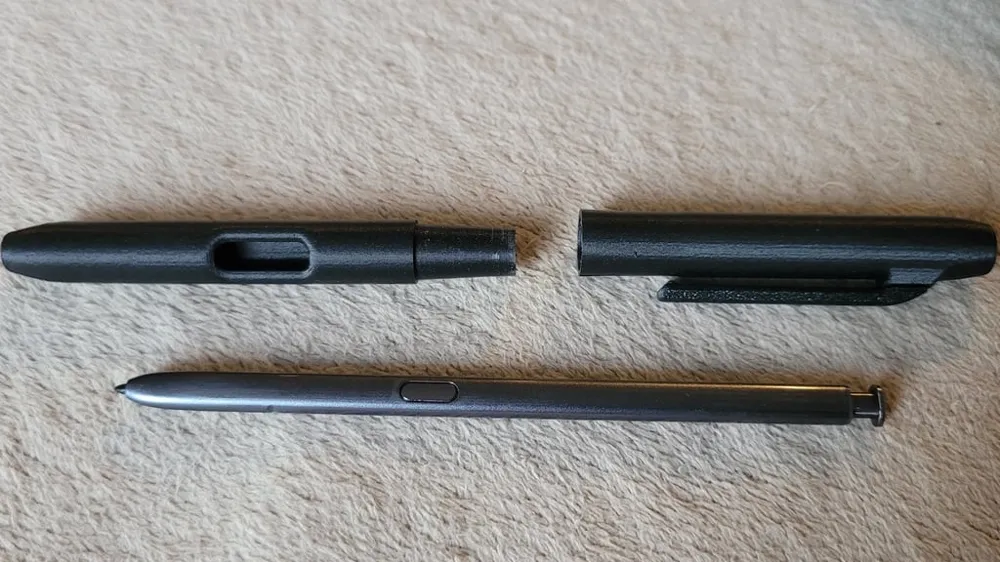

The taper holds the two halves together, simply twist and pull to separate. Just be careful when handling the sleeve without the Spen inside, due to layer line orientation it may be prone to breaking without the Spen adding rigidity and support.
The clip is printed separately, and has a dove tail with a nice friction fit. Just break off the small custom support and carefully slide it in.

If you're happy with the design, and had a successful print, AND you're feeling generous, you can reach over to my PayPal tip jar down below:

http://paypal.me/bombastic3D

Appreciate those that do! Thanks

Print Settings

Printer Brand:

Bambulabs

Printer:

Bambu P1S

Rafts:

No

Supports:

No

Resolution:

.16

Notes:

Designed around PLA settings, can attempt with PETG.

.4mm nozzle diameter
.16 mm layer height
230C nozzle temp
No supports or brims needed

Printed on Bambu P1P
