HSW Modular small parts Organizer

Hello :)

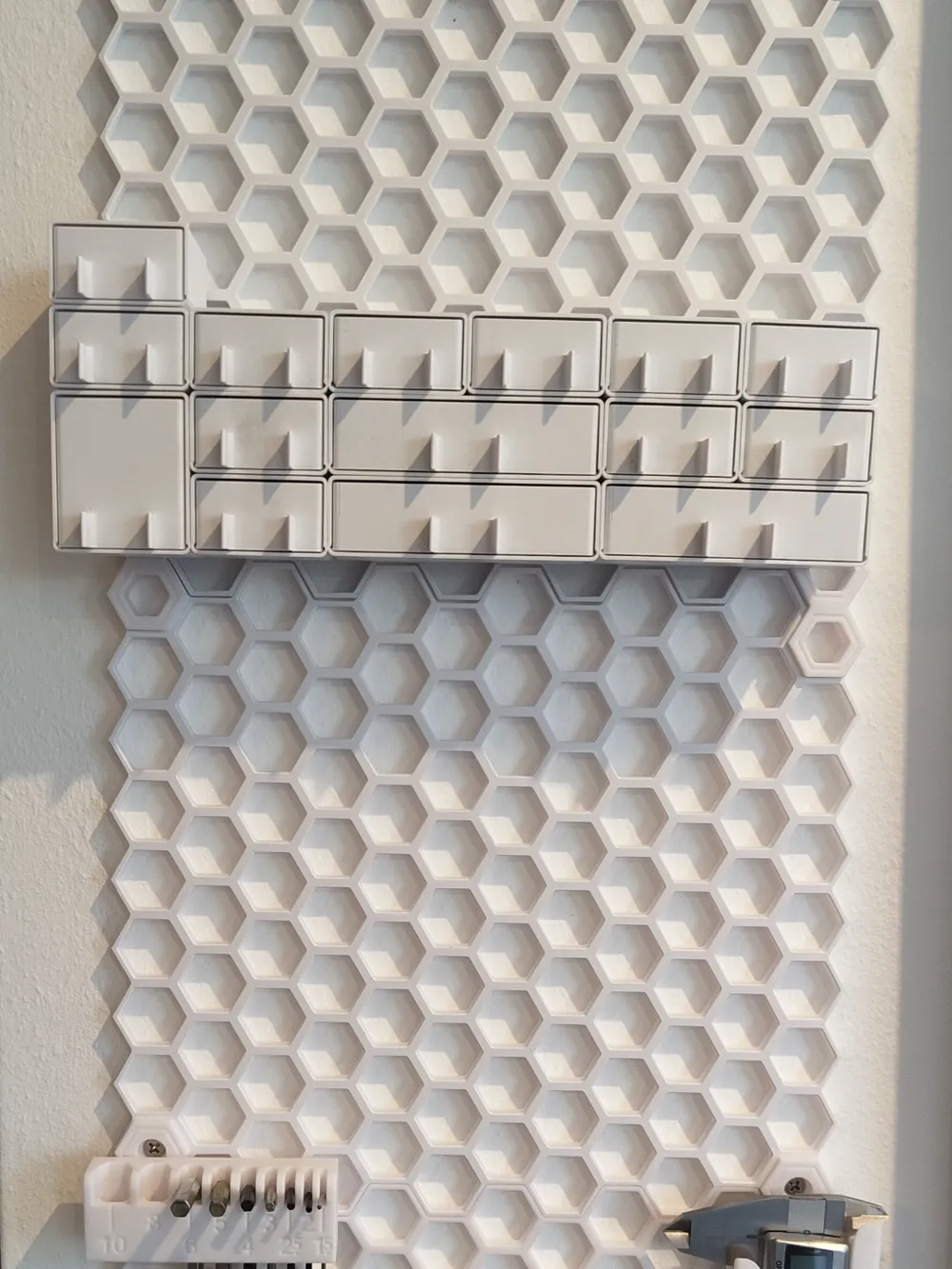

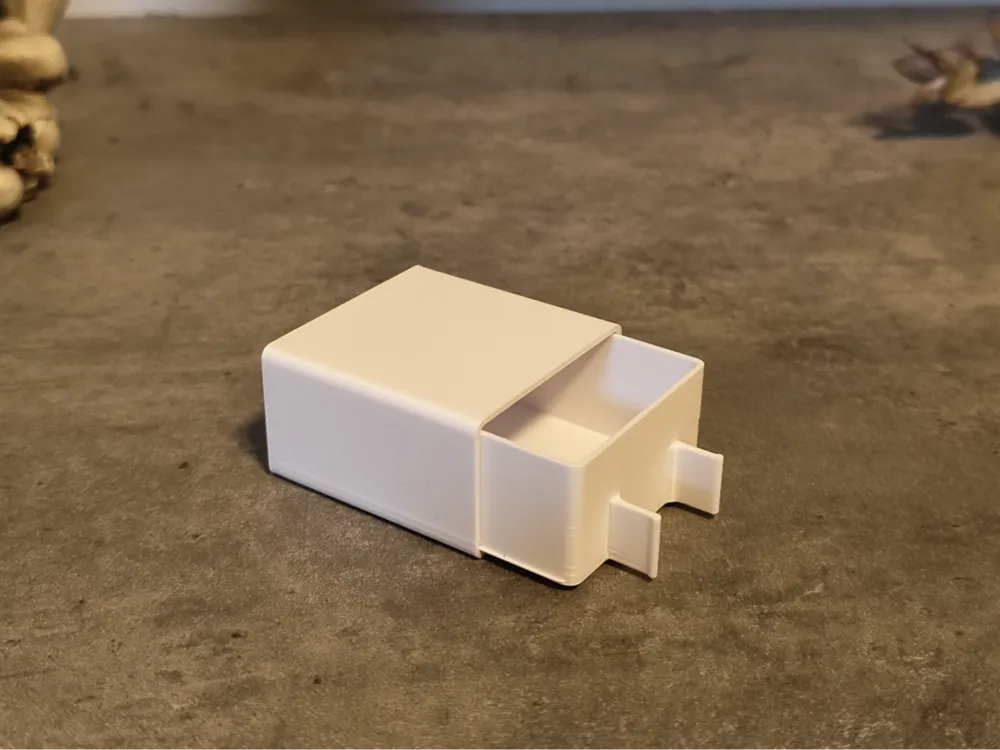

So I wanted some organisation for all my small parts I got laying in a box, but also wanted something modular. I liked the HSW for my tools already, so I designed a storage system for my small parts that I can put on my HSW. The system is like a mini drawer in currently 4 different sizes. There are:

• 1Wx1H
• 1Wx2H
• 2Wx1H
• 2Wx2H

Depending on what you want to store in them, I would recommand to glue the HSW Mount Adapter to the box container. The assambly is a bit finicky and the hole is a tight press fit, but if your filament and printer is well calibrated, it works perfectly :)

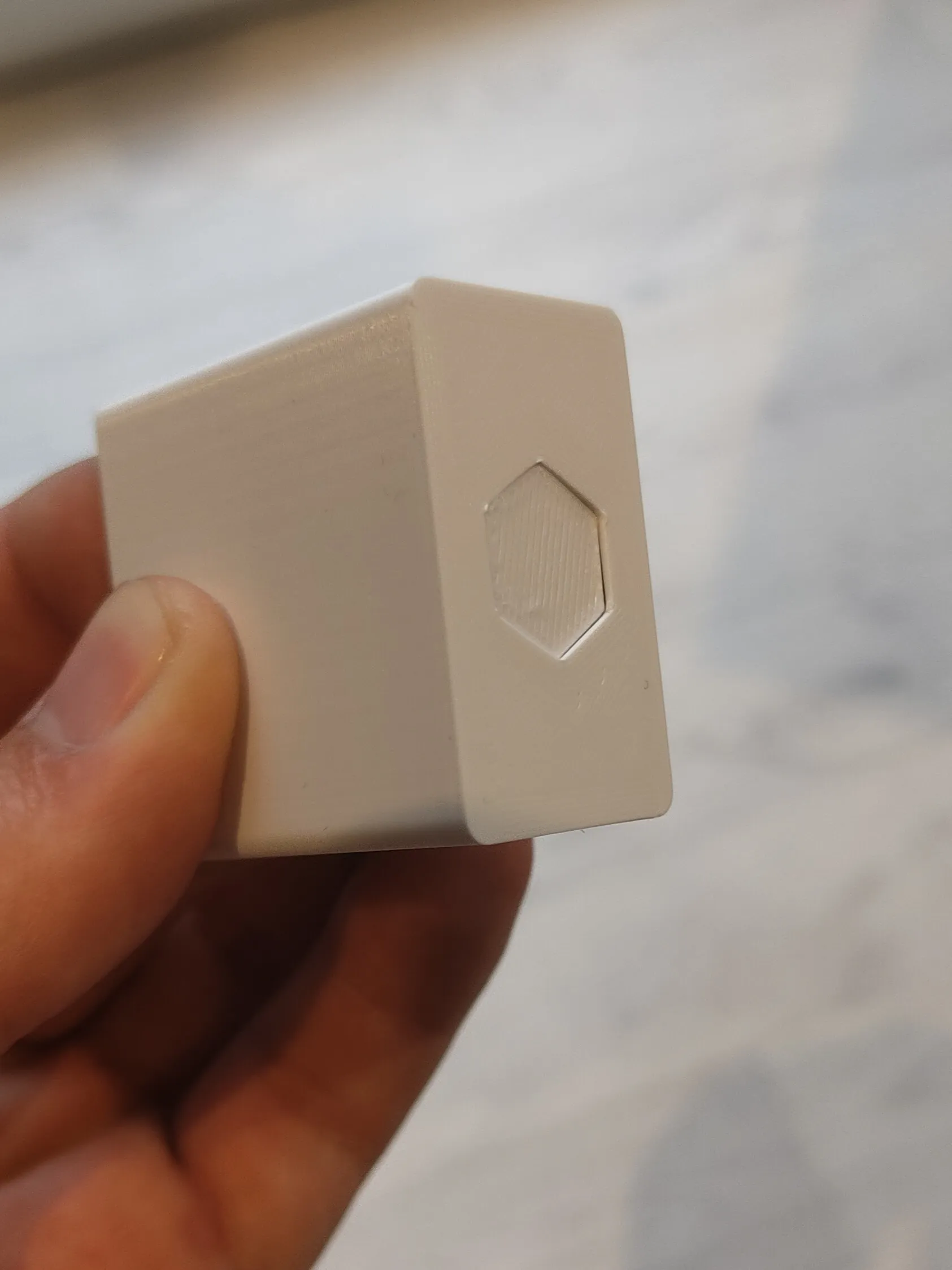

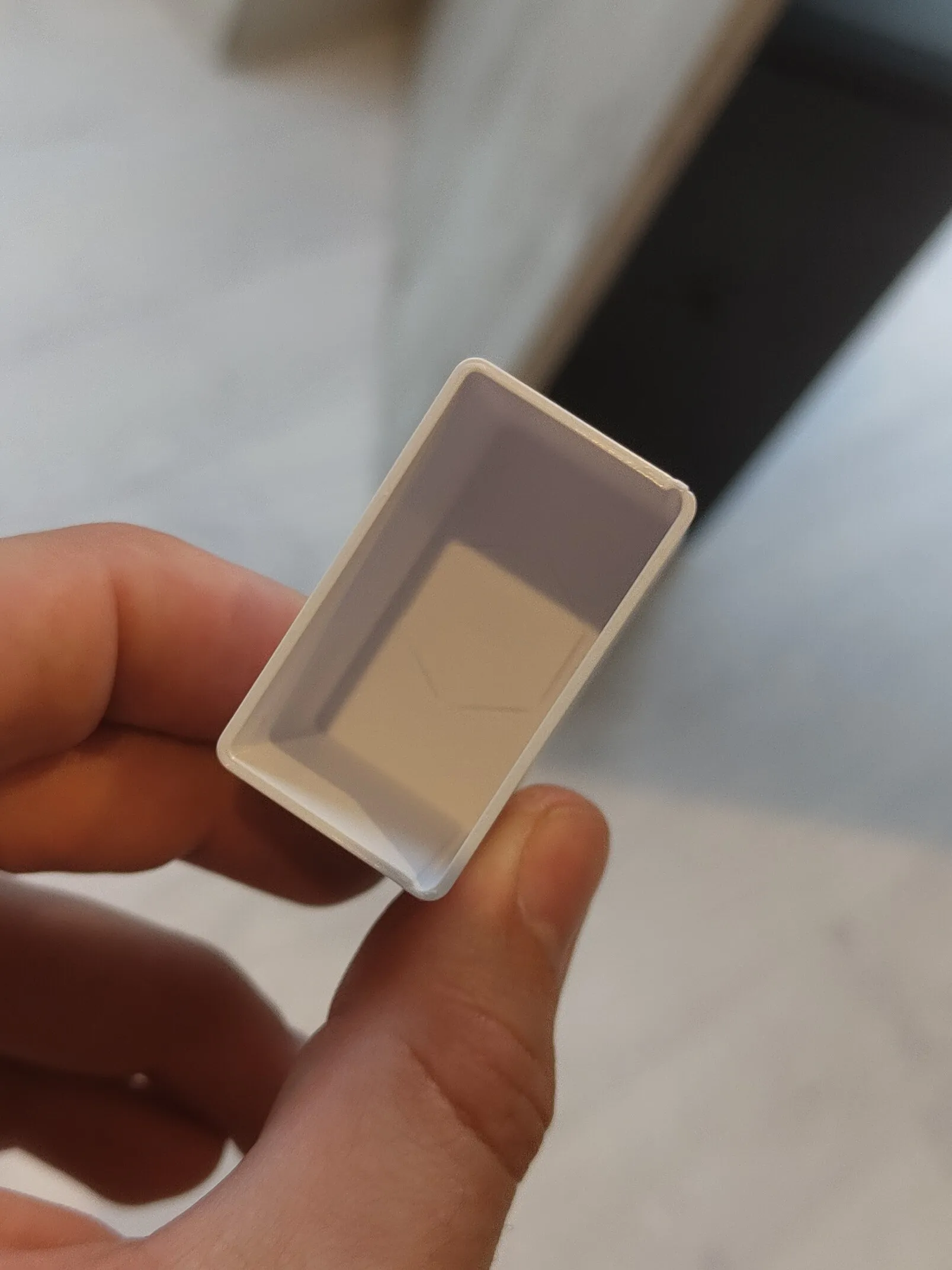

Step 1: pressing the connector through the hole, so that it is flush from the inside

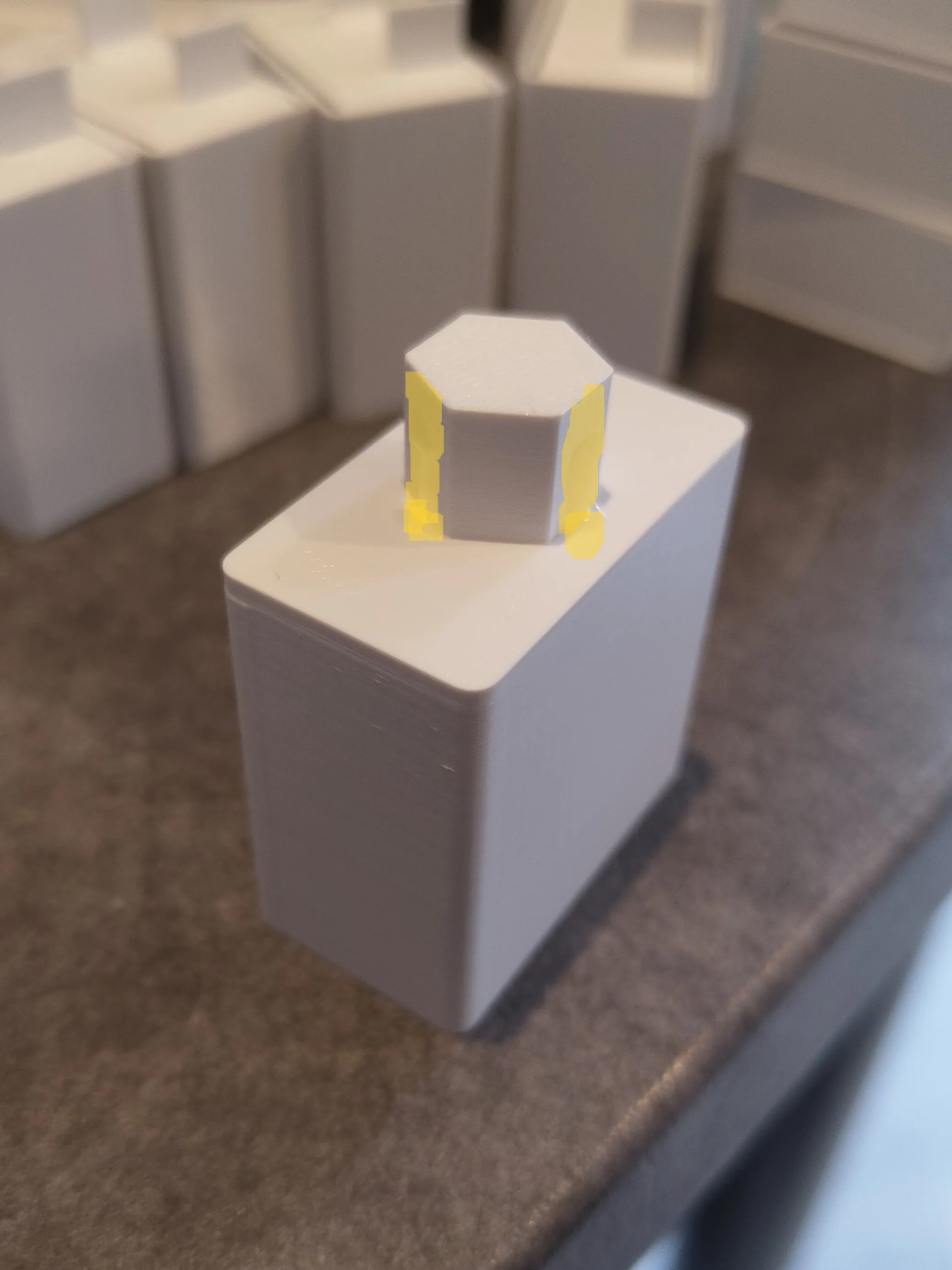

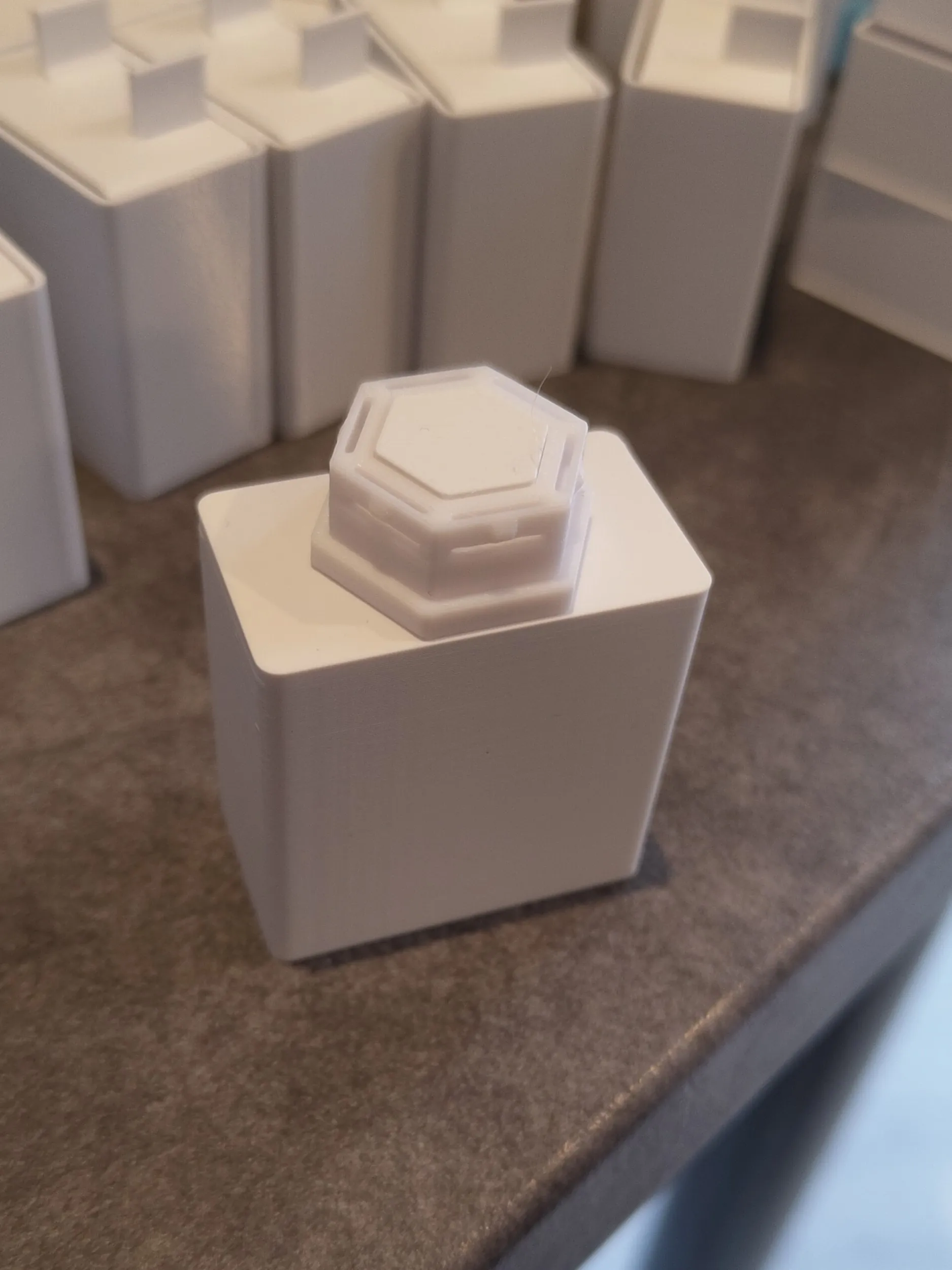

Step 2: apply glue on at least every second face of the hexagon and a bit on the corners of the container and then put on the HSW mount

I also would recomand to use another HSW adapter on the lower half of the 2x2 and 1x2 drawer container, so it won't tilt down!

There is also an optional lid for both sizes (1W and 2W) that you can just pressfit to close.

You don't have to print the provided plates, you can mix and match as you like :) These are just orgenized print plates by size with all parts need.

Printed all of them with eSUN PLA+ in default 0.2mm Settings.

Happy printing!
