Camping chair anti-sink foot
IP Report
Print Profile(3)
STD组, 0.2mm layer, 2 walls, 15% infill
Designer
10.9 h
7 plates
XL组, 0.2mm layer, 2 walls, 15% infill
Designer
17.4 h
7 plates
XXL组, 0.2mm layer, 2 walls, 15% infill
Designer
38.9 h
10 plates
Open in Bambu Studio
Boost
228
785
43
15
511
337
Released
Description
Content has been automatically translated.
Introduction:

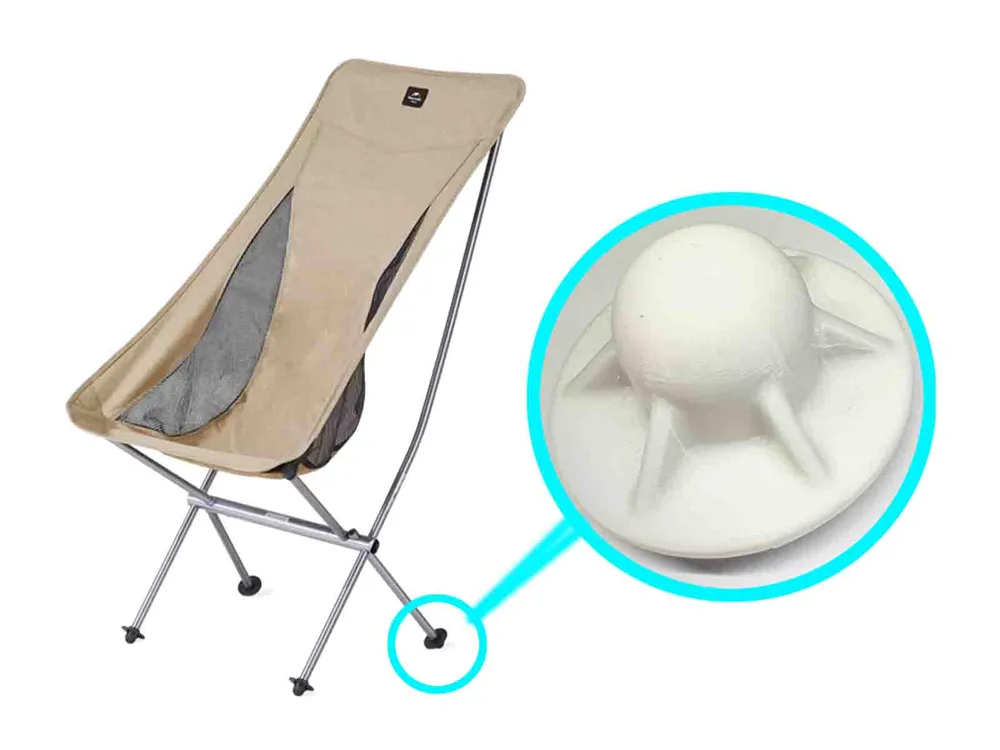

- These anti-sink feet for camping chairs are originally designed to replace the rubber feet of the NatureHike YL06 folding moon chair (select STD group 16mm)!
- Other diameter and larger plate versions are also available. Larger plates are less portable due to increased size, but offer superior anti-sink performance.
- STD group, compatible with tube diameters Φ10-Φ16 (1mm increments), plate diameter 45mm
- XL group, compatible with tube diameters Φ10-Φ16 (1mm increments), plate diameter 65mm
- XXL group, compatible with tube diameters Φ16-Φ25 (1mm increments), plate diameter 85mm
- The model's inner diameter is a beveled Φ+0.1~+0.3mm, maximizing compatibility with a wide range of tube diameter tolerances. However, if your tube diameter is slightly smaller, the feet might still be loose and fall off. In this case, please slightly reduce the model size using your slicer software
Updates:
- 20250529: Updated with 85mm diameter anti-sink plate
- 20241121: Added optional 65mm diameter large anti-sink plate (standard plate 45mm). More space-consuming and less portable, but offers superior anti-sink performance
- 20241007: Support for chairs with other tube diameters (Φ10mm to Φ16mm)
