Breville/Sage Barista Espresso Station 51/54/58mm
Print Profile(1)
Description
Boost Me (for free)
Please boost my model if you enjoy it. It's free and helps me out greatly!
Changelog:
V4.2:
By popular request, V4 of this design now includes stations and trays for 58mm espresso tools! If you are printing a 58mm station, please ensure you are printing the correct tray labeled L (58mm). The trays are slightly larger to accommodate the additional space needed for each station.

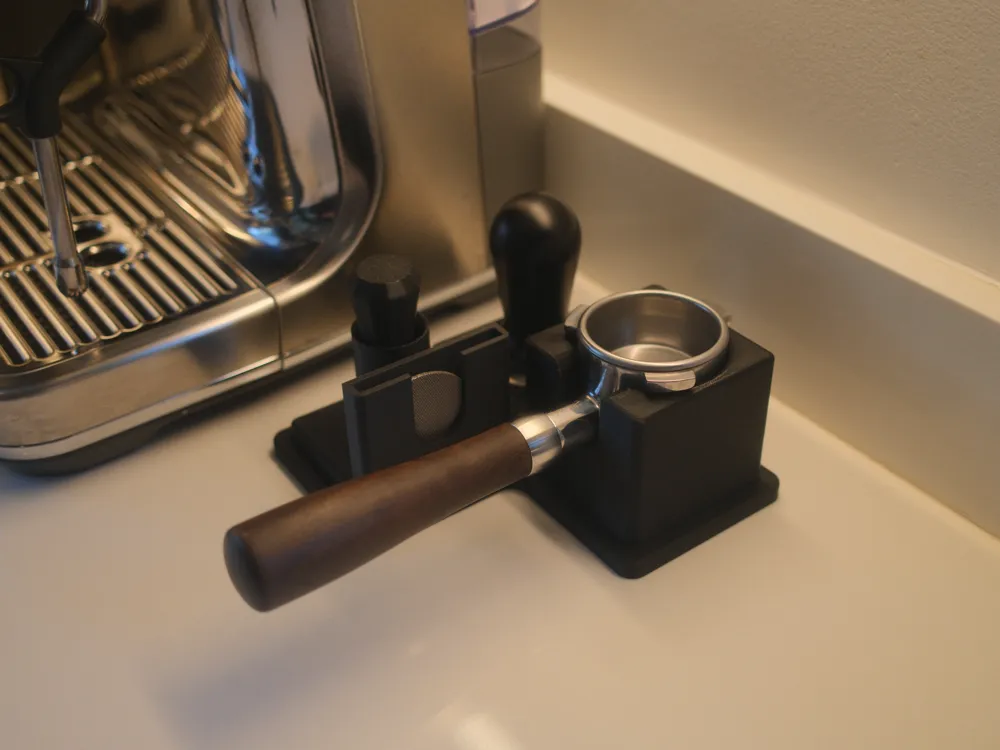

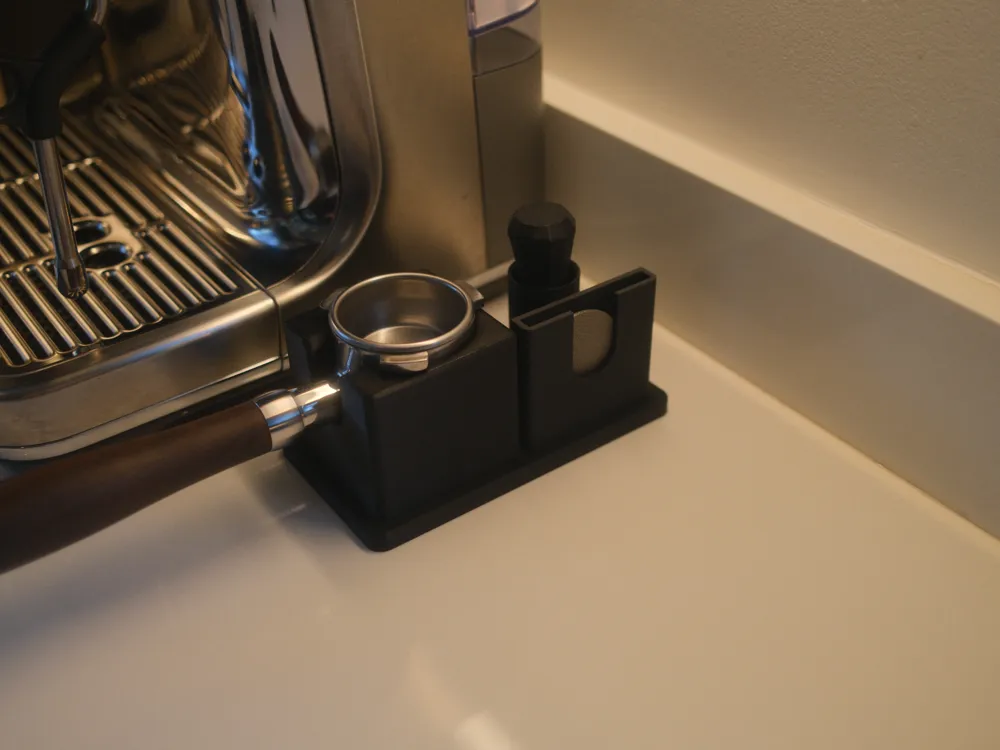

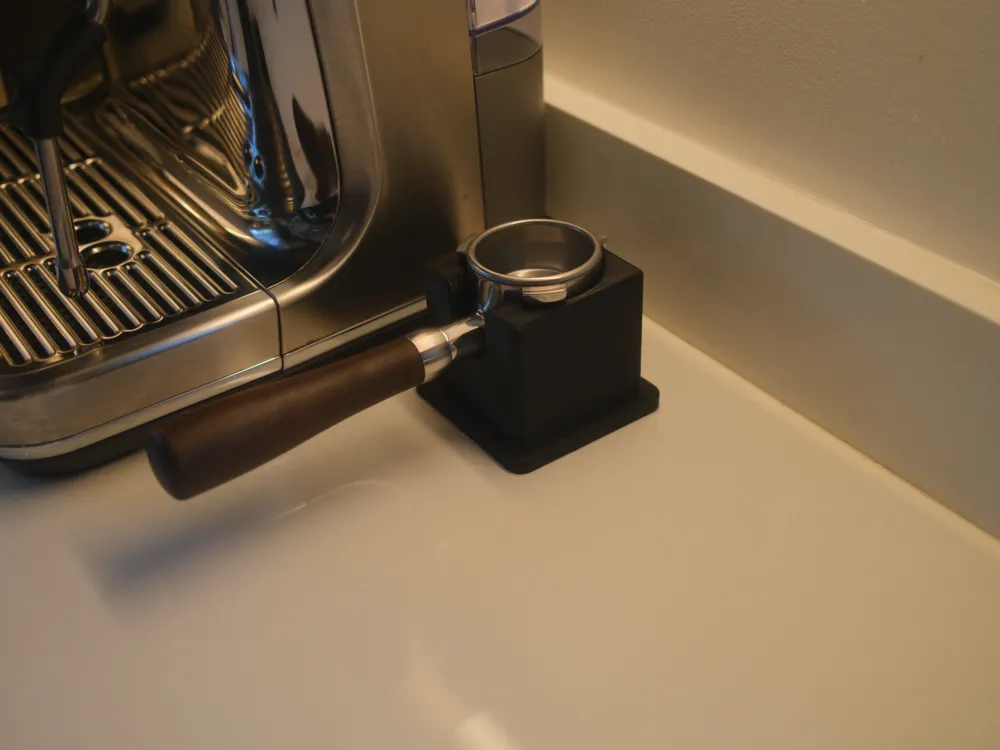

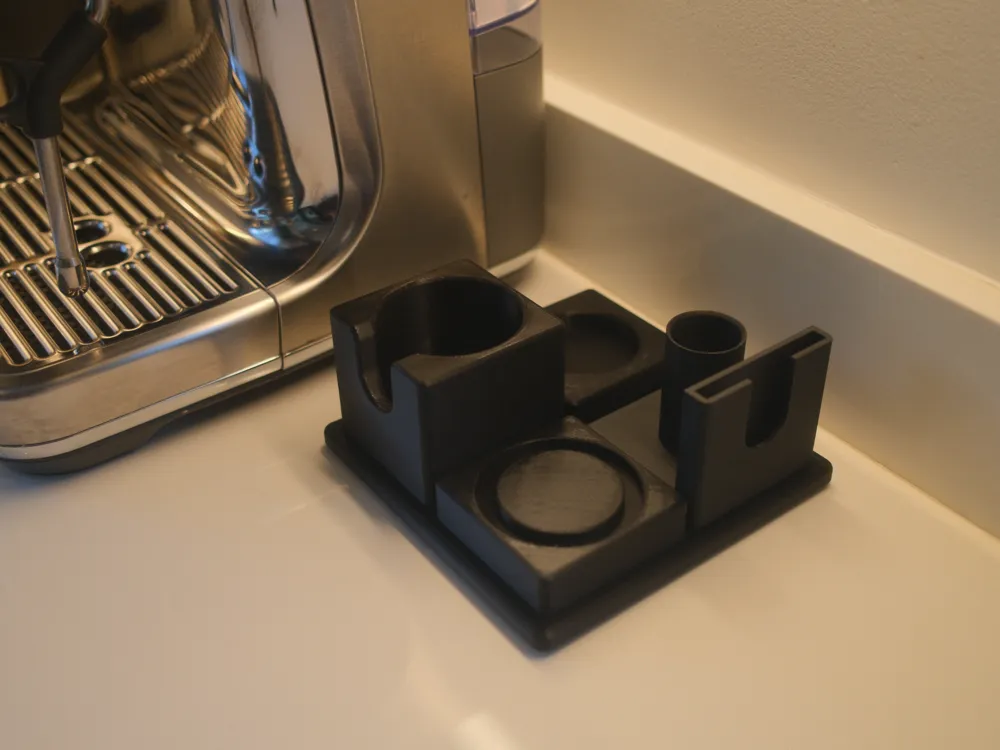

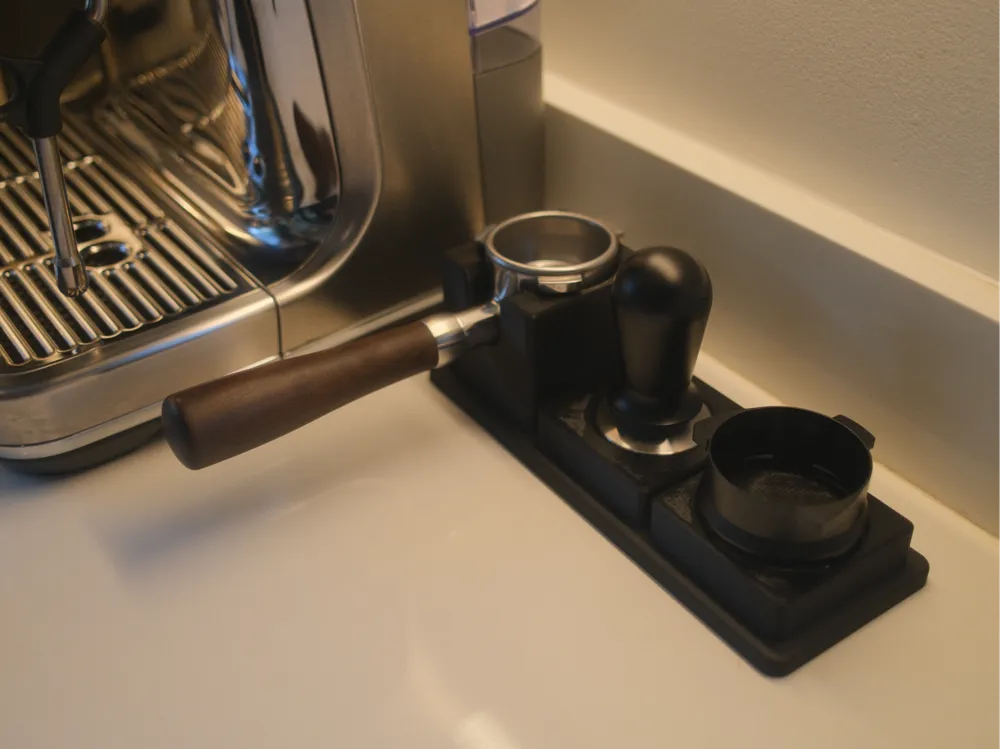

I created this model after needing a place to store all of my espresso gear. The design is fully modular and allows you to choose from different base stations with different layouts and numbers of slots. Each separate “Station” can be added to the bases with ease. Please leave comments / photos if you decide to print this out! I love seeing the print in action and am happy to make any adjustments that you may need!
Tray options:
- Single (M = 54mm or L = 58mm)
- Double (M = 54mm or L = 58mm)
- Triple (M = 54mm or L = 58mm)
- Triple L-Shaped (M = 54mm or L = 58mm)
- Quad (M = 54mm or L = 58mm)
Station options:
- Portafilter (54mm)
- Dosing funnel
- Tamper (53mm)
- WDT Tools + Brushes + Puck screen
- WDT Tool + Puck screen
- Dosing funnel + WDT tool
- Portafilter Extended (54mm)
- Normcore Tamper Cap Base (58.5mm)
- Portafilter (51mm)
- Funnel (51mm)
- Tamper (51mm)
- Portafilter (58mm)
- Funnel (58mm)
- Tamper (58mm)
- Accessories (58mm)
In order to print a full station, pick from one of the five tray designs, and then select the stations you would like to add to it.
Keep in mind, the 51/54mm stations use the M trays, while 58mm stations require that you print the L trays.
Recommended print settings:
Infill: Gyroid
Infill %: 15
Support: Enabled (Normal (auto))
Support on build plate only: On
