Tube clamp (print-in-place & parametric)

Remix Info:

This model is an use case of the original (hinge).

Summary:

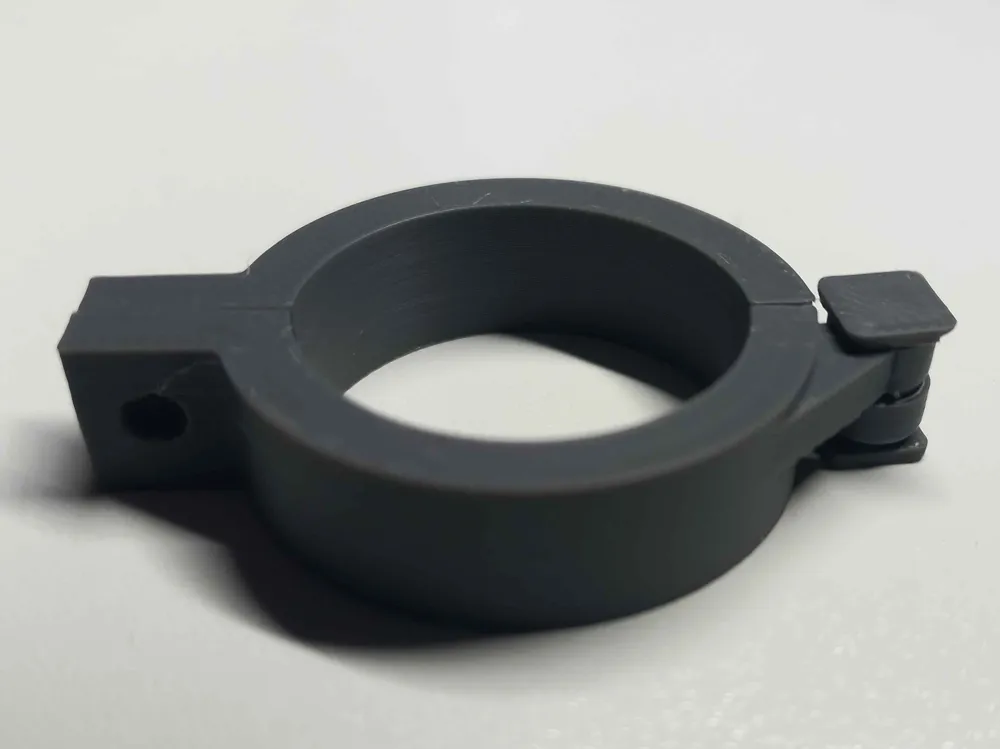

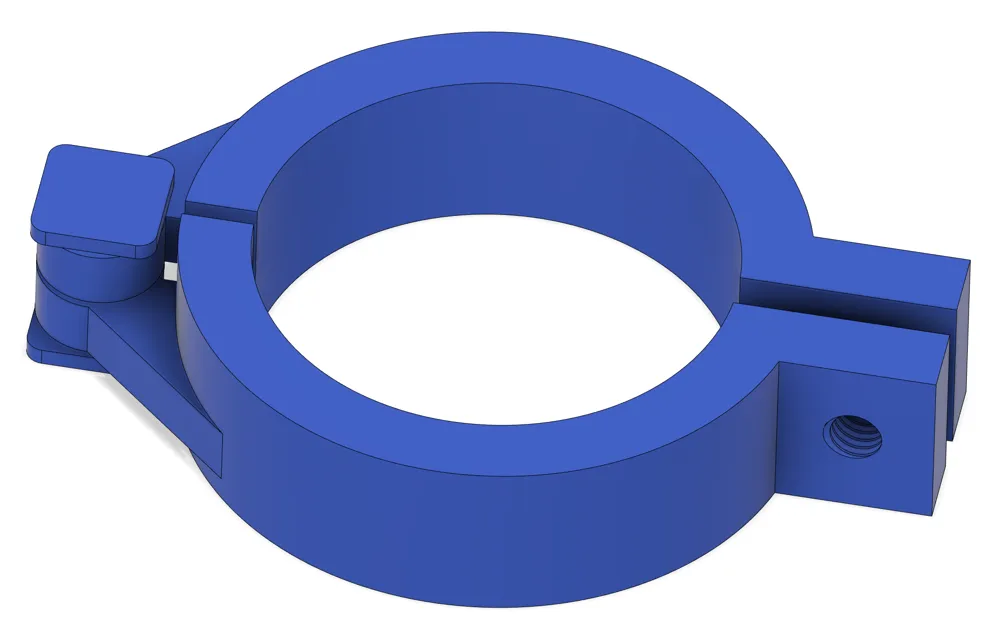

A base model of a clamp that locks around a tube and that is easy to install. Remix ready and parametric design.

Model Description:

On its own this model if of few uses, the idea is to use this model as a base to suit your tube clamping needs. This is made easy by the parametric design. Printing is easy as well since its print-in-place.

The clamp uses a screw for tightness, you can adjust its size but by default it is an M3.5 hole which in reality suits a M3 metal bolt due to material expansion.

 ---

Erratum (30/05/26): Fusion file fixes and improvements
