Headrest Cup Holder for 2021-2023 Ford Bronco
IP Report
Print Profile(2)
0.2mm layer, 2 walls, 20% infill
Designer
8.3 h
1 plate
0.24mm layer, 3 walls, 25% infill
Designer
3.1 h
1 plate
Open in Bambu Studio
Boost
360
991
51
13
526
178
Released
Description

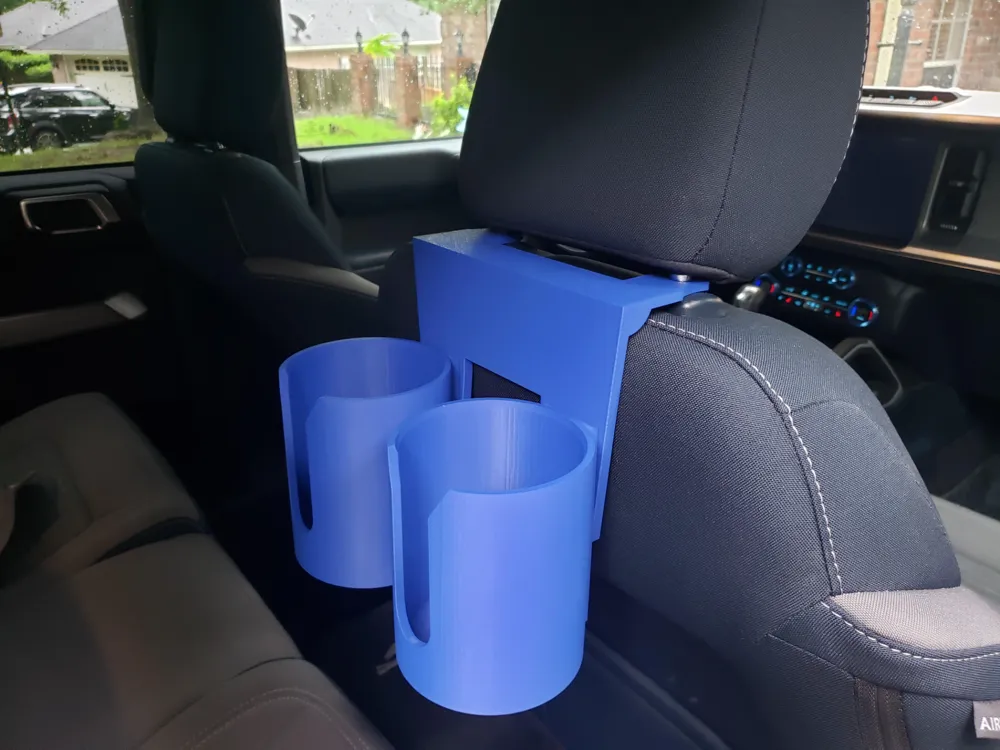

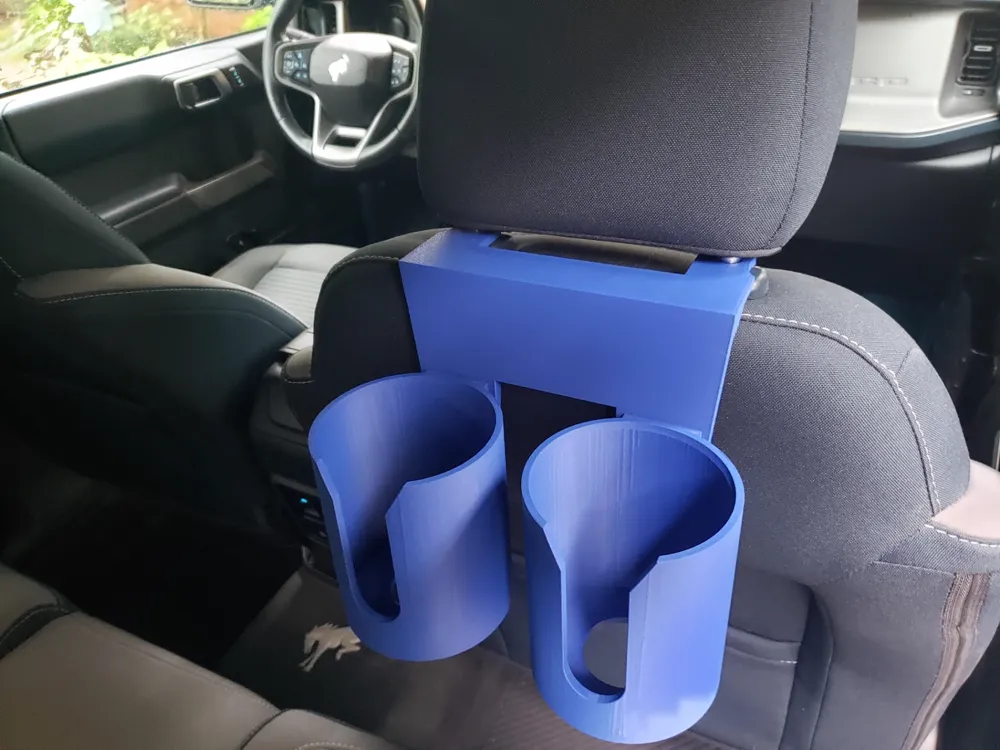

My new Bronco was lacking cup holders, so I made these. Remove the passenger headrest, and slide the cup holder on to the posts, and reattached the headrest. I made it to fit all my Yeti cups and similar cups. I printed mine out of PETG-CF and PLA-CF, and they work fine, but PLA is not recommended, as it is too soft and does not hold up well over time. The cups are printed at 101% scale, and the mount is printed at 100%. This will give a tight fit for the dovetail type joint, and also the spacing for the mount on the headrest will be perfect for your 2021-2023 Bronco. FYI, this is for the full-size Bronco, not the Bronco Sport. It might fit if the size between the posts is the same, but I am not sure if they are.
