robust bike bottle holder
Print Profile(3)
Description
New version available now!

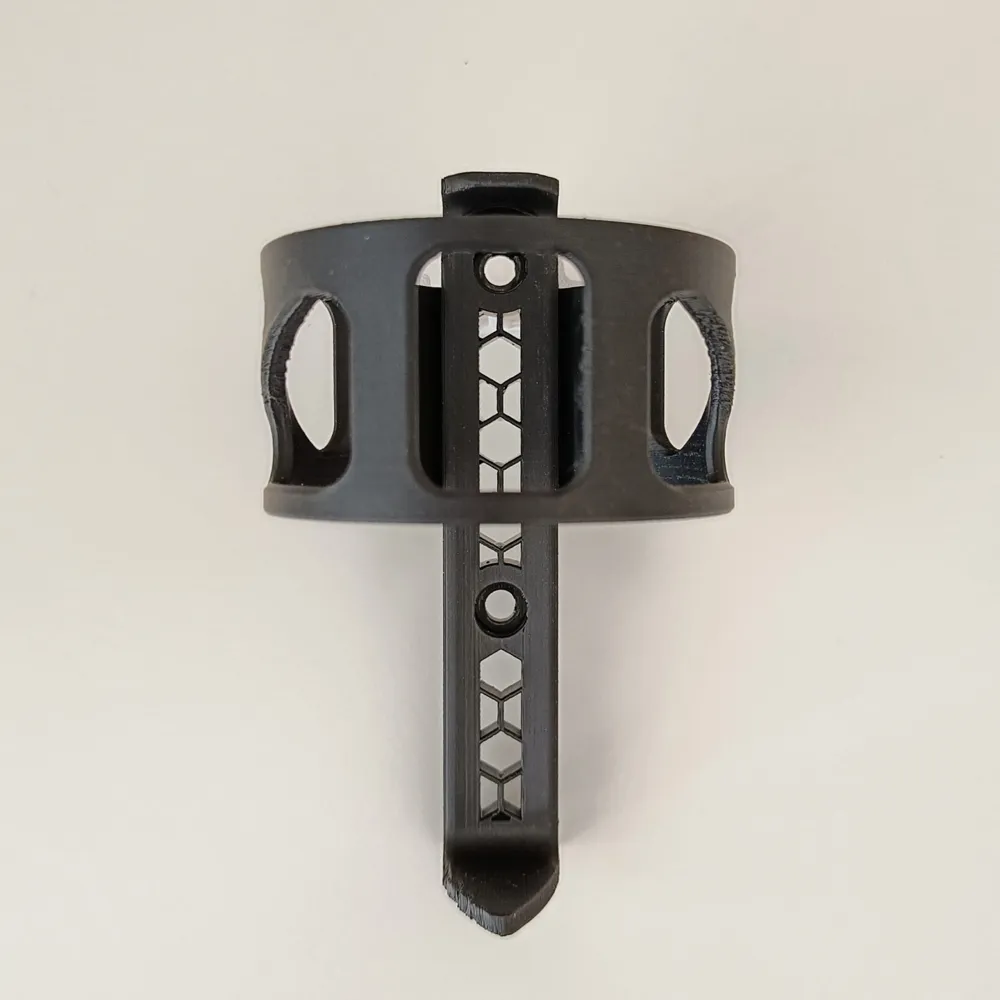

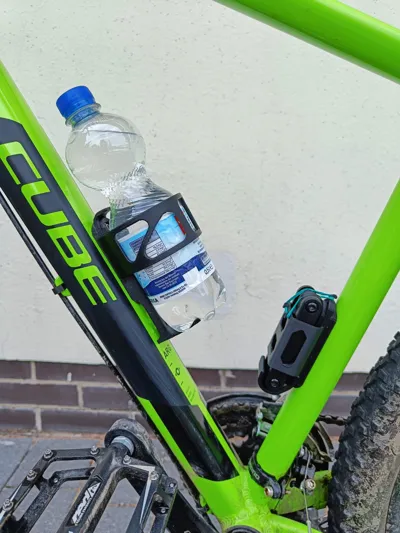

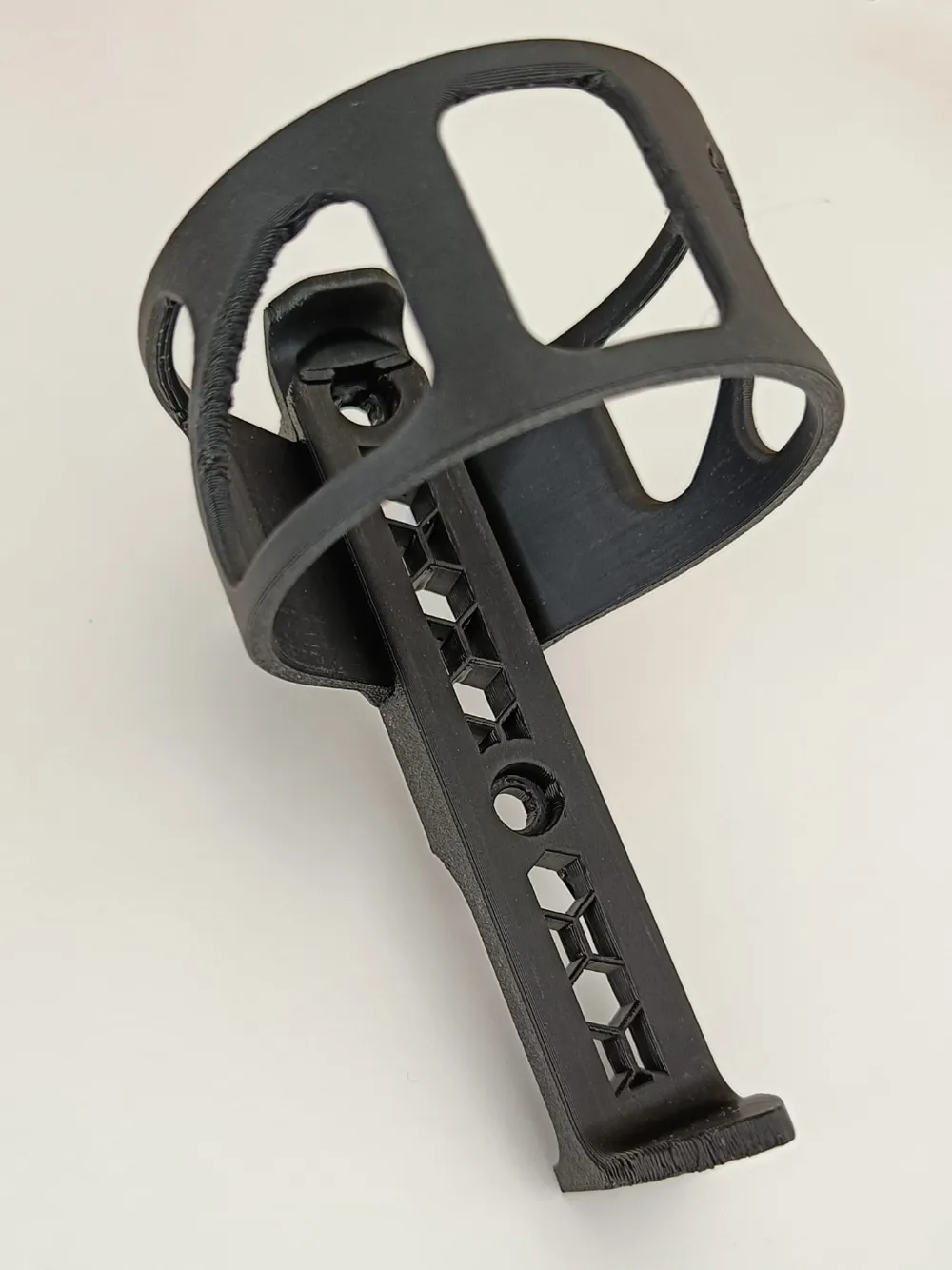

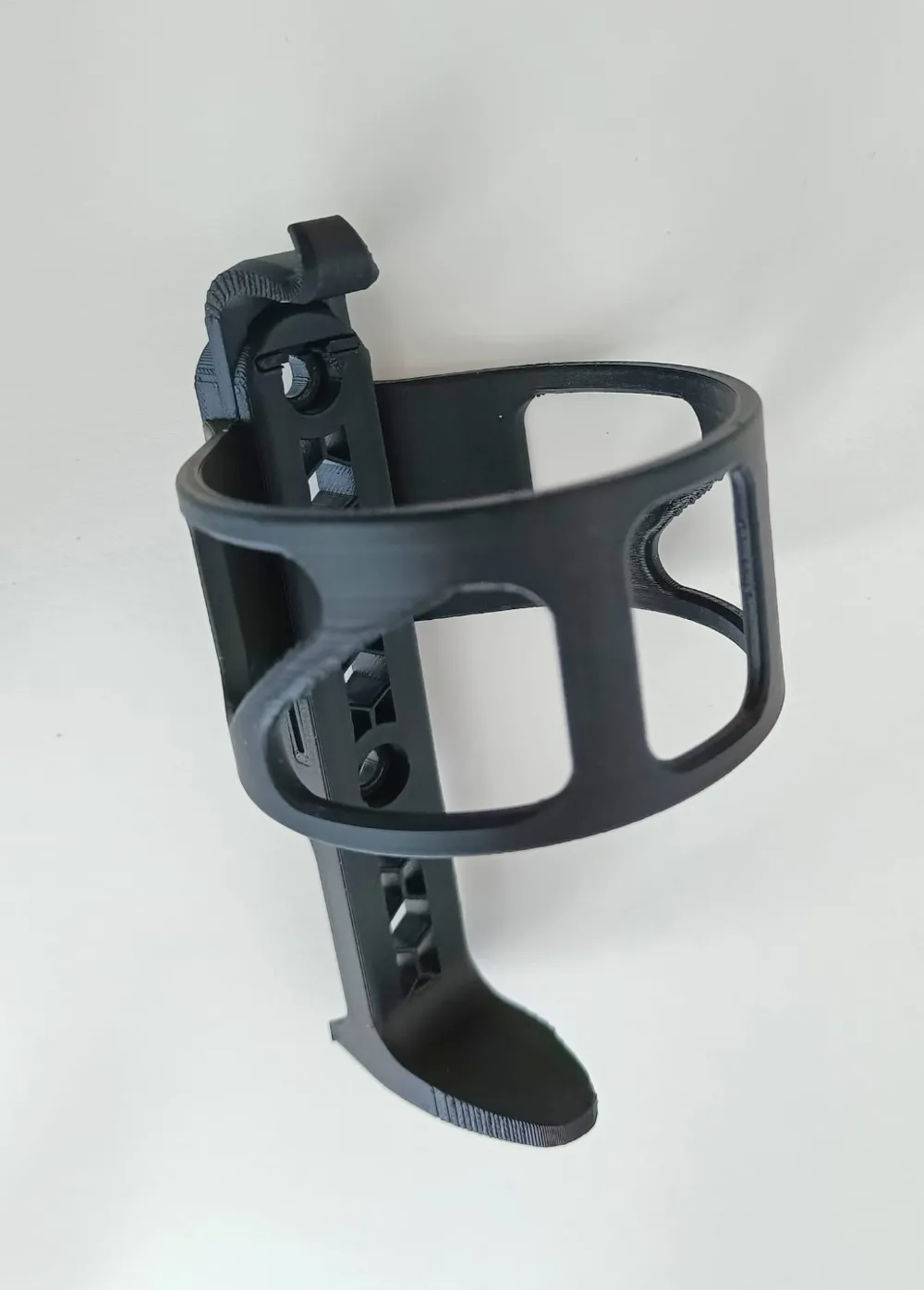

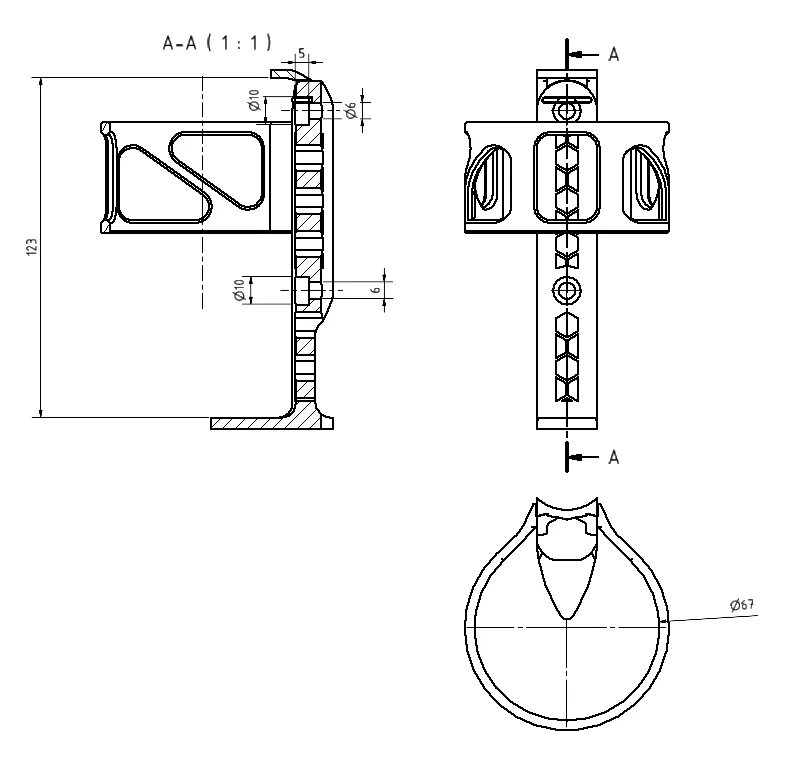

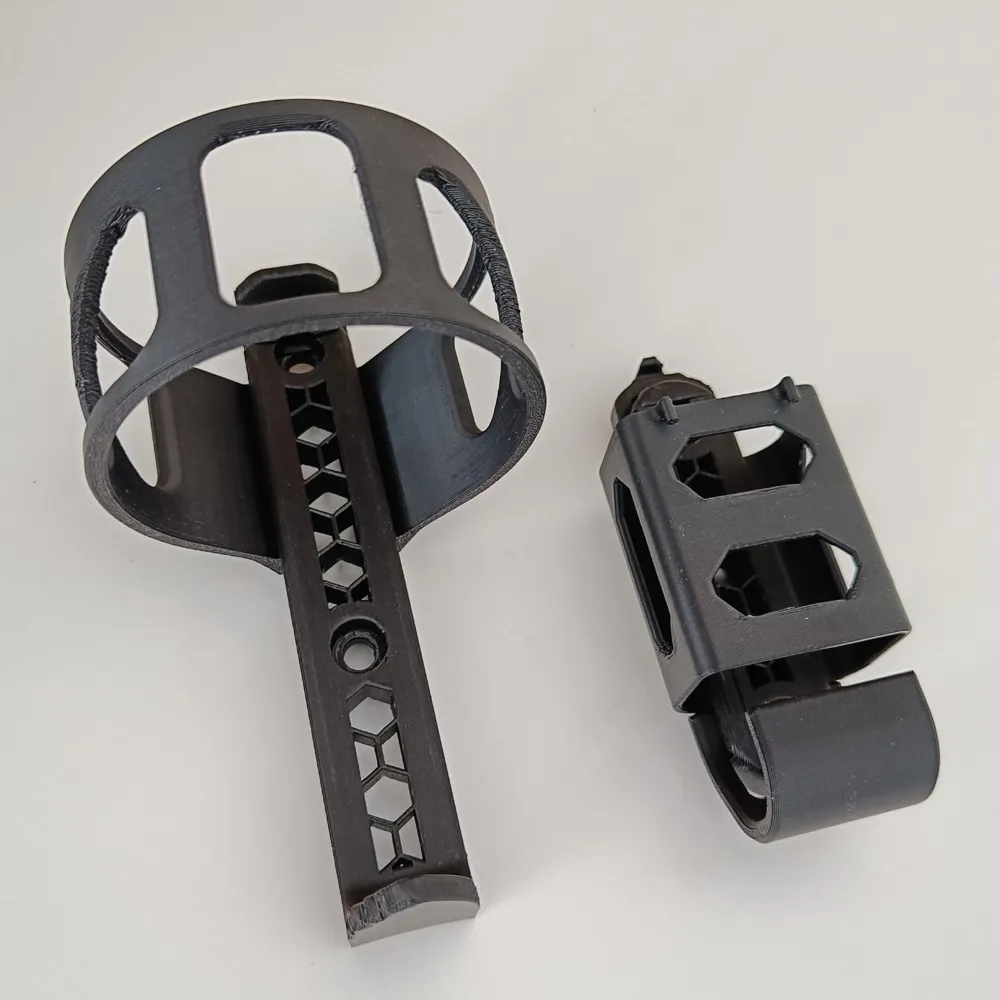

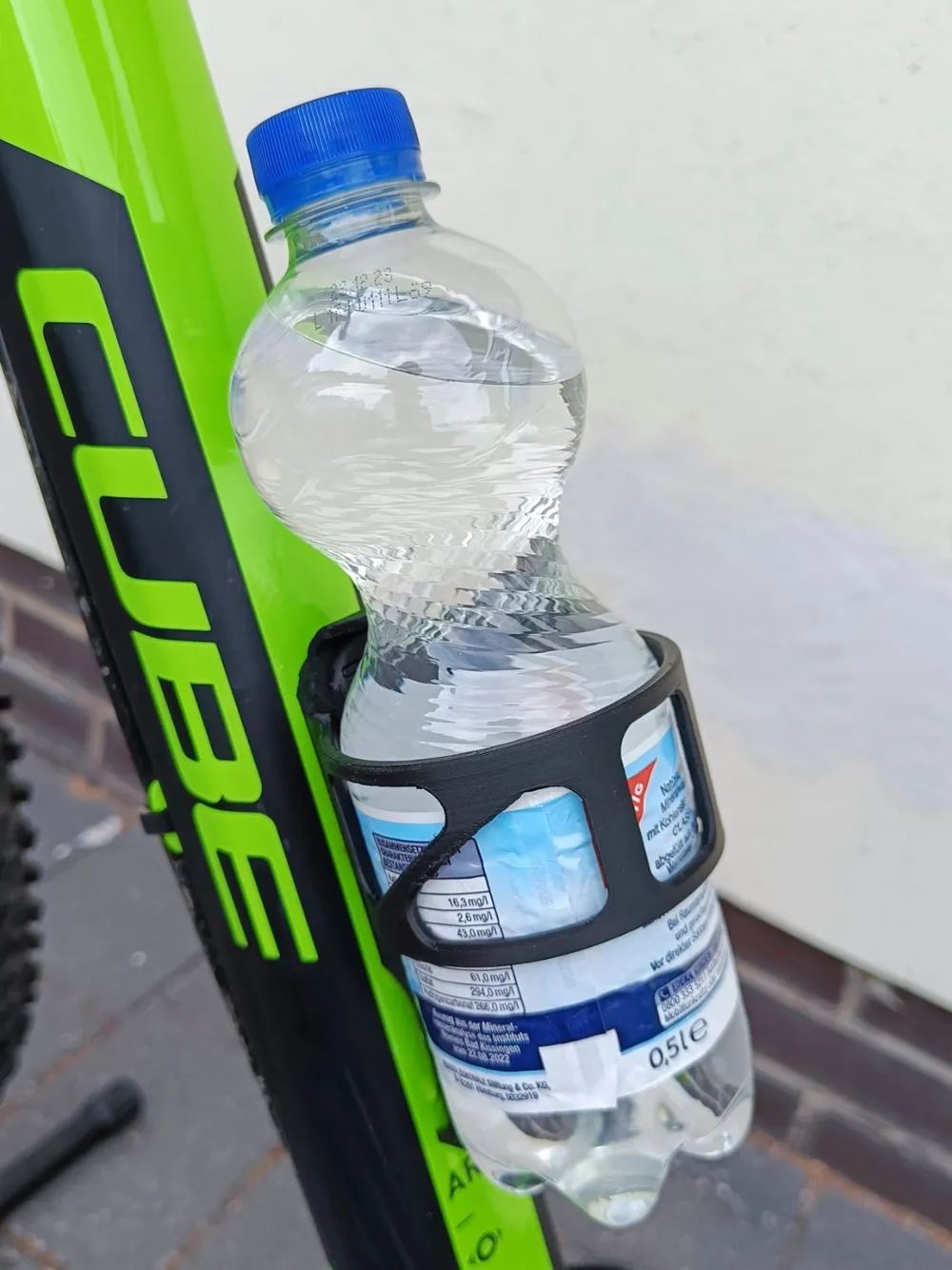

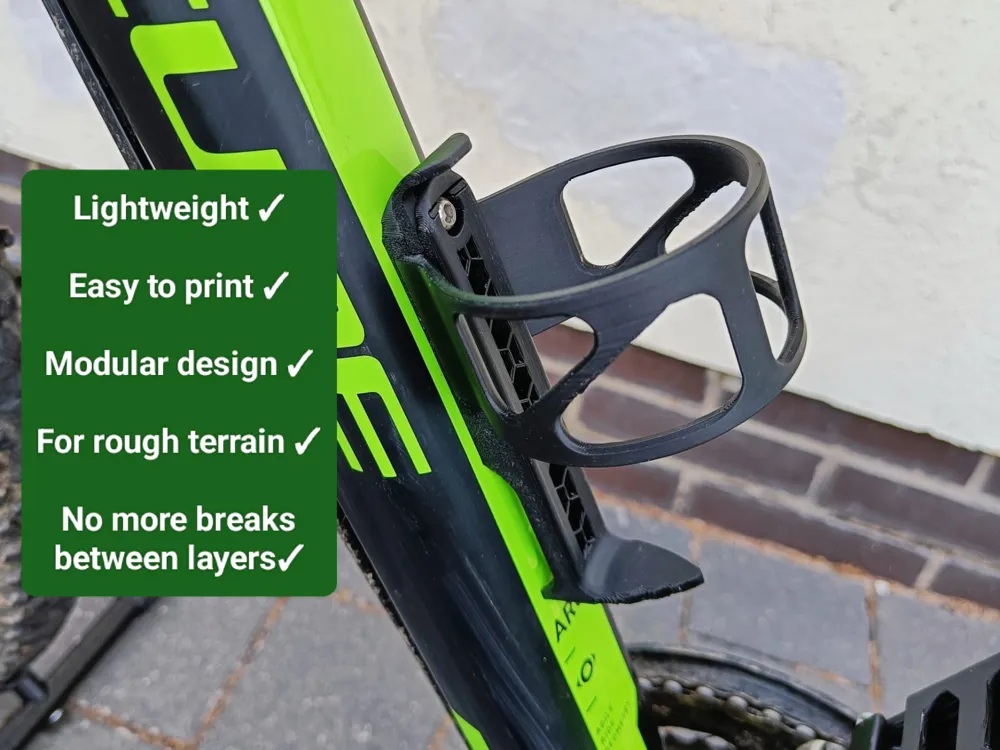

This bottle holder for 0.5 L disposable bottles combines the best features of flat and upright printed bottle holders by allowing all parts to be printed in optimal orientation. No more compromises between breaking at the base of the holder or at the ring! Thanks to the modular design with the rail, all parts can not only be printed individually, but it is also possible to print the individual parts in different materials, colors, or variants. The screwed mounting is suitable for both mounting points on the bicycle. Connection dimensions can be taken from the pictures. (holes are 65 mm apart)
It is recommended to print the bottle holder from ABS/ASA or PETG, as these materials have the necessary toughness for rough trails.

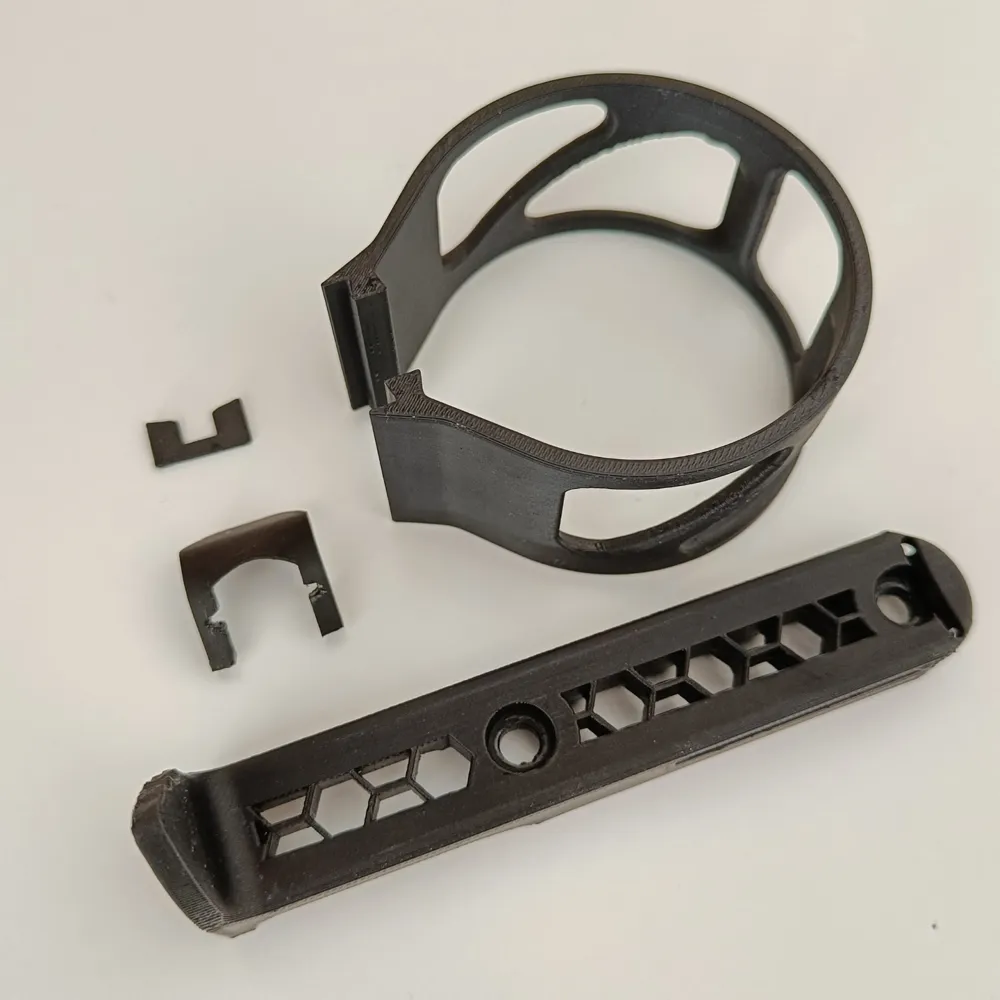

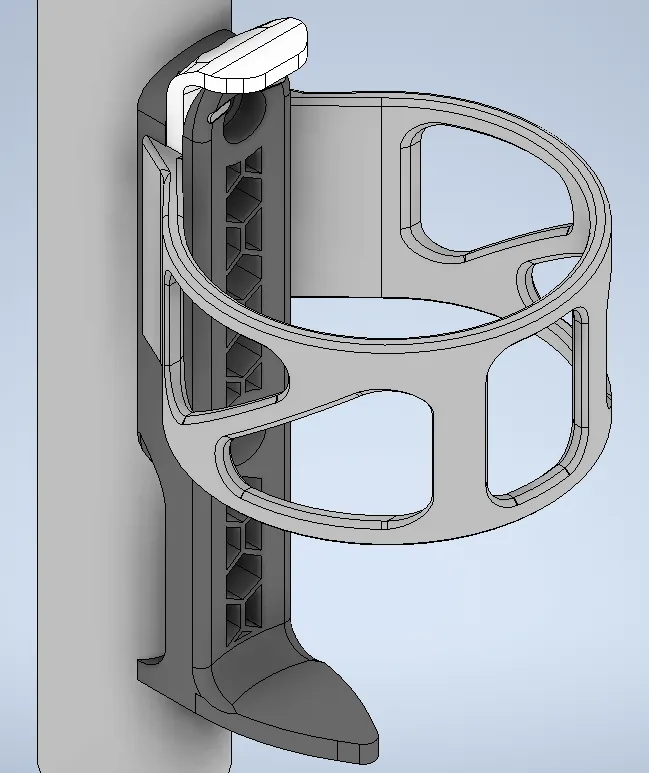

For mounting the holder, slide the ring and then the hook onto the rail. Finally, the pin is pushed into the groove in the correct orientation. This secures all components and is held in place by the screw on the frame.
I look forward to feedback and new ideas.
If you are interested in the base holder or dimensions of the rail, I can publish them as well.
