THRUSTMASTER T300 / T300RS F1 V1 MM STEERING WHEEL
Print Profile(1)
Description

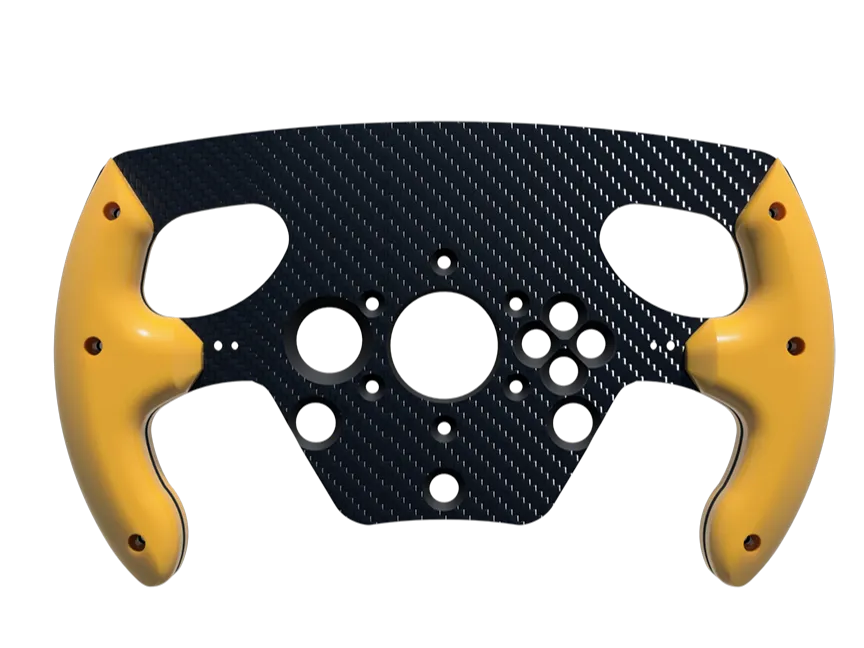

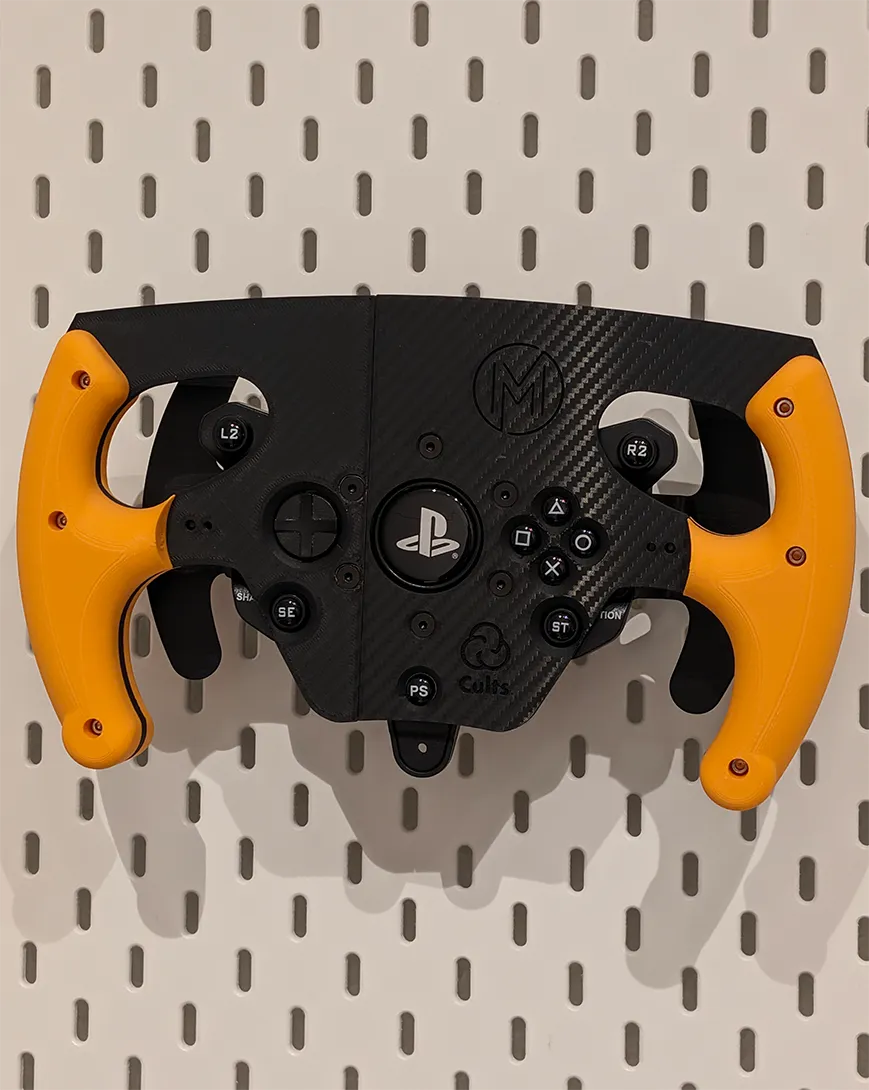

3D Model Description: F1 Style
Number of 3D Parts: 6 parts
Dimensions of the Parts:
Left Front Plate: 156.51 x 158.29 x 5 mm
Right Front Plate: 156.48 x 158.35 x 5 mm
Top Handles Left and Right: 53.09-.1 x 143.09 x 15 mm
Bottom Handles Left and Right: 53.09-.1 x 143.09 x 15 mm
Special Features:
Base plates are 1 to 1 compatible with original screws
Handles require 6 x M3 nuts and 6 x M3x18 mm screws
Tool: M3 Allen key for handles
Printability: Tested and passed!
Material:
Base Plates: Bambu Lab PLA Matte Charcoal
Handles: Bambu Lab PLA Matte Mandarin Orange
Recommendation: If unsure about PLA, print in PETG.
abs can lead to problems, so use at your own risk. apparently the brandings are a problem for abs, but these are necessary so that the design is not stolen. even if there is a license on it, as far as distributing, editing or redistributing, it is not adhered to.
