Independently Spinnable Stack Shelf for Liquids
Print Profile(2)
Bill of Materials
- 1 for base and an additional one for each extra level. You can also use a 3D-printed 608zz bearing. x 1:
Description
A simple Étagère-style stackable organizer / shelf for Vape Liquids or anyting with a diameter of <22mm and a height lower than ~9cm.

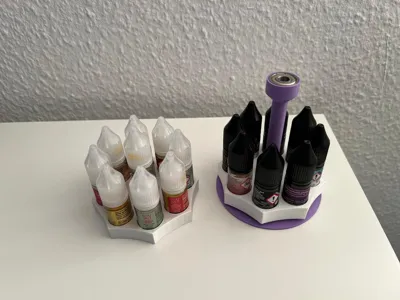

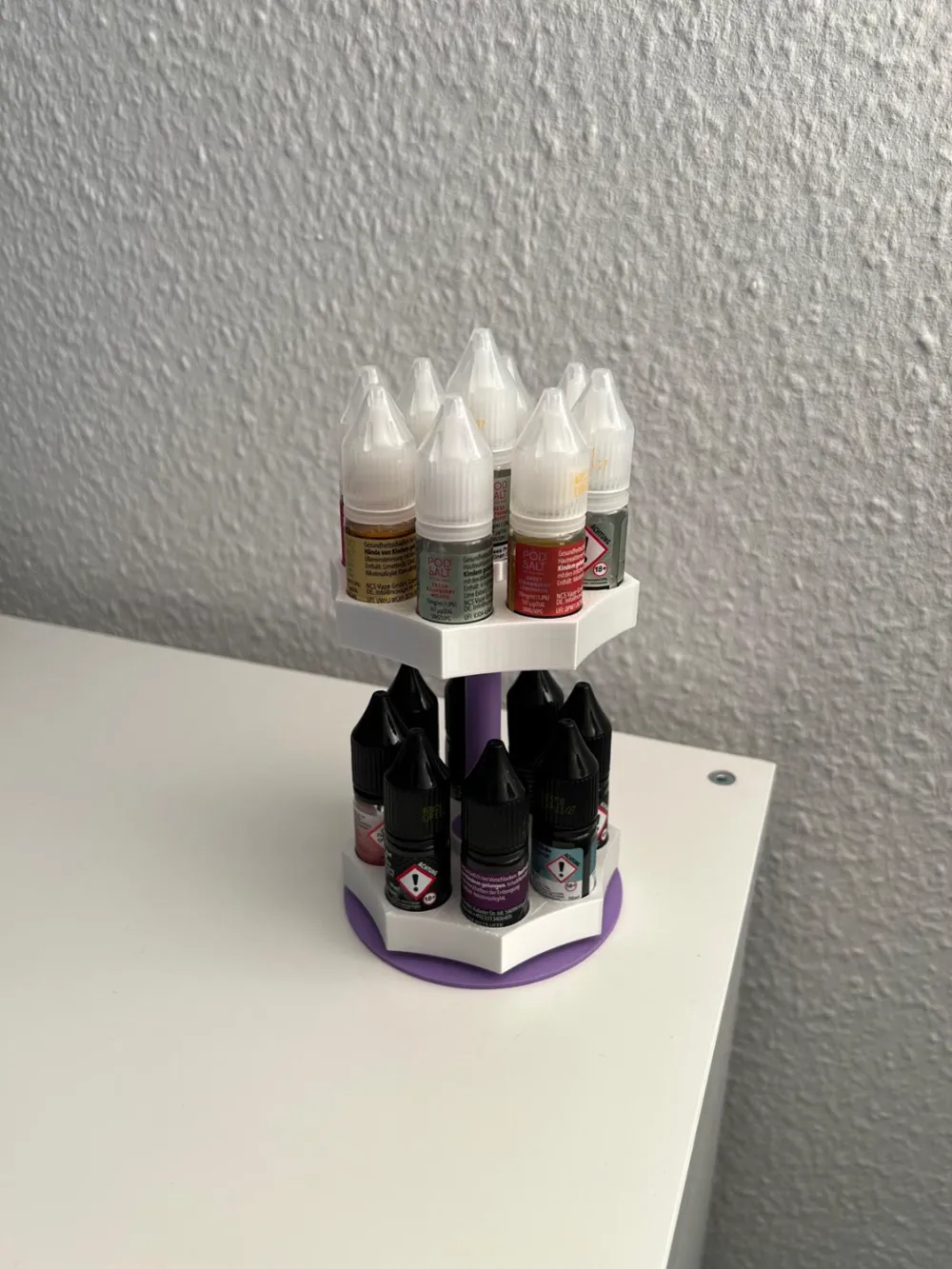

The base plate with one tray holds 9 bottles, which can be increased to 17 by adding another one on top with a rod and another bearing.

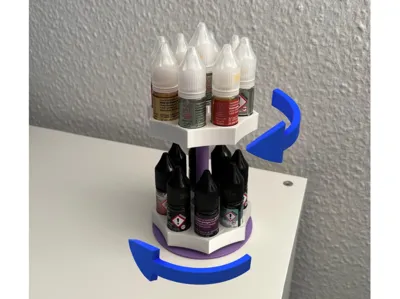

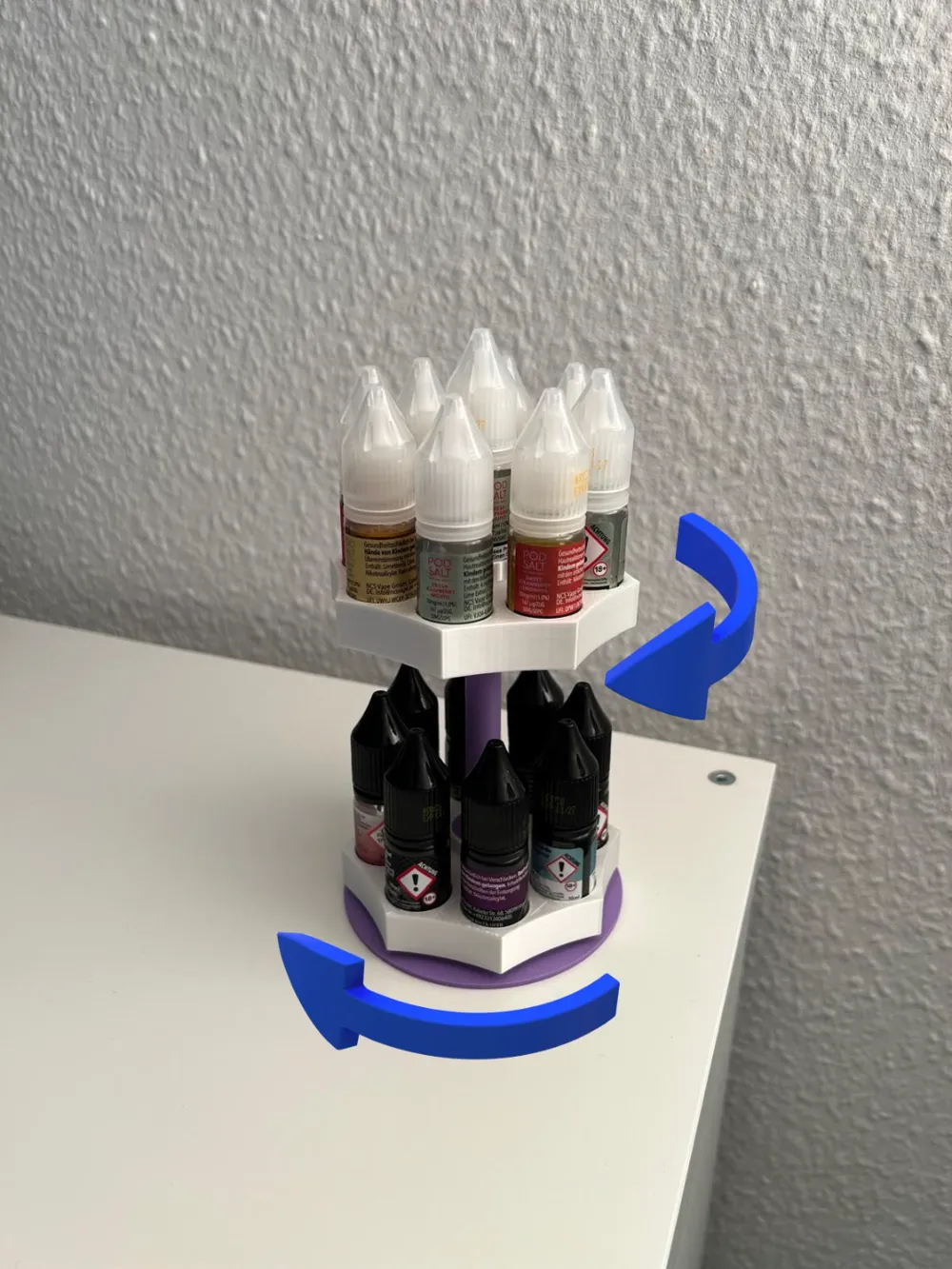

The layers can be turned freely and independendly from eachother.
You can also omit the base plate and bottom bearing to have only the top level spin.

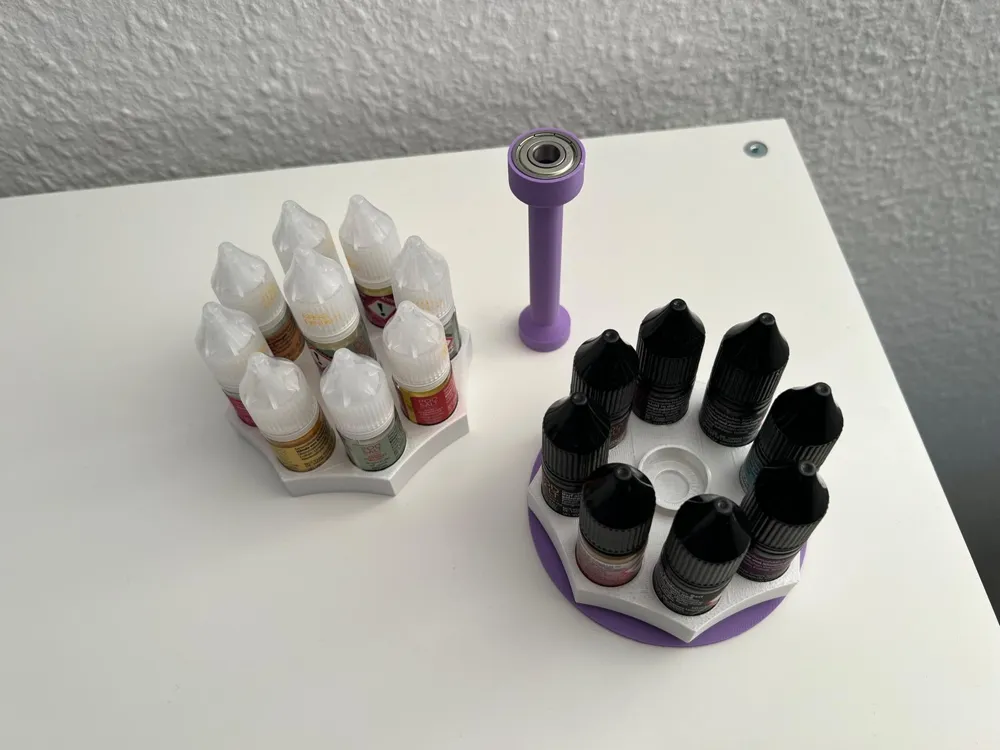

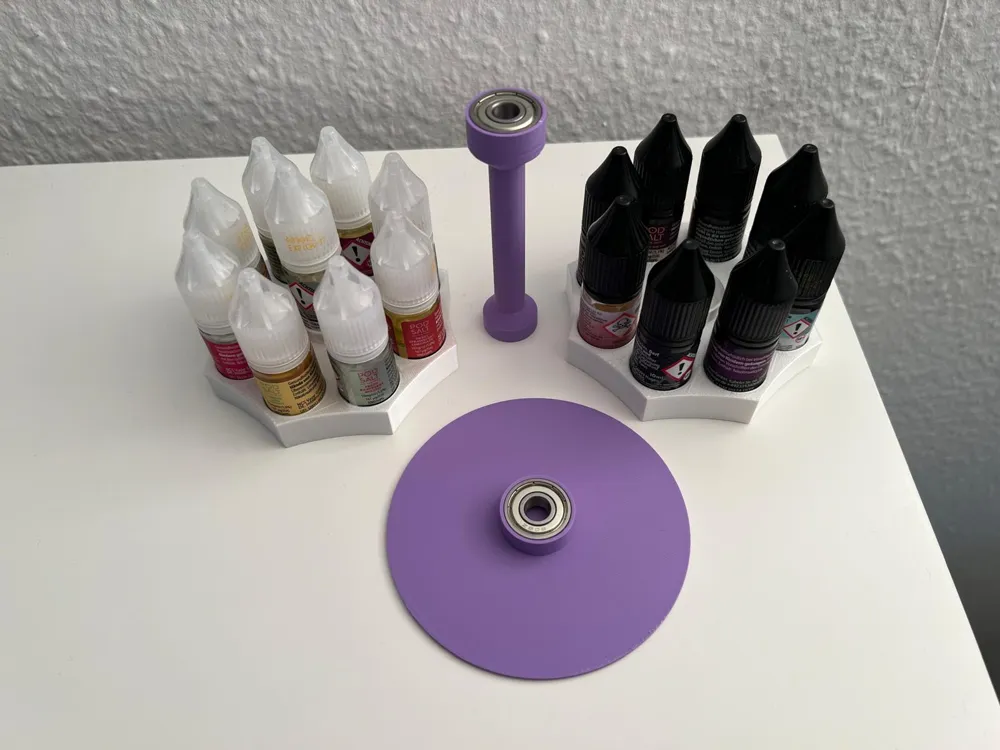

The bearings fit nicely in their respective cutouts and the other parts can be easily put together / stuck into eachother.
Depending on the tolerances of the bearing, a little bit of glue might be useful for additional stability.
If you don't have any bearings, there are also tons of 3D-printed versions, like this one for example https://makerworld.com/en/models/112075, which work surprisingly well too.
The size of the bearing should be as follows: Outer diameter 22.0mm, inner diameter 8.0mm
