Radius & Chamfer Corner Jig (hand / table router)
IP Report
Print Profile(2)
0.2mm layer, 6 walls, 25% infill
Designer
7.8 h
3 plates
0.6mm nozzle, 0.3mm layer, 2 walls, 25% infill
3.1 h
1 plate
Open in Bambu Studio
Boost
150
454
58
50
470
288
Released
Description

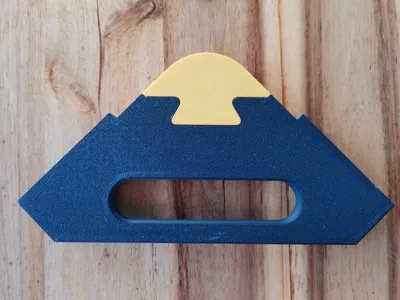

Radius and Chamfer corner jig that can be used with both hand held and table router.

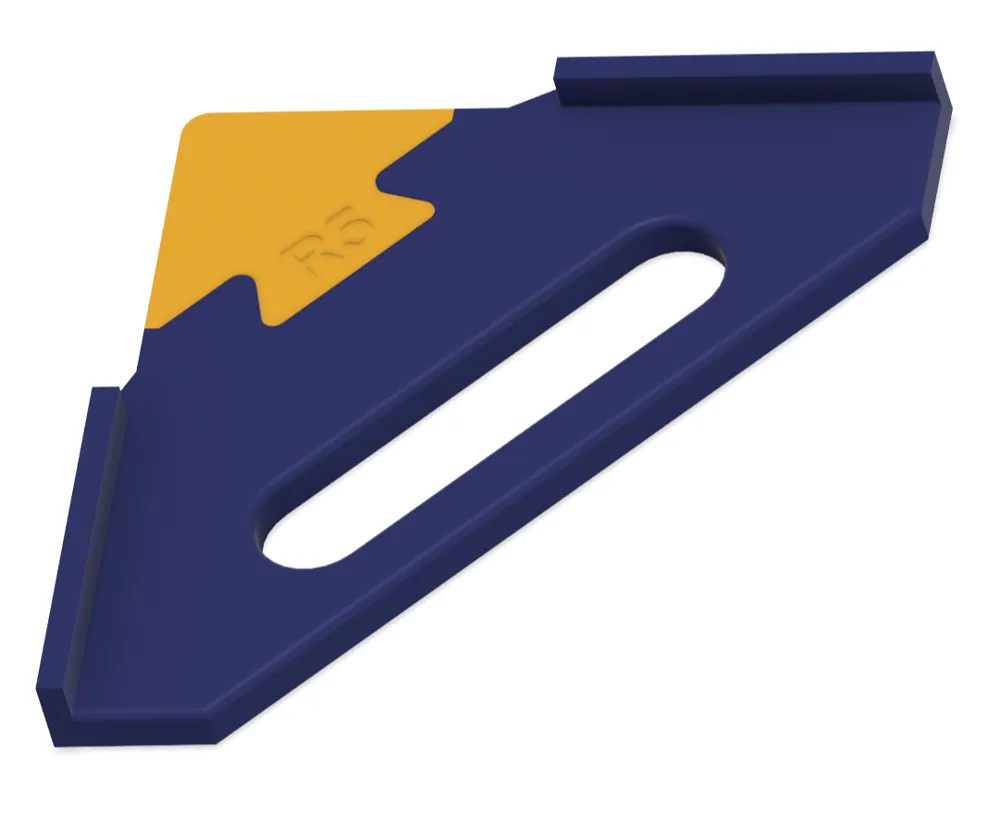

The inserts are press fitted to the main body. No tool, no screw is needed.
Update 24/11/2024:
Following the comment from “Bunny” (thanks to him), I added a 0.4x2mm recess on the bottom side of the inserts and the support, to prevent the flush trim router bit from damaging the template.
Update 06/01/2024

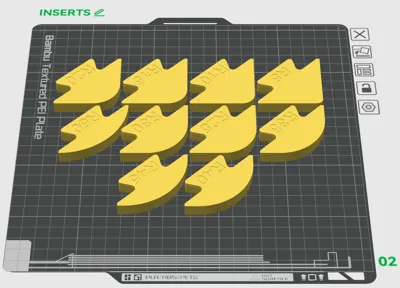

Added inserts for 25 - 35 - 45mm radius

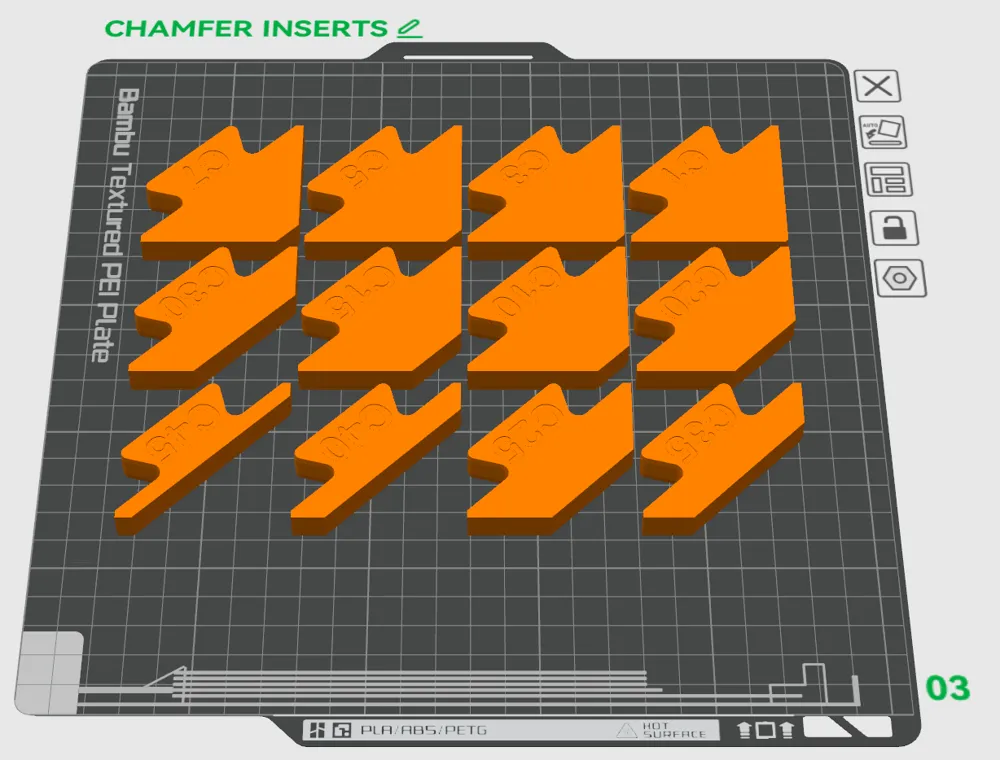

Added Chamfer inserts (1-3-5-7-10-15-20-25-30-35-40-45)
