Magnet Organizer
Print Profile(1)

Description

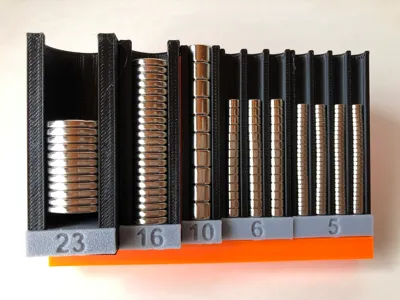

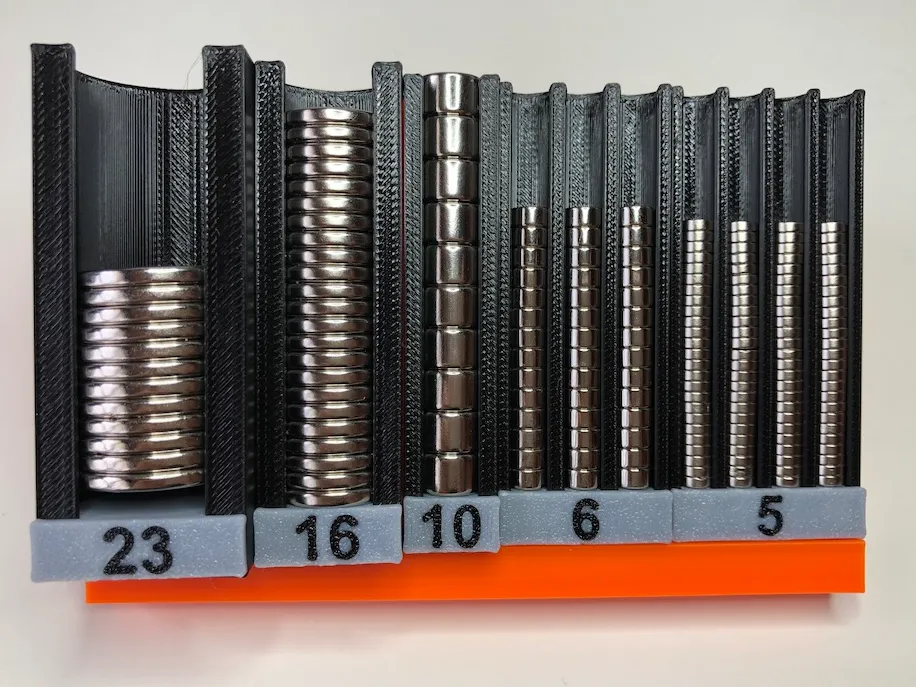

A container was designed to organize and store round magnets.

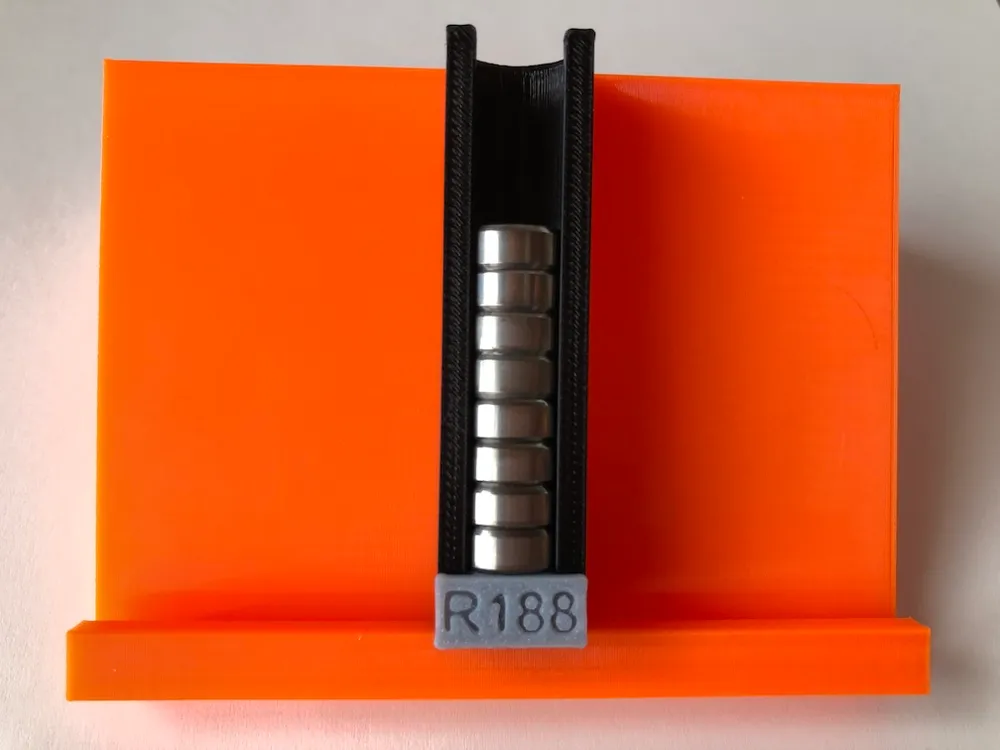

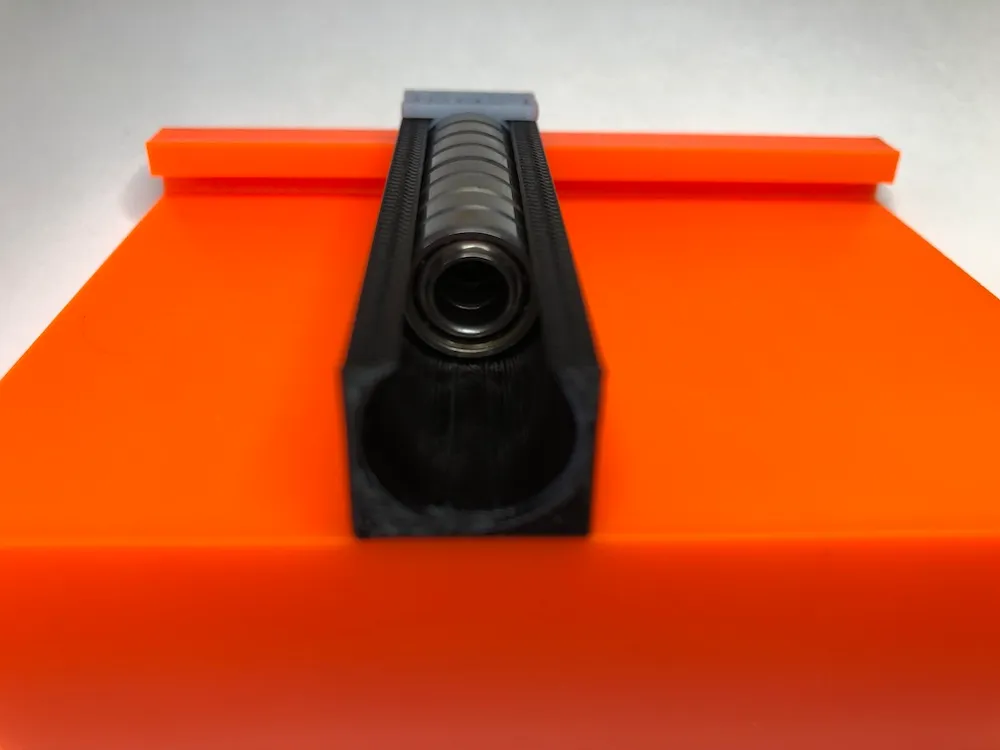

It was designed with magnets in mind, but can be used for bearings, washers and coins as long as they are round parts.

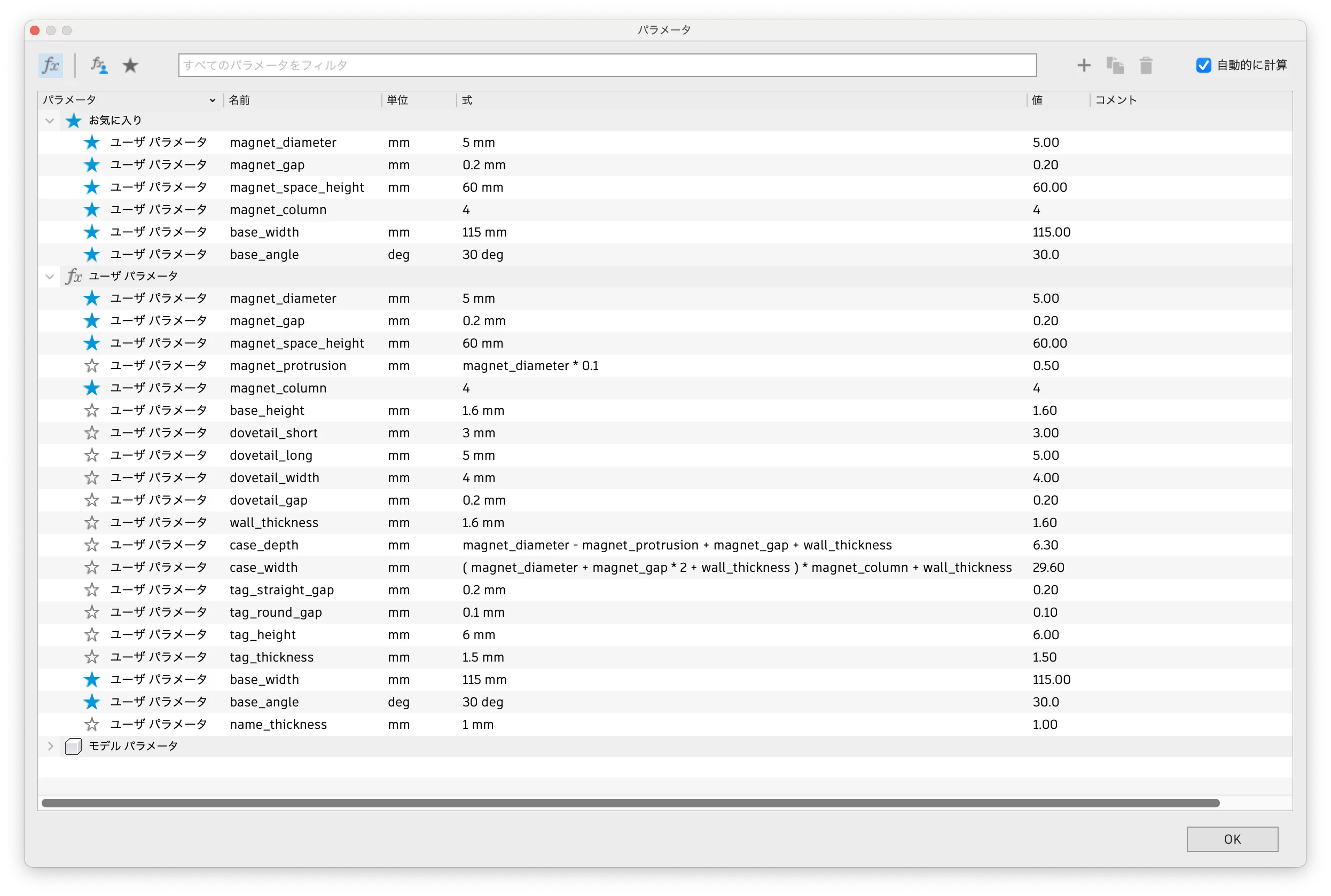

I've uploaded the one I made for the magnets I have, but this is just a sample - I assume it will be customized in Autodesk Fusion with different parameters.
I have marked the parameters that I thought would need to be changed as 'favourites'. However, it is also possible to change other parameters.

There are three different parts: 'base', 'case' and 'tag'. For 'base' you only need to print one. The 'case' and 'tag' come in pairs and are made to the size of the magnet.
Fit the 'tag' into the 'case' first and then the magnet. The 'tag' can be used to lift the magnet out of the case.

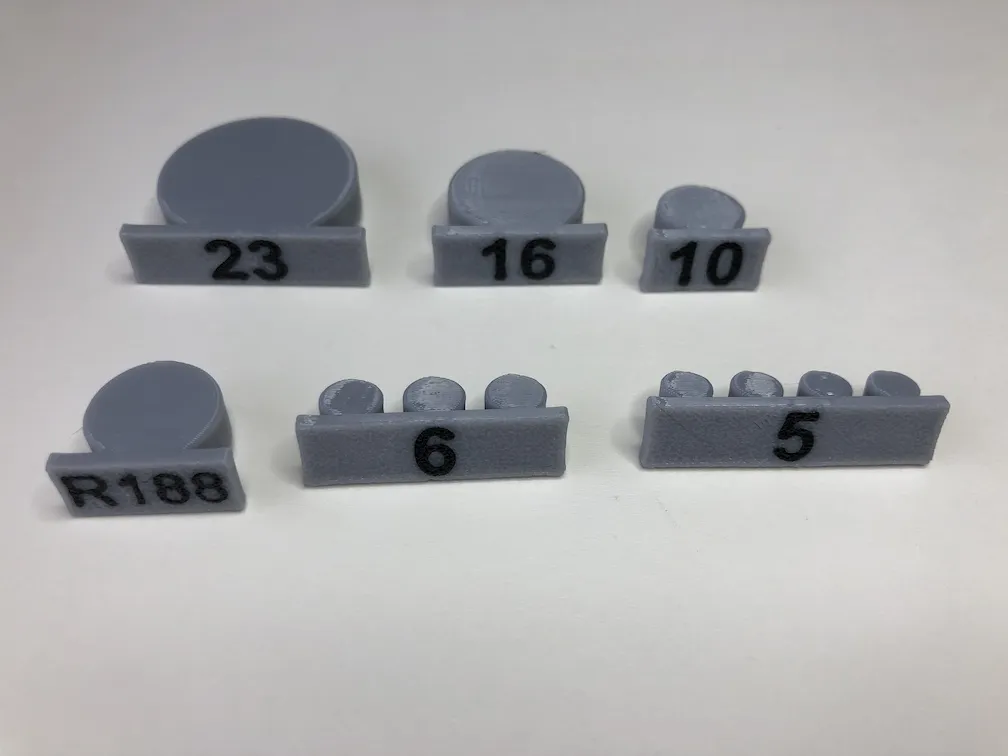

There are two 'tags', one for single-color and one for multi-color. The multi-colored one is recommended as it is easier to see.

The 'magnet_space_height' is set to 60 mm so that magnets of various thicknesses fit perfectly; 60 has many divisors, including 2, 3, 4, 5 and 6, so it can accommodate many magnets.
