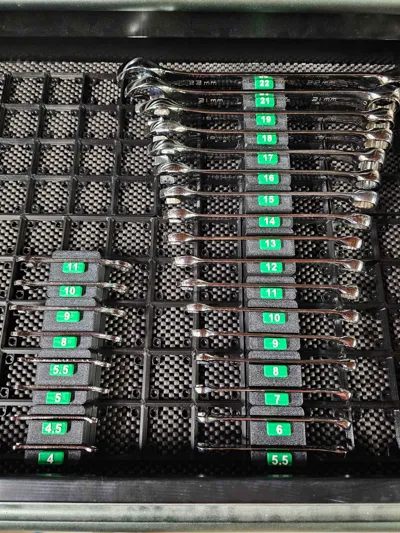

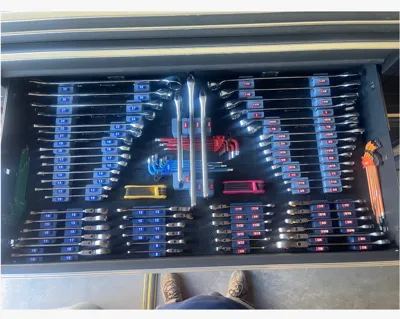

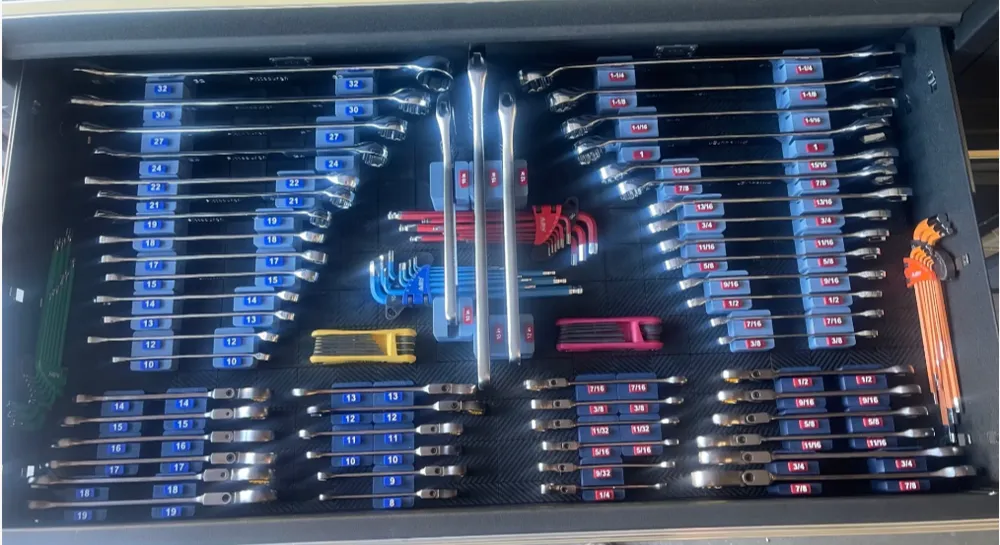

Gridfinity Universal Wrench Tray with label system

This Model

This model is for all wrenches! send me a message if your wrench doesn't fit with any of the sizes and we will get details to try and resolve the sizing to keep this set truly universal.

• you can still use regular GF trays along side my Half-Grid universal trays on the same Gridfinity baseplates

__________________________________________________________________

The Gridfinity Universal Toolbox Collection

Use the link above to browse the growing collection of my trays If you have a tray you would like made, please let me know in a DM and I will add it to the list.

Let me know if you have any issues with any of your tools not fitting a tray, let me know so I can resolve it and keep my trays fully universal.

_________________________________________________________________

Donate some filament!

an optional way for those who wish to contribute beyond Maker World points.

__________________________________________________________________

Intro to my universal trays

I was tired of trays for specific socket sets or tools (or just had no labels and was way too condensed). So I made a simple model and expanded it to fit any possible size while still being 100% click and print. This setup sacrifices some space saving but maximizes visibility and simplicity. Enjoy, rate, and let me know if there are any issues not noted. If you find you need a specific size or item I don't have here, let me know. Lastly let me know if there are any improvements you would like to see made.

__________________________________________________________________

Features

• fit virtually any set OR random pile of tools -you measure your own and print the appropriate tray pieces
• based on Gridfinity standard - will fit all standard sized Gridfinity bases
• 6x2mm magnet inserts. help keep the tray from coming out of their spot in the grid
• Fake-A-Magnet - A functional replacement for magnets - pin insert to hold the tray down
• optional V2 - Snap Fit Labels - Doesn't require magnets or glue, Stays secure (and still removable) with the new H-clip.

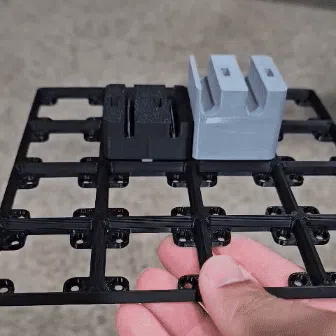

• half-size bottom grid - Some of my trays required half-sized grids to save on space and not waste filament. I came up with a mini-grid that allows for half size grid utilization while still fitting a standard GF base - you can still use regular GF trays along side my Half-Grid trays.
• Check out my "lowest profile possible" Gridfinity base if you are in need of a good base with the magnet inserts. see details below in the base plate instruction.

________________________________________________________

Instructions

1. download and open the profile using Bambu Studio (or your preferred slicers for 3mf print files like Orca Slicer).
2. Print one of the smallest size tray
3. Use this one to see how many of your wrenches fit in the small tray
4. Insert your smaller wrenches in the small tray until you feel slight (or a lot of) resistance putting the next wrench size in. The last one to fit without any resistance is your limit for smalls. Take note of how many you have that will be using smalls.

5. repeat  from step 2, but instead, print a medium size, then repeat again for large, and the XL size.

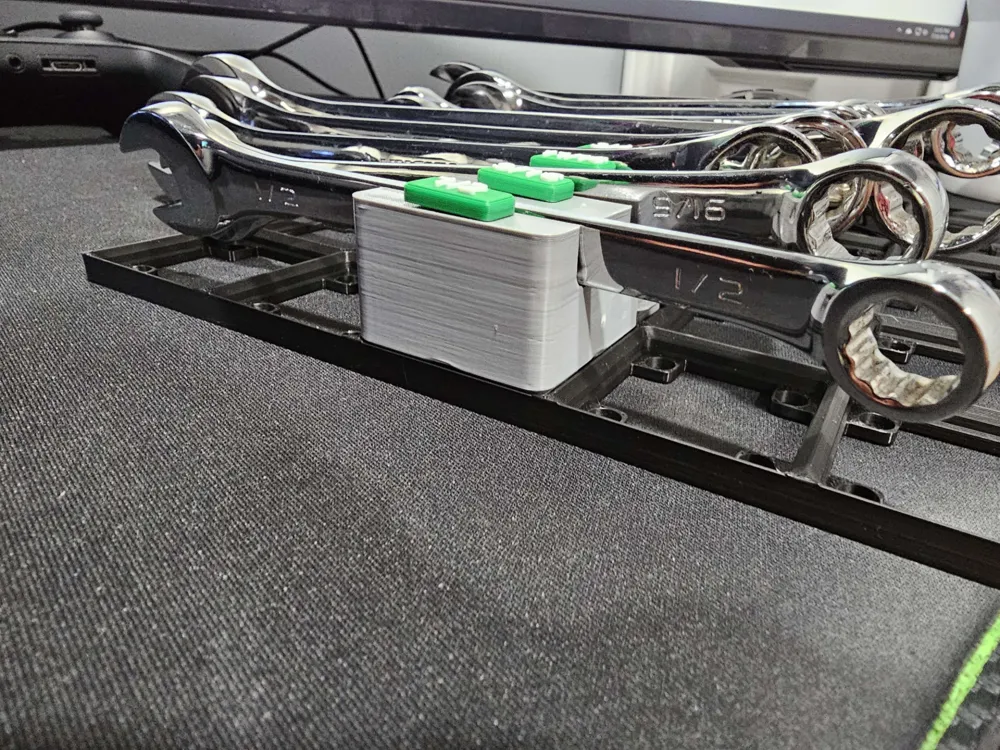

   ***NOTE: Most wrenches (except for your smallest mini sizes) you will need a tray on each end to balance the weight. I created a Unlabeled model for the balance side if you don't want to have two labels per wrench. however the extra label slot is useful if your wrench is dual-sized or if you just like the extra label slots for customization.

1. using your noted counts (including the count of wrenches you want to have two labels of), Clone the appropriate number of each size needed and print.
   1. Note: If you have an Odd number for a set you will want to print 1 single and put it in between two doubles when placing in a grid. This way it will not tip over on the end as easily.
   2. NOTE: I put the Top surface facing down, This makes the top surface much more smooth than before and holds the pattern of the build plate used, Including the 3d effects plates with carbon fiber and sparkle rainbow finishes. (I personally like the textured plate look with a dark color) you can also use this to match the tops of the tray with the pattern of your choice of FIller inserts for the blank spots on the grid. There have been some submissions of people using the carbon fiber plate for the top pattern and its really cool.
2. The remaining wrenches that you only want Single labels on, take the count and go to this model for unlabeled (I didn't put them together because the Unlabeled ones came much later after release of this model).

____________________________________________________________

Labeling

1. go to my profile or click the link here to find the V2 - Snap Fit Labels, premade with an exhausting amount of common sizes (took a while making them all). They are very easy to print, use only one color change, and snap fit together. Let me know if you don't see your size available or if you have a whole set of a specific size type that I am missing.


_______________________________________________________

Base Tray

All Baseplates - Low Profile - With magnet insert - All sizes with profiles for A1, X1/P1, and A1 mini

Half-Size grid - Low Profile - filler baseplates - These are .5 x 1-6, used for filling spaces in the drawer that didn't fit a full grid. Particularly useful with my half-sized grid based trays that can lock these in place with another grid but can be used as side fillers as well. fill them with my .5x1 blank covers to give it a finished look if wanted.

I created a specific base for my use case to get the lowest profile POSSIBLE. This maximizes the vertical space available for your tools while in the trays. It is a just standard Gridfinity tray but cut as low as possible while still having the magnet slots available. I appreciate everyone who wants to take a look and use it for these trays but my base tray is not a requirement. Any tray can be used especially if you already have a system so do not feel like you need to switch over unless my tray provides something that you need. (such as the magnet inserts, less filament, or the lowered profile compared to stock).

_______________________________________________________________

MAGNETS

1. If you wish to use magnets or my Print-A-Magnet magnet replacement to secure the trays, use the Secure-A-Magnet plate.
2. Clone just a couple of the magnet securing inserts to test the fit, and print.

3. Insert the key in the desired position based on where in the grid it will sit. If they are a tight fit and not seated all the way, turn the tray upright and use a hard flat surface to press harder to get them to seat all the way in. The fit should be tight, if it is loose then the magnets will be loose.



   Resizing: If you find the fit loose or cannot fit them at all, resize the insert X and Y axis only(not Z), up or down by 0.05mm. once the fit is good, clone as many as you need (# of trays X magnets per tray)





4. Insert your magnets or Print-A-Magnet then press it into the Grid





_______________________________________

Thanks for printing!
