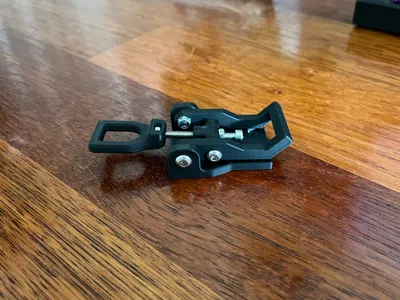

Heavy Duty Toggle Latch
This original design of the heavy-duty toggle latch was designed to be used where more closing force is needed by substituting parts that would normally be weak points with steel bolts.
Features
- Latch arm length can be modified by using different-length bolts
- Latch arm tension can be adjusted by moving the nut on the latch arm
- Overall heavy-duty construction
Bill Of Materials
- 2x M4 x 8mm Button Head Bolts
- 2x M4 x 12mm Button Head Bolt
- 1x M4 Socket Head Cap Bolt 25mm or Larger
- 2x Nylock M4 nuts
- 2x M4 nuts (Or 4 M4 Nuts With Loctite On Pivoting Parts)
- 6x Countersunk Mouning Screws
If you have any questions about the assembly please leave a comment and I'll get back to you :)
Note: ignore the hardware list from Bambu store it is incomplete as they don't stock everything needed.
