Olympic Sprinter Automaton

Before You Print 打印前须知

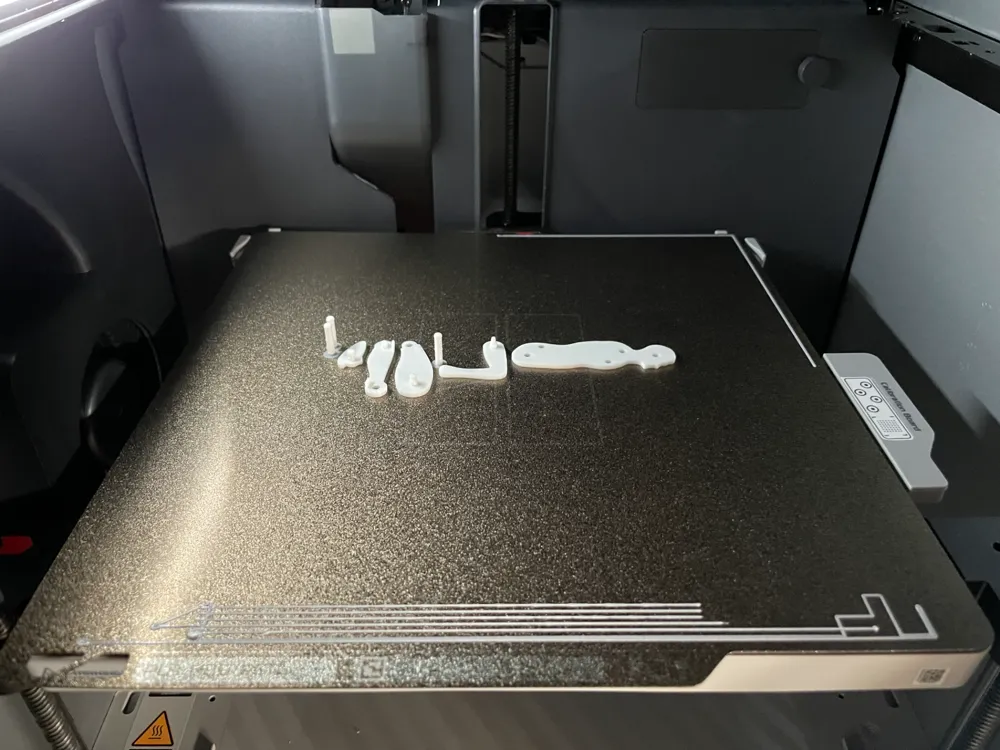

This model requires good print precision for the joints to fit well.

Please calibrate your printer. Level the print bed and calibrate the extruder flow rate. And do not forget to adjust the slicer settings to keep the details of the rod clips.

这个模型需要高打印精度才能保证关节的良好接合

切记校准打印机。调平打印台和校准挤出机流速。也别忘了调整切片器设定

Note for X1 users 给X1用户的特别提示:

Avoid running auto flow rate calibration on transparent filaments. This is known to have issues and could cause over-extrusion. [Link to wiki page]

如需使用透明材质，请不要跑自动挤出机流速校准。它会造成挤出过多。官方维基页面

Introduction 作品介绍

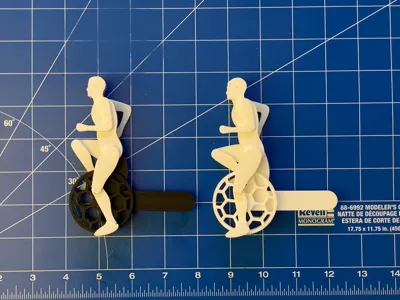

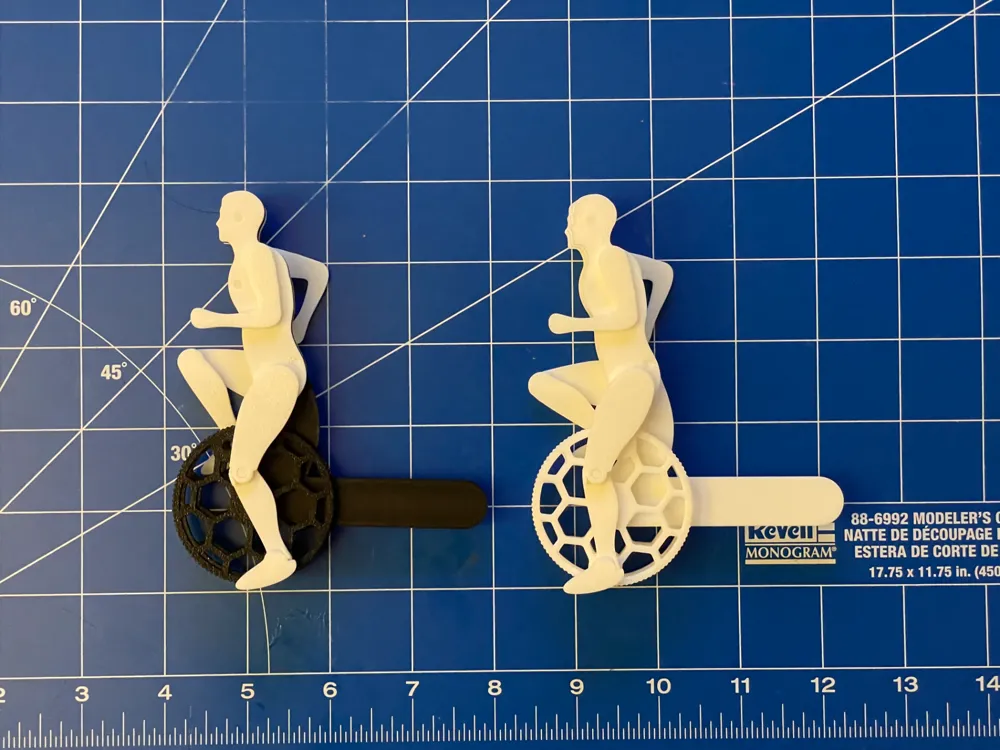

This moving sculpture / 2D automaton, mimics the lively movements of an Olympic athlete running, capturing the grace and energy of the sport. The intricate mechanism brings the athlete to life, allowing viewers to appreciate the fluidity and power of their stride.

一个能生动模仿奥运短跑手动作的自动人形

Assembly Guide 安装指南

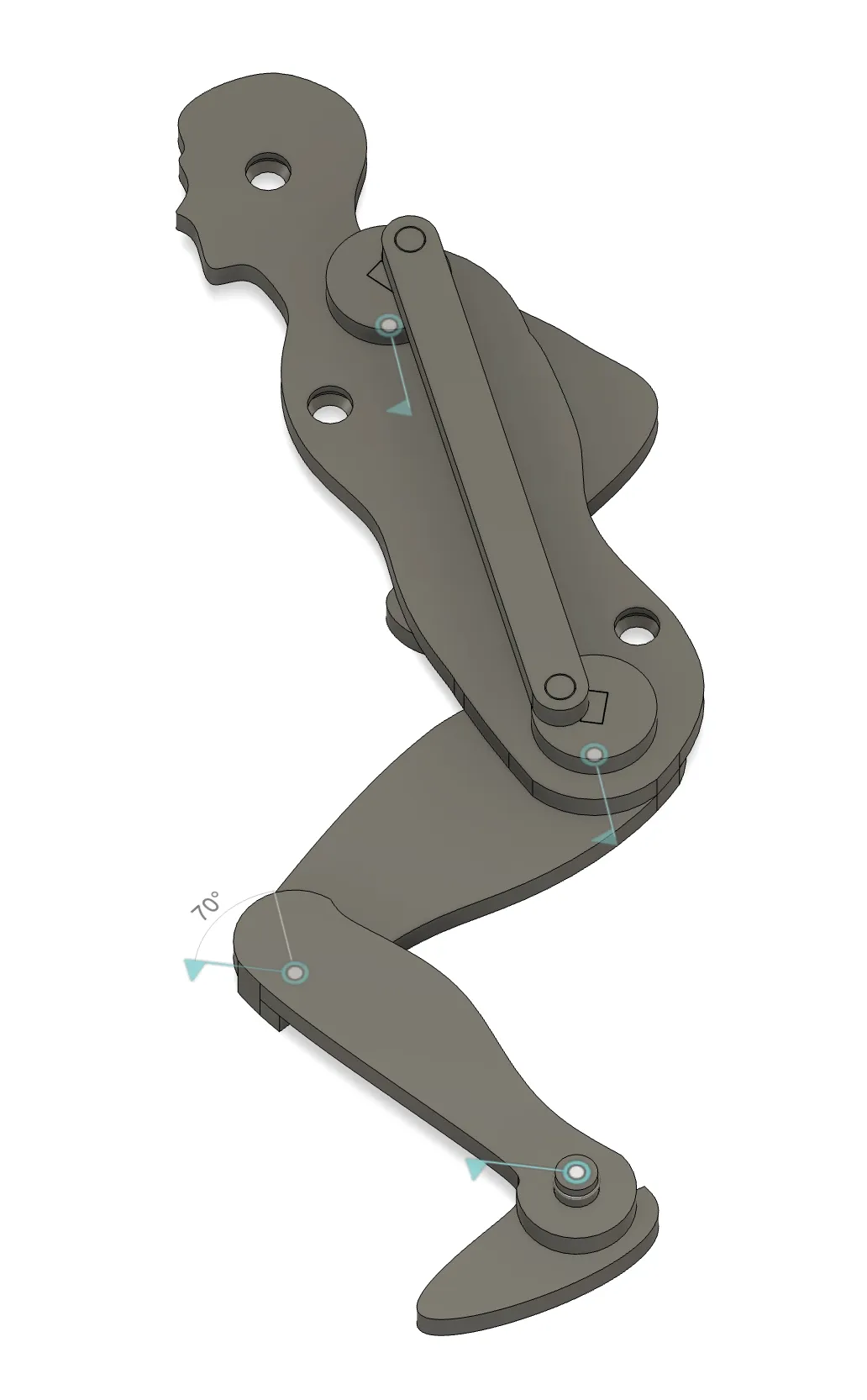

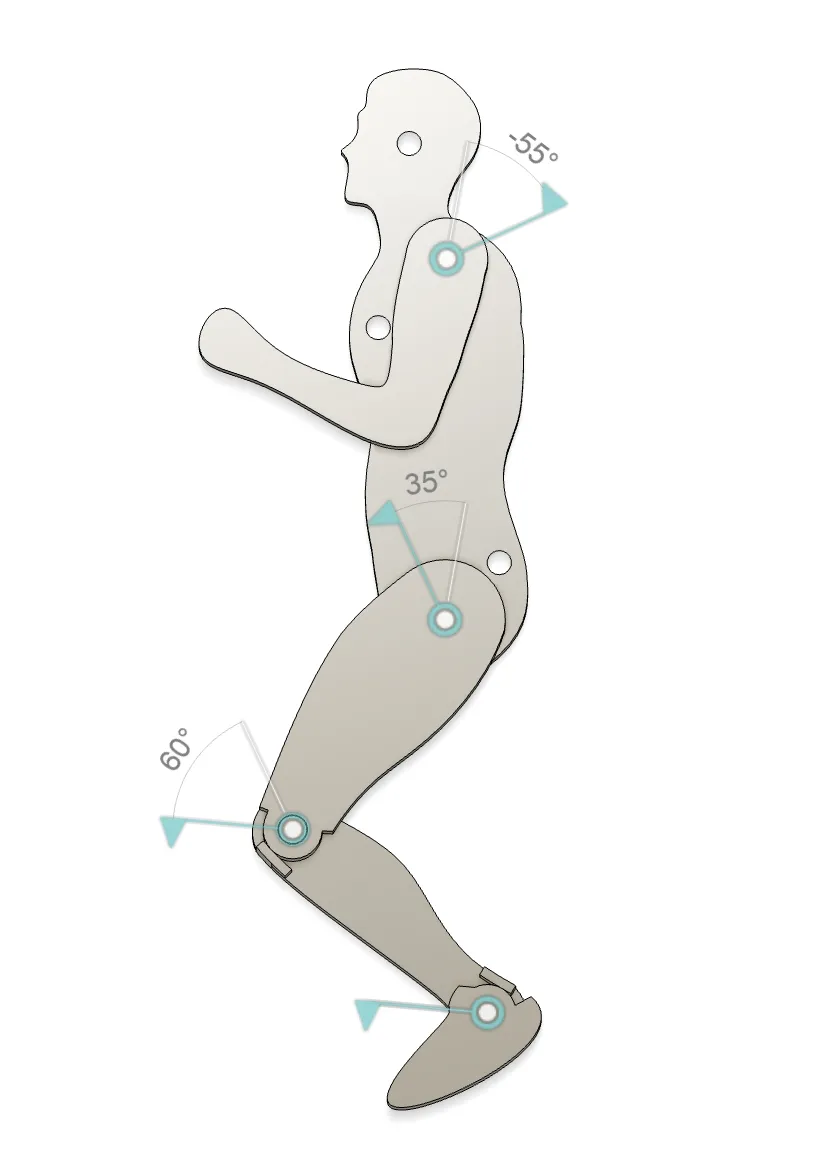

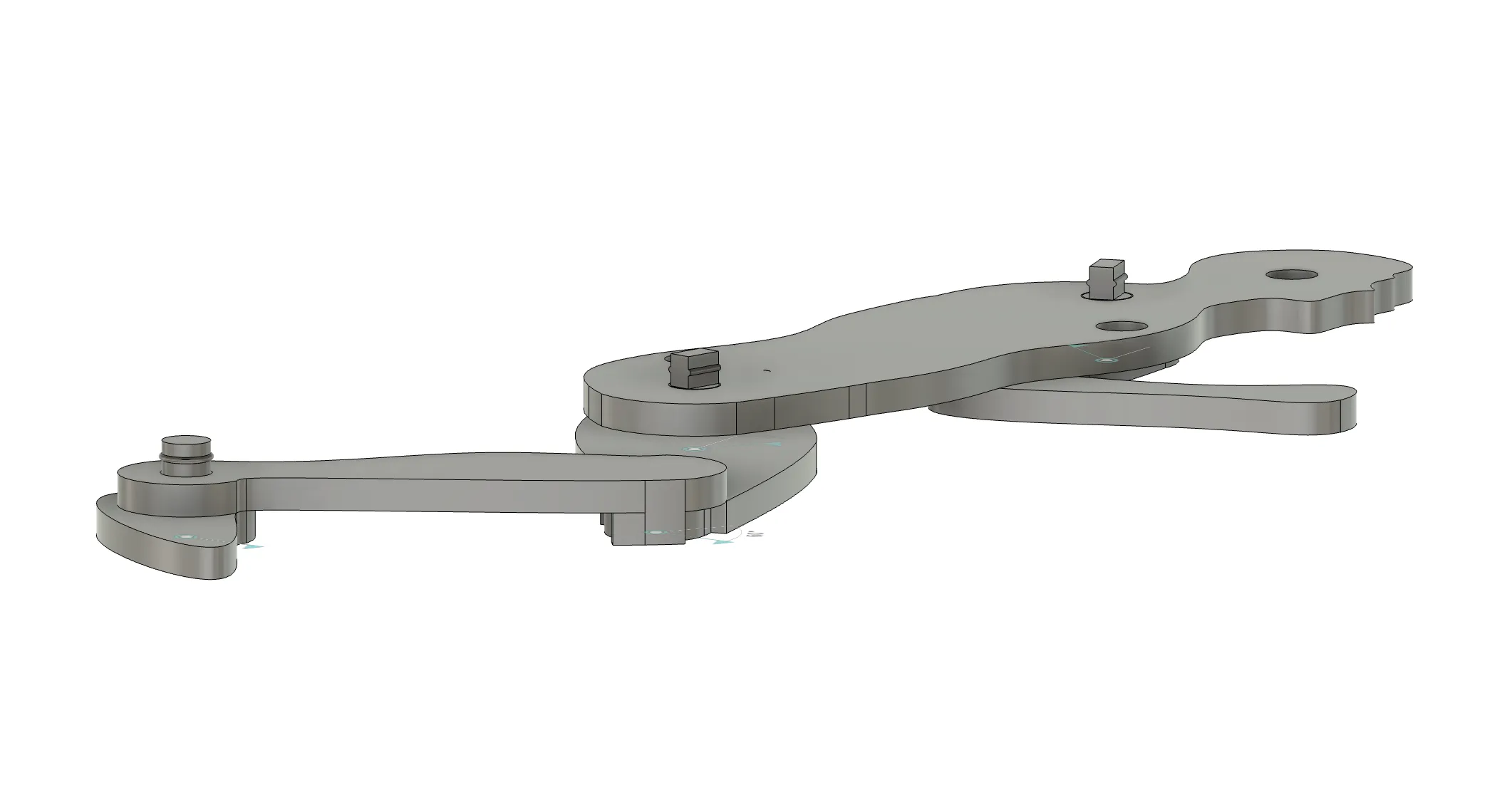

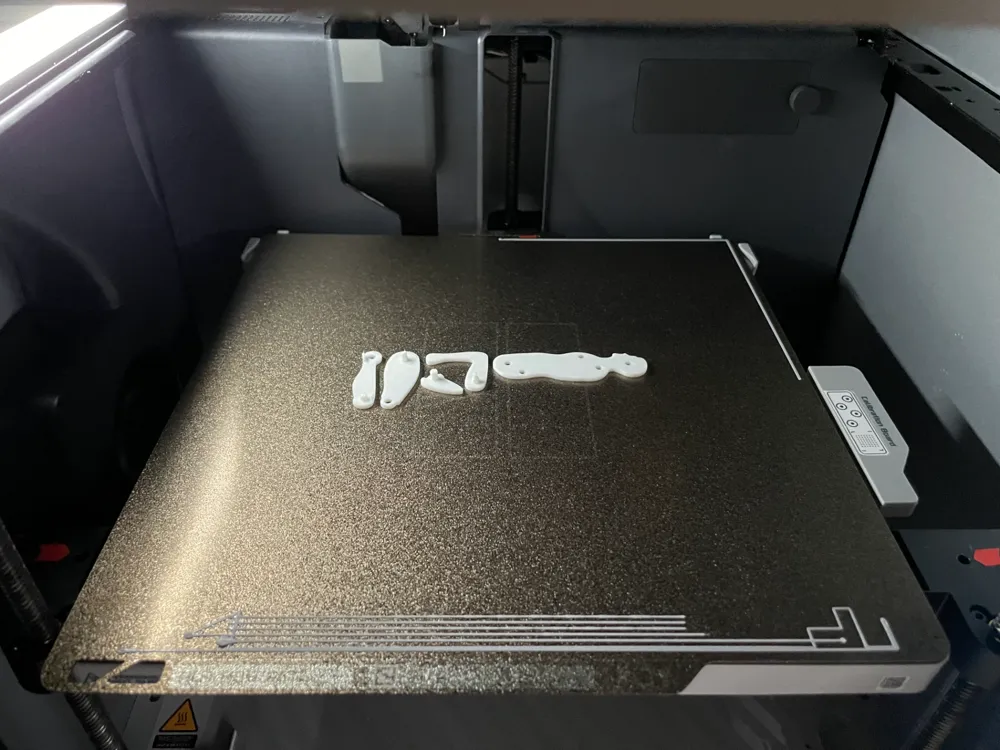

Step 1: Assemble left body (plate 1) and right body (plate 2) 分别组装打印盘1和2的半边身体

Note that they are mirrored

注意他们是镜面对称的

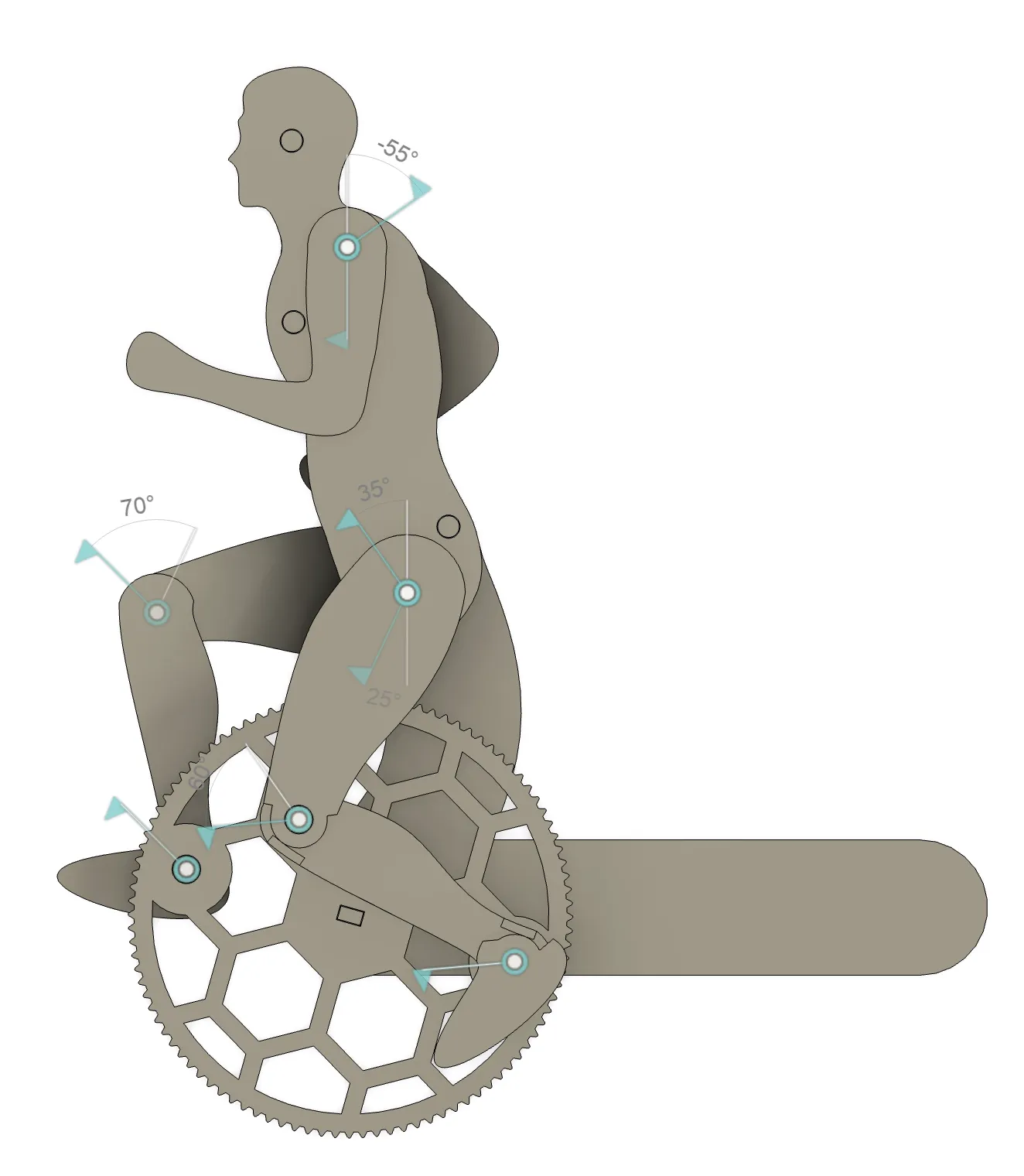

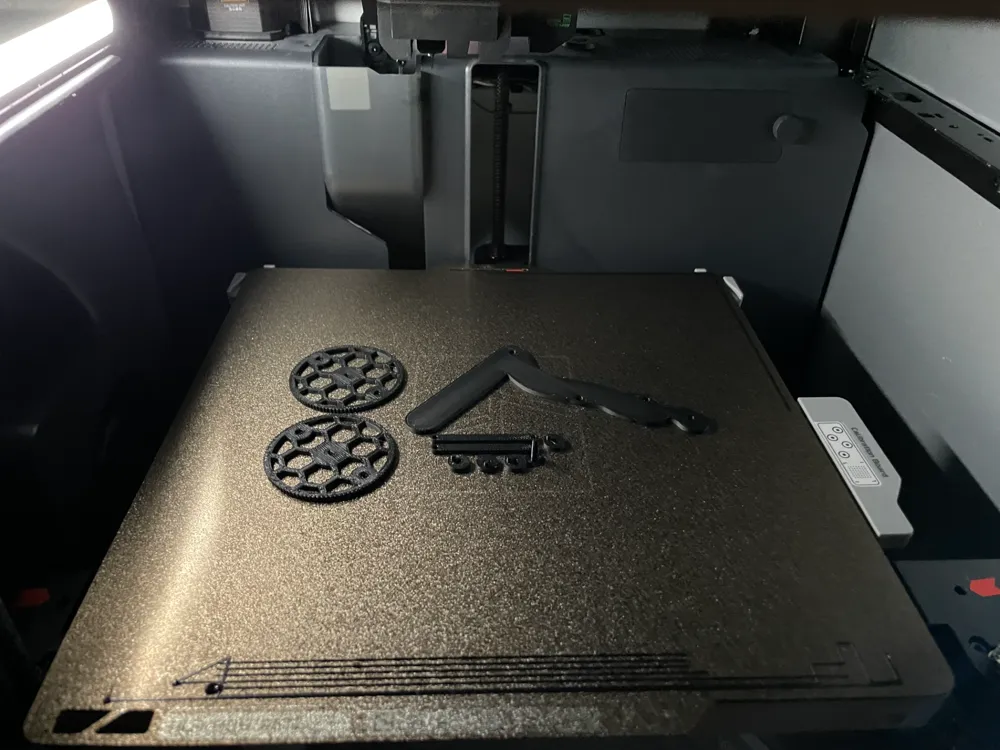

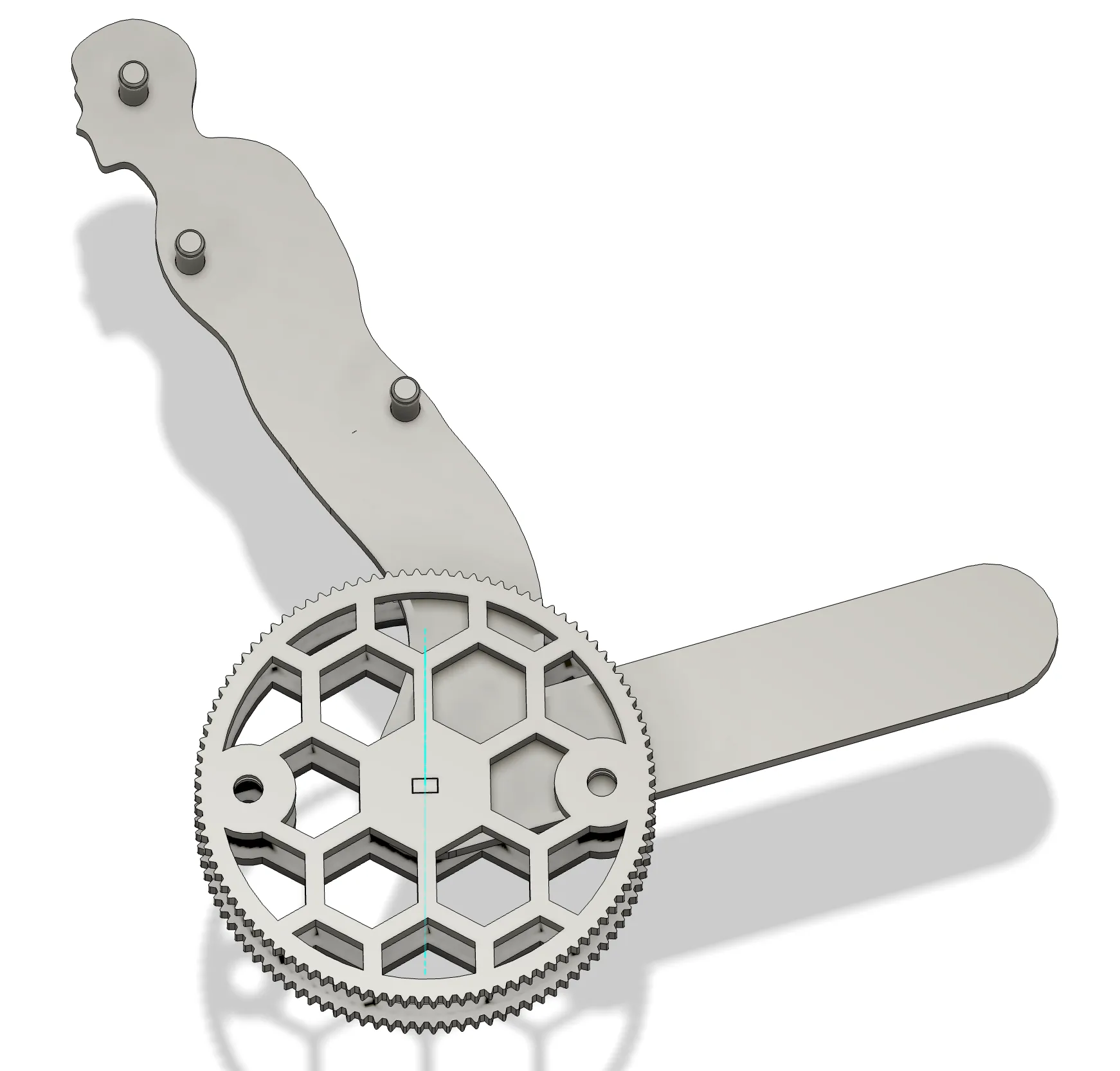

Step 2: Assemble the move mechanism (plate 3 + step 1) 组合打印盘3的移动机制，需要上一步的身体

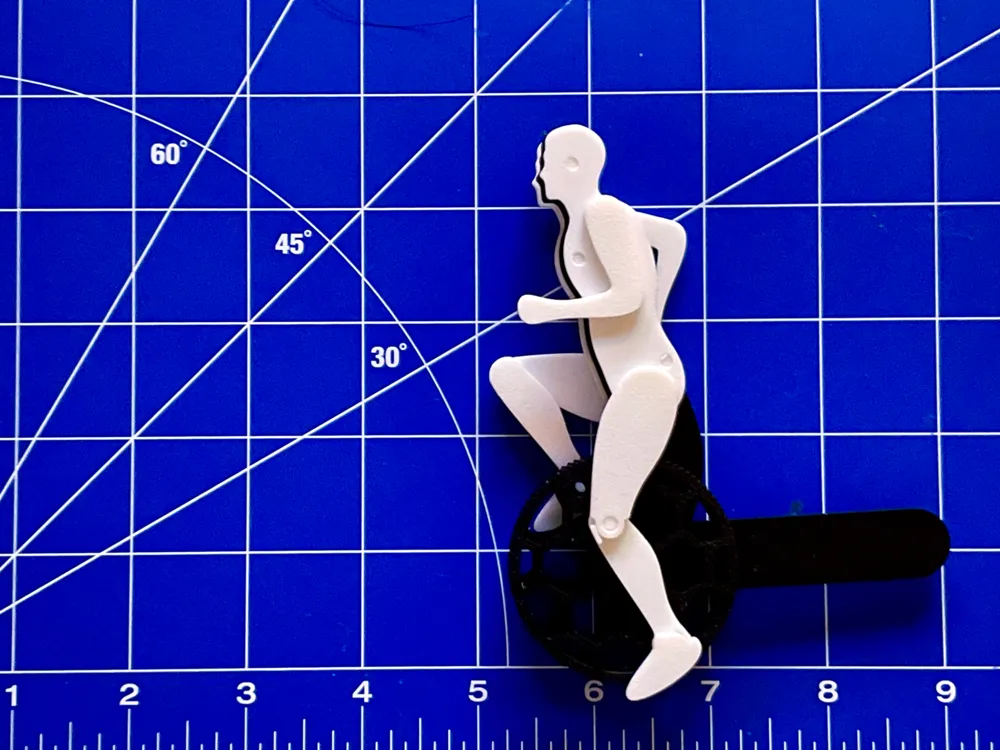

Step 3: Put them all together! 把两边半身安装到中盘上
