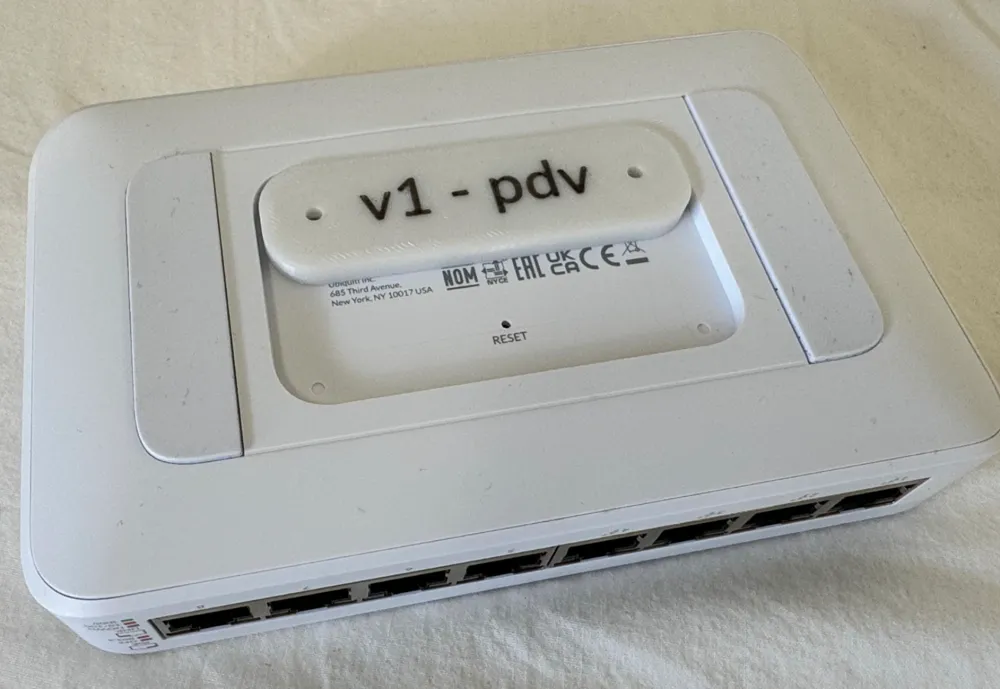

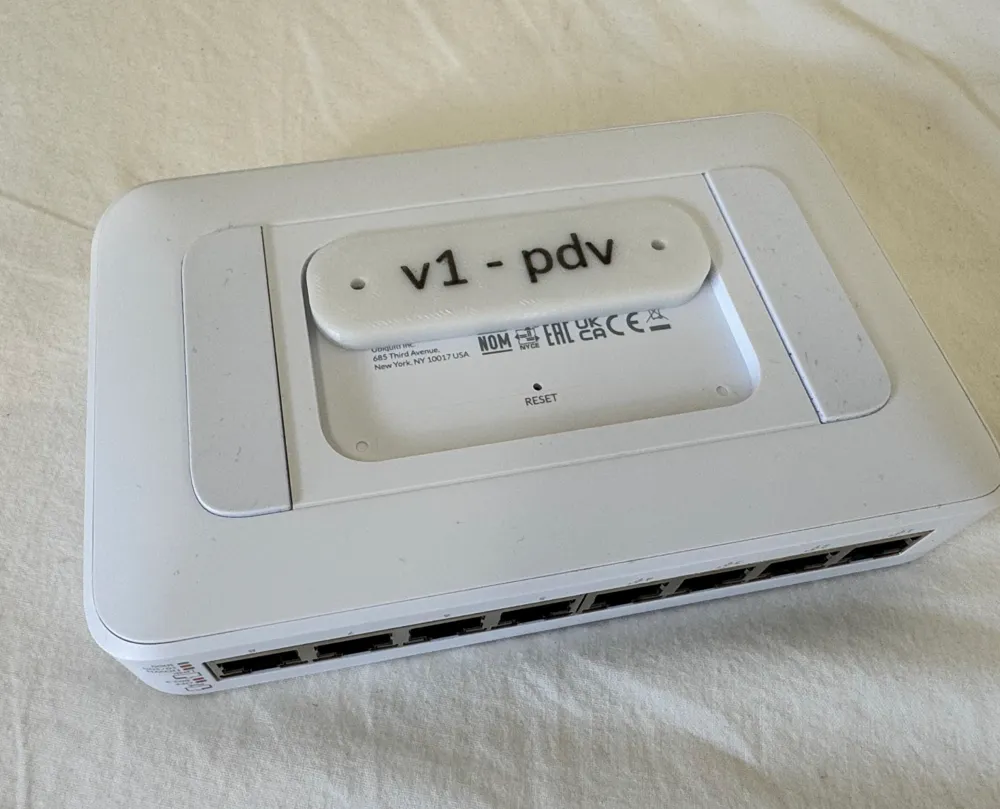

I had two Unifi Lite 8 Poe switches but only one of them had the wallmount. I looked online but did not find this simple clip anywhere, only rack mount or other external solutions. So I measured up the one clip I had and printed out a copy.

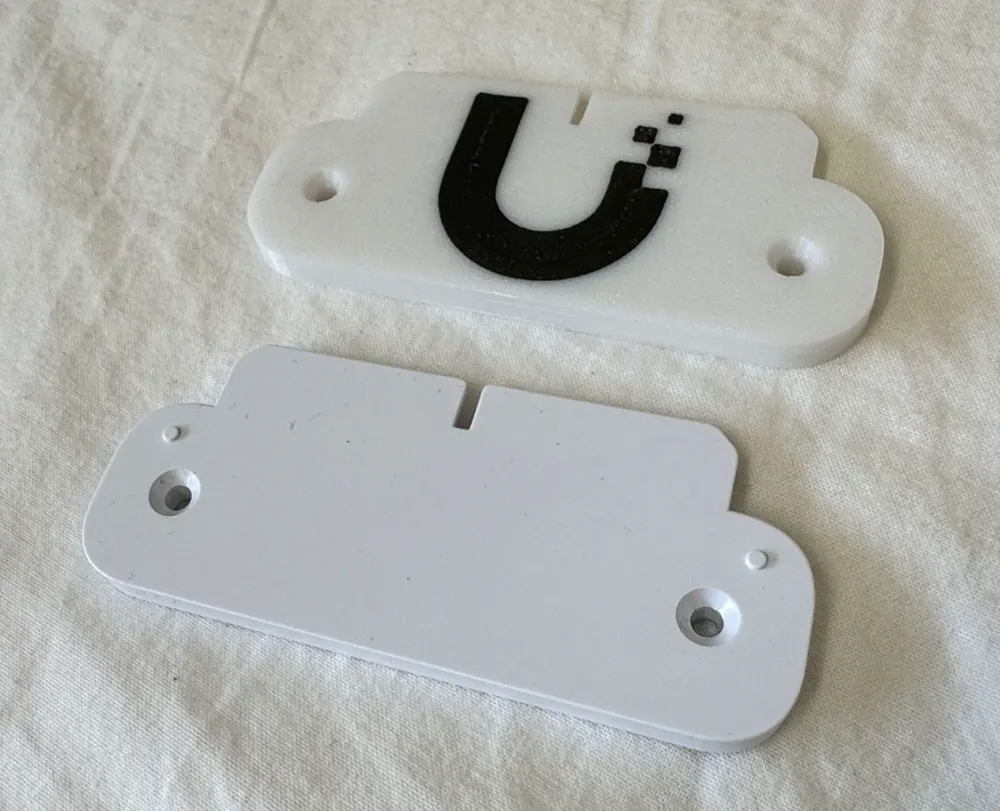

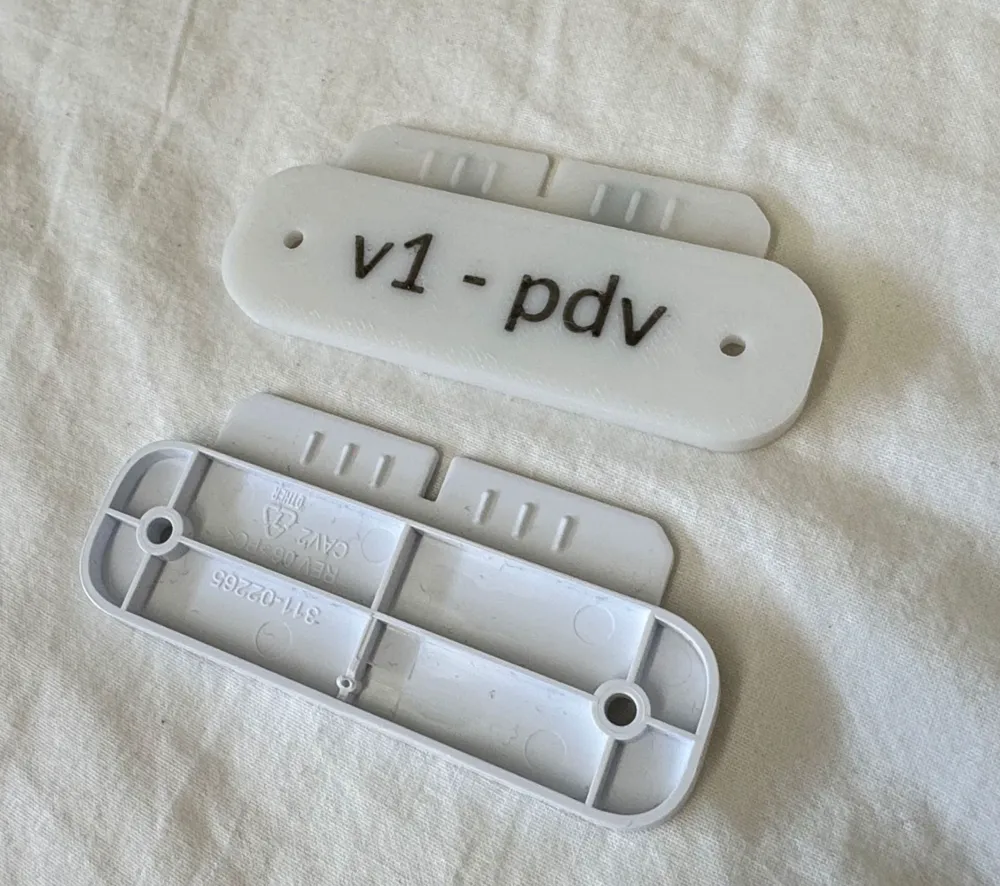

The only differences with the original is that it is solid (only 10 grams so I opted for more strength than conserving plastic) and the 2 little locator circles on the bottom I left out (the switch is tight enough with the friction lines on the insert, and those would be very awkward to print).

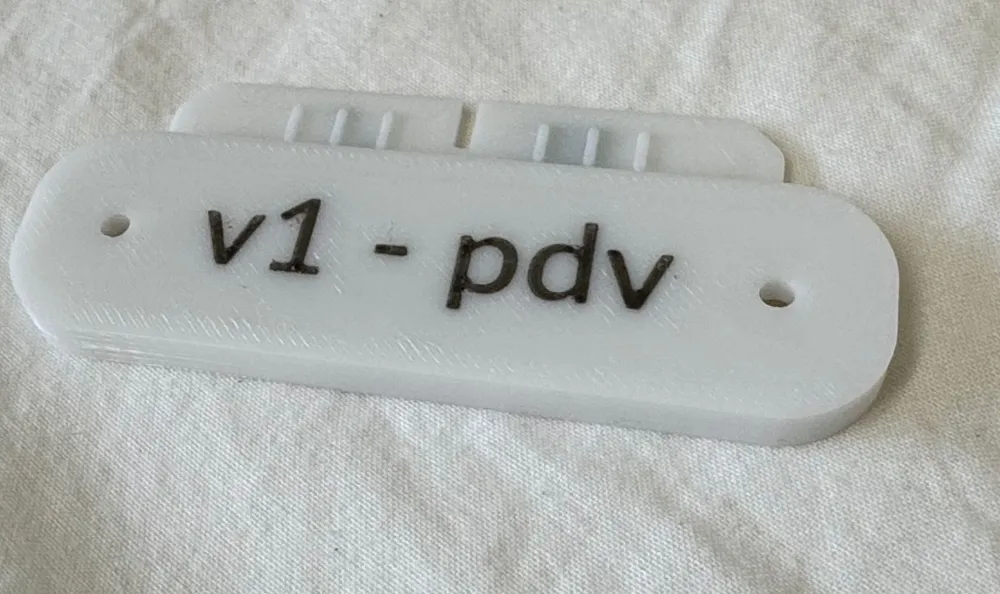

The text can be easily modified or removed in Bambu Studio/OrcaSlicer, it's set to be centered and only one layer deep, meaning with the logo on the bottom and the text on the top there are only 2 filament changes. Also it's setup so the logo colour will start first on the printbed and the text colour will be last on the top (I had the best results with this).
