Gridfinity bins - Scooped / Pressure Fit / Tabs

This remix of the original Gridfinity Bins by Zack Freedman maintains the same dimensions, ensuring full compatibility with the Gridfinity System. These bins are stackable, practical, and designed with user convenience in mind.

Key Features:

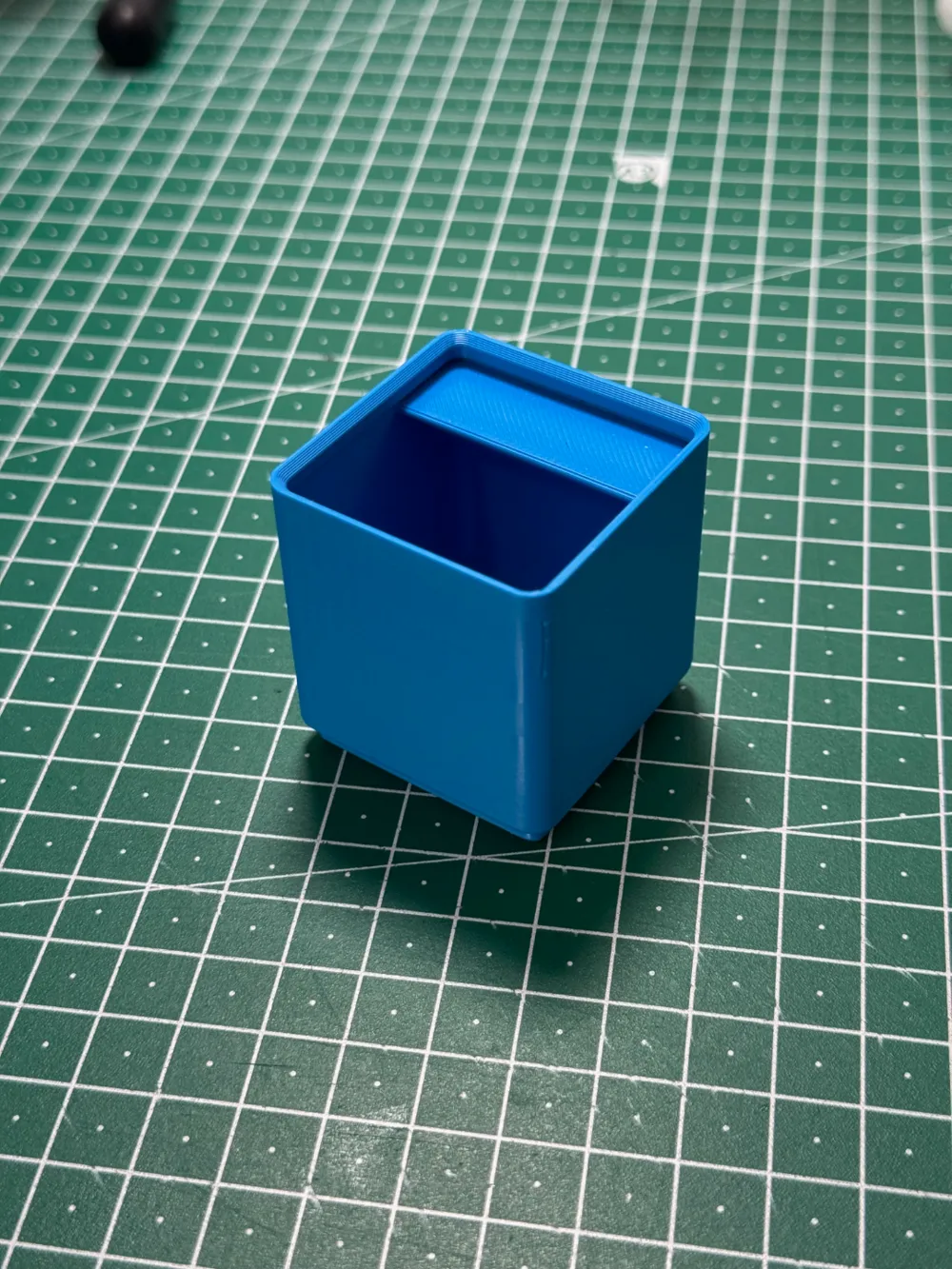

• Scooped Design: The bins are scooped for easy access to the contents.
• Label Holders: Each bin features holders for labels, spanning the entire length, allowing you to clearly mark and organize your items.

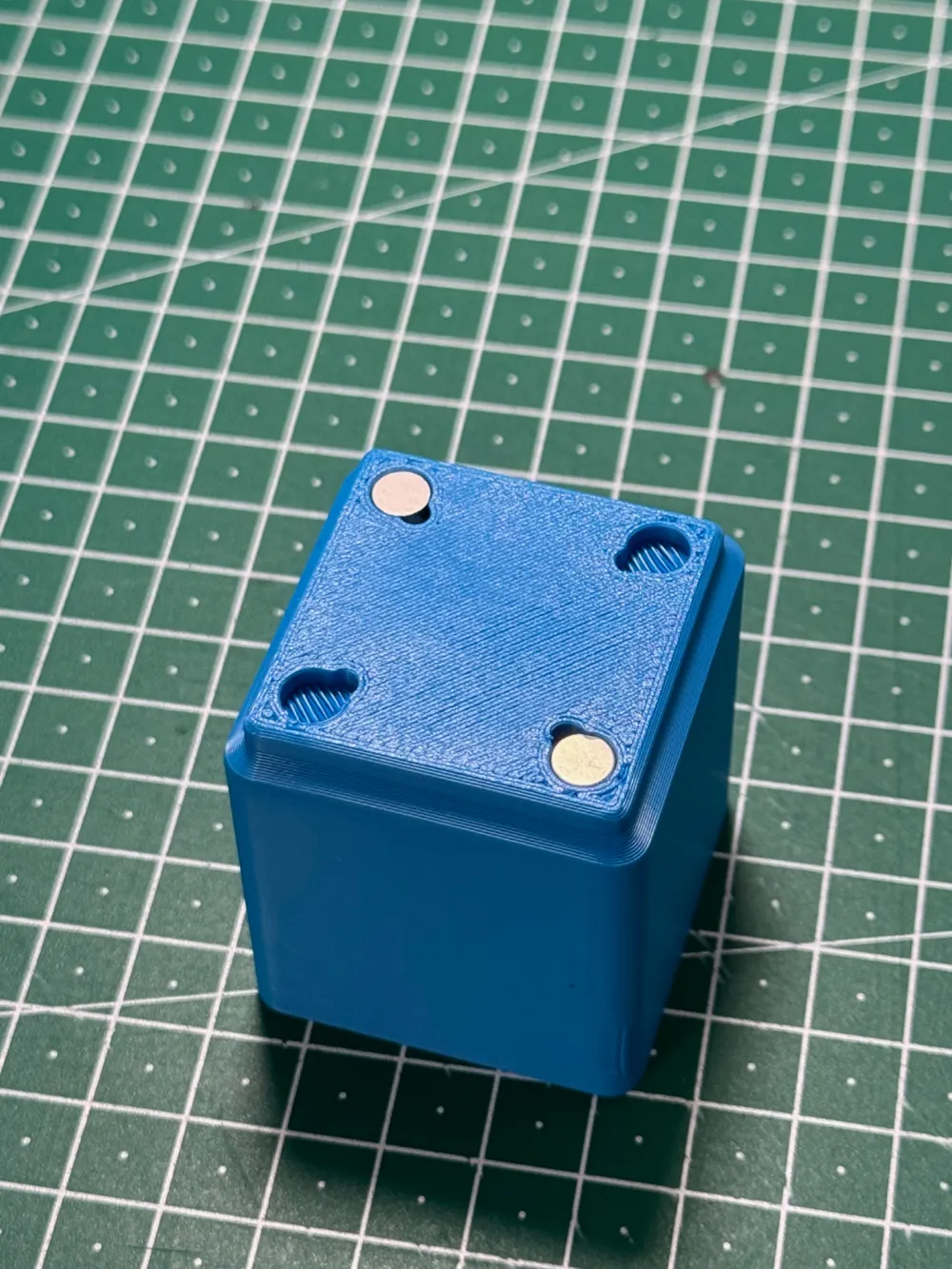

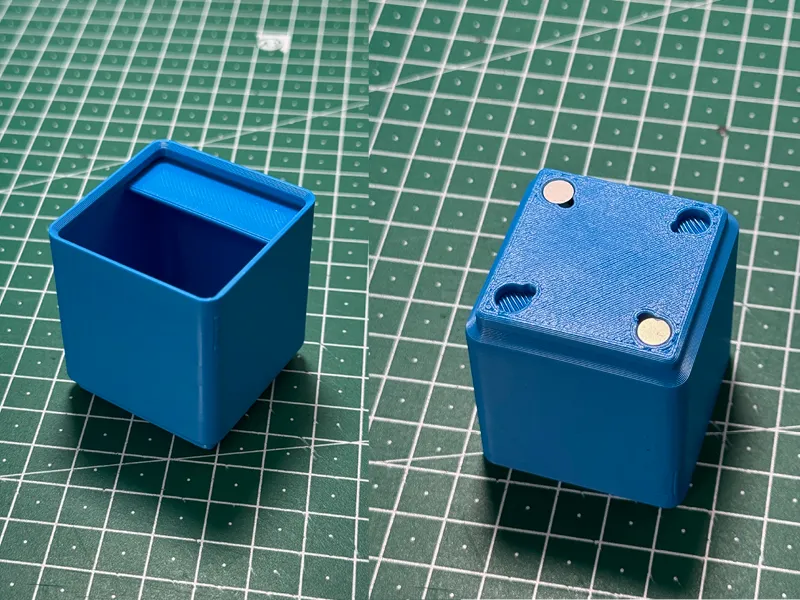

• Magnet Holes: The magnet holes are designed to be support-free and facilitate pressure-fit installation, eliminating the need for glue. Additionally, the tabs allow for easy removal of the magnets if needed. They are designed to fit 6x2 mm magnets perfectly.
• Optimal Height: With a height of 6U, these bins are ideal for storing items like screws and other small components, offering a practical height without being too tall.

Included Variants:

• 1x1 Version
• 2x1 Version

If you require different sizes or heights, feel free to reach out, and I will be happy to upload the customized versions.

Printing Recommendations:

• Material: I recommend printing in PETG for durability, but PLA is also a suitable option.
• Layer Height: For optimal stackability, a layer height of 0.20 mm is ideal, though 0.28 mm works well too.
