Sovol SV08 Enclousure

Work still in progress!!!!  Now usable tho! (even if not yet perfect - i work on it) :)

ABS Testprinting is running perfectly fine for me since 2-3 weeks now.

Hope you like it! Please leave a comment and like :)

The windows of the doors are 426 (-4/+0) x 166 (-4/+0) x 2 mm. I also made some printable ones, if you do not want a window or if you dont have any yet.

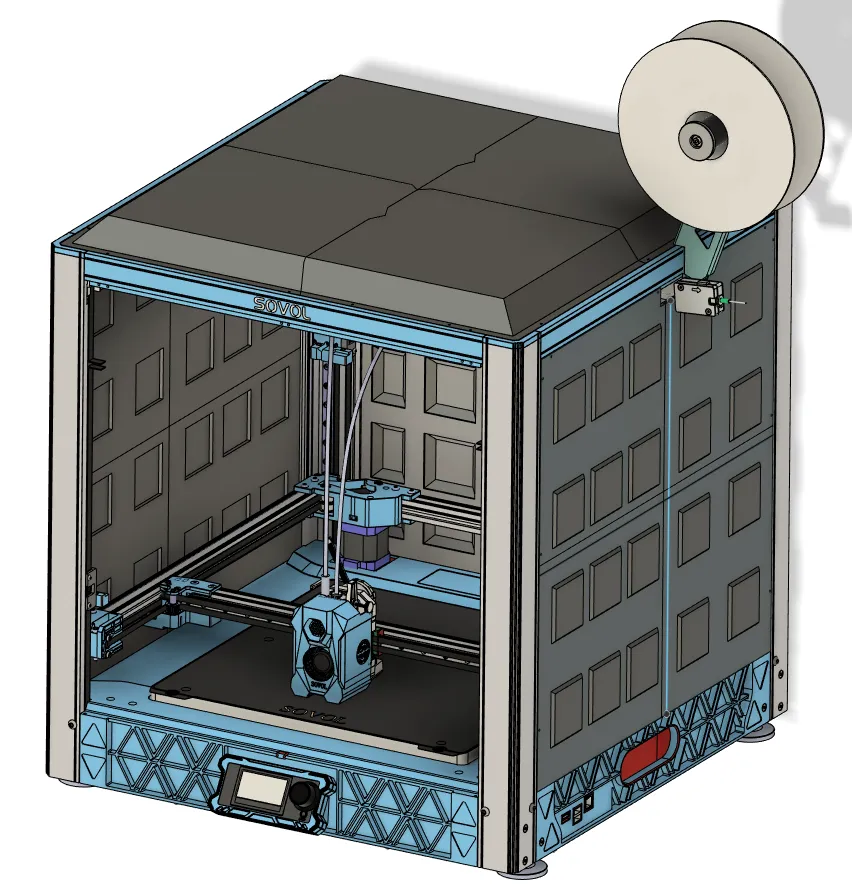

Easy to print and mount Enclousure for the SV08.

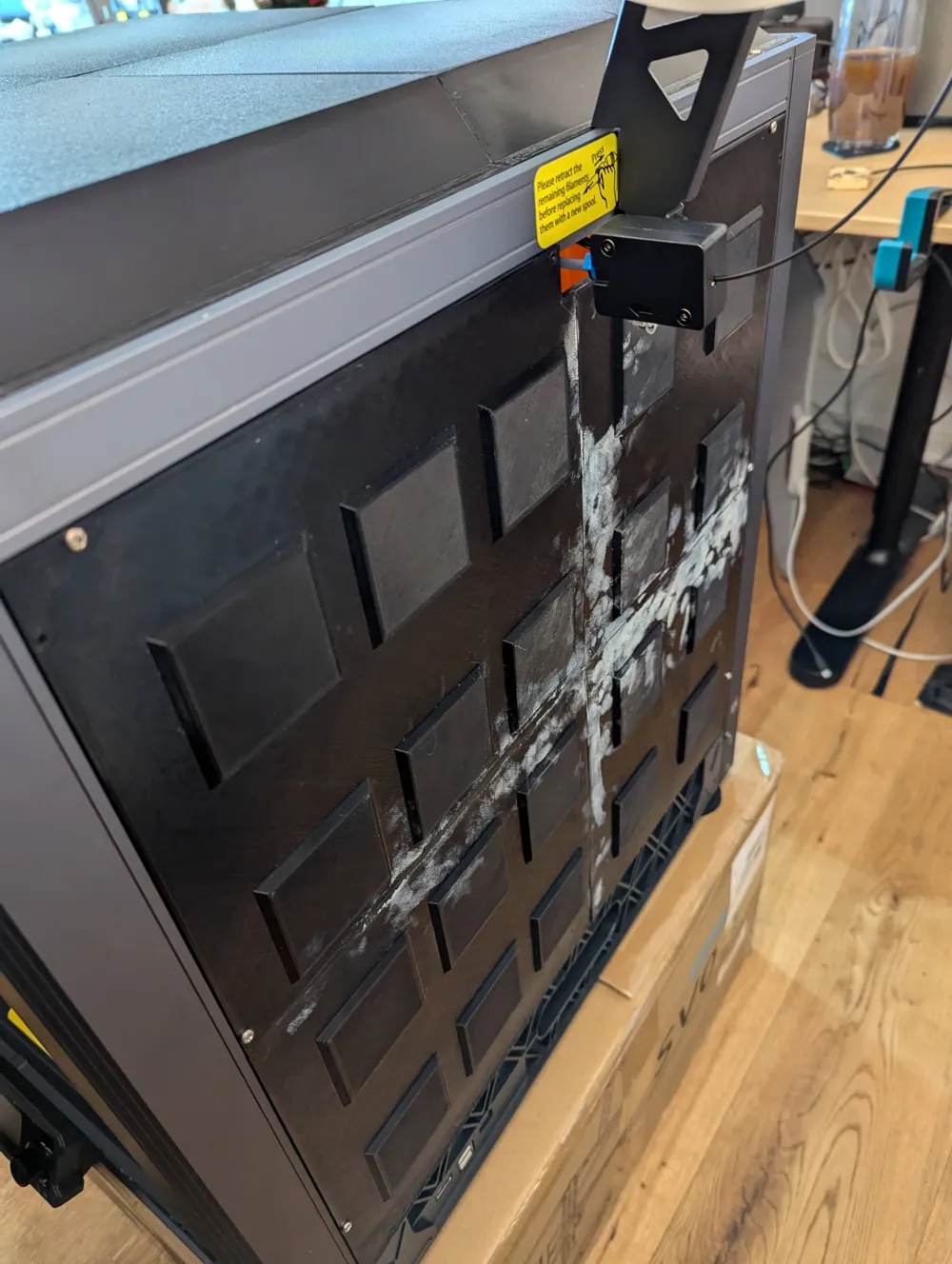

• Panel parts are glued together // maybe i gonna add a screwed version soon!
• try to be printed easy but still stiff
• Top Cover very strong, so its possible to put stuff on top of the printer (maybe filament dryer)

UPDATE 06.08.2024

• Doors uploaded! STILL NOT 100% done! I am printing ABS at the moment and it seems to be working perfectly!
• Gonna customize everything a little bit more!
• new pictures attached!

---------------------------------------------------------------------------------------

UPDATE 05.08.2024

• Doors more or less ready. First test version gonna be printed now and tested. Widows from 2mm thick acrylic glass (because i had it here). Maybe i will add a version without windows.
• No closing mechanism added yet - thinking about a good magnetic solution for now
• pictures added from the printed test-version coming soon!

UPDATE 02.08.2024

• Uploaded Top, Back and Left Panel sides! Remember, this is not yet perfectly finished!

UPDATE 01.08.2024

• to prevent rattle noise i used Tape on the underside of the panels https://amzn.to/3WIPyAu

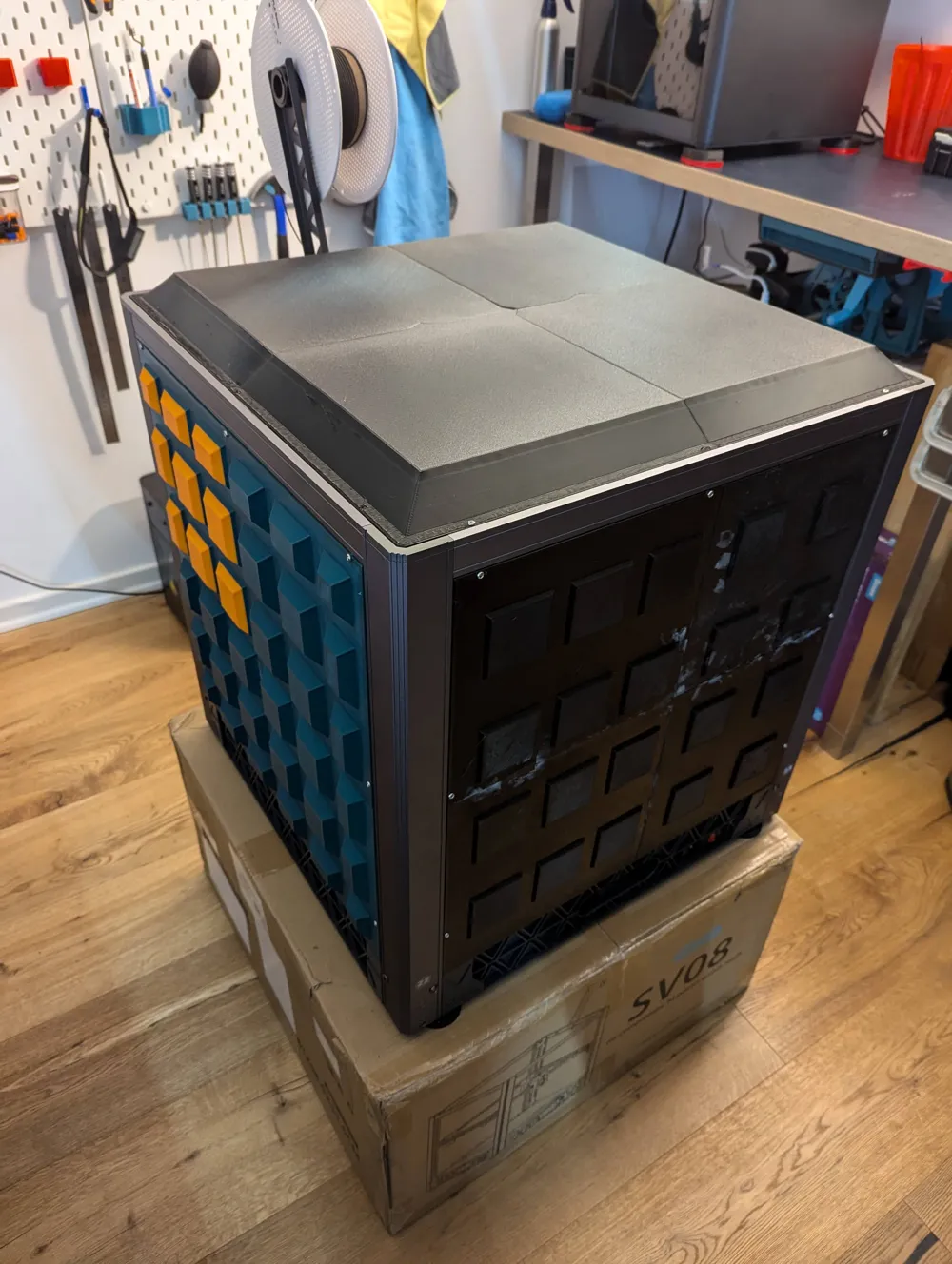

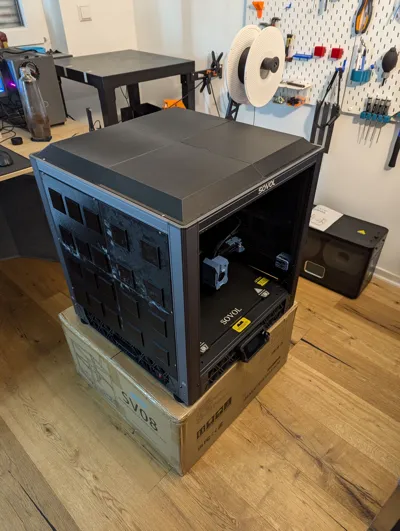

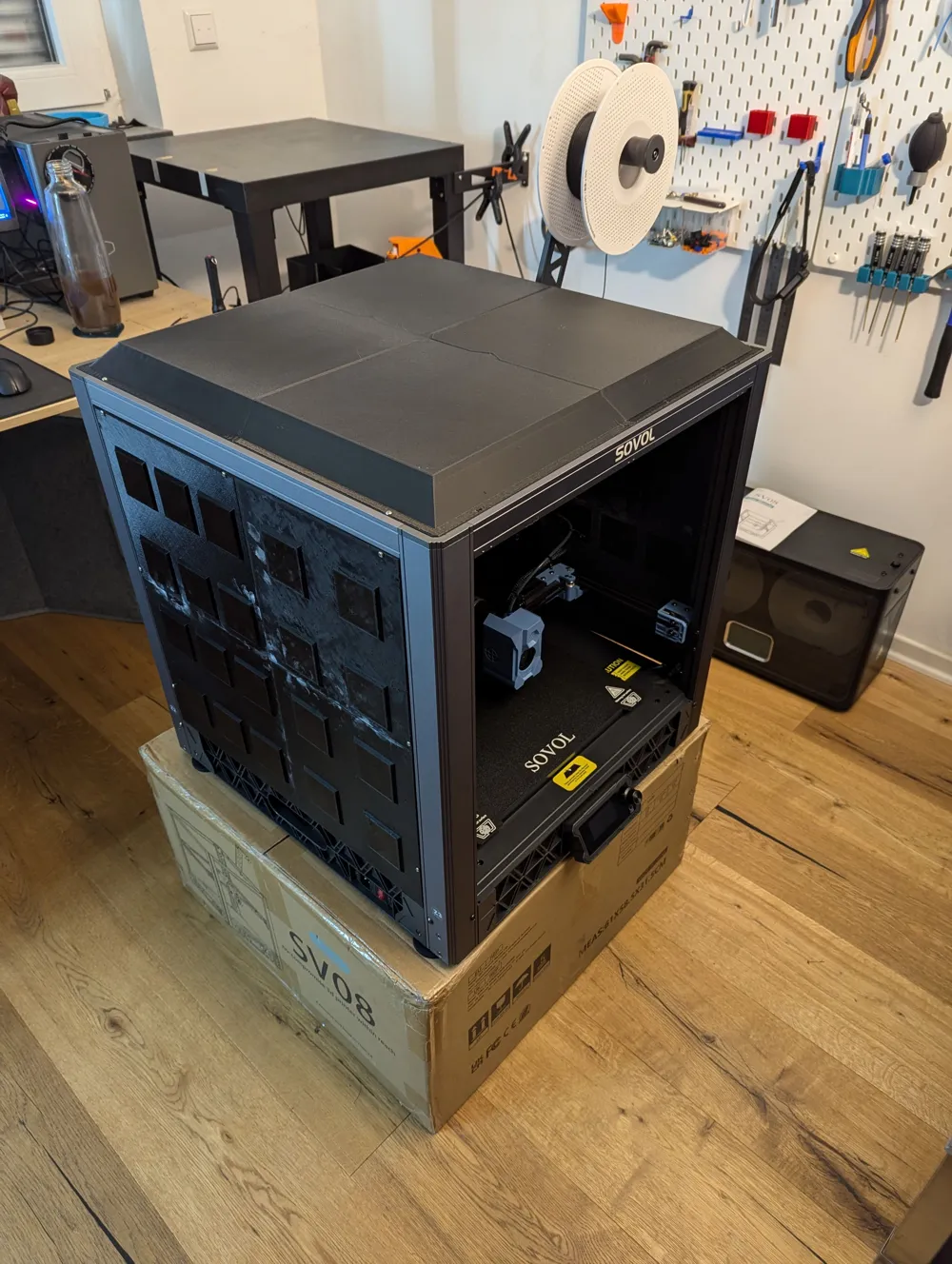

• Uploaded some pictures of my prototype ! seems fine so far. Fitting nice!

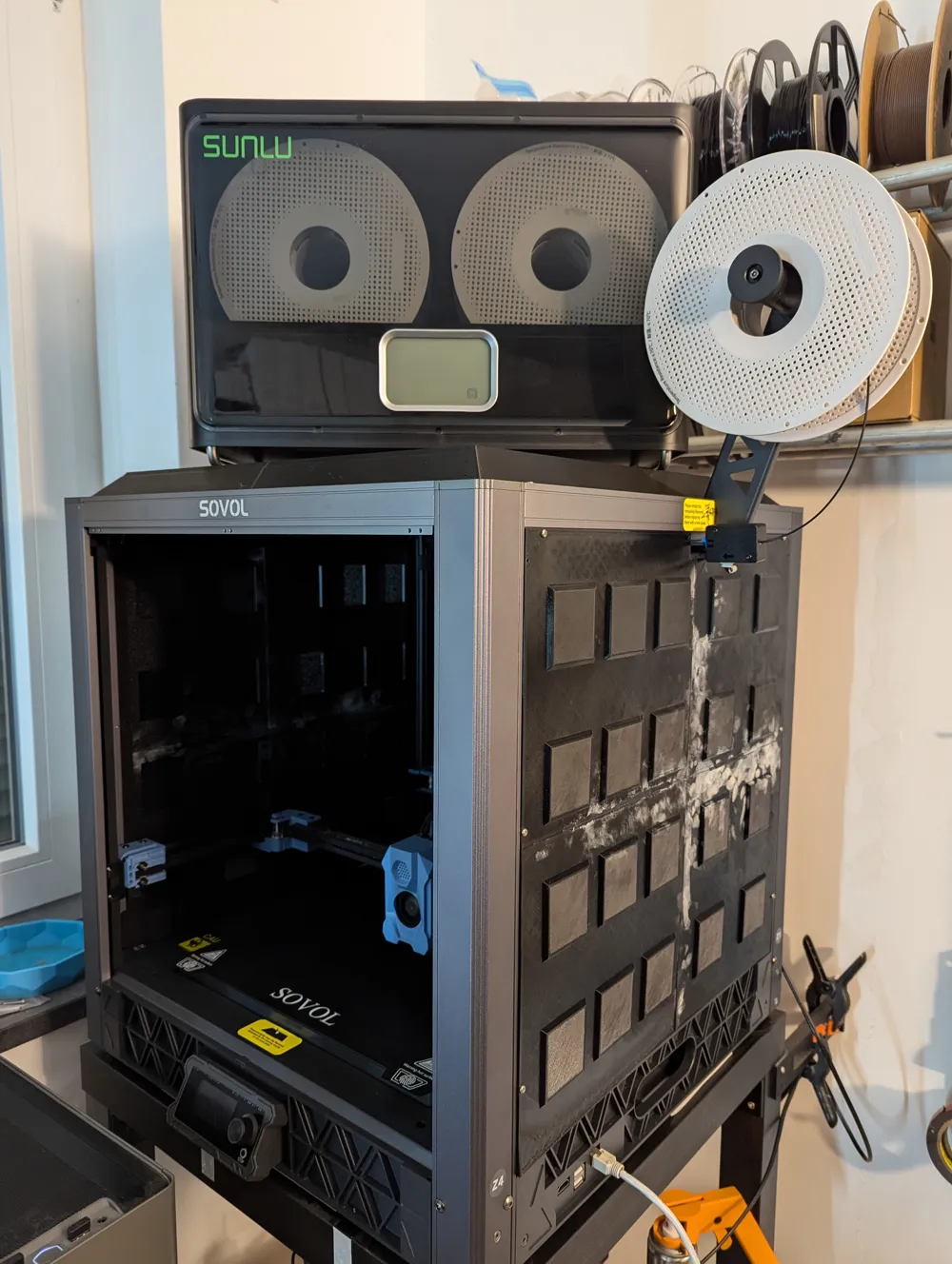

• Also the Sunlu 4x Dryer standing on top, works great!
