Gear Pathing Maze concept level

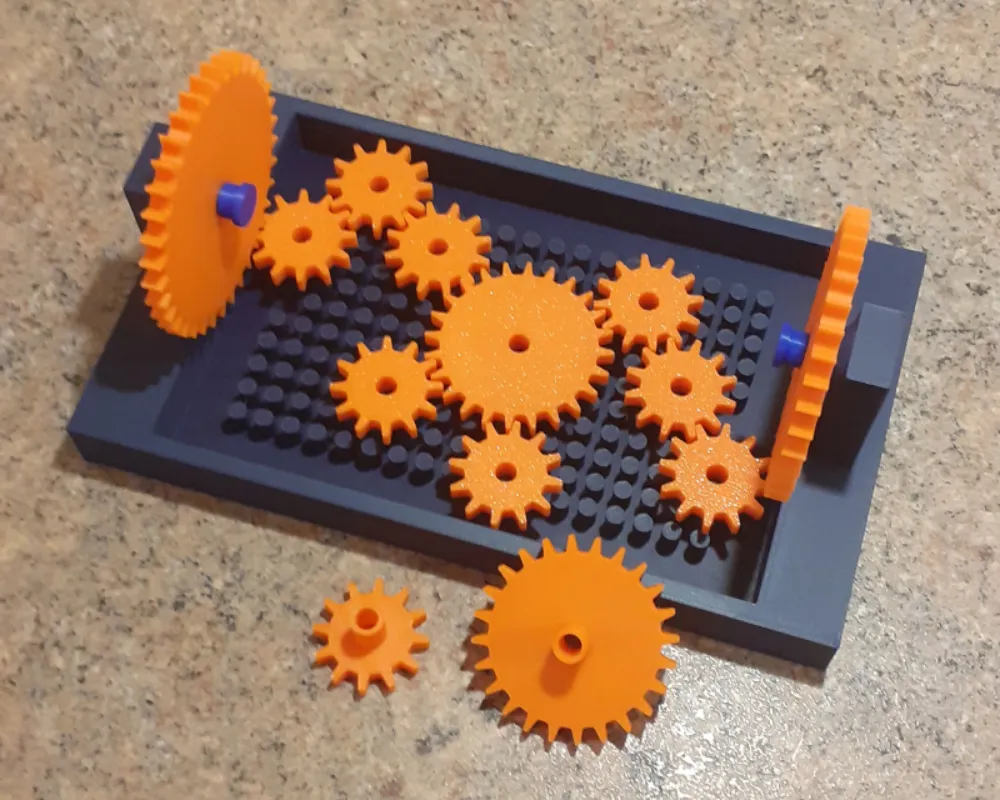

I am testing out a new type of maze where the goal is to connect two gears on the opposite sides of the board. You must use all the gears in the set and all of them must be connected.

Upgraded version (available for free for limited time) of larger board and multiple puzzle inserts available free on my thang page here: GET FREE DESIGS

Back to the design files you can get on this page

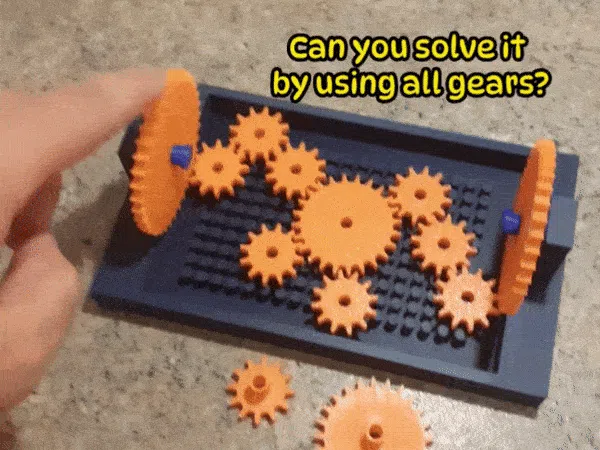

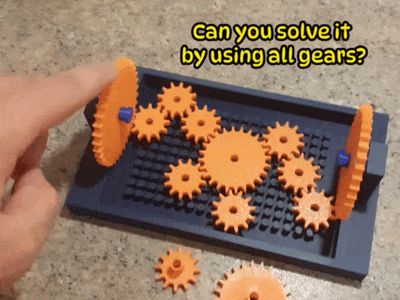

It is simple to connect sides without using all the gears, but can you fit them all in the board without them blocking each other?

This is concept level! If it is enjoyed, then I will be developing additional levels that will include way more ideas that will make finding the path so much more challenging - blocks on the board and so much more!

If you enjoy my maze designs consider joining Mazetropolis Facebook group to get sneak peaks and updates of the upcoming designs as well as have exclusive early access and GIVEAWAYS!

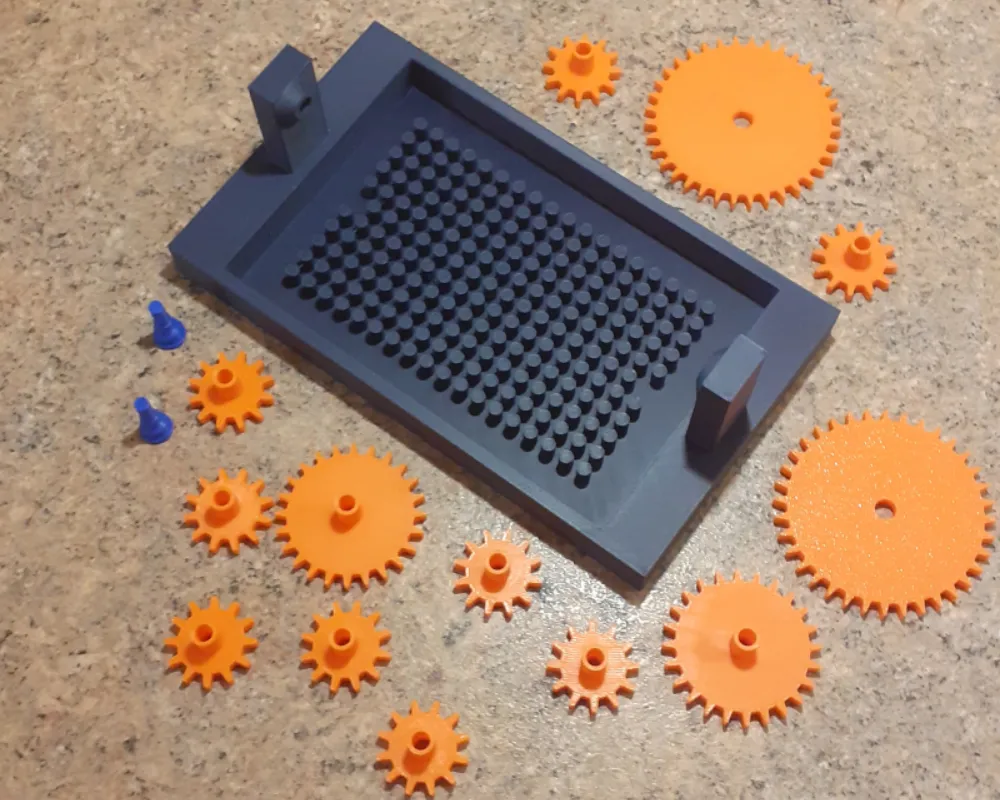

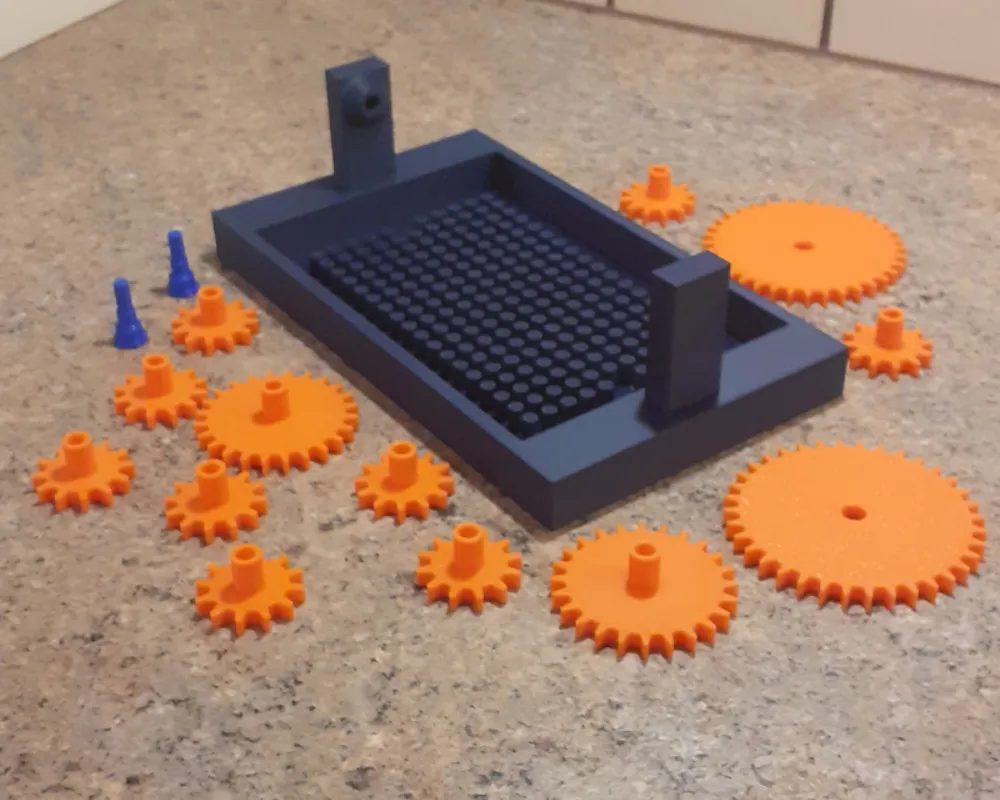

Printing specifications:

Base part:

Dimensions:  the size of the base is19 cm ( 7.48 inches) by 11 cm (4.33 inches), height of the base is 5.8 cm (2.28 inches)
Layer height: 0.2 mm
Infill type: Gyroid
Infill percentage: 12%
Print speed: 250 mm/s
Print time: 5 hours and 30 minutes
Amount of material required: ~ 44 m (130 grams)

Small size gear (9x):

Print Dimensions: Diameter of the small gear is 2.8 cm (1.1 inches), height of this part is 1.5 cm (0.59 inches)
Layer height: 0.2 mm
Infill type: Gyroid
Infill percentage: 12%
Print speed: 250 mm/s
Print time: 1 hour
Amount of material required: ~ 5 m (17 grams)

Medium size gear (2x):

Print Dimensions: Diameter of the small gear is 4.8 cm (1.89 inches), height of this part is 1.5 cm (0.59 inches)
Layer height: 0.2 mm
Infill type: Gyroid
Infill percentage: 12%
Print speed: 250 mm/s
Print time: 32 minutes
Amount of material required: ~ 3.5 m (10 grams)

Side gear (2x):

Print Dimensions: Diameter of the small gear is 6.8 cm (2.68 inches), height of this part is 0.5 cm (0.2 inches)
Layer height: 0.2 mm
Infill type: Gyroid
Infill percentage: 12%
Print speed: 250 mm/s
Print time: 41 minutes
Amount of material required: ~ 6.2 m (18 grams)

Side gear plug (2x):

Print Dimensions: Diameter of the small gear is 1.1 cm (0.44 inches), height of this part is 2.2 cm (0.87 inches)
Layer height: 0.2 mm
Infill type: Gyroid
Infill percentage: 12%
Print speed: 250 mm/s
Print time: 18 minutes
Amount of material required: ~ 0.5 m (1.5 grams)

TOTAL PRINT TIME: 8 hours
TOTAL PRINT MATERIAL: ~ 59.2 m (177 grams)

Unfortunately this design has base that's larger than the maximum bed size for A1 mini printer, therefore it is impossible to print it on A1 mini printer.
