Compact Czech Airlift Pump
Print Profile(0)
Description
Uploaded from https://www.thingiverse.com/thing:4691572
Summary

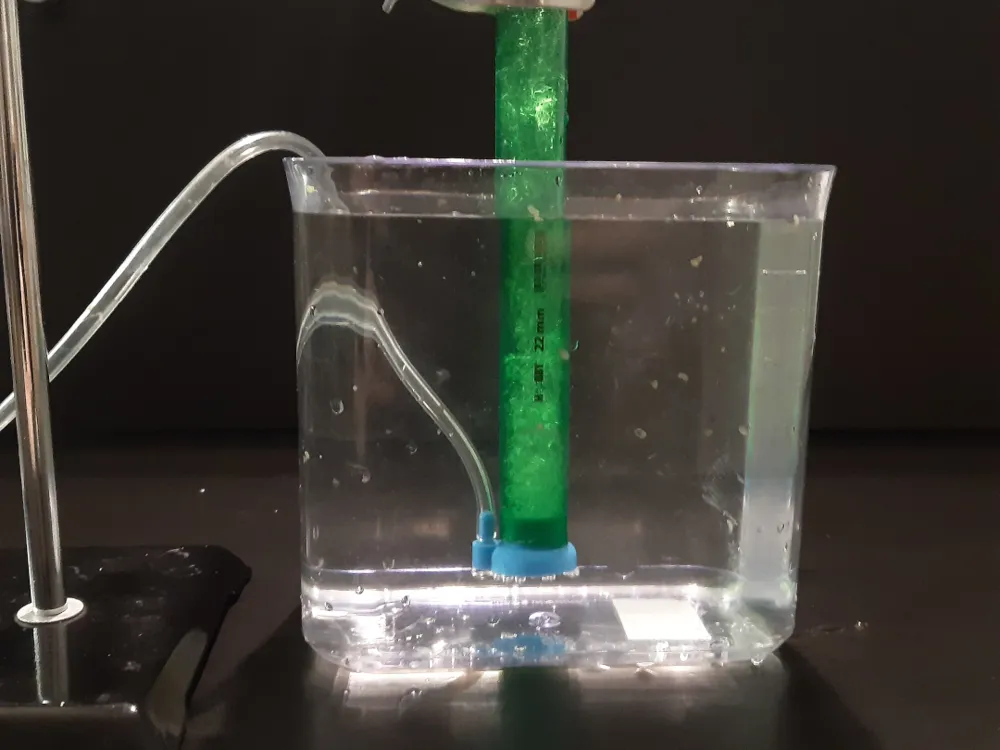

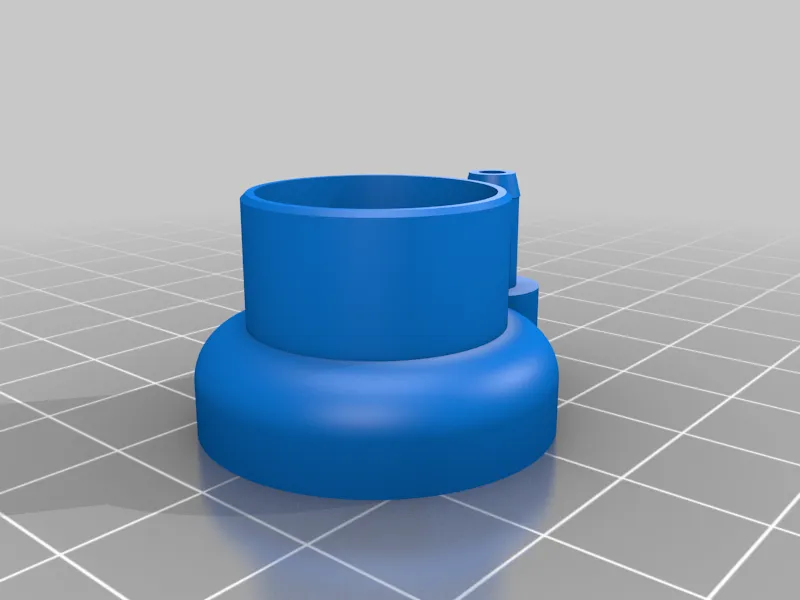

This is a minimalistic airlift pump after the original "czech airlift pump" principle, meaning it injects the air inside the tube. You only need to attach an air hose. And a plastic tube, I use 22mm "Hobby" plastic tubes. You can use the FreeCAD files to change the diameter or extend the adapter to print the tube yourself.
The injection holes are very small. If the pump is underperforming, it might be because the holes are clogged due to overextrusion.
Underextrusion may lead to leaks, obviously. But in general, the design is relatively leak proof.
Recommended parameters are .4 mm nozzle, .2mm to .28mm layer height. I only tested PLA, and I'm tending towards higher temperatures (200-210°C).
Have fun!
