H0-sggmrss-80 Containerdoppelwagen
Print Profile(1)
Bill of Materials
- Benötigt werden 6x Achse Spitzenweite 23,8 oder 24,8mm x 6:
- Draht 0,8mm x 20:
Description
Boost Me (for free)

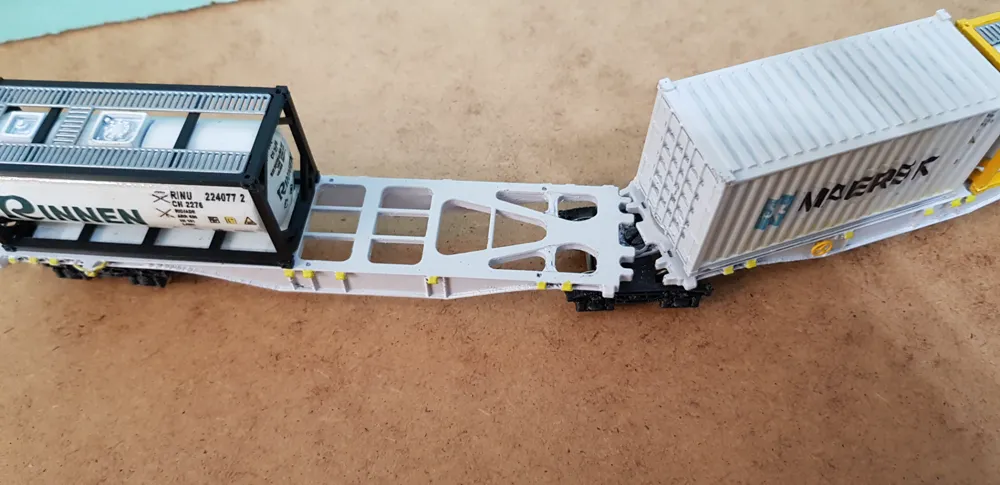

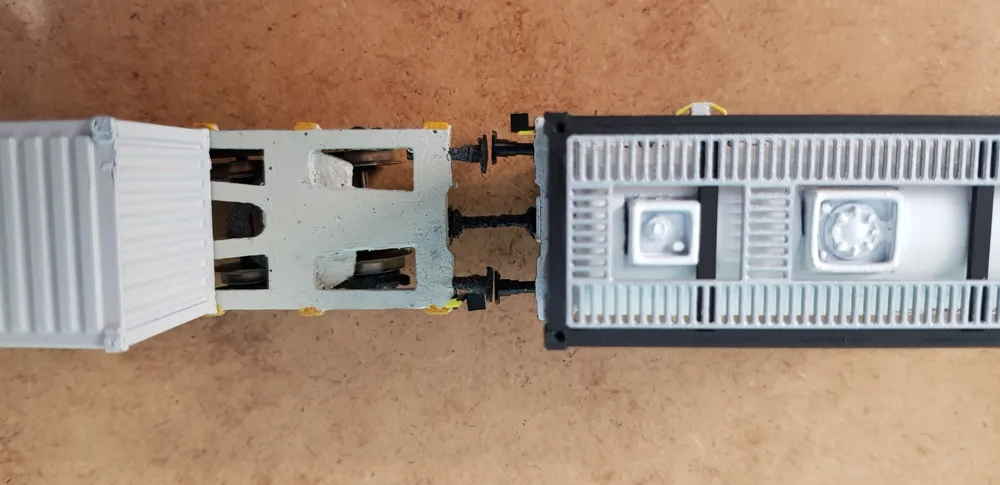

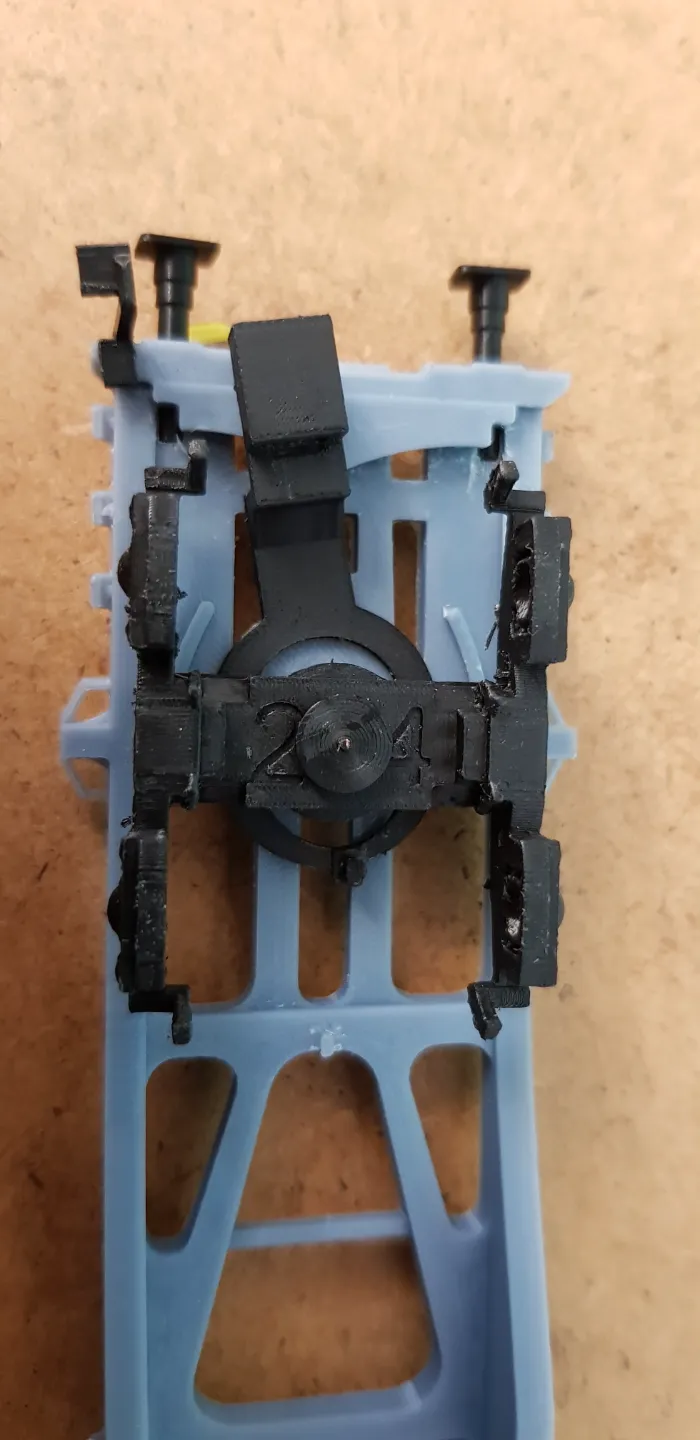

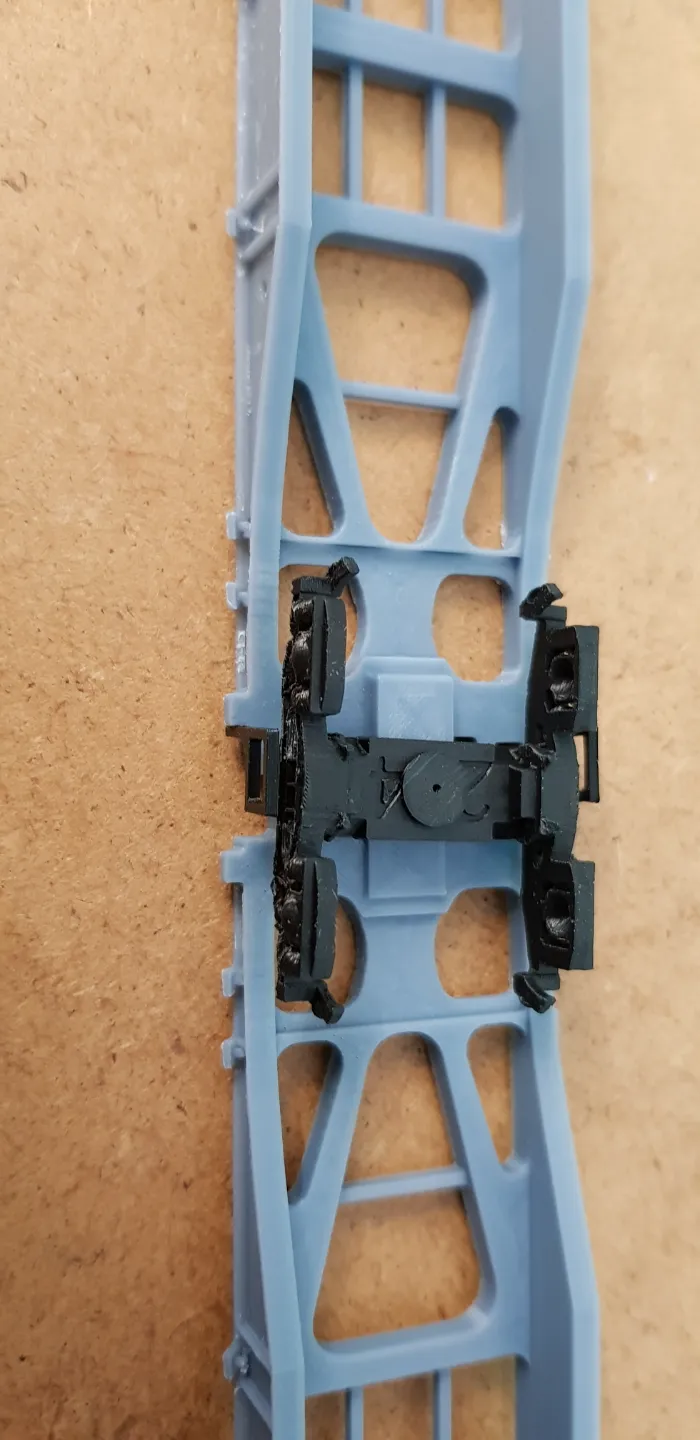

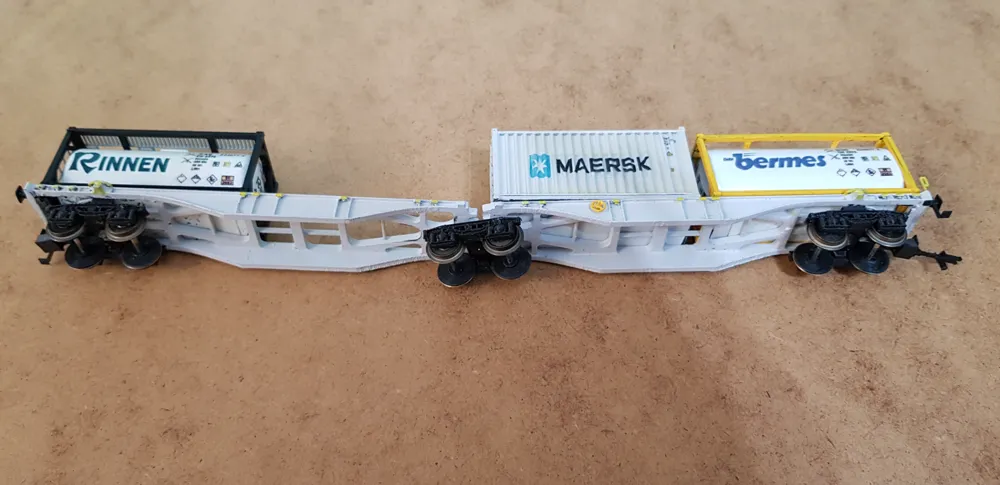

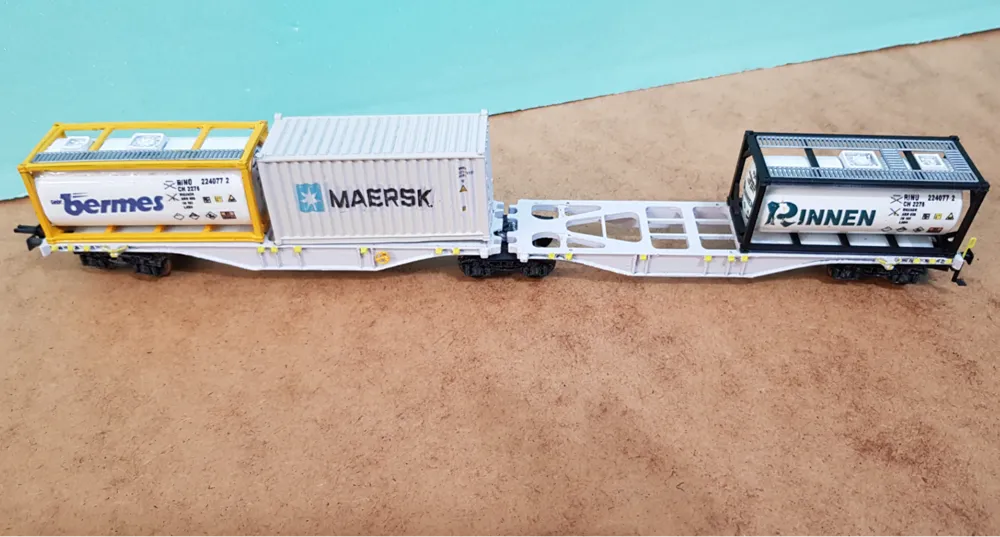

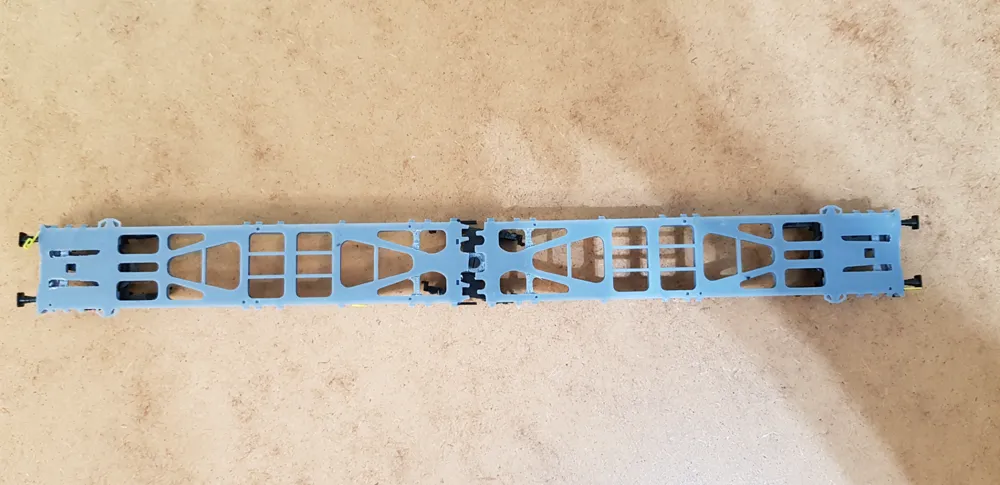

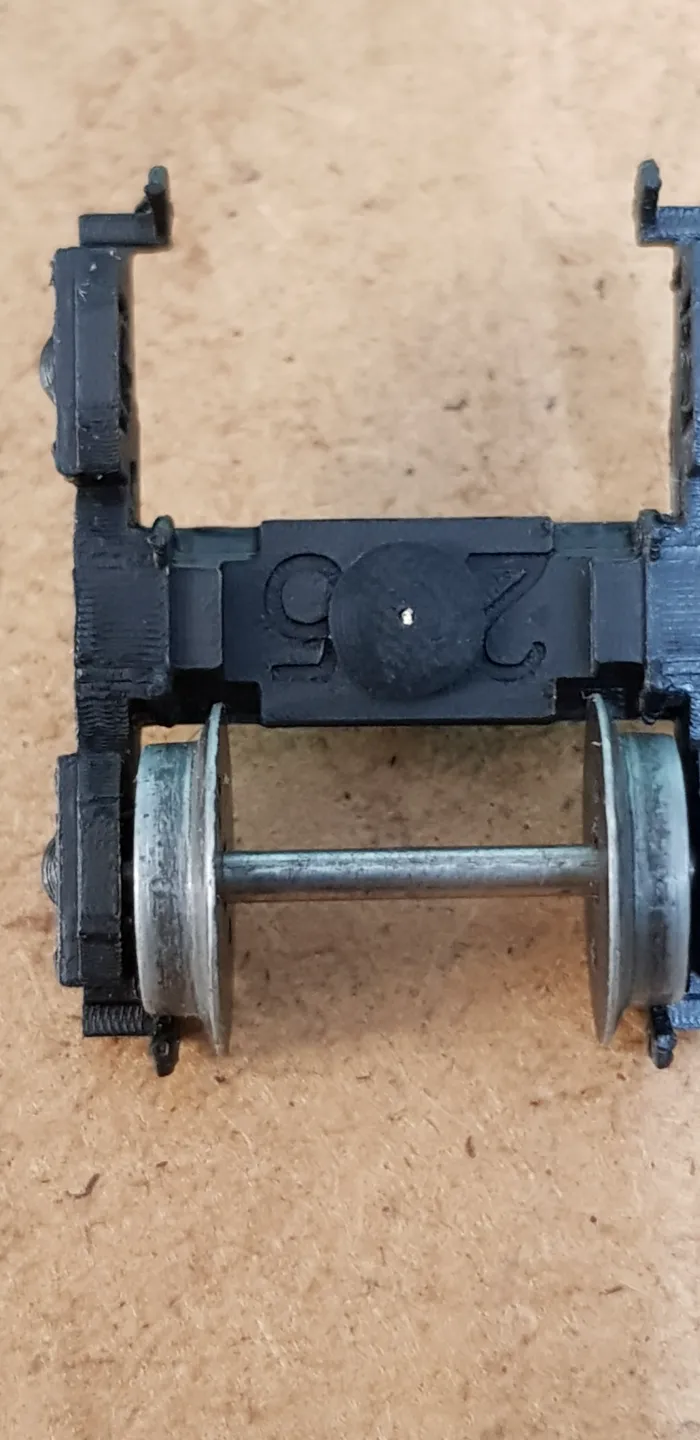

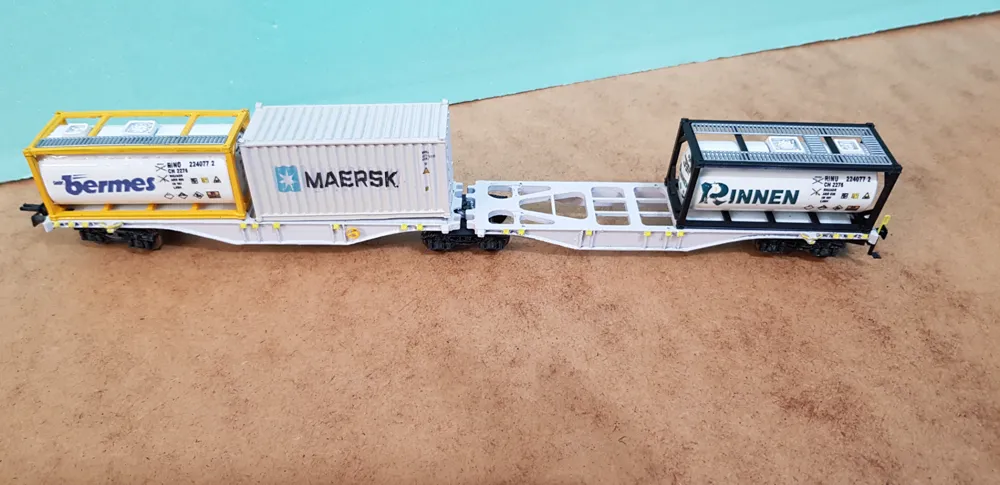

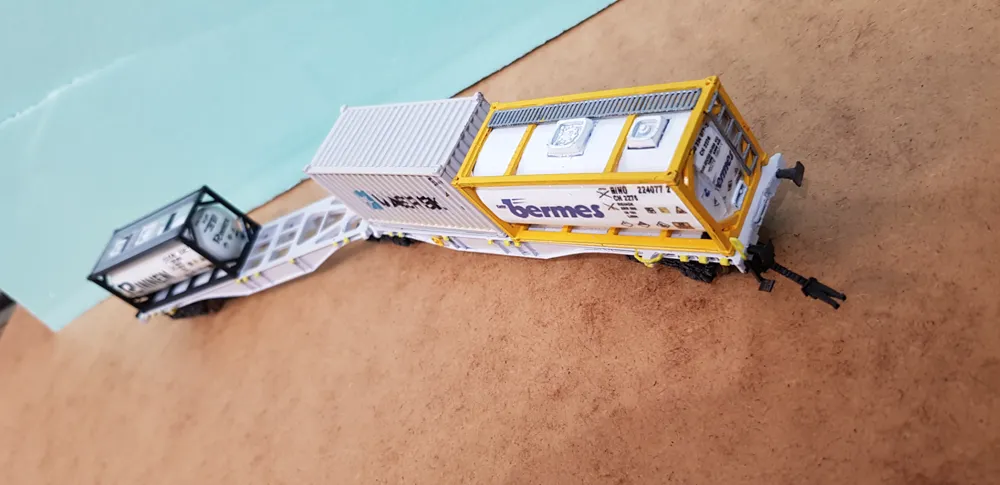

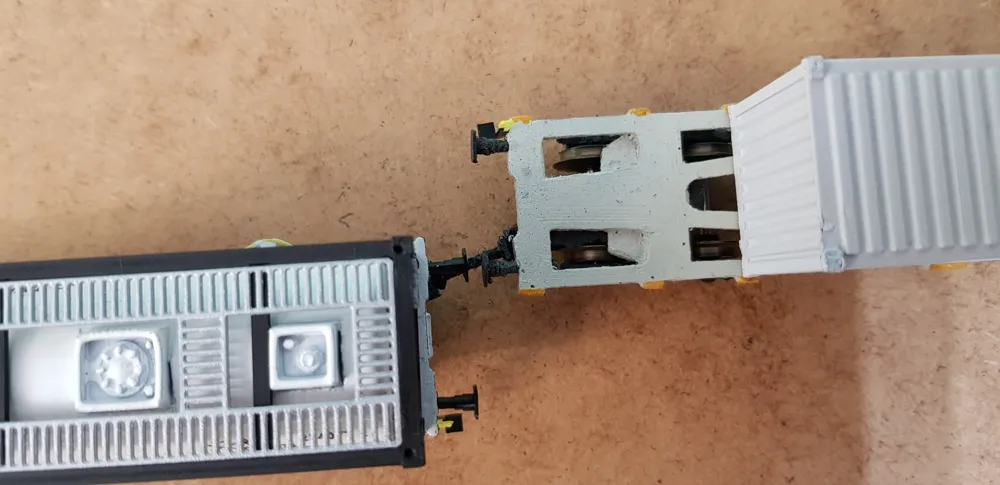

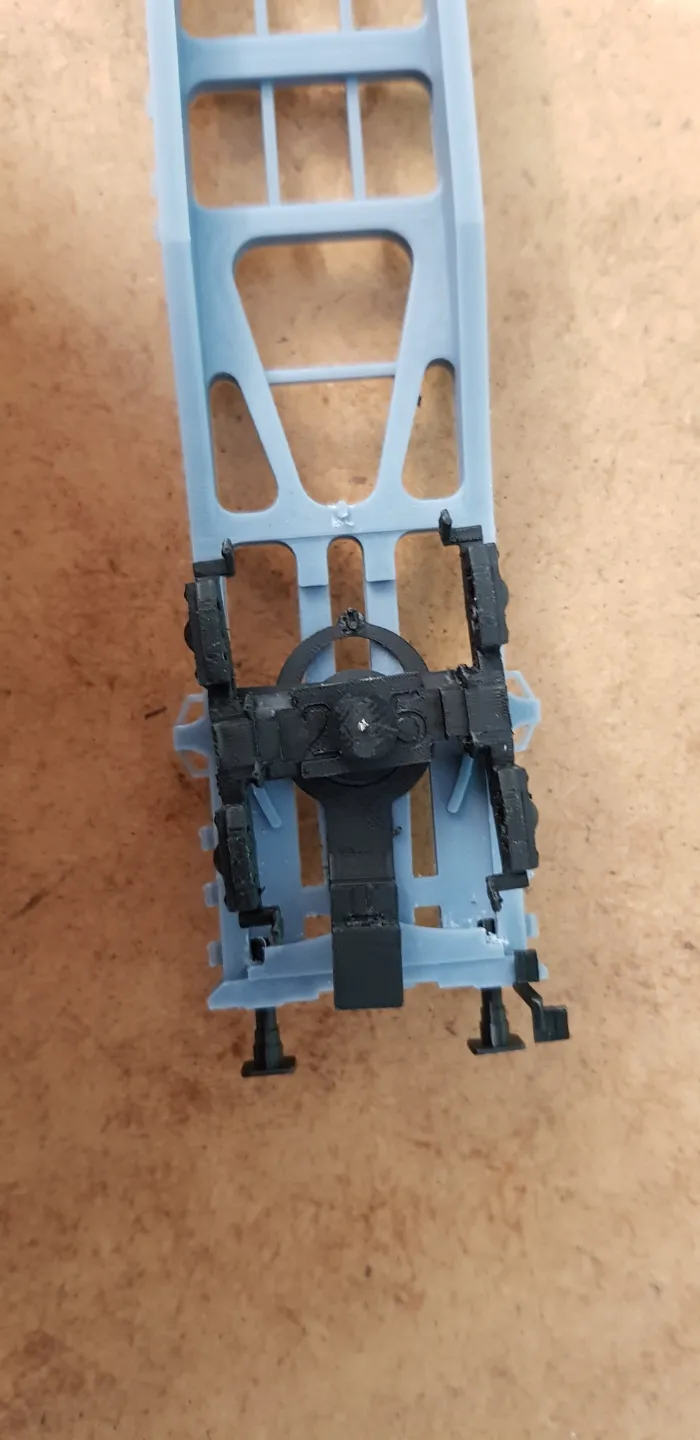

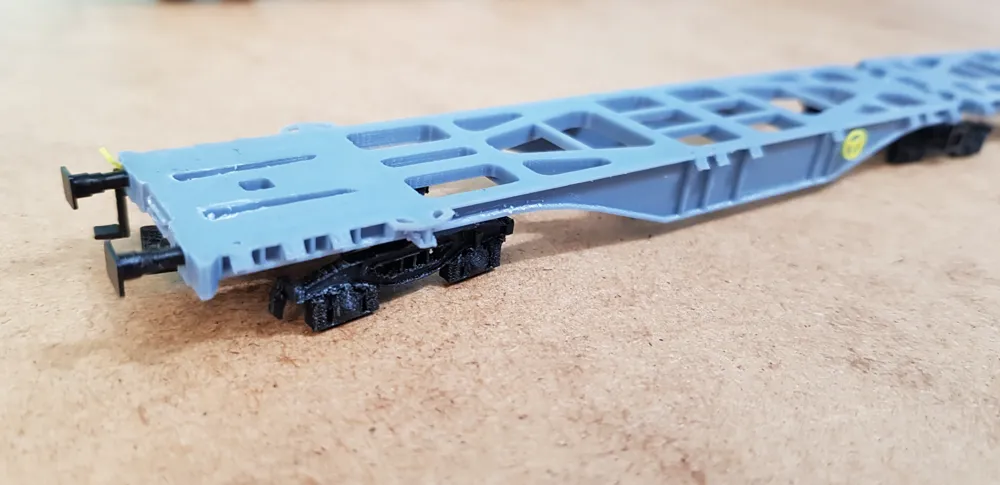

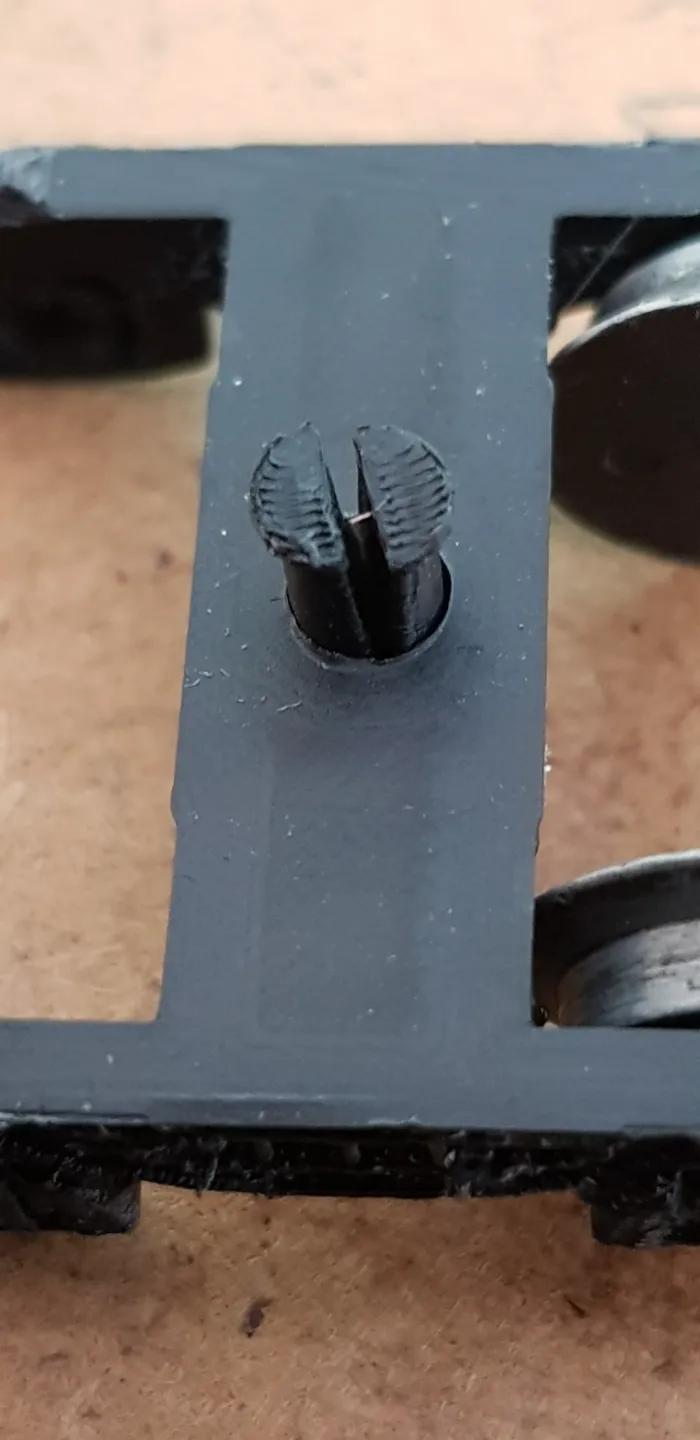

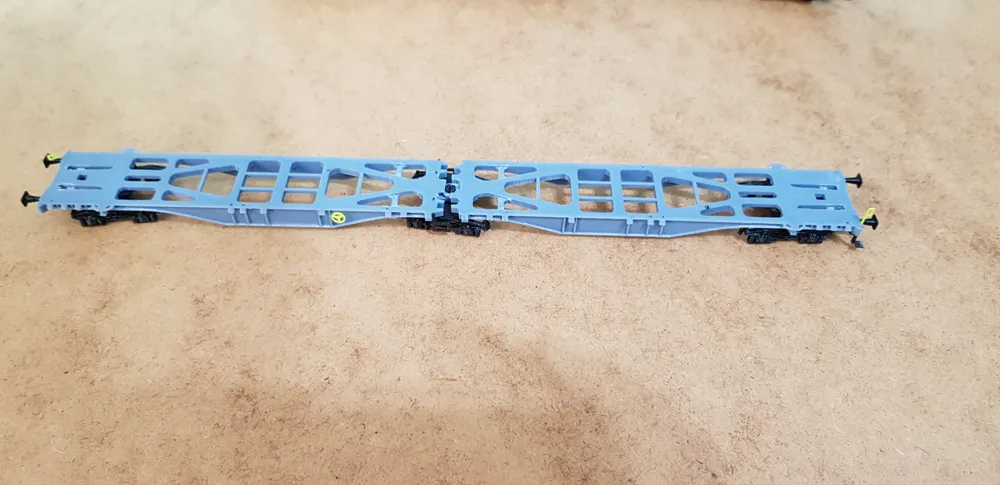

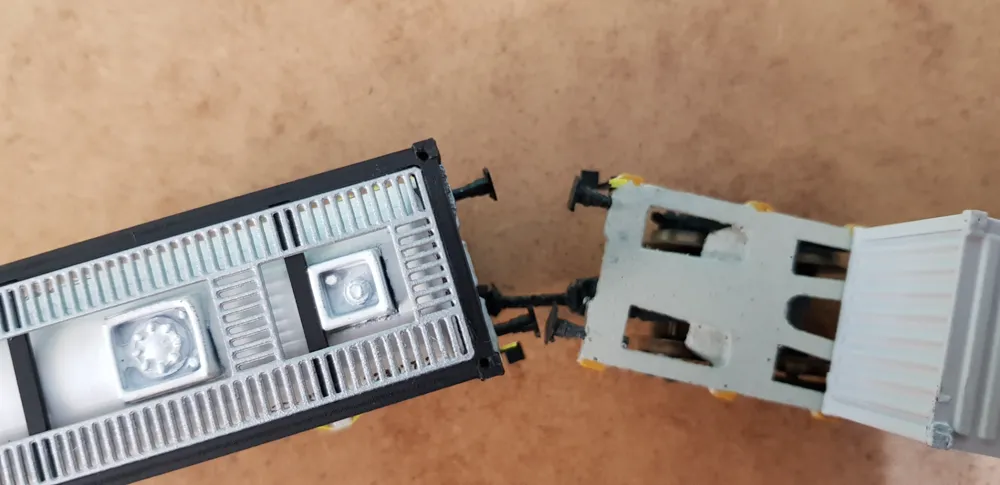

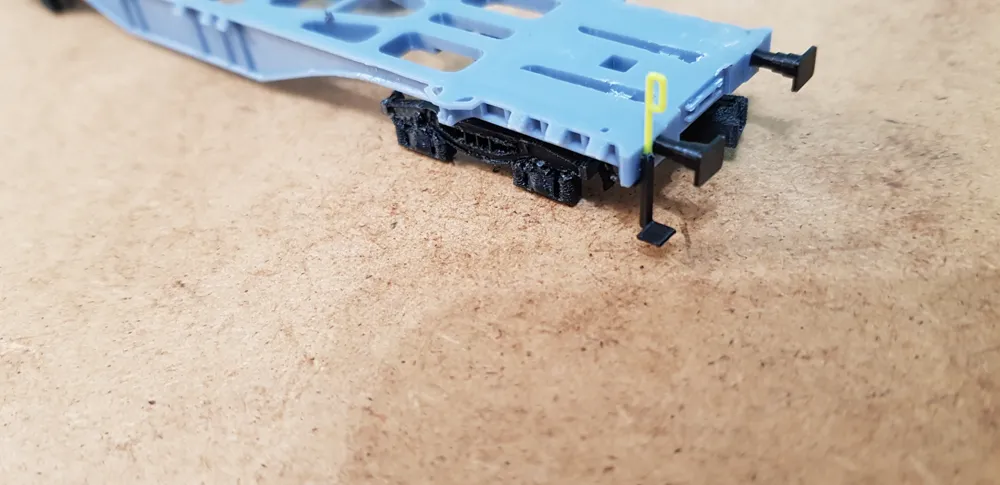

The SGGMRSS-80 double container wagon incorporates a kinematic coupling mechanism. Its bogies exhibit flexibility, accommodating axles with a gauge of either 23.8 mm or 24.8 mm, and a maximum wheel flange diameter of Ø13 mm. The 6.3 mm (center) and 5.7 mm (outer) bogie pins are each secured with 0.8 mm diameter wire. Component attachment is achieved using a suitable adhesive.
Required: 6 axles with a gauge of 23.8 mm or 24.8 mm and 0.8 mm wire
The SGGMRSS-80 container double wagon features a kinematic coupling mechanism. The bogies are flexible and can be used for axles with a gauge of either 23.8 mm or 24.8 mm, as well as a maximum flange diameter of Ø13 mm. The bogie pins with 6.3 mm for the center and 5.7 mm for the outside are each secured with a wire with a diameter of 0.8 mm. The attachments are fixed with a suitable adhesive.
6x axle with 23.8 or 24.8 mm gauge and 0.8 mm wire are required
