8 x 32 LED Matrix Awtrix Home Assistant
Print Profile(3)
Description

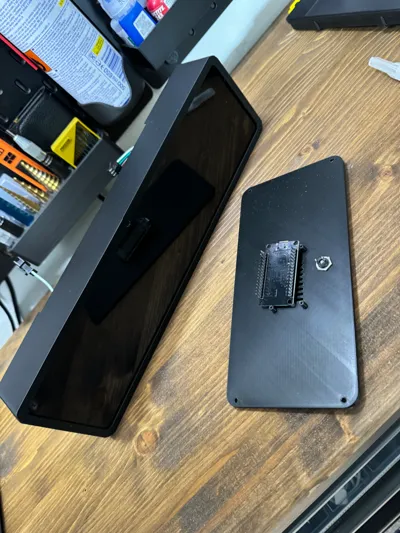

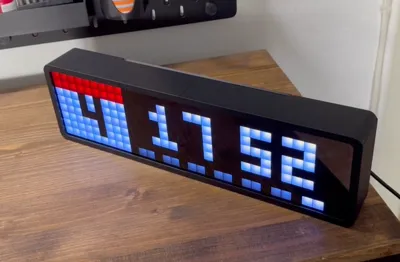

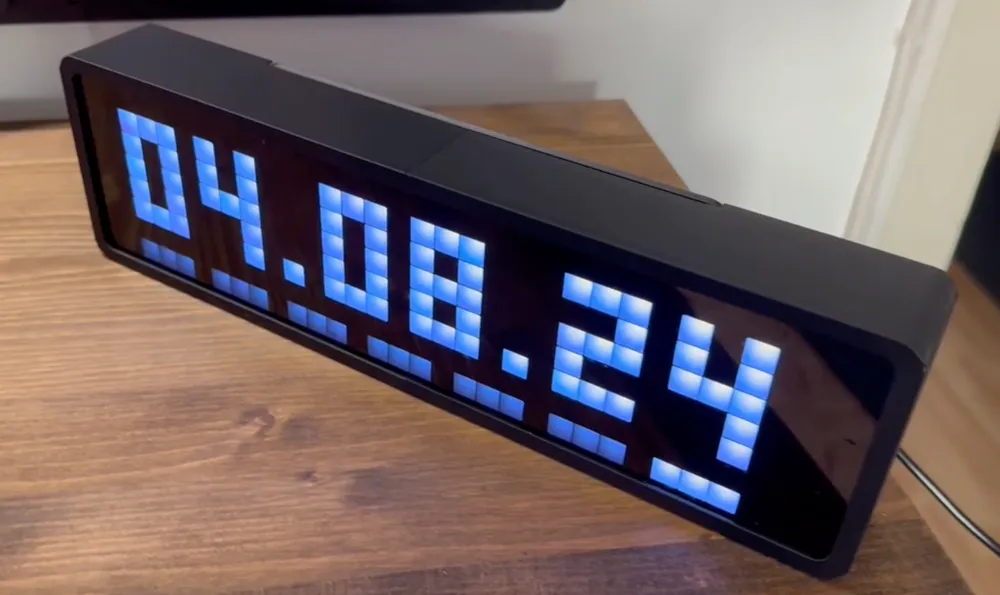

8 x 32 LED Matrix Housing with stabile Lens and beautiful dark display.
It is suitable for standard 80mm x 320mm , 8 x 32 LED-Matrix from Aliexpress. ESP32-dev-Board Wroom 32.
Software used is Awtrix 3 with big community and many YouTube videos for Effects, Project Ideas for use via Home Assistant or via Awtrix 3 App in your Smart Home.

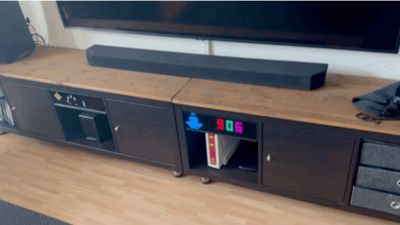

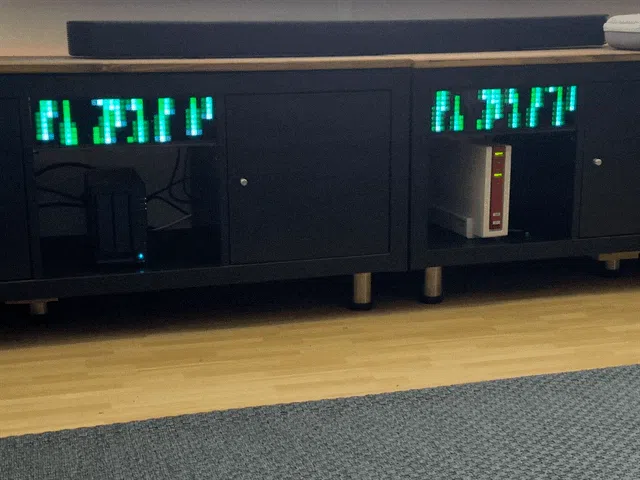

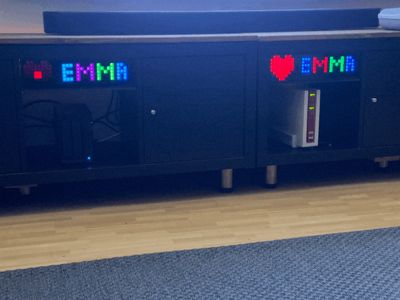

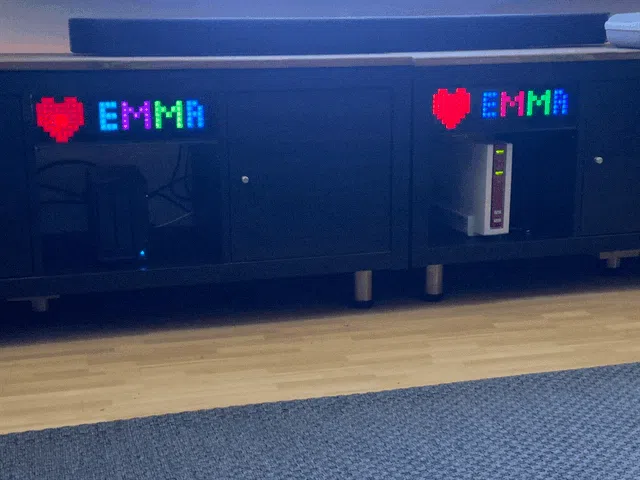

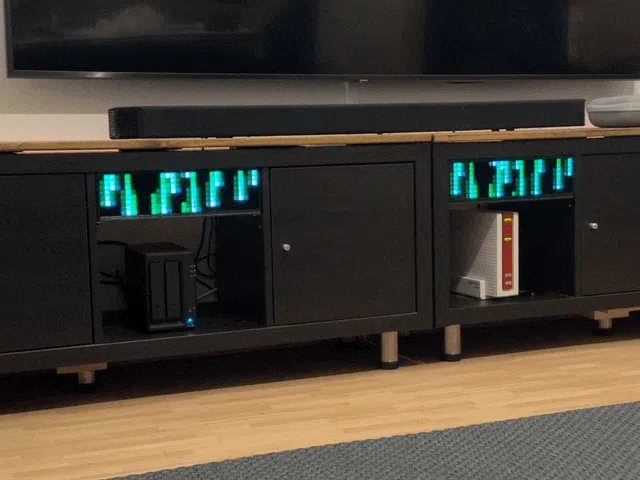

I´m using these integrated into Ikea Kallax to show Time, Calender, Weather forcast, Waste Collection Forecast, Temperature inside Home, 3D-Printer progress in % and in Time, Roborock Vacuum Cleaner Status, Dishwasher status, Battery status of your smartphone, Laptop, Ipad, Crypto and Stocks, and and and :).
I have written Dokumentation attached here “Assembly Guide” for Hardware. Please look into and if you have questions, please ask.
If you like my work, please like, comment and boost :).
Boost Me (for free)
Send me a free boost, which gives me the opportunity to create more test prints and improve them for you.
You can also Support my work through paypal, Thank You:
Initial Software (Awtrix 3) which I am using is from Stephan aka Blueforcer. With HomeAssistant you can create your own Automations and choose your favourite information or effects which you can show on this display.
Links:
GitHub Blueforcer awtrix 3: Custom Firmware and description: https://github.com/Blueforcer/awtrix3
Blueforcer Step-By-Step flashing, configuration, icons, effects, optional parts, flows and more: https://blueforcer.github.io/awtrix3/#/README

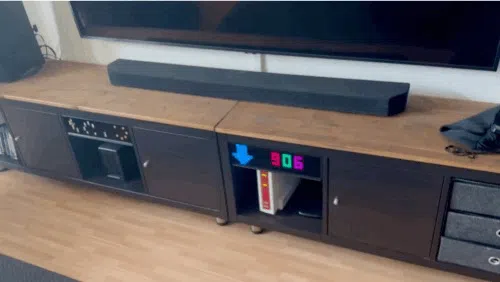

Uptate 04.11.2024: on each Download, Boost, Print or new Follower, the Home Assistant triggers the Displays and shows the Updates :)
Update 30.03.2025: Step Files for Backplates added.
Update 03.04.2026: new raw files and print profile “HOUSING_for_3mm_LENS” added if you want to use 3mm thick Lens.
