DryBox Silica Hygrometer with Label
Print Profile(3)



Description
News: A new removable silica beads container is now available, compatible with all Manu Ziloop rolling dry box models. It lets you refill or replace the desiccant by simply lifting the container out—no need to remove the entire base.
https://makerworld.com/en/models/2333245-removable-desiccant-container-rolling-dry-boxes#profileId-2549417

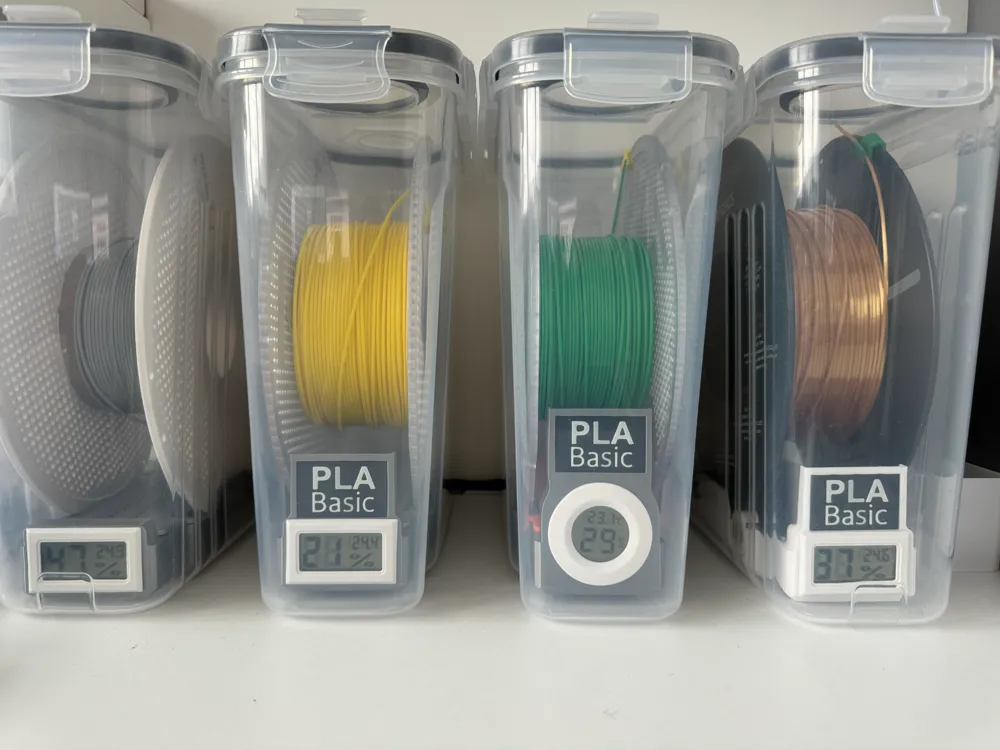

The goal of this model, in conjunction with "cereal boxes," is to store filament spools in an airtight environment to prevent moisture absorption.
In case you need a model for narrow spools (for example, 500 g spools), take a look at the following link: https://makerworld.com/en/models/2203421-cereal-box-dry-box-desiccants-for-narrow-spools#profileId-2394245

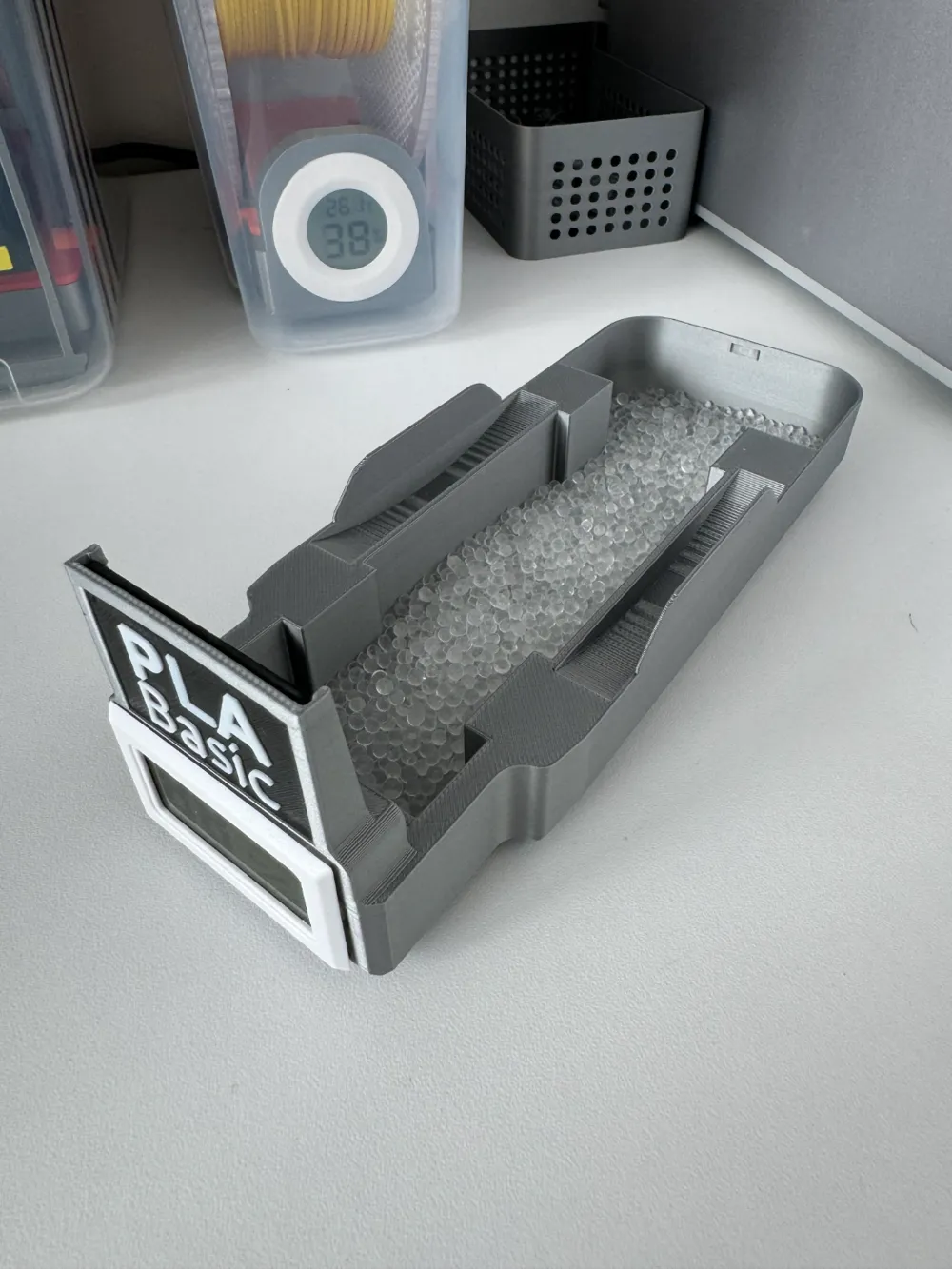

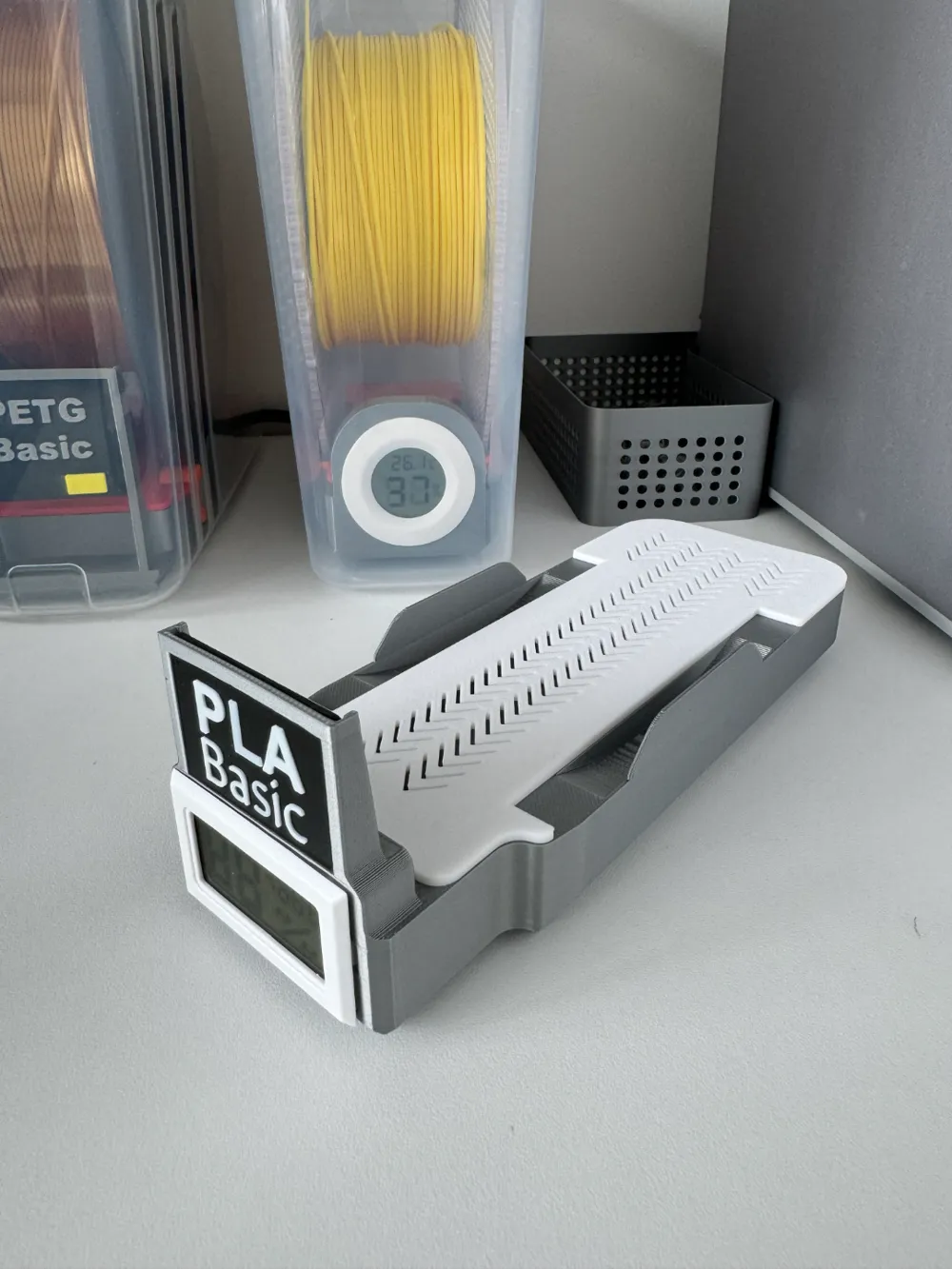

- Holds silica gel beads to dehydrate the filament.
- Supports a hygrometer to monitor humidity levels and determine when to replace the silica gel.

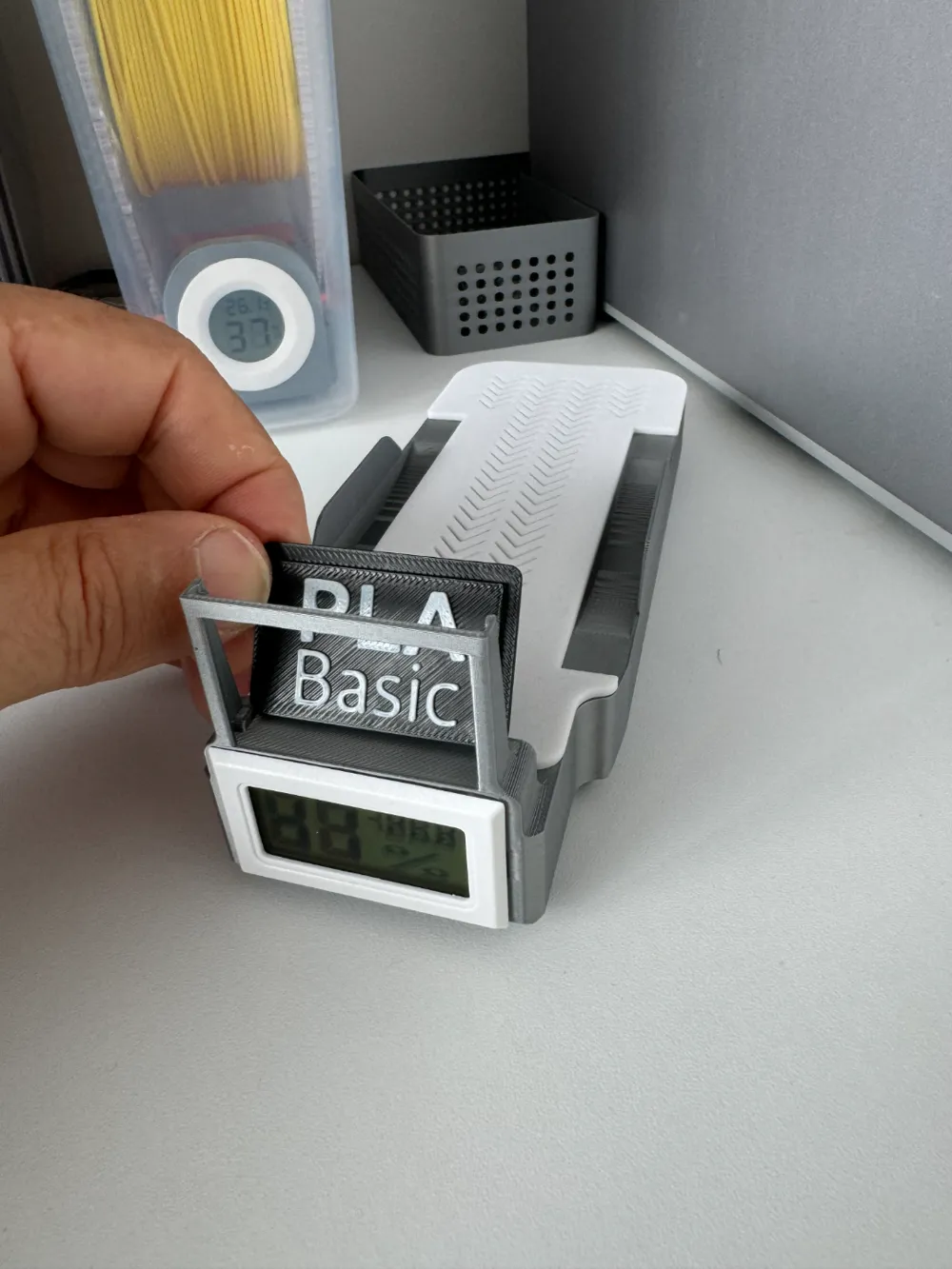

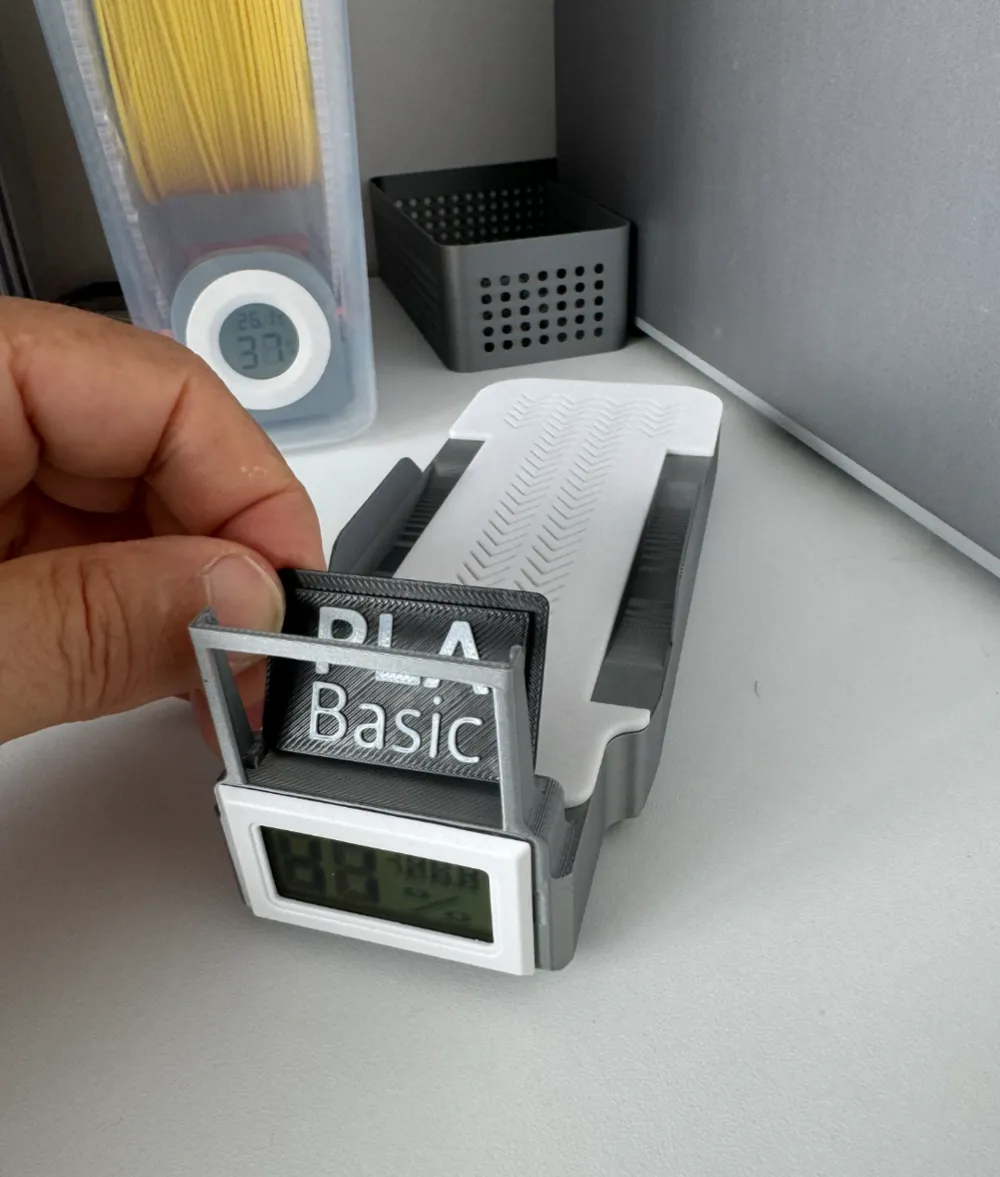

- Offers the option to add labels for identifying filament types, which is helpful if you have many spools.
- This model is suitable for most spools. You can use spools from 50mm (internal width of the reel) to 69,9mm (external width of the reel).
- Regarding the amount of silica, you can use about 170 cm³. Personally, I use much less, it lasts about a month before I need to replace it (I regenerate it in the oven).
- I have sized it so that it can be also printed from the small BambuLab Mini.
Label Customizable text: The text on the labels can be easily created to your liking by going to "Edit Text and Color" under "Prepare - Objects" in Bambu Studio.
Regarding the rectangular hygrometer, I bought it on AliExpress but you should be able to find it on Amazon:
https://www.aliexpress.com/item/1005003075779370.html
I bought the cereal boxes on Amazon:
I bought a 2kg pot of silica gel on Amazon:
Boost Me (for free)
Hit the Boost button 🚀 it's free and helps me keep designing stuff for the Bambu community.
A note on print quality: I test all my models before uploading. If your print doesn't turn out well, check your filament (old? wet?) and printer calibration first. Most issues come from these, not the model.
