Go Game 19x19 (AMS)

Fully 3D-printable.

Meticuluously designed and tested to be the most compact full size Go Game ever created. Every component is utilized in the design and optimzed for printability, storage, and playability.

Details

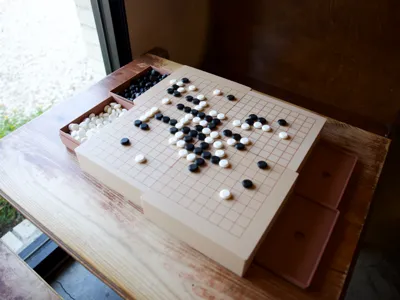

• The outside edge of the assembled board is irregular because the squares have to be different sizes to nest inside one another; however, the grid is centered so it perfectly aligns when the four pieces are connected together.

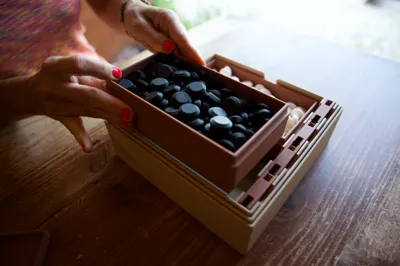

• The lids for the treys (pots) can be used for prisoners for Japanese rules, or can be nested under the treys during play for Chinese rules.
• The name of the game is printed on the four sides in English, Chinese, Japanese, and Korean.
• It's 100% printable; however, you should be able to fill it with and use stones that are less than 22mm in diameter.

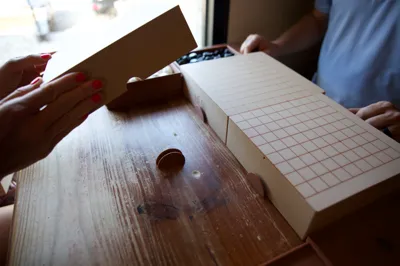

• The lid can also be used to play a 9x9 game without unpacking everything. While the grid extends onto two sides, experienced players should find it easy to navigate.

I also designed a 9x9 grid portable Go Game available here.

Materials

I used Bambu PLA for all parts. If you use PLA, be careful not to leave in a hot car as it can warp.

• Board: Matte PLA Latte Brown
• Grid Lines/Letters/Treys: Basic PLA Brown
• Black Stones: Basic PLA Black
• White Stones: Basic PLA Jade White

Dimensions

• Board: 18.5in x 18.5in x 2.625in (234.95mm x 234.95mm x 66.68mm)
• Box: 9.25in x 9.25in x 3in (234.95mm x 234.95mm x 76.2mm)
• Grid spacing: 22mm (both directions)
• Stones (infill 50% for weight)
  • Black: 21.3mm diameter x 8.3mm height
  • White: 21.0mm diameter x 8.0mm height

Disclaimer

This product contains small pieces that should be considered a choking/asphyxiation hazard for small children, handle with caution.
