Bill of Materials

Maker's Supply Kits and Parts

Select all

M5 Flat Head Socket Cap Machine Screw (FHCS)

List other parts

Ruthex_RX-M5x9.5 x 6: https://www.3dprima.com/se/reservdelar-tillbehoer/oevriga/post-processing/ruthex-m5-threaded-insert-rx-m5x9-5-50-pcs_30181_12617
MC6S 5x16 x 6: Screw-SocketHead

Description

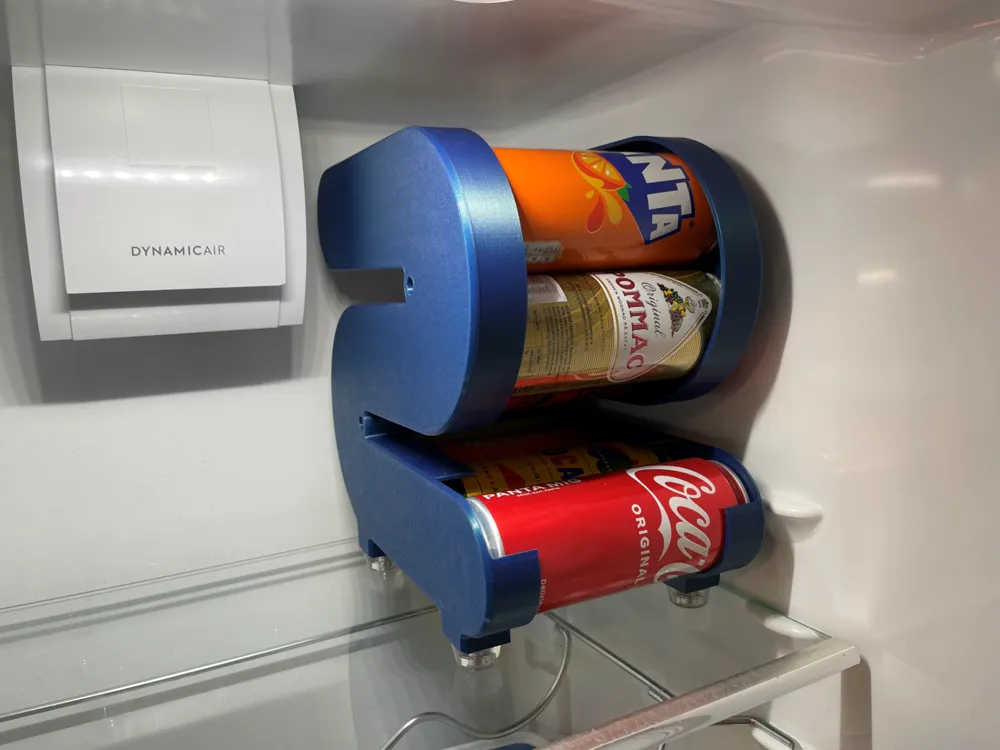

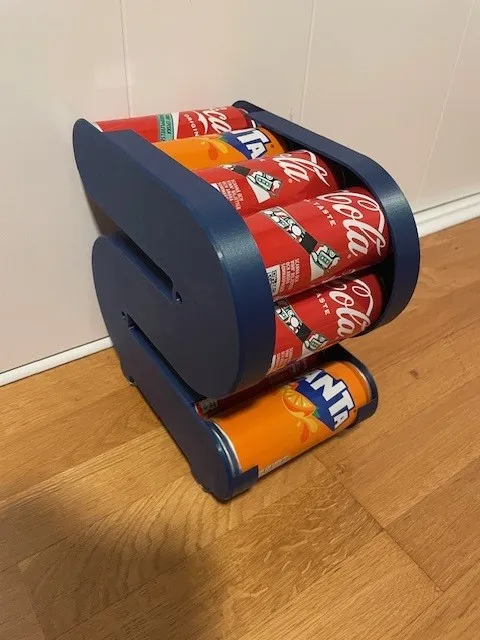

This is a soda can dispenser that can take 12 cans. When you pull out one can in the bottom opening a new one will take it´s place until the dispenser is empty. I bought the TPU feet but I also submitted similar feet as a model to be printed in TPU. The feet are not really necessary though but it feels a little better with more friction to the surface. The two printed gables are bolted together and I use a threaded M5 insert.

I guess it´s possible to glue the pieces together but I will not recommend it since I have not tried it. See the pdf for a thorough drawing of the assembly and fasteners needed.

NOTE! The base version of this model is made according to European standards. Drink can - Wikipedia

Base version fits cans that are diameter 58mm and 145mm tall.

If you live in North America you should also print: Spacer 10mm for North America 12FLoz (355ml) SlimCan.stl

This spacer fits the taller, American can.

There is a printer profile with a kit of spacers for that now.

I´ve seen some confusion between the European 33cl and the American 355 cl can. They have the same diameter but different lengths.
