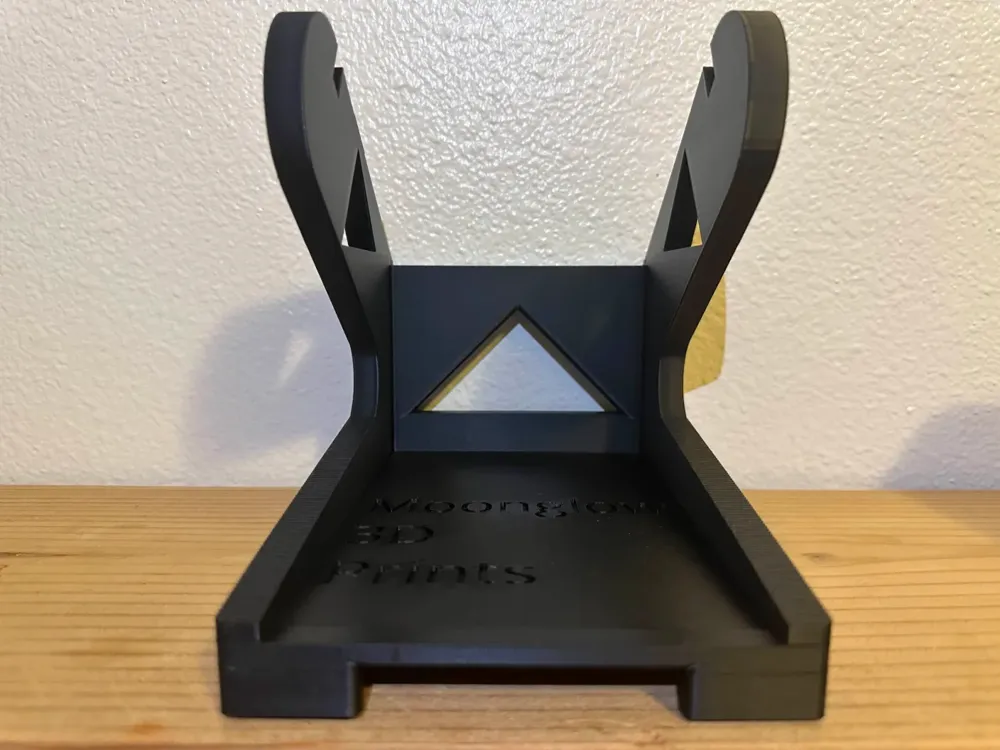

Label Holder - For Rolls and 4x6 Fan-Fold Labels

A simple model to hold rolls and fan-fold labels.

This model requires assembly.

First (only applies to the first two print profiles):

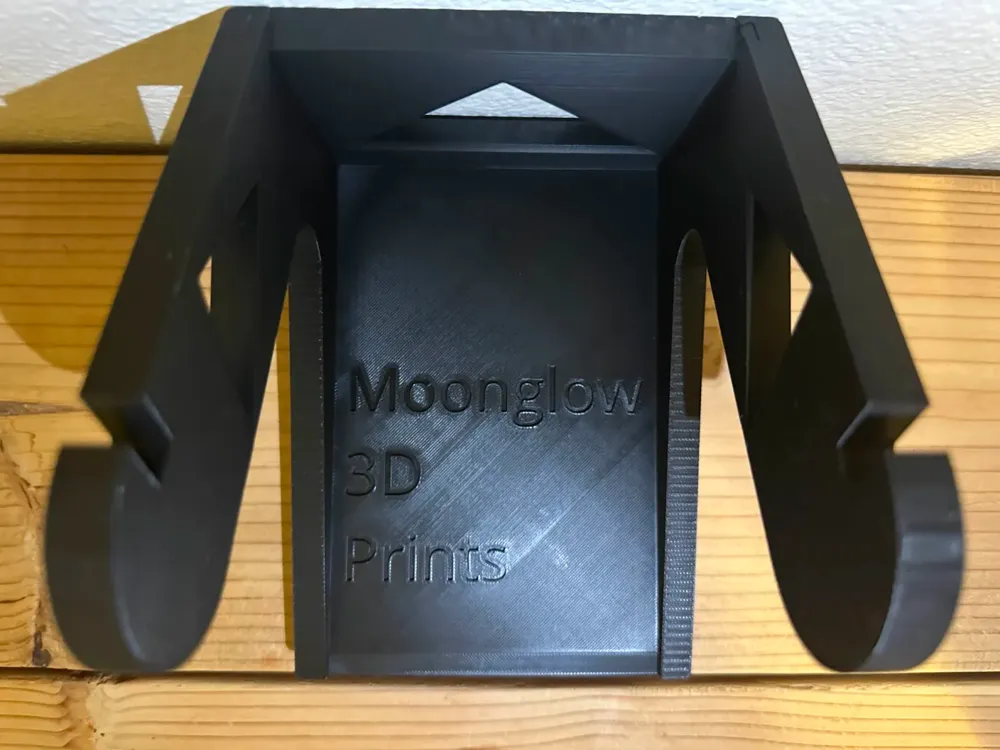

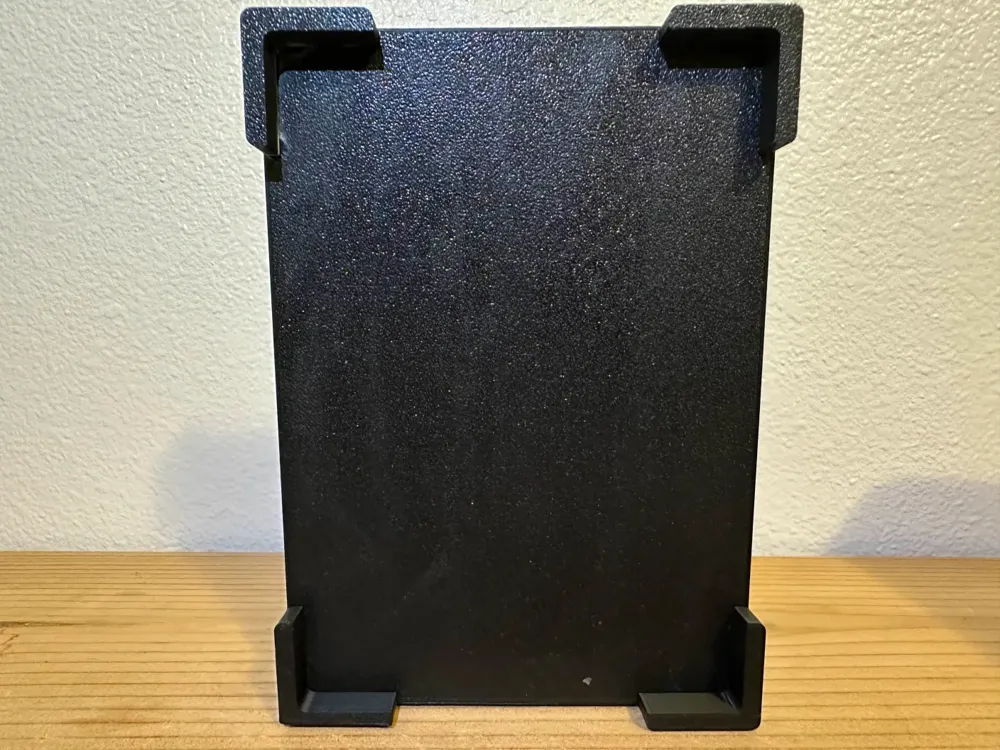

Take out the 4 legs and look at the orientation of the legs on the model, they should correspond to the placement on to the main plate of the model. For instance, the top left leg should go to the top left edge of the plate looking down from a top view with the text on top. Then snap the legs into the bottom by the square plugs.

Second (only applies to the first model):

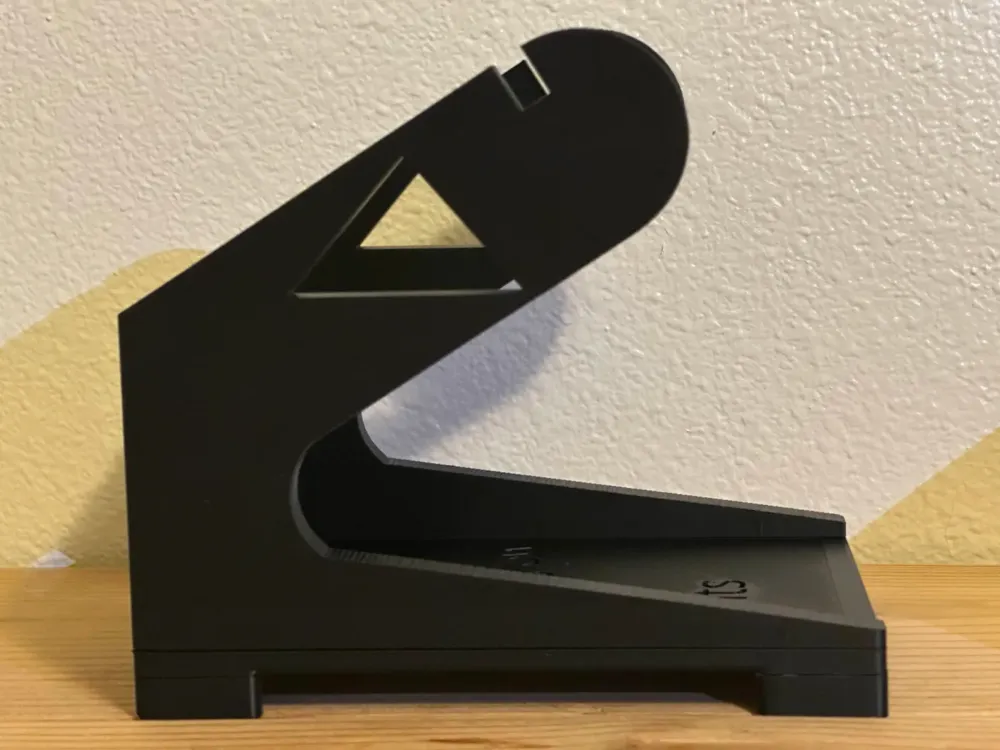

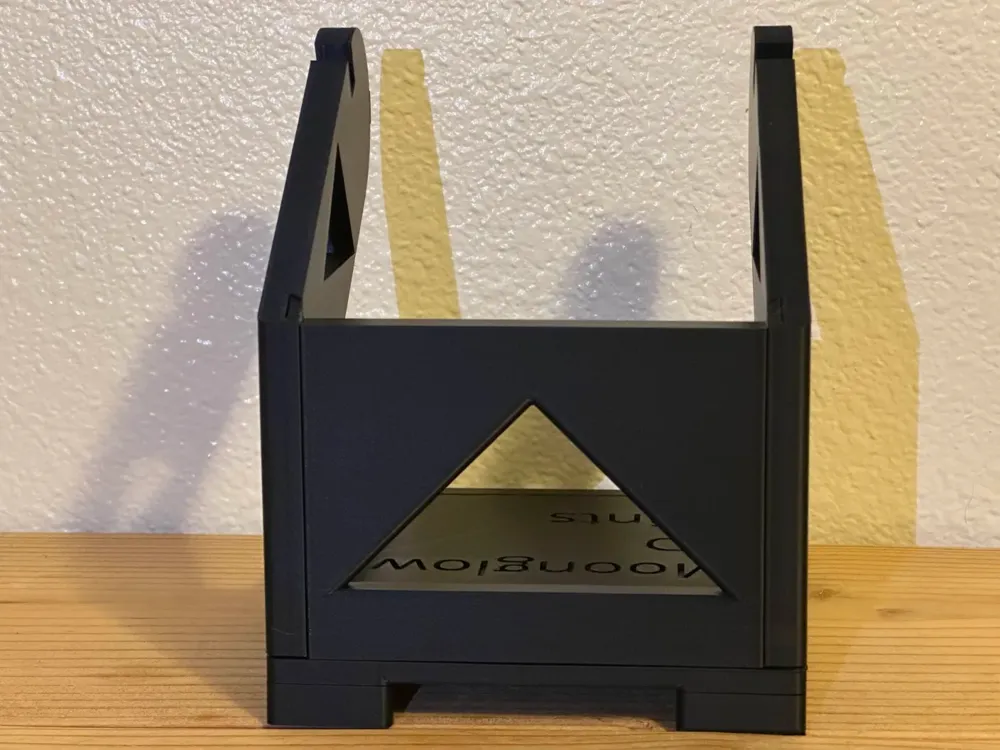

Slide the two V shape walls of the model onto the back wall from it's sides using the dovetail connections. Make sure the slanted side of the dovetail of the back wall is facing up so it matches with the V shape walls.

Third (only applies to the first model):

Attach the walls onto the main plate of the model via the bottom square plugs.

Fourth:

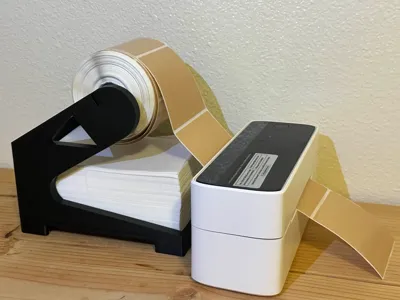

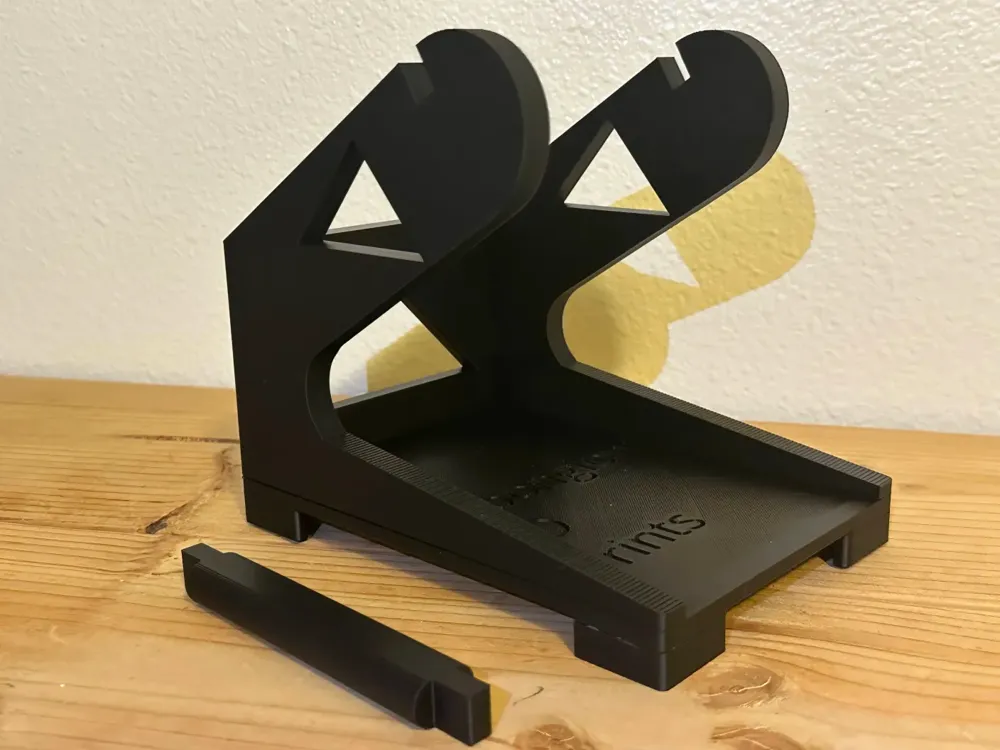

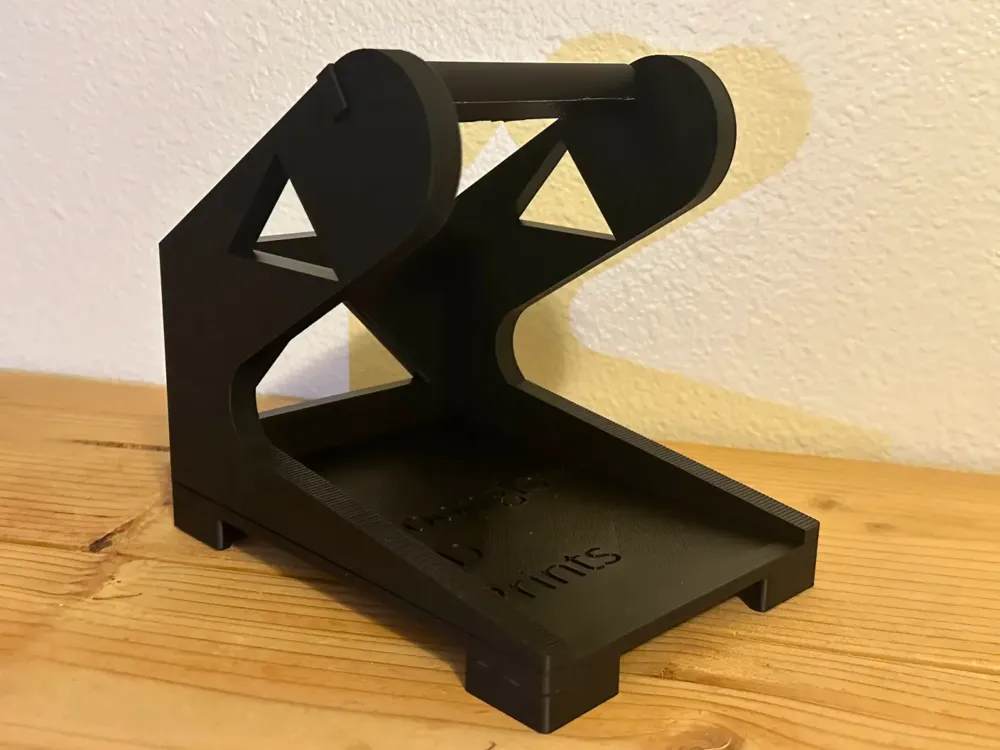

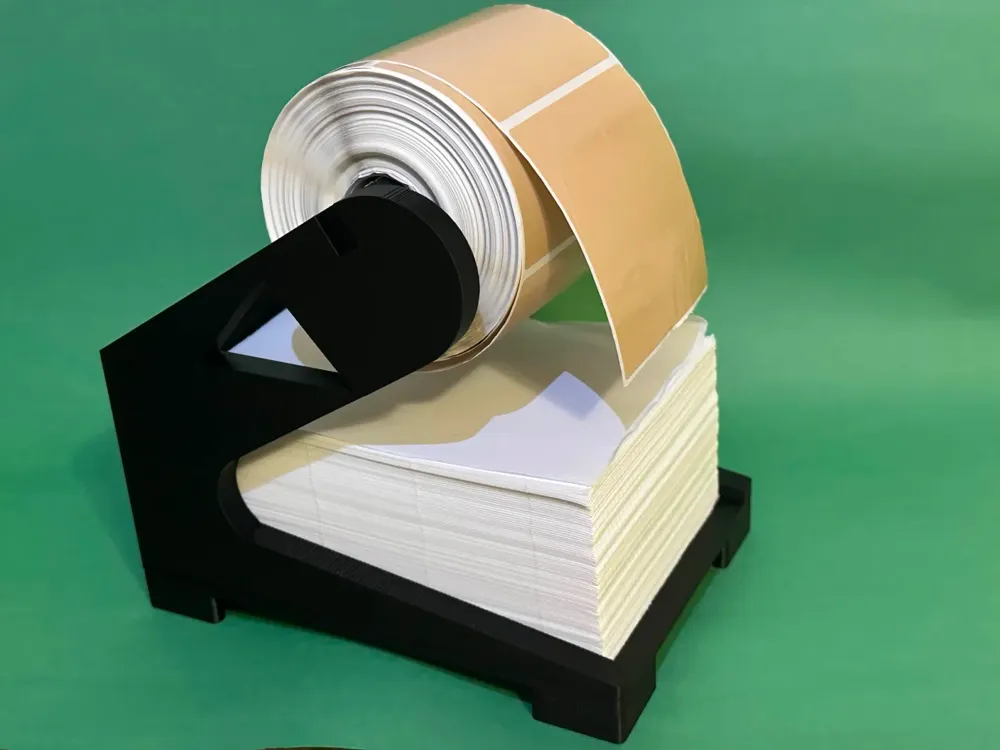

When you have your roll of labels, you can slide them onto the stick on the side and put it onto of the model. Then put your fan-fold labels below and you're done!
