Wood working feather board for table saw 木工台锯羽毛板
IP Report
Print Profile(1)

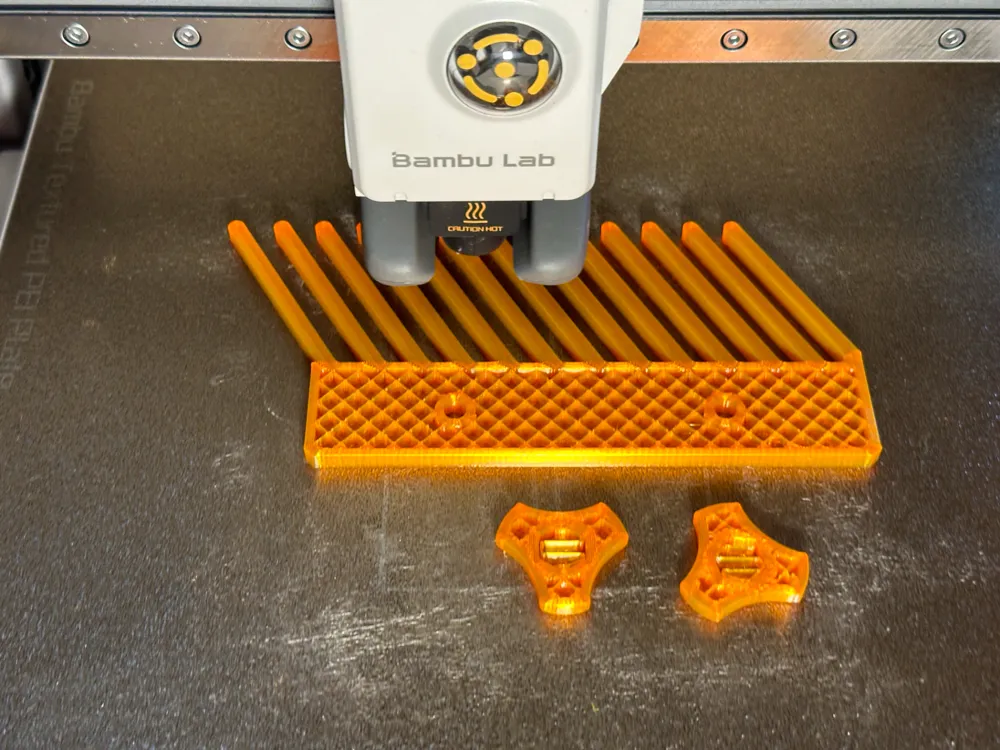

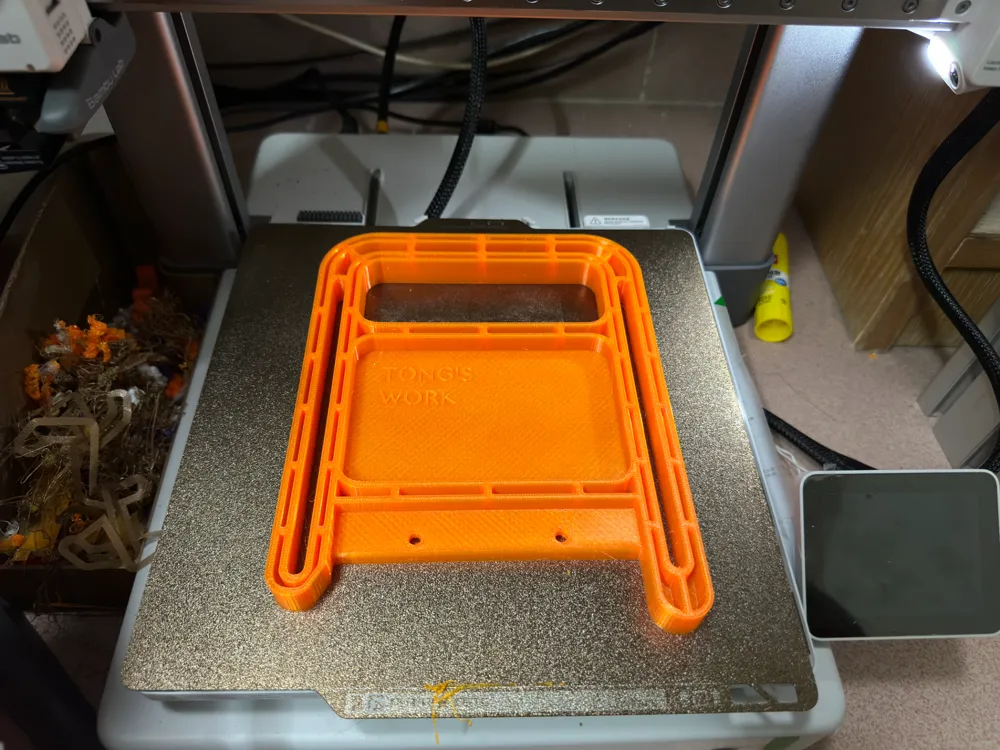

0.2mm layer, 5 walls, 30% infill
Designer
11.6 h
2 plates
Open in Bambu Studio
Boost
216
796
35
40
431
222
Released
Bill of Materials
List other parts
- M6*40 screw x 2:
- M6 nut x 2:
- M5*16 hexagon socket screw x 2:
- M5 nut x 1:
Description
Content has been automatically translated.

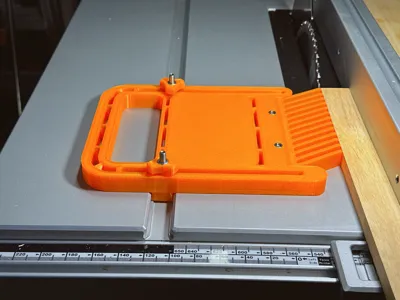

- The feather board used with the table saw features replaceable feathers and can be swapped with components of varying thicknesses (under development) to meet different pressure requirements.

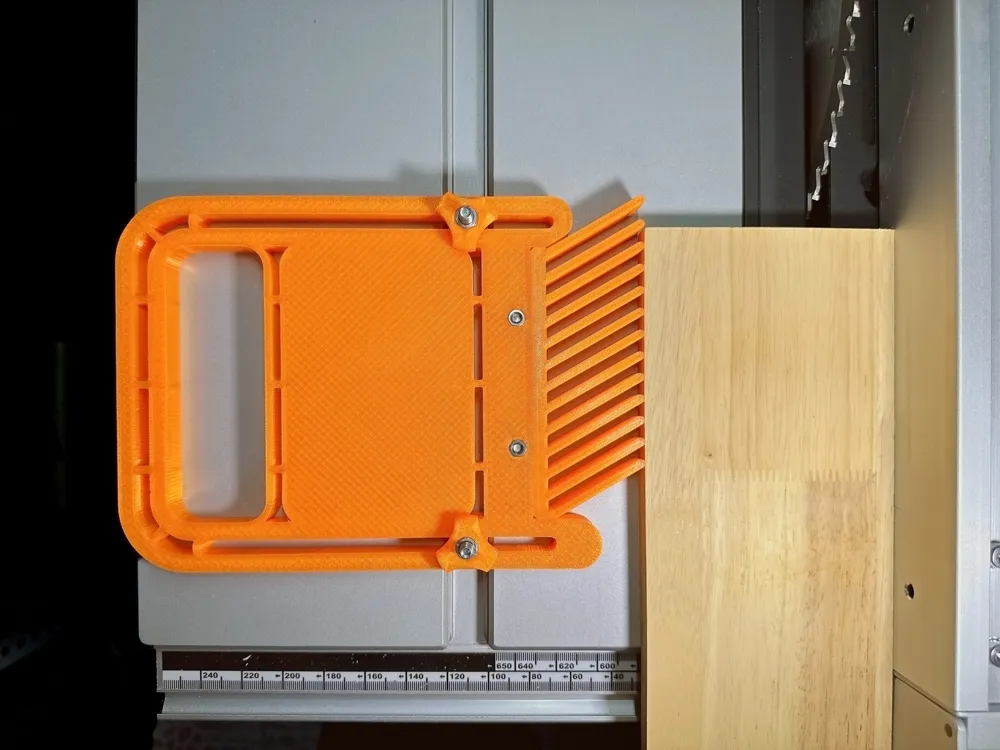

- The square slider has an M6 screw mount recess at the bottom; after installing the screw, it can be used for table saw grooves or other woodworking tracks.
- The hand-tightening component has an M6 nut mount at the bottom, which, when combined with the square slider and screws, can secure the feather board.
- Screws should be chosen as M6*25mm or longer, with M6*40mm also available for stacking the feather board.

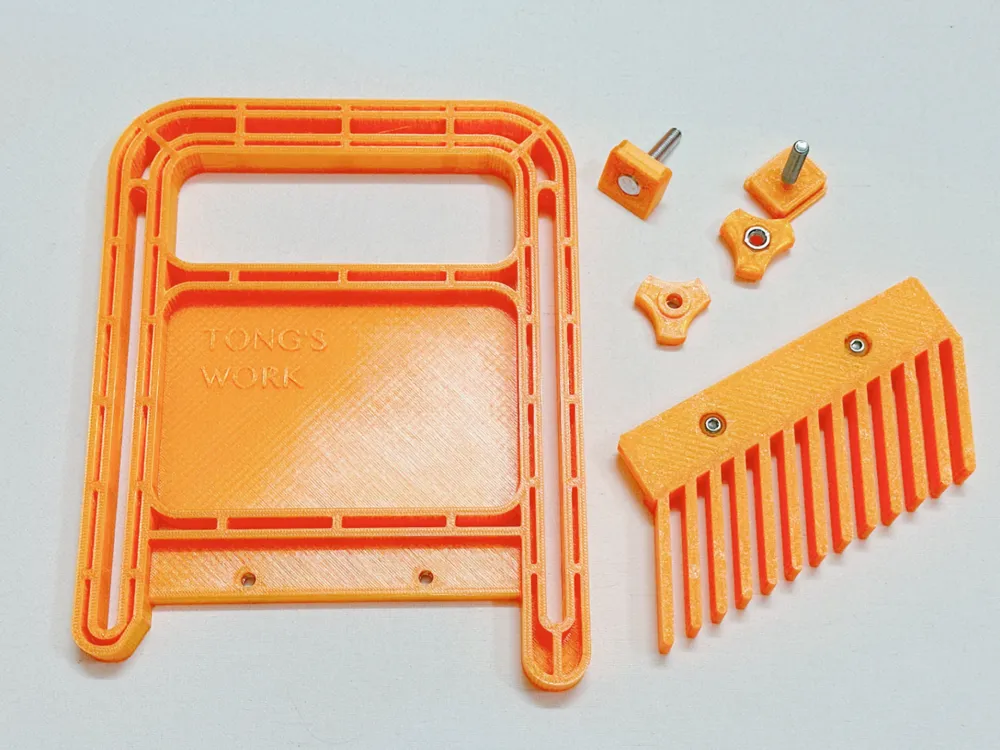

The main body and replaceable components are secured with hexagon socket M5*16 screws and nuts.
- The feather board used with the table saw features replaceable feathers and can be swapped with components of varying thicknesses (under development) to meet different pressure requirements.
- The square slider has an M6 screw mount recess at the bottom; after installing the screw, it can be used for table saw grooves or other woodworking tracks.
- The hand-tightening component has an M6 nut mount at the bottom, which, when combined with the square slider and screws, can secure the feather board.
- Screws should be chosen as M6*25mm or longer, with M6*40mm also available for stacking the feather board.
- The main body and replaceable components are secured with hexagon socket M5*16 screws and nuts.
