Tollerance hole measuring tool
Print Profile(1)
Description
Boost Me (for free)
ITA Se desideri sostenere la creazione di modelli originali, non dimenticare di supportarmi con un LIKE e un FOLLOW sulla pagina il tuo gesto non ti costa nulla, ma per me rappresenta un prezioso incoraggiamento ENG If you want to support the creation of original models, don't forget to support me with a LIKE and a FOLLOW to the page, it doesn't cost you anything but for me it's a great support.
Tolerances in 3d printing are not always linear values depend on many factors such as plane calibration, printed materials etc..

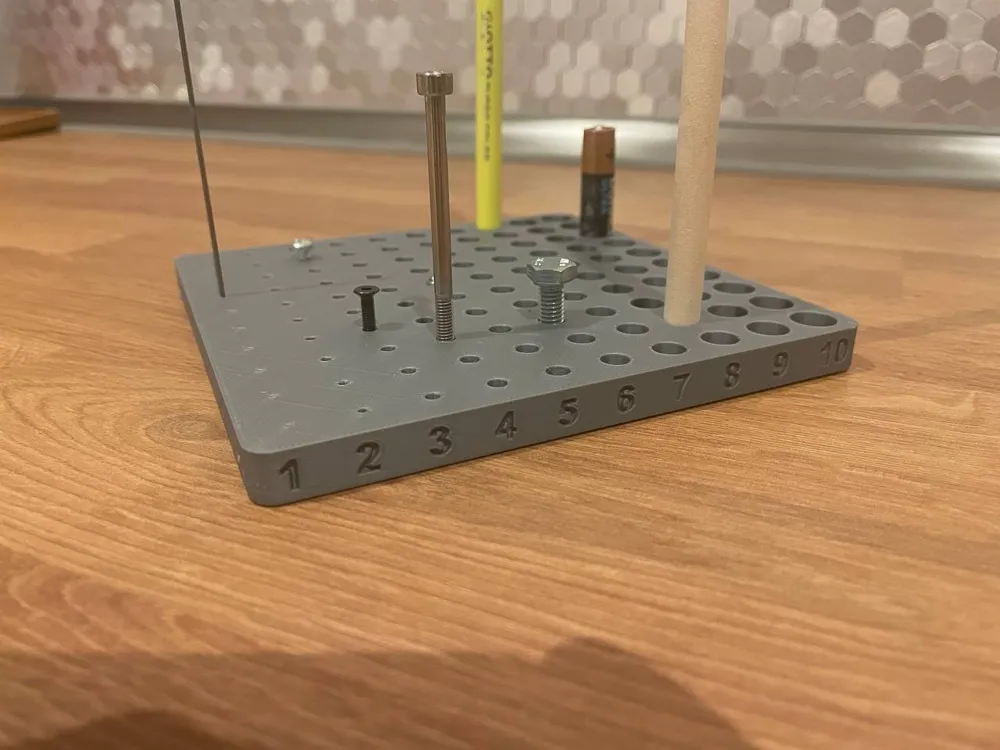

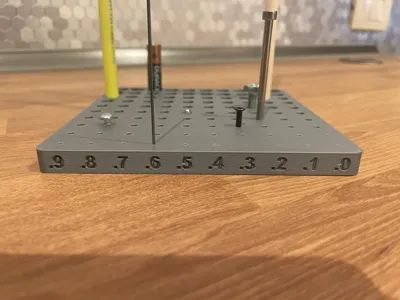

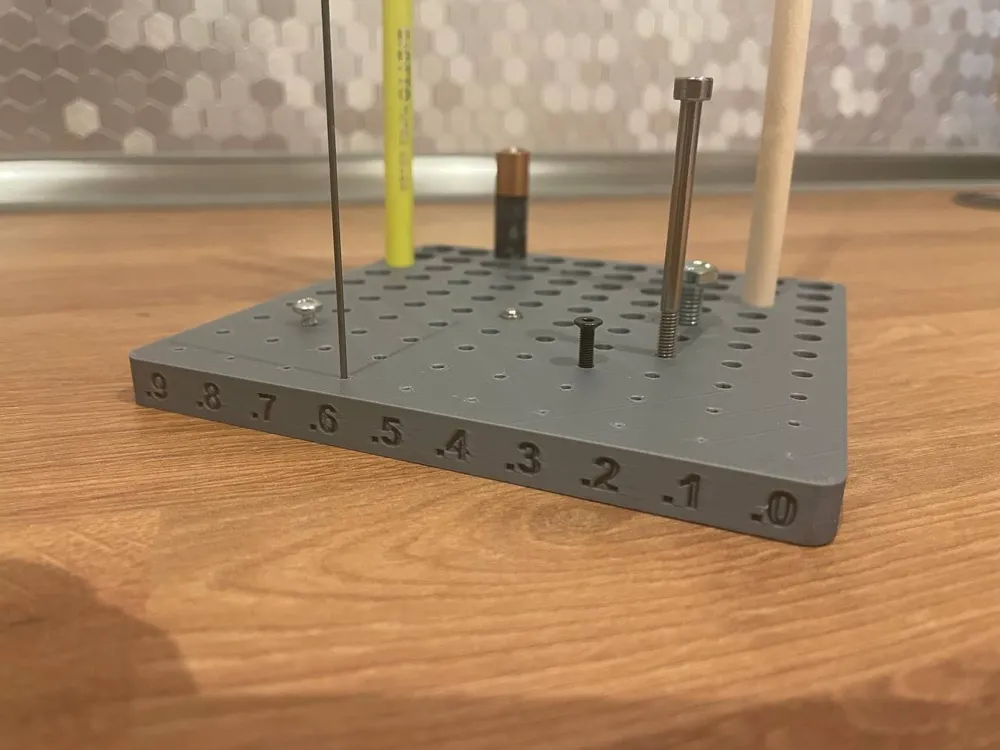

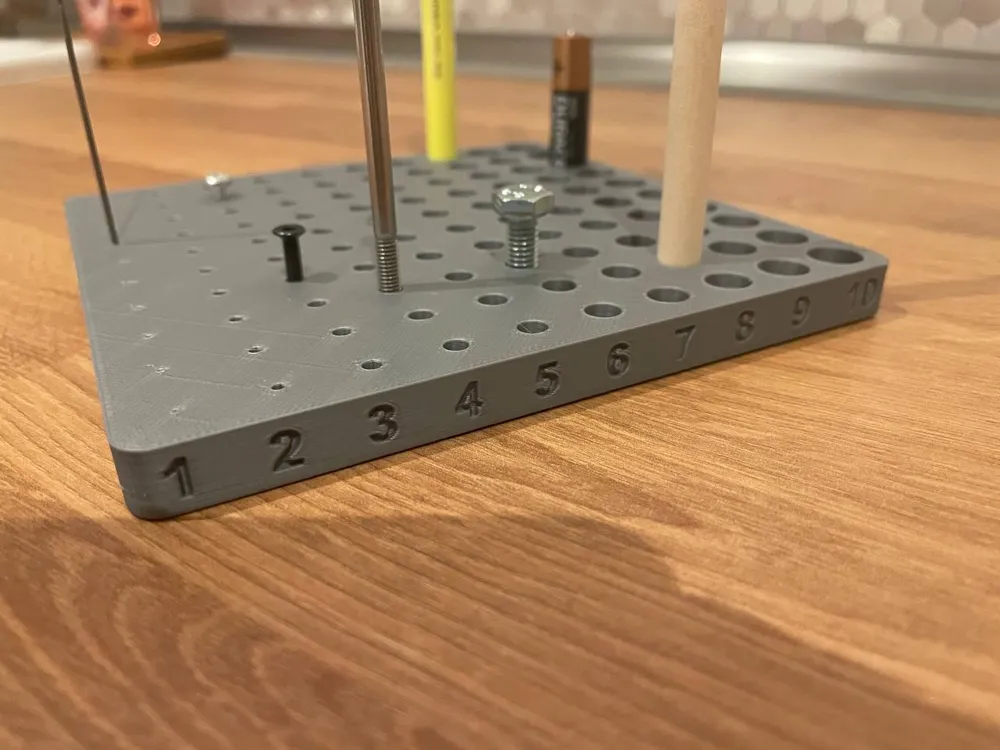

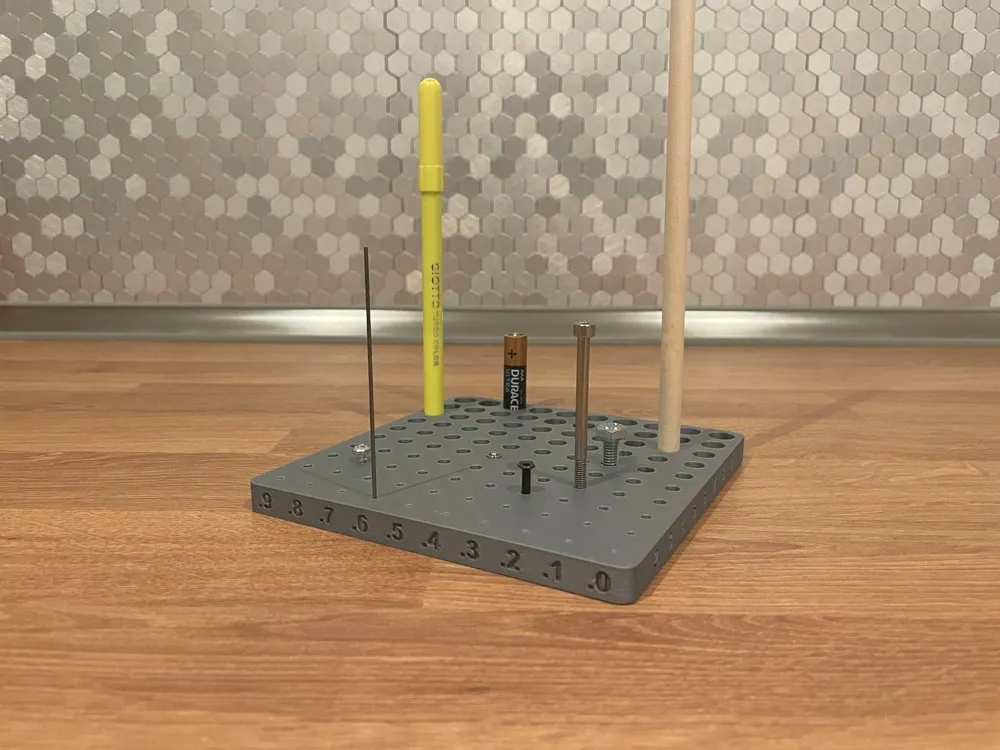

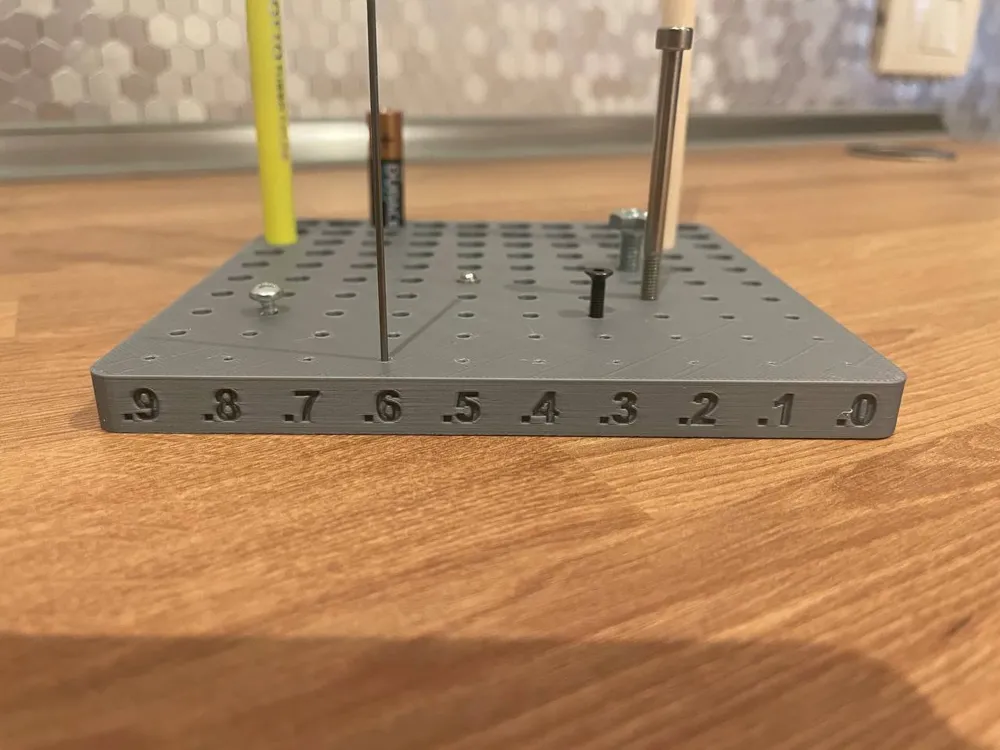

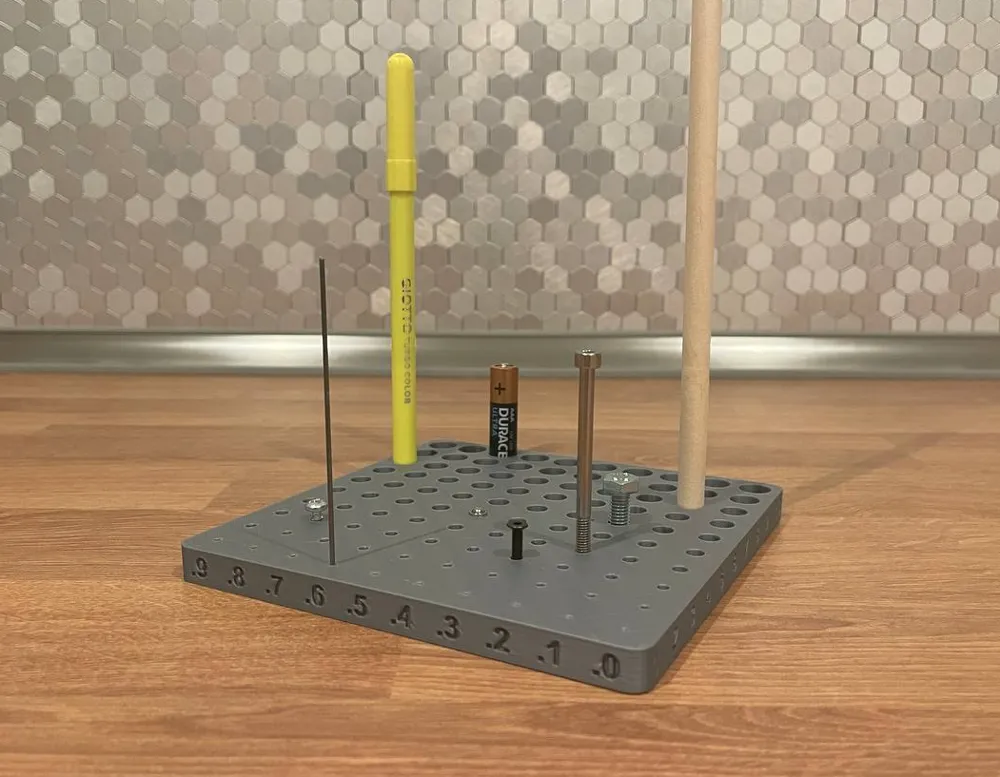

That is why I created a simple tool to help when designing a model to choose the right tolerance to use in case of holes.
For example if we have a 6mm lath in wood we could figure out based on 'interlocking or sliding what tolerance to use.
In the same way we can figure out with a screw whether it should slide freely or instead thread directly into the plastic and then also use the correct tolerance.
Translated with DeepL.com (free version)
