Creality Space Pi Dryer - Filament Guide Grommet
Print Profile(1)
Bill of Materials
- Bowden tube x 1:
Description
Creality Space Pi Dryer - Filament Tube Fix Grommet

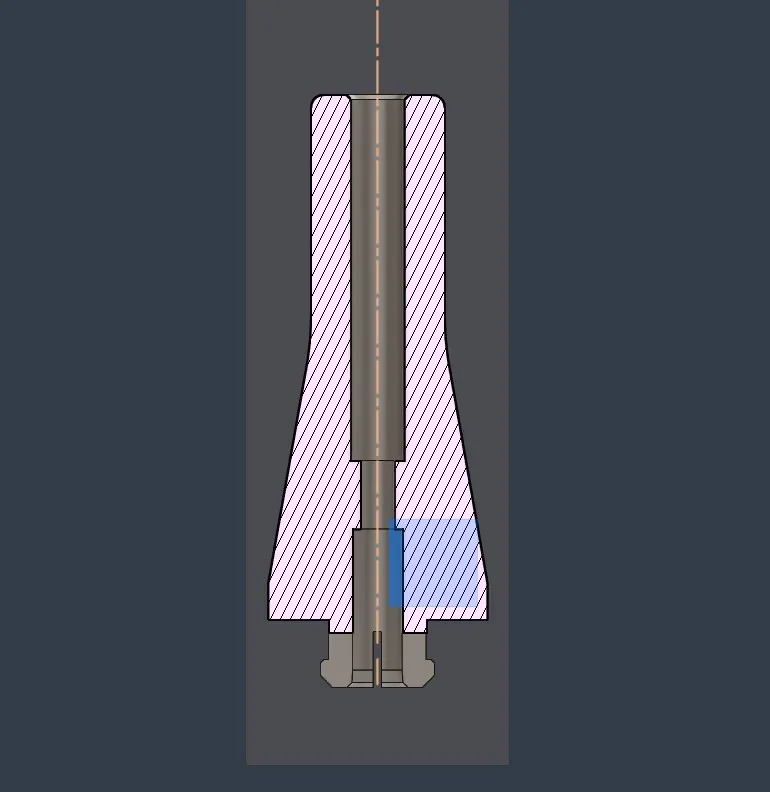

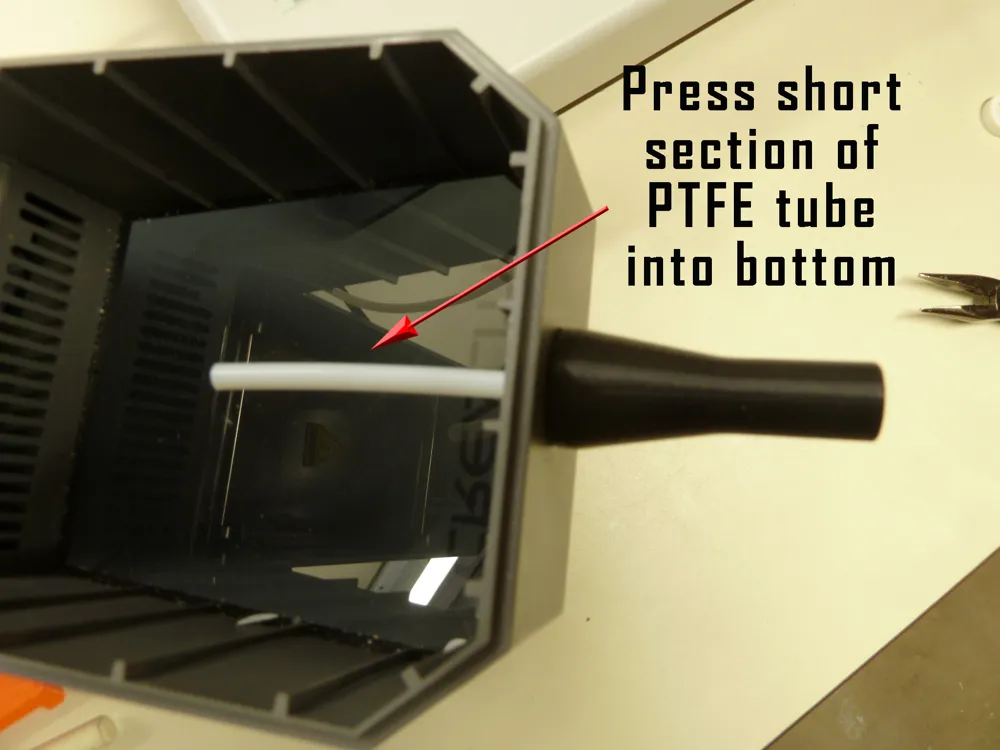

This replaces the inlet grommet on a Creality Space Pi filament dryer. Some times filament is drawn into the dryer and starts to wrap around the filament spool. This longer grommet will stop that from happening. Another added benefit of this upgrade is this will help prop up the PTFE tube. This is made from 95a TPU and snaps in the exit hole of the dryer. Cut a 2" section of PTFE tube and press it into the bottom of the grommet to prevent filament drag on the grommet. The top of the grommet has an easy slip fit for your Bowden tube that leads to your printer nozzle.
MAKE THIS GROMMET OUT OF 95A TPU.
This is a upgraded version of my original grommet
The upper barrel is much thicker now.

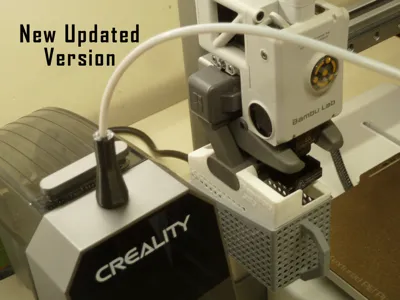

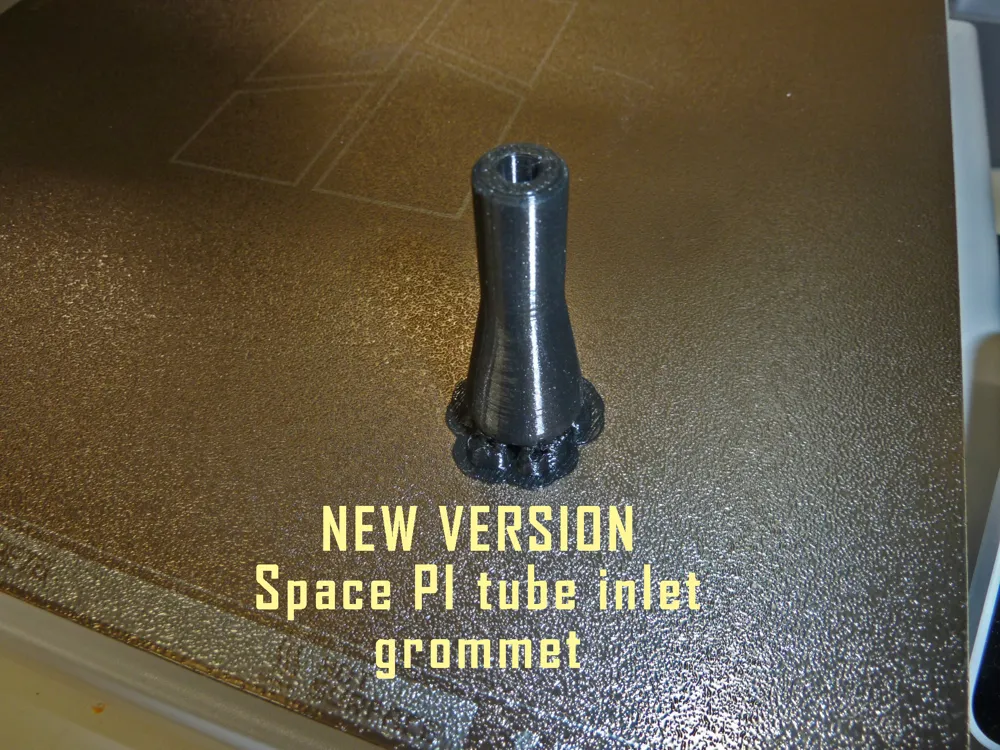

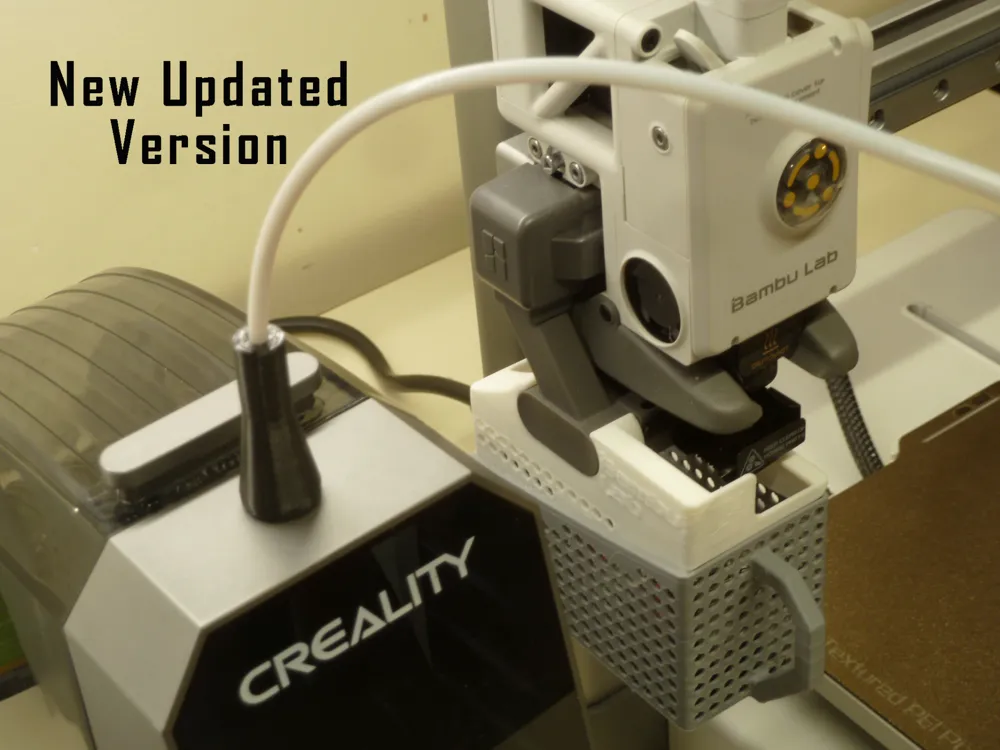

11/28/25 New PETG Version
I now have an all-new version posted on Maker World
This one will print faster and install easier
