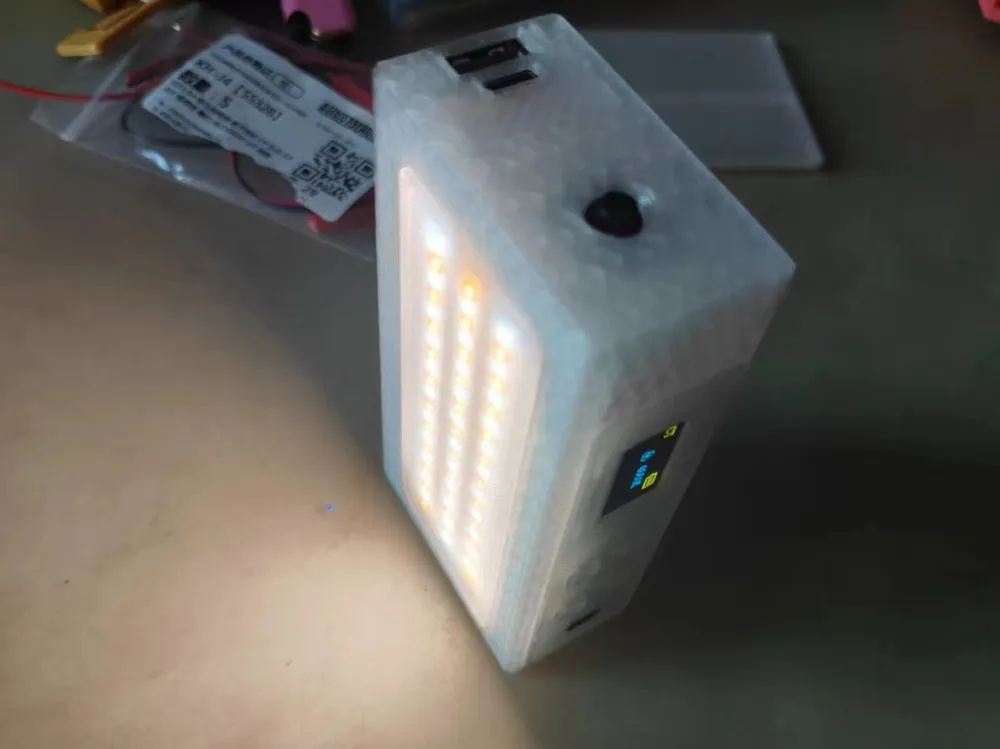

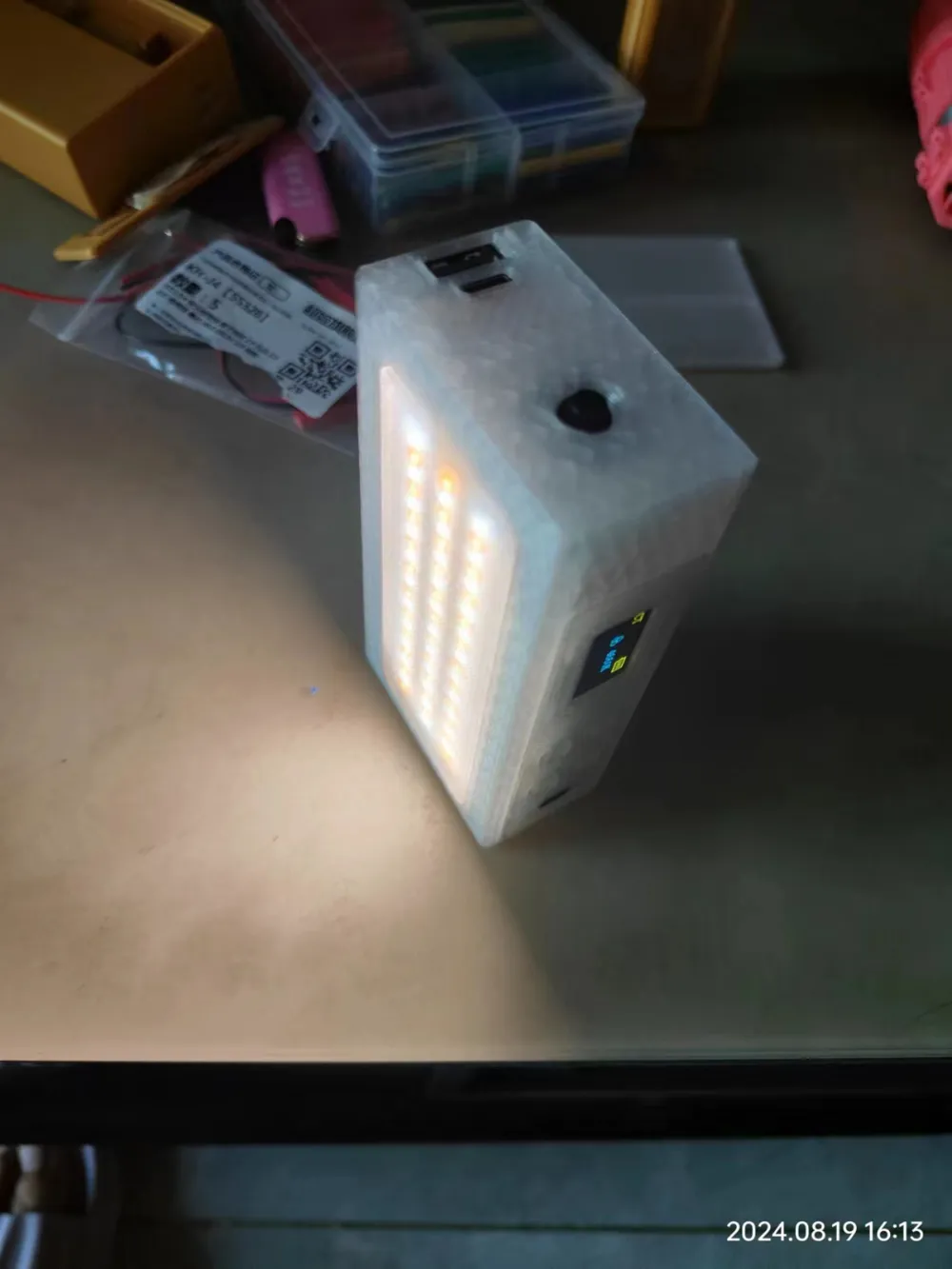

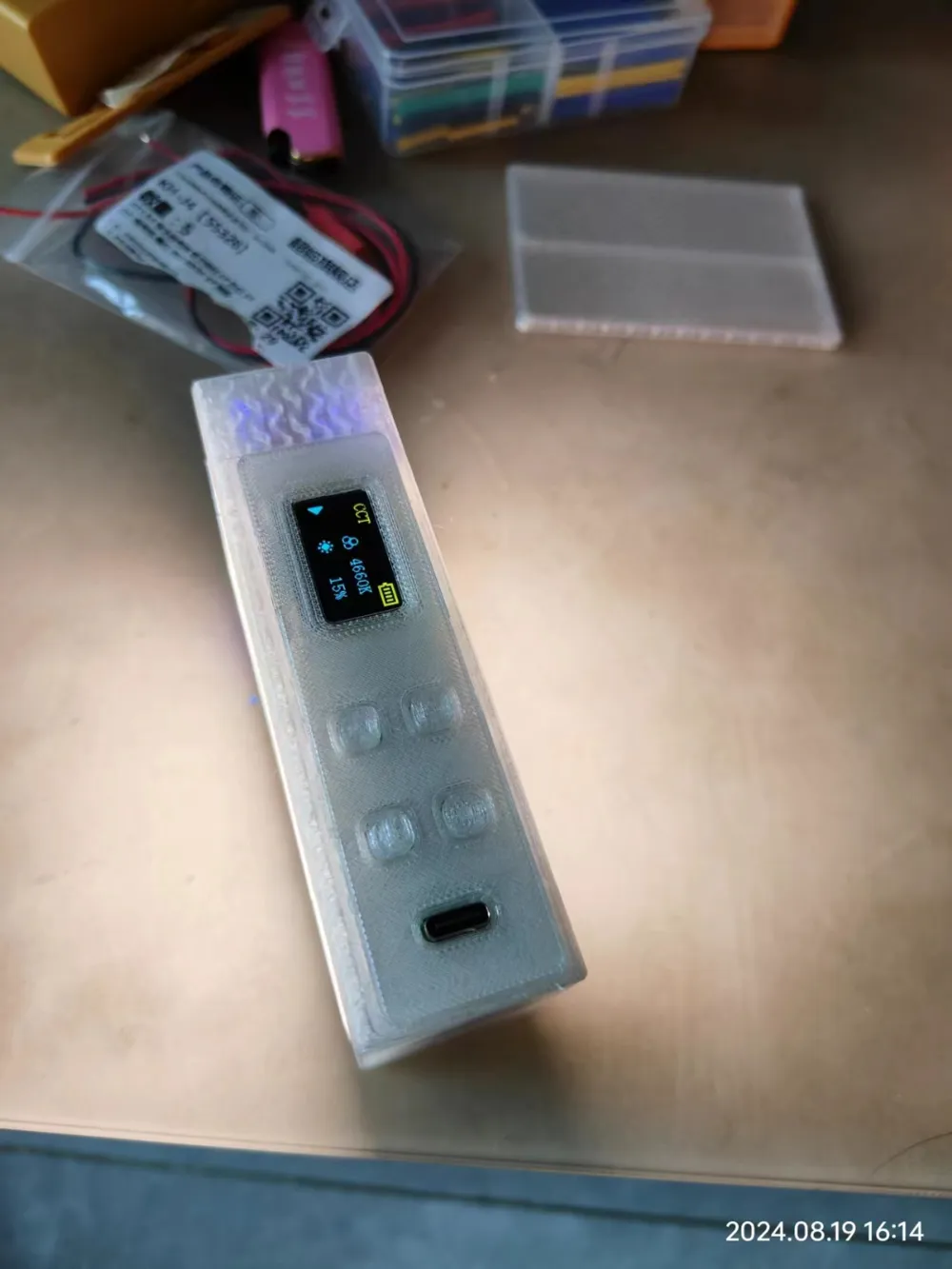

Fill Light 21700*2 Version (with Power Bank Function)
Print Profile(1)
Description
The light source and lighting control board components come from Lao Wu's family
Self-locking switches and charge and discharge boards are abundant on Taobao

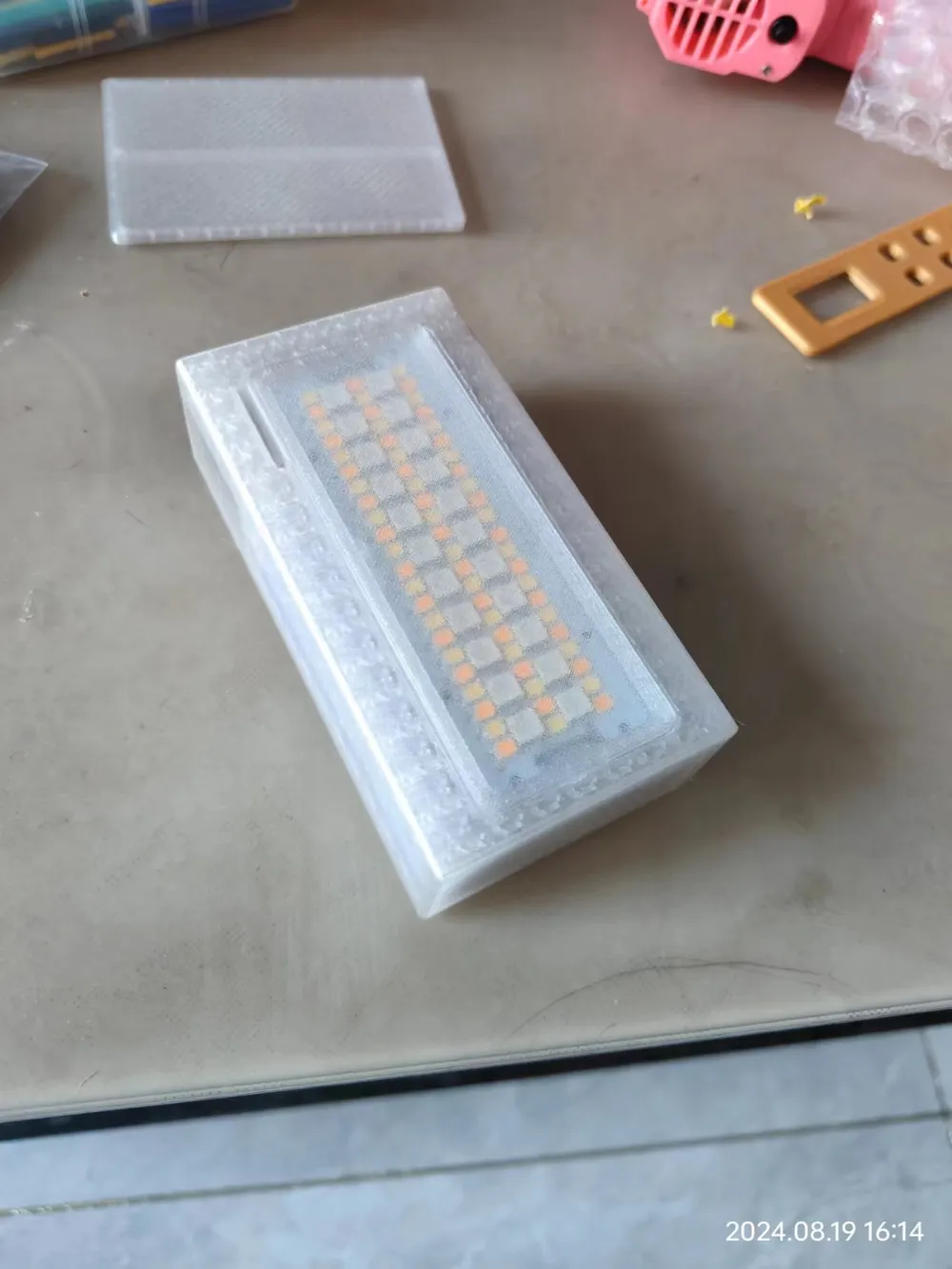

Double-sided lamp board, the switch controls the light source on one side and the positive pole of the charge and discharge board
When the switch is closed, the control board controls one side, and when the switch is opened, the control board controls both sides of the lamp board simultaneously. The control method can be chosen by yourself, and a certain welding foundation is required.
Additional materials:
21700 lithium battery *2

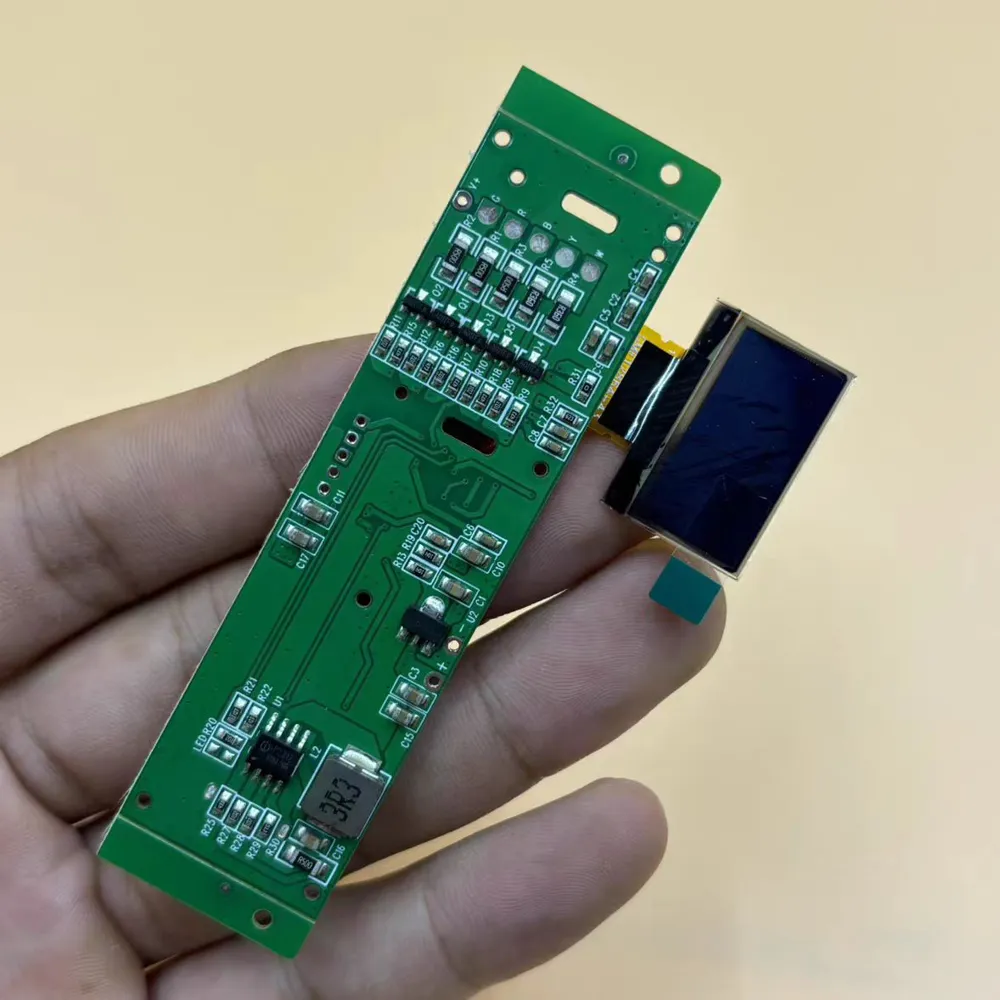

Lighting control board *1

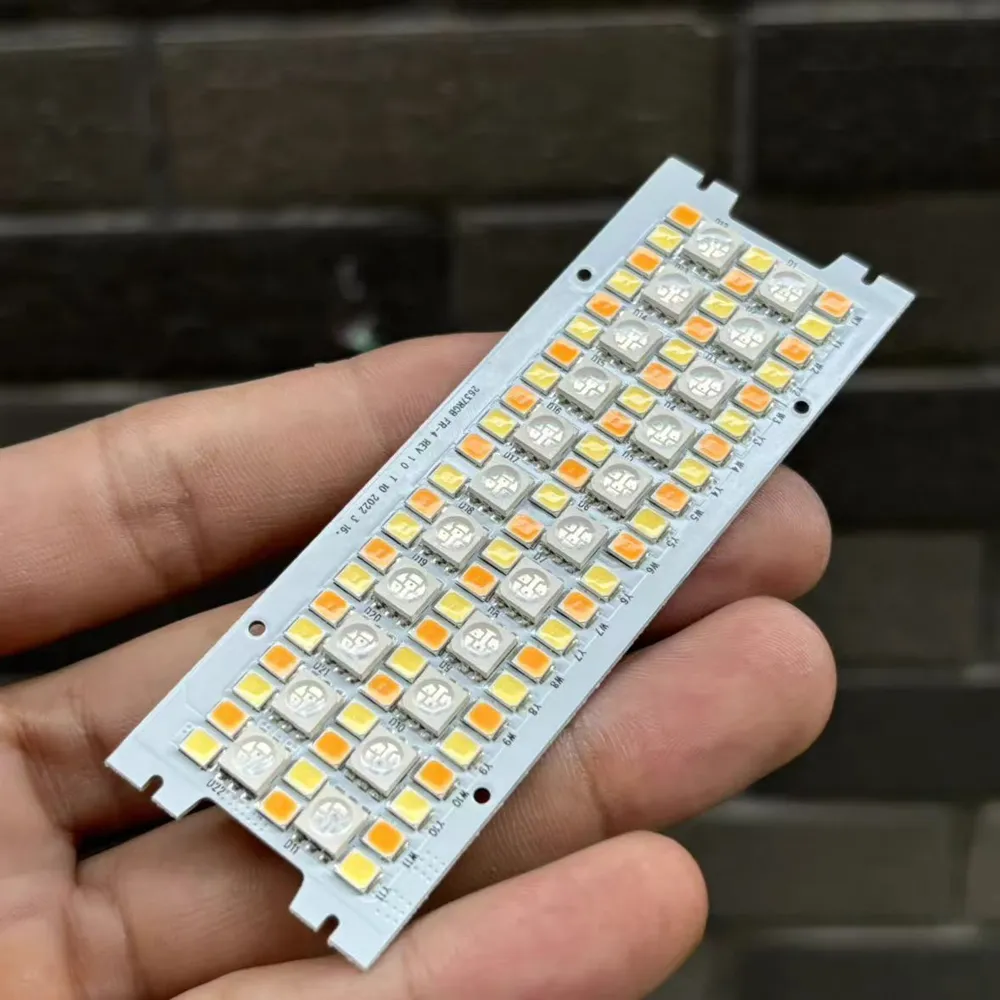

Lamp board *2

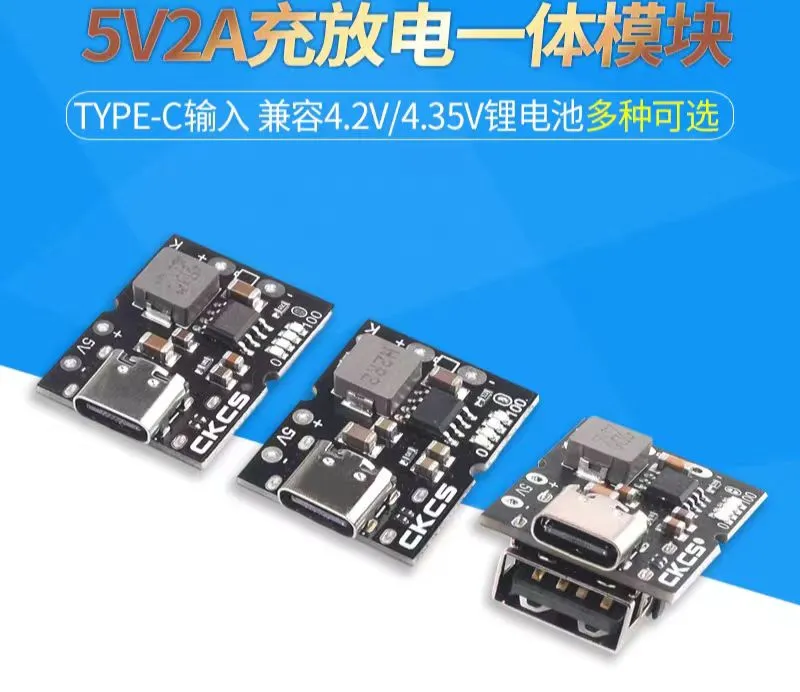

5V charge and discharge board *1

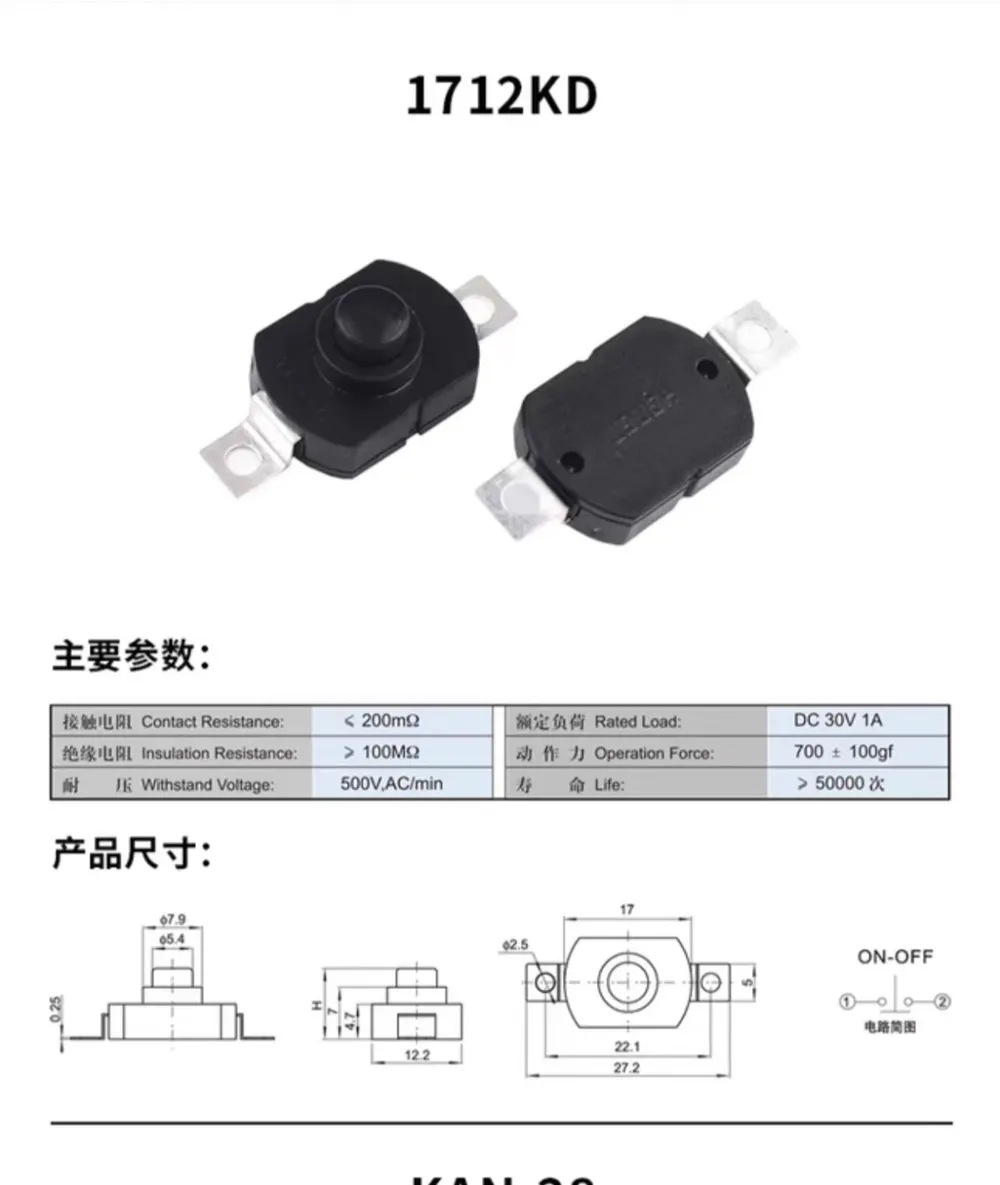

Self-locking switch *1
Several wires
