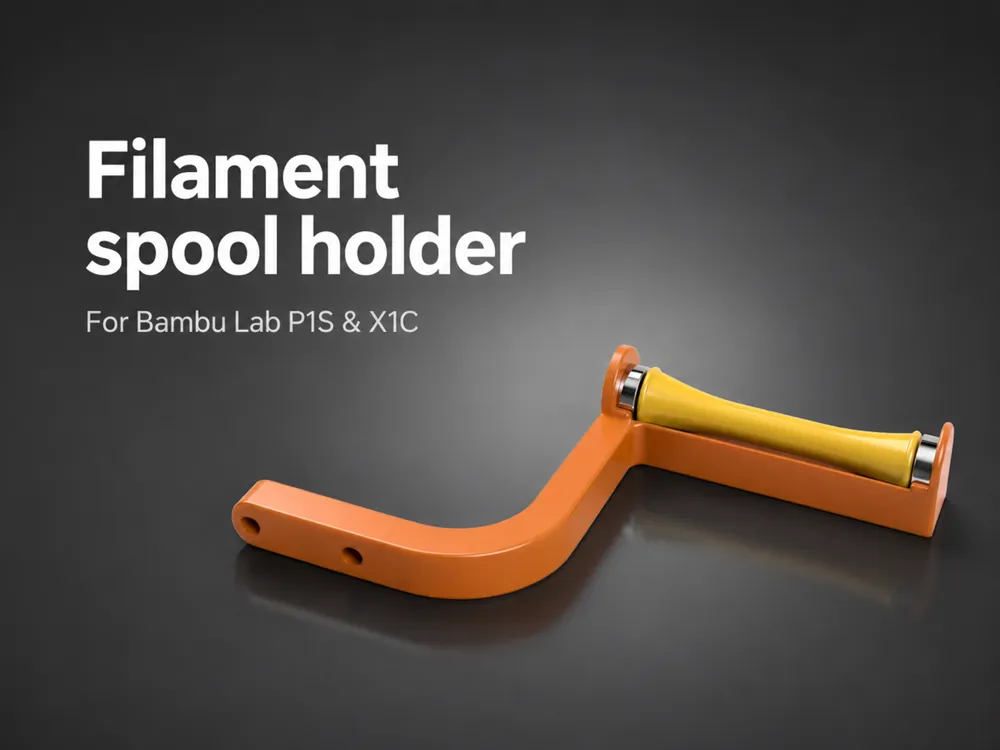

Filament spool holder

Filament spool holder for Bambulab P1S, X1C printers.


This is a remix of https://makerworld.com/en/models/23491?from=search#profileId-58229

Here is what is improved:

• The roller was extended to accept bigger spools, up to 100mm wide.
• The arm was also extended, towards the front, to prevent rubbing of the bowden tube and the spool.
• A slope was added to the roller to always center the spool in the middle and avoid chances stucking.

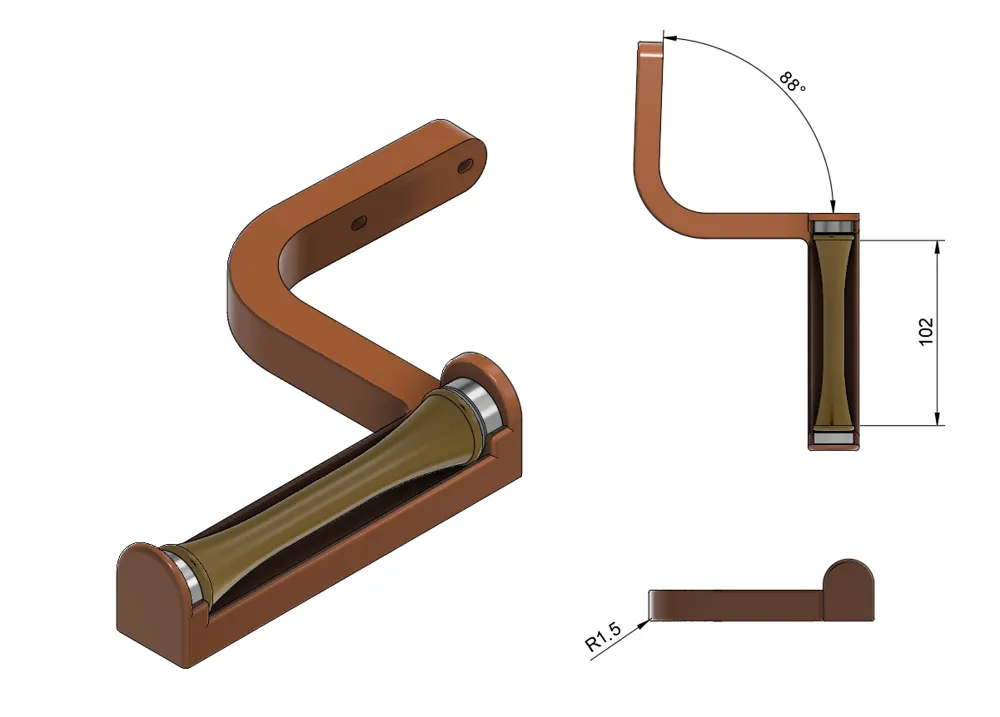

• The angle of the bracket was reduced to 88° to eliminate the gap with the left wall of the printer.
• Bevels are added to the sharp edges for smoother feel.

For the spool holder you will need:

• 2x M3x12 screws
• 2x 608 ZZ / 2RS ball bearings (8mm x 22mm x 7mm).
  If you don't have bearings available, you can print a pair, or you may not use them at all.

Step file of the project is also included!
Enjoy!
