chad trans

cover


Lateral 3x6 Left


Lateral 3x6 Right


Uniform 3x6

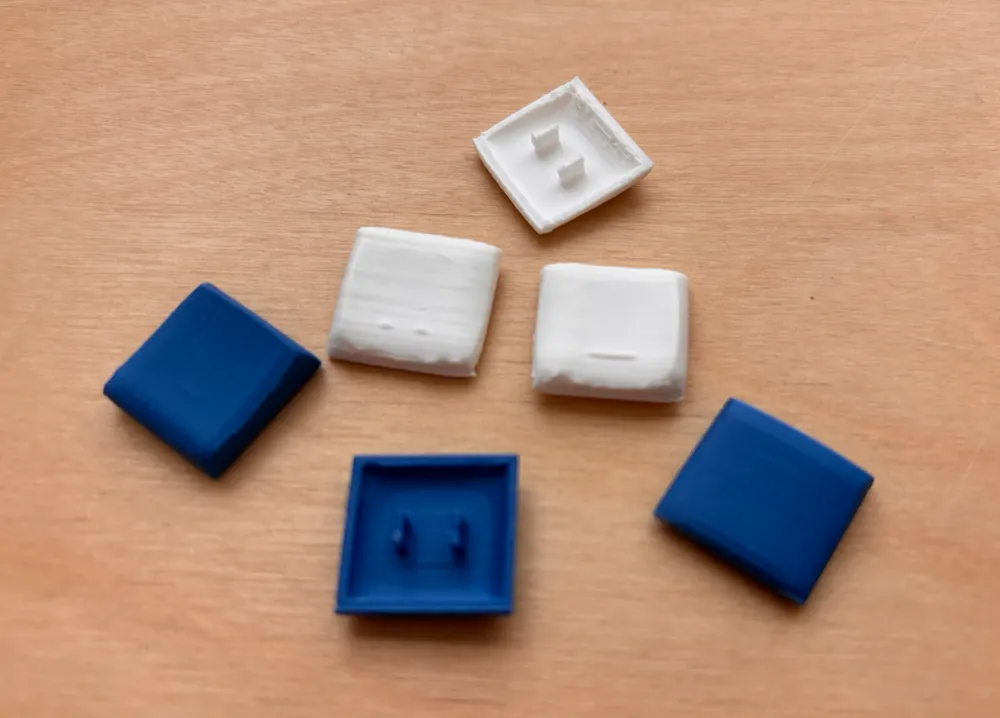

The lateral profile has a few keys printed differently on each side of the keyboard, so you will need to print a different plate for each half. The uniform profile plate can be printed twice to get the number of keys needed for each half.&nbsp;There are two types of homing keys, and both are present on each plate. If you know in advance which type of homing key you want, you can delete the other from the plate prior to printing.

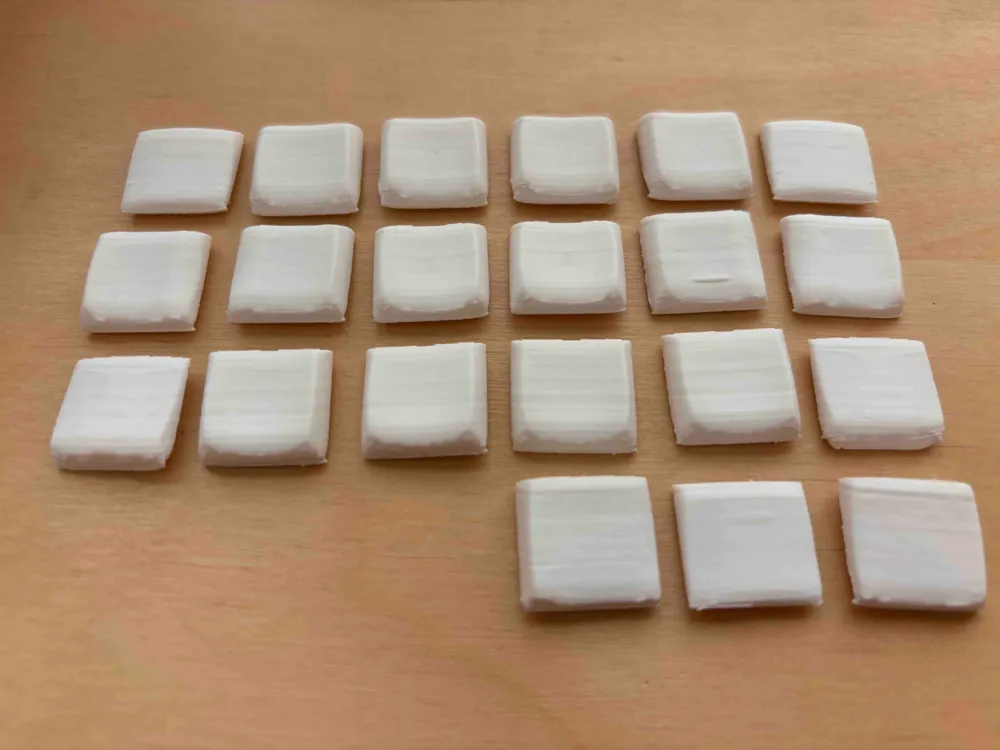

A1 mini, 3x6 in either lateral or uniform profile

vegaelle


Tinkered with the default profile, and made this one, optimized for greater quality. The caps on the lateral plates were rearranged a little, and every keycap is tilted so that the printing lines would be on the right direction for this key.

0.2mm nozzle, 0.06mm layer, 4 walls, 100% infill

https://github.com/infused-kim/kb_keycaps_chicago_stenographer

This is a print profile for the famous Chicago Stenographer choc v1 keycaps, the STL files of which are freely available online with a GPL license. I did not create these STL files, but I put a lot of time and effort into making the print profile for the Bambu Lab A1 mini, so you can print these for yourself if you want to try them before you buy an official set.

Chicago Steno choc keycaps
