DM Screen Screen | Tabletop Vault Edition

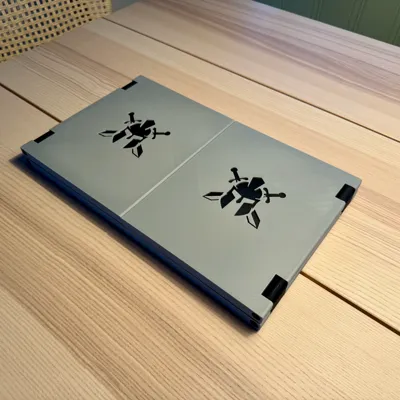

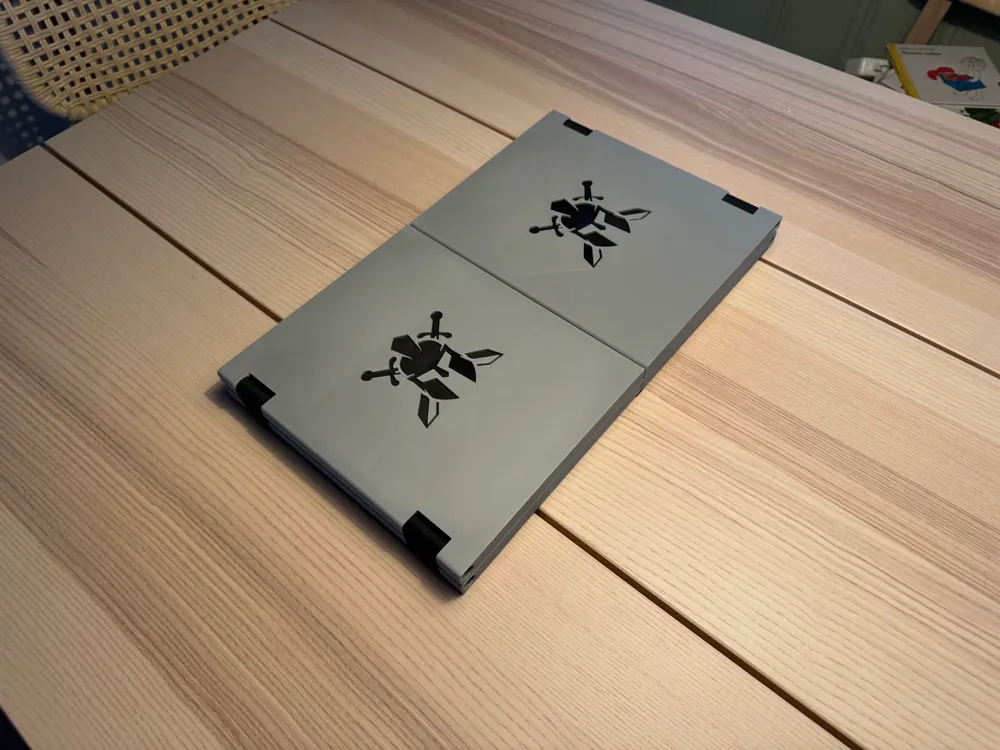

A remix of the DM Screen Screen by Evind Husby with my shop's logo ingraved (done with permission from the creator), and support for multicolor printing.

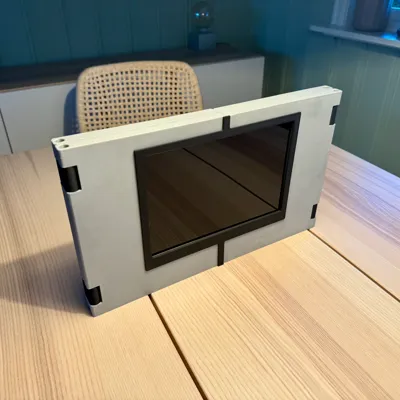

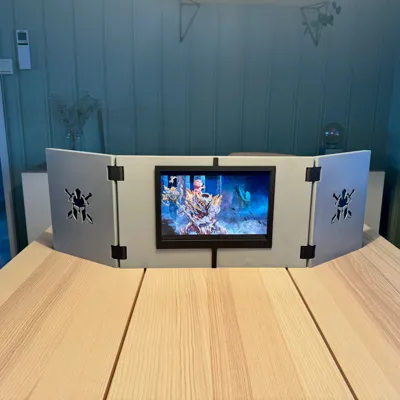

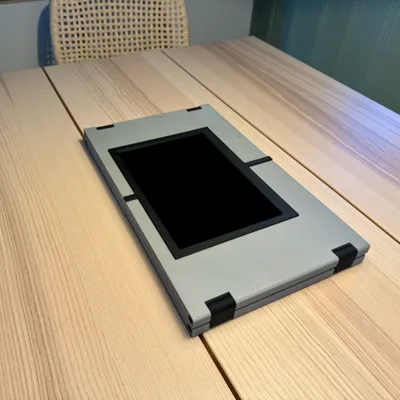

This is a DM screen with a built in player facing display for showing off artwork, initiative tracker, or whatever else you may want to show your players, like even the webcam feed of a player joining remotely.

NB: This print can be really tricky due to large size of the flat parts. It printed perfectly during summer with 25-30C ambient temperatures with a stock filament profile, but when it got colder, I got worse and worse warping with a heated bed.. You either need to print it on a cool plate, or in my experience keep the chamber temperature pretty high.

To get the best finish on both sides, a Smooth PEI Plate or a Cold Plate is recommended, as the sides with logo needs to be flipped to print the logo well, and so will have to use ironing to get a similar finish.

General tips:

• Smooth Plate
• Chamber temperature should be 35-40C. In a room with around 18 celcius I did the following:
  • Turn off aux fan
  • Turn down exhaust fan to between 30-50% (remember to comment out or remove the “advanced gcode” in the filament profile)
  • 60 C bed temp

Bill of materials:

1x MUCAI 10.5 Inch 1280P Ultra Portable Monitor 16:10

8x M5x50 screws for the hinges
4x M3x10 screws for the backplate
4x M3 heated inserts (or similar) for the backplate

According to a user from reddit this display from amazon should also work.

Huge thanks to Evind for making this incredible model
