Soldering Smoke Extractor
Print Profile(1)
Description
When soldering with a soldering iron, if rosin is heated, smoke will be generated.The smoke generated is harmful to the human body
Because the smoke produced during the soldering process contains lead, as is well known, lead is a heavy metal and is toxic, so long-term exposure is harmful to the human body.
The best solution is to connect an exhaust fan, like a range hood, to draw the gas directly outside.

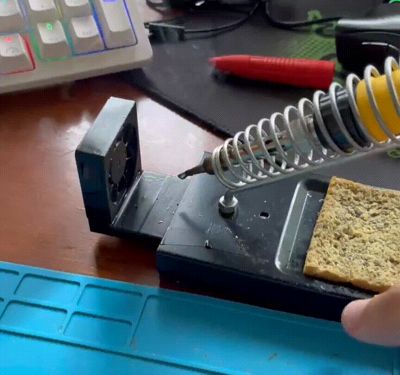

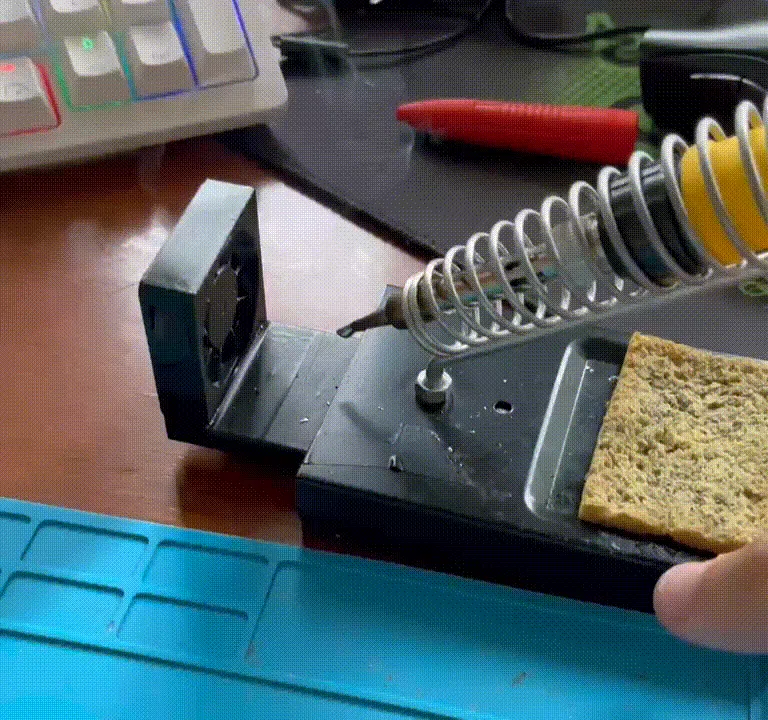

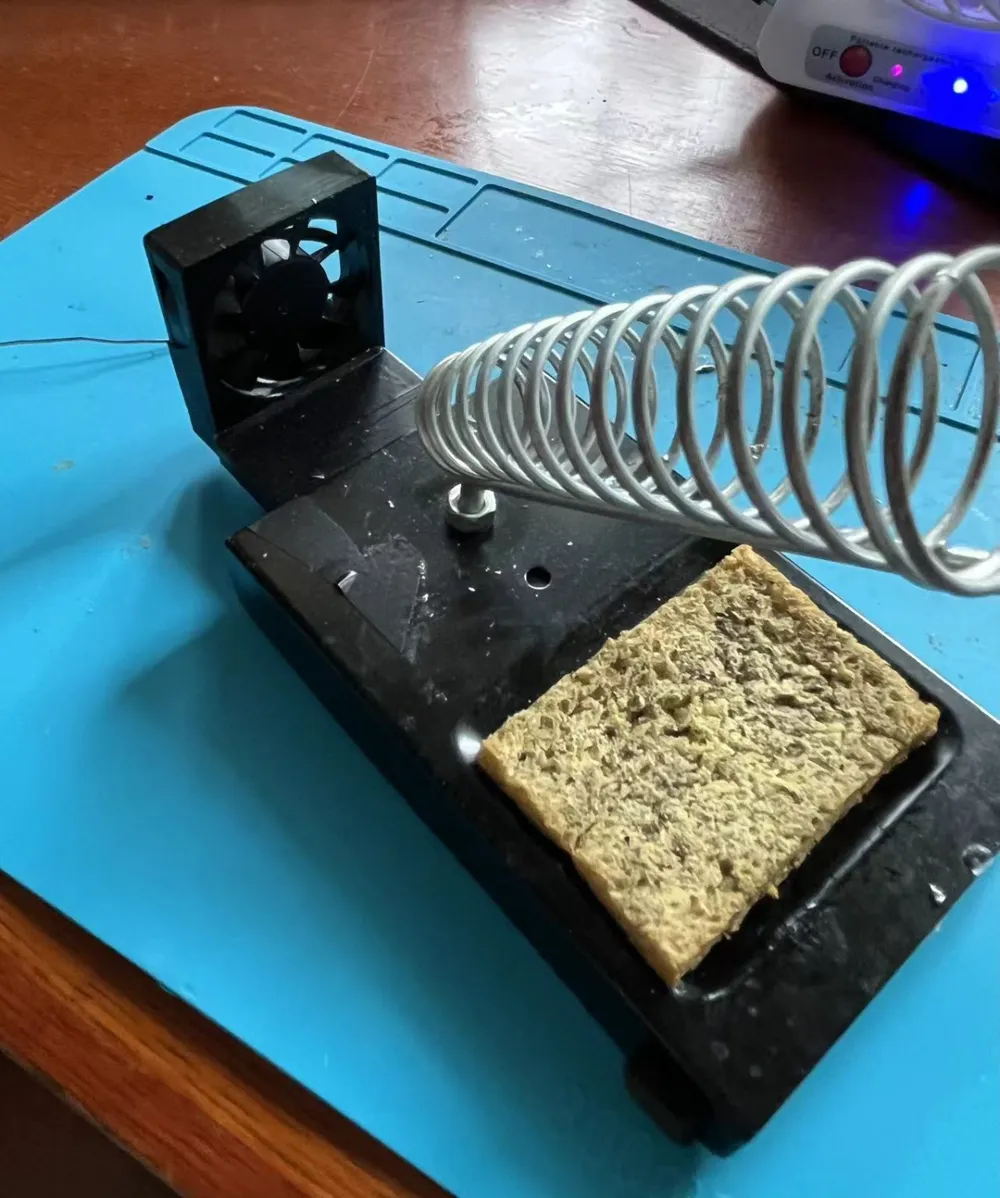

Therefore, this device was designed with all internal wiring, balancing usability without sacrificing aesthetics.
The accessories I used for this device include:

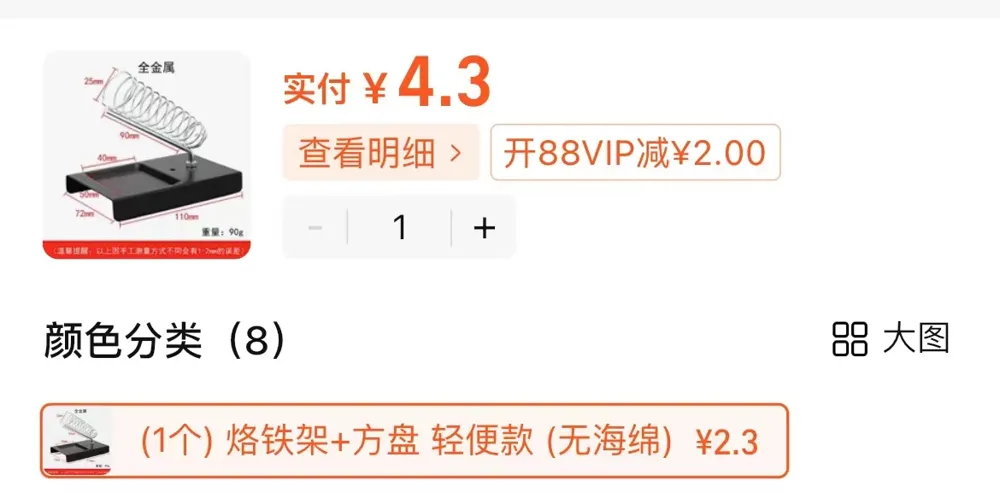

Soldering iron stand (Taobao link https://m.tb.cn/h.gmOuDImTgwxLxYg?tk=jjhl34AbKyL CZ3452 )
3.7V lithium battery
Lithium battery charging protection board
Bistable switch
4010 cooling fan
Nano double-sided tape and other tools

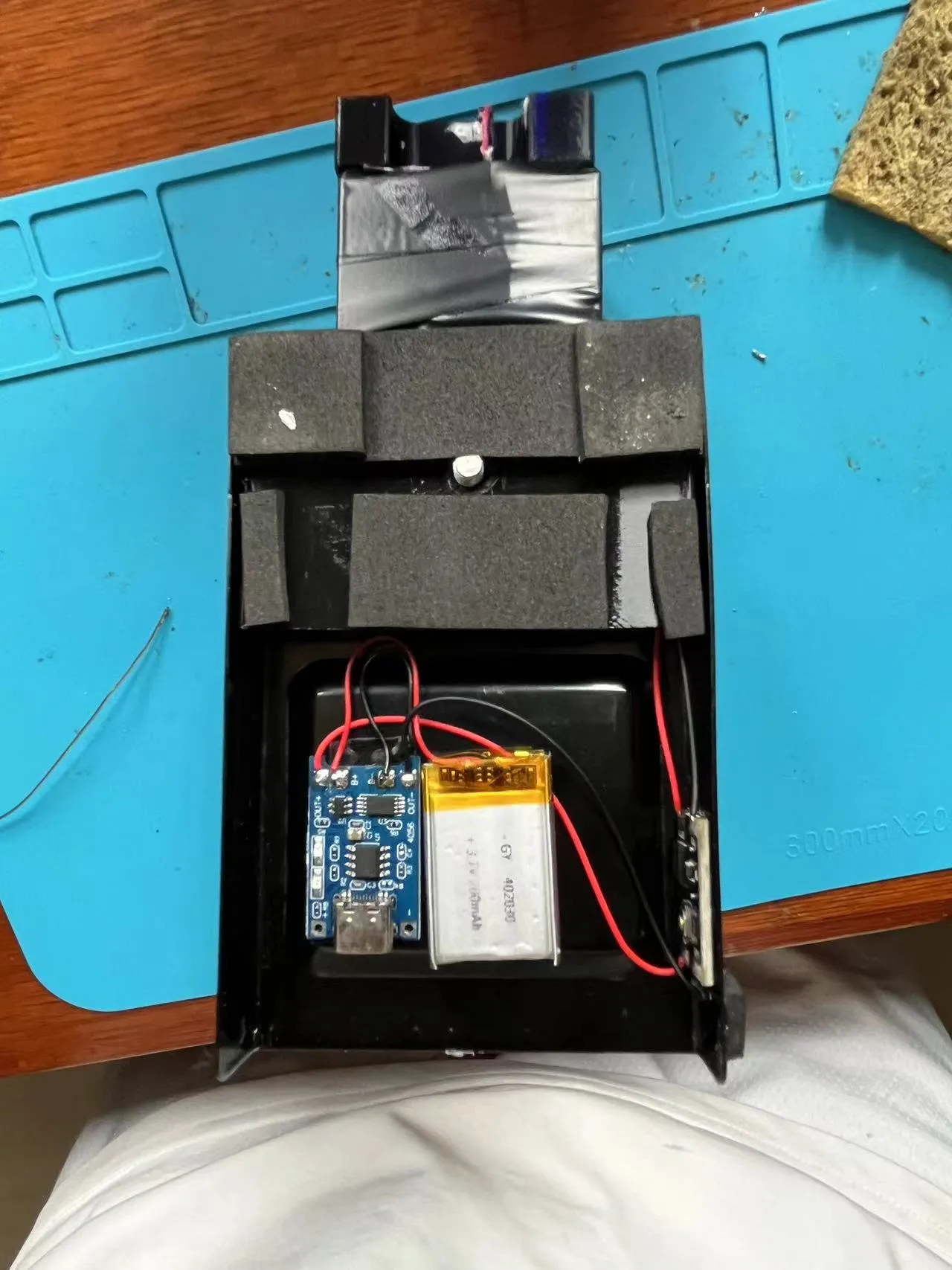

(The circuit wiring is relatively simple and will not be discussed here)
Also thanks to user @user_2183084378 for the 4010 cooling fan frame reference
Price List
Soldering iron stand 3.8 RMB
3.7V 100mAh lithium battery 6 RMB
Type-C charging board 2 RMB
Switch 2 RMB
4010 fan 5V 3 RMB
