Bambulab A1 Top mounted Manual Multi color Bracket

Bambulab A1 Top mounted Manual Multi color Bracket
1、 Introduction

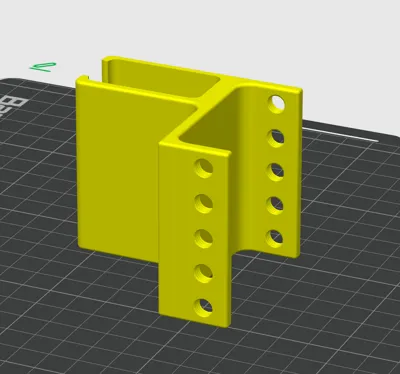

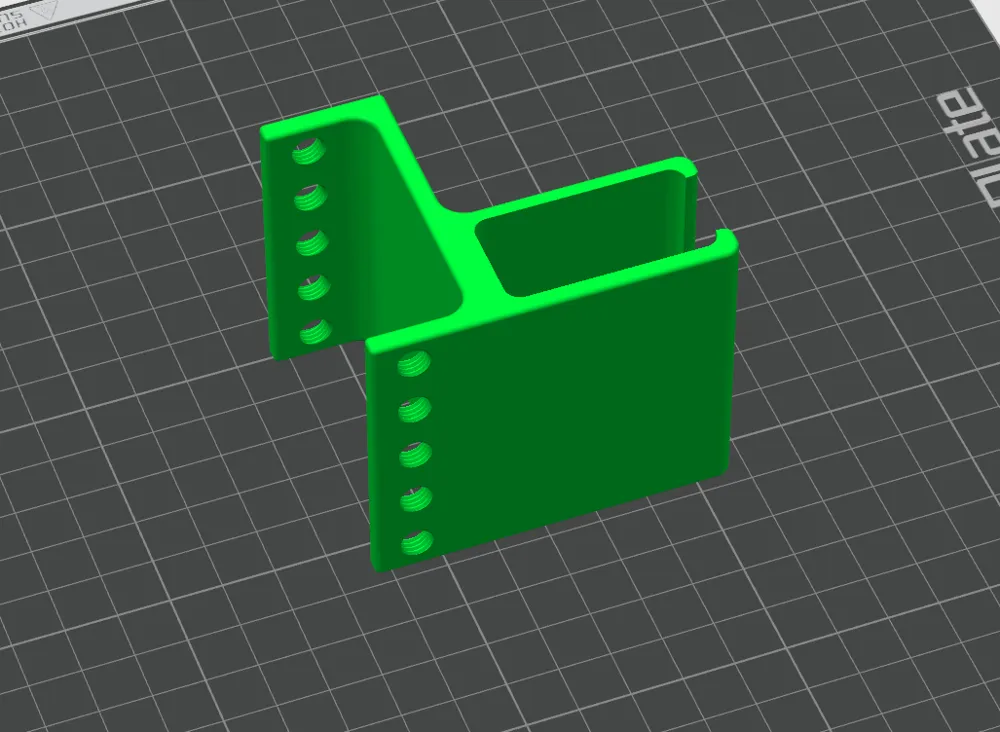

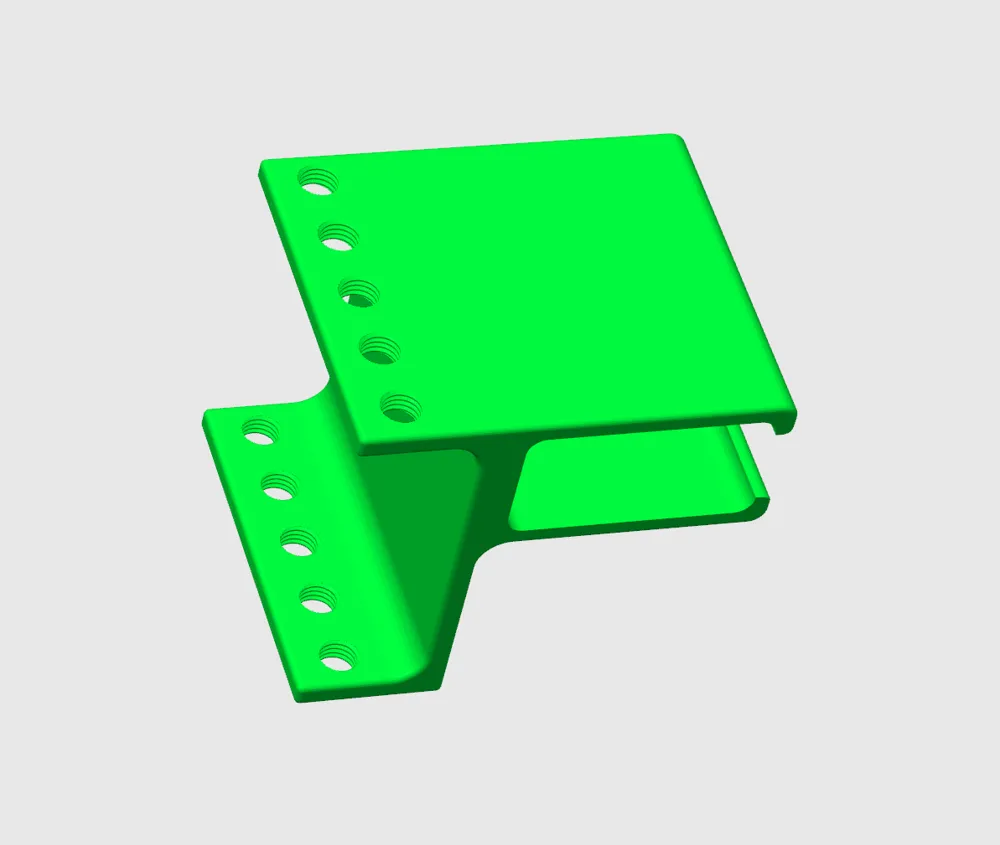

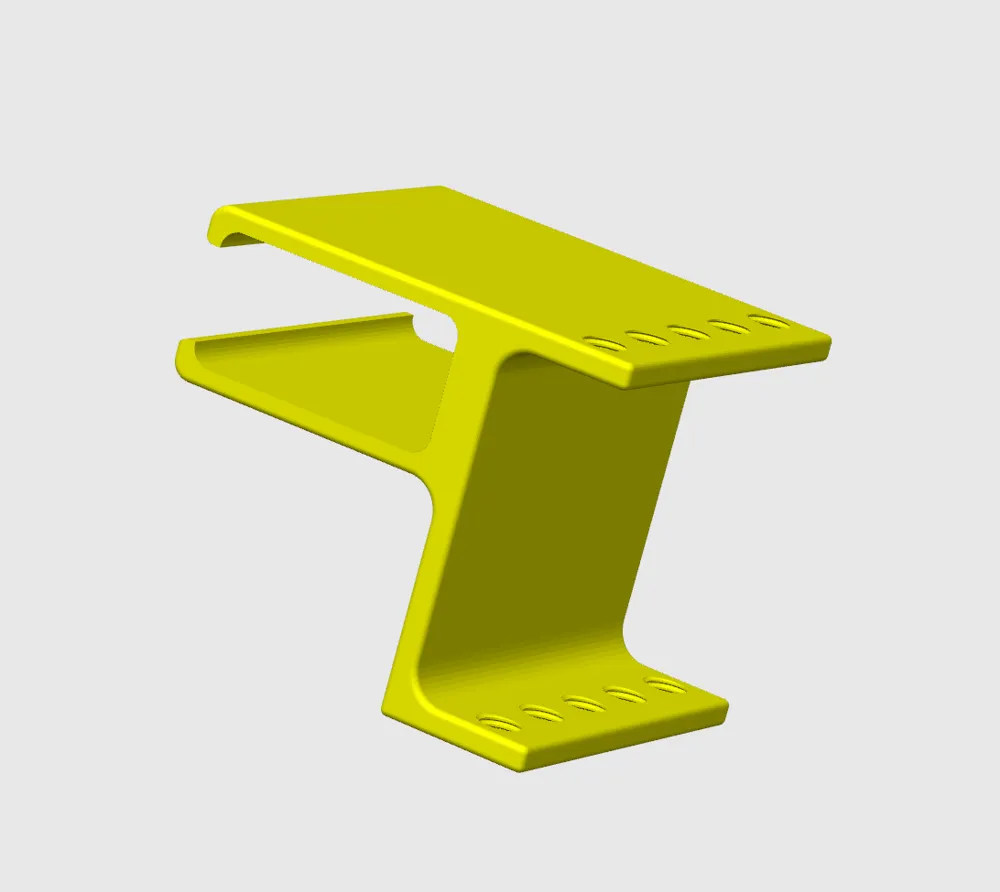

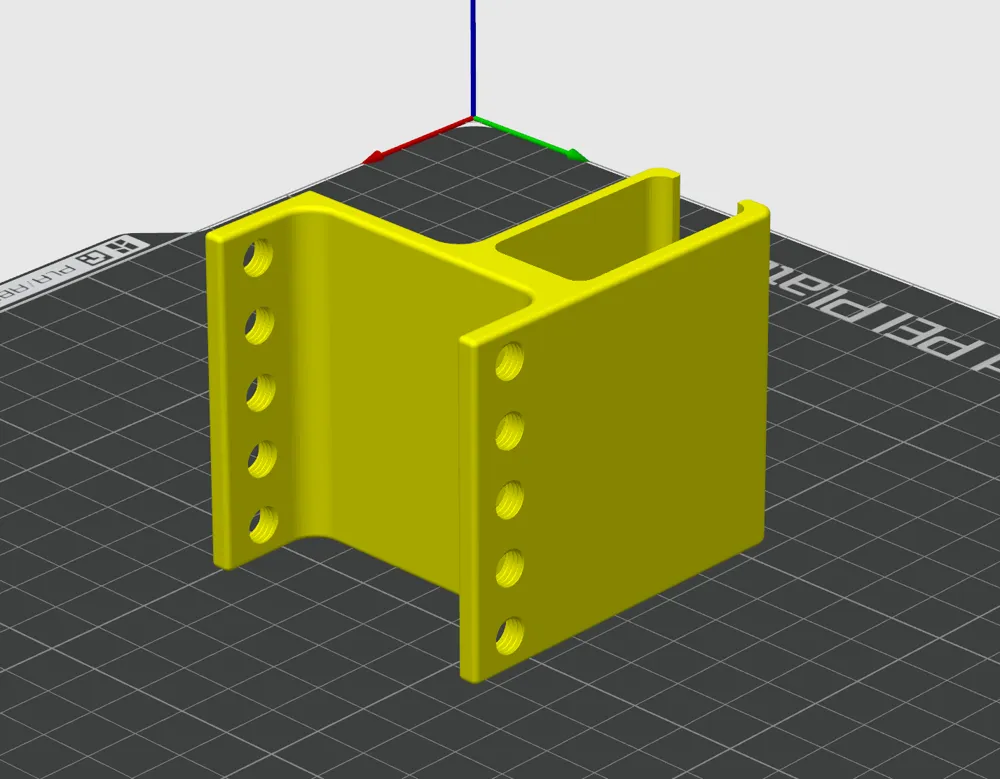

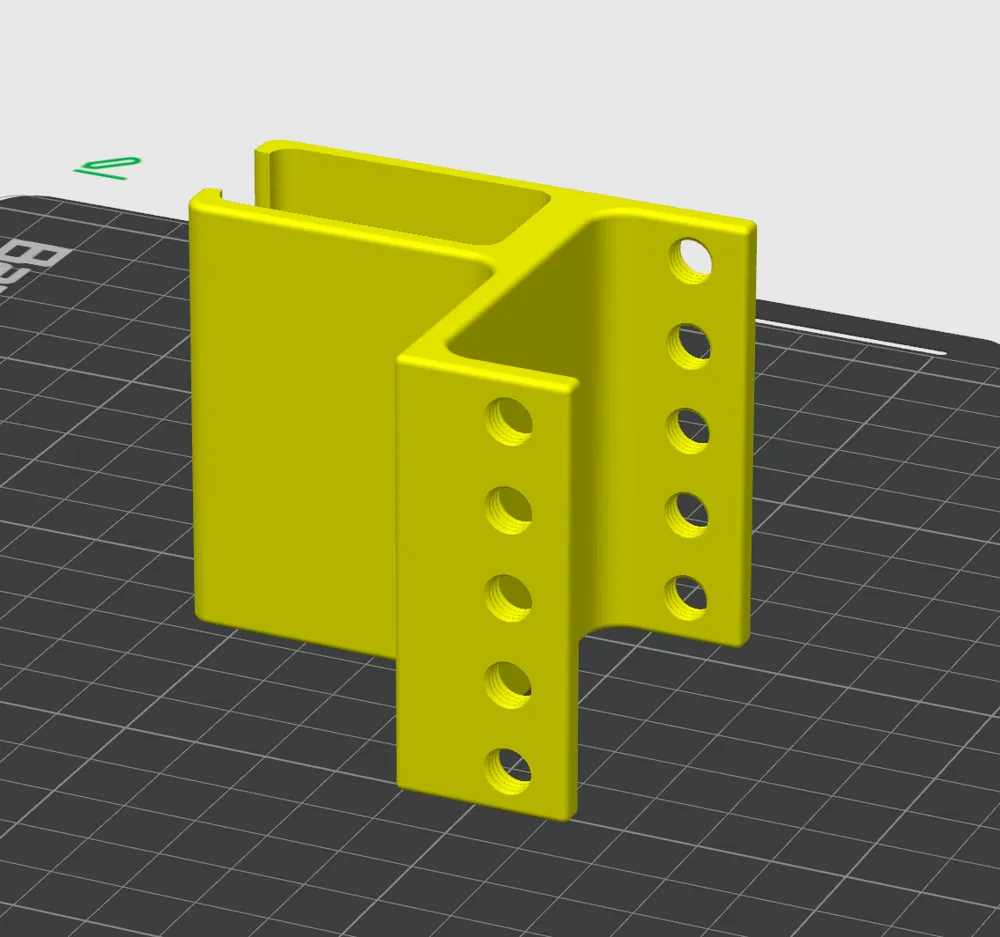

Specially shared with friends who are not equipped with AMS lite system, to avoid the need to open the drying oven every time consumables are changed, which affects the drying effect and is also quite troublesome. As a lazy person, I always want to save some trouble, so I referred to the ideas of other experts and designed this Tuozhu A1 top mounted manual AMS lite multi-color bracket.
2、 Characteristics
1. Convenient and fast, changing materials in ten seconds. Two fingers can quickly replace consumables without opening the drying oven, suitable for friends with multiple rice bucket drying ovens.

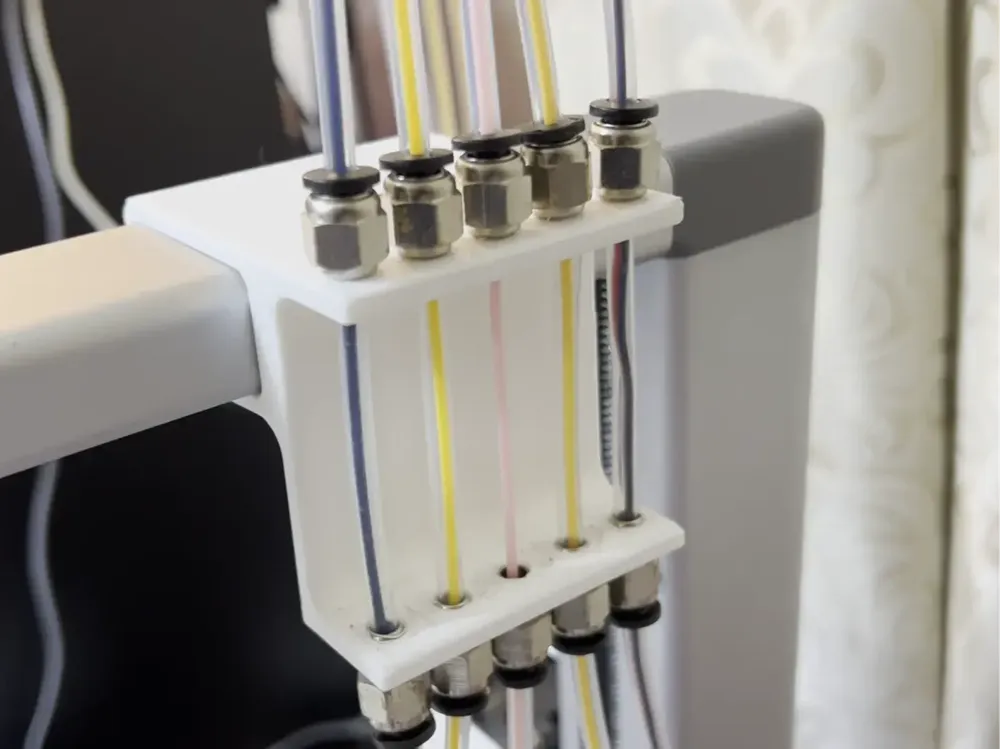

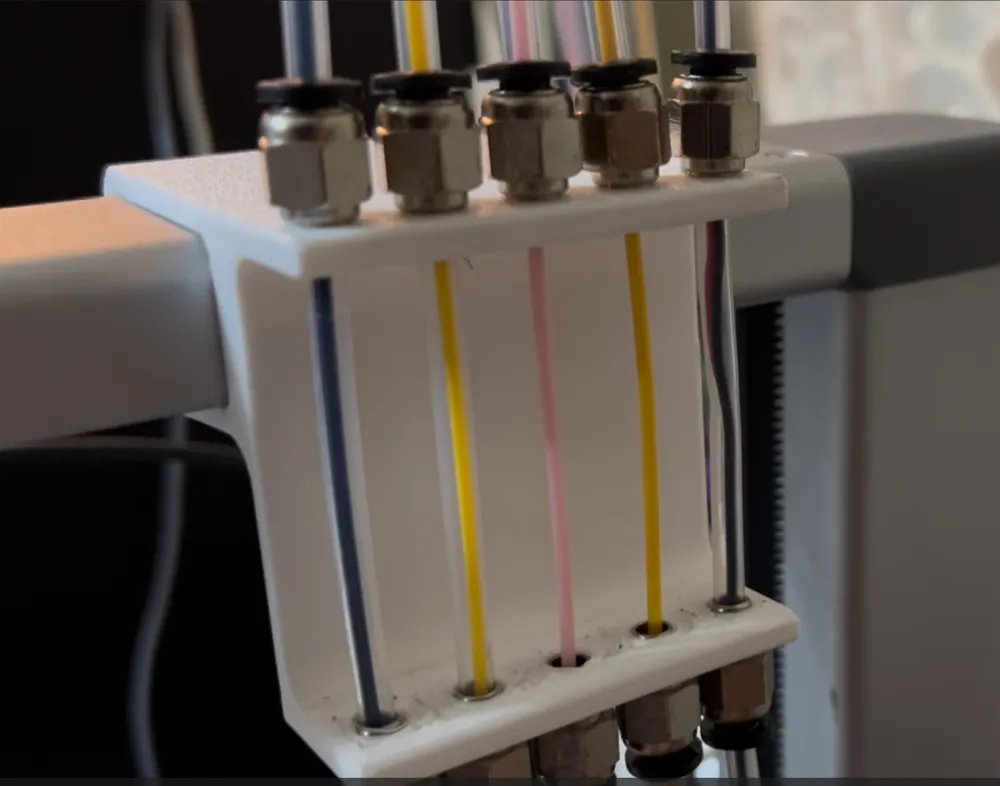

2. Seal the entire process and keep it dry. After the feeding is completed, the lower end of the PTFE tube can be sent out upwards and inserted into the pneumatic joint above to achieve full sealing of consumables, avoiding contact with air and keeping them dry. Note that a through type pneumatic joint is required.
3、 Bill of Materials
1. Several PTFE pipes.
2. 10 PC4-M6 through type pneumatic connectors, please note that they are through type.
4、 Attention:
1. Pay attention to the bending direction of consumables and minimize twisting of consumables as much as possible.
2. Try to reduce the length of the PTFE tube as much as possible, and gradually reduce the length of the PTFE tube without affecting the operation of the print head, which can effectively avoid wire jamming.
3. Try using a PTFE tube with an outer diameter of 4mm and an inner diameter of 3mm, and you will find how smooth it is!!!
