Bolt EV 2017-19 - Cheap Backup Camera Replacement
Print Profile(2)
Description
Cheap backup replacement for Chevrolet Bolt EV LT 2017-19 (Analog model)
and it's working on the infotainment display (as the original camera).

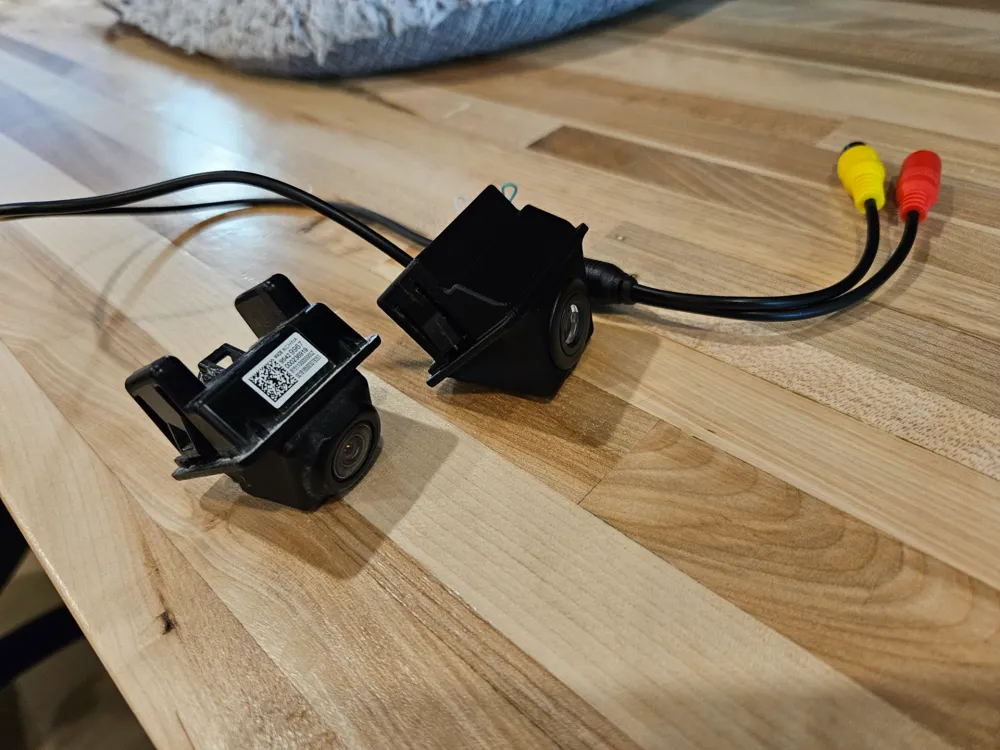

I got a foggy camera (lens not good anymore) and to find a replacement is expensive.

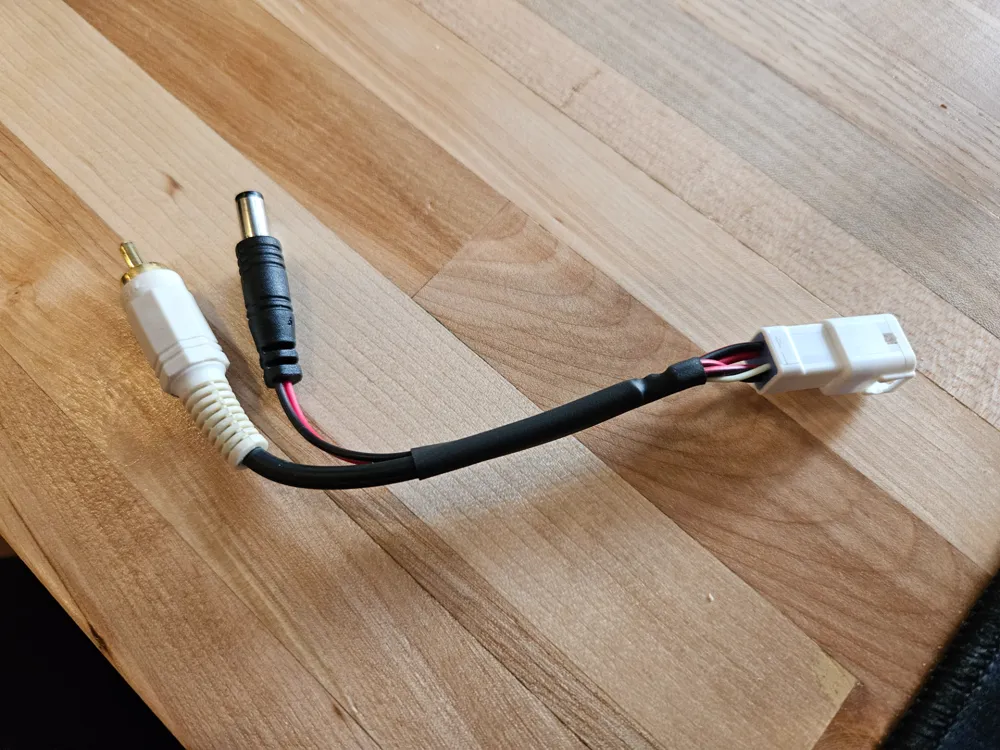

So I made an connector “adapter” with a JST Waterproof connector.
You can cut the original adapter if you want and solder directly to the originals wires.
Use the 3 ground wires connected together, one is the chassis, one is the power ground and the other is the video shield.

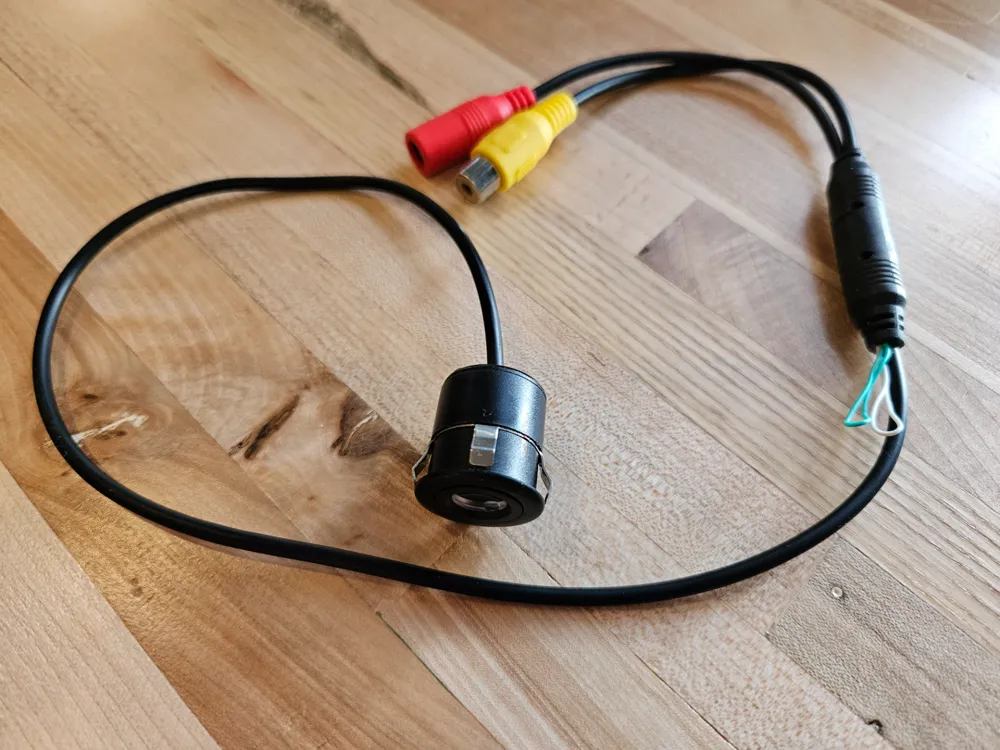

I bougth a 7$ backup camera on aliexpress (20.5mm diameter).

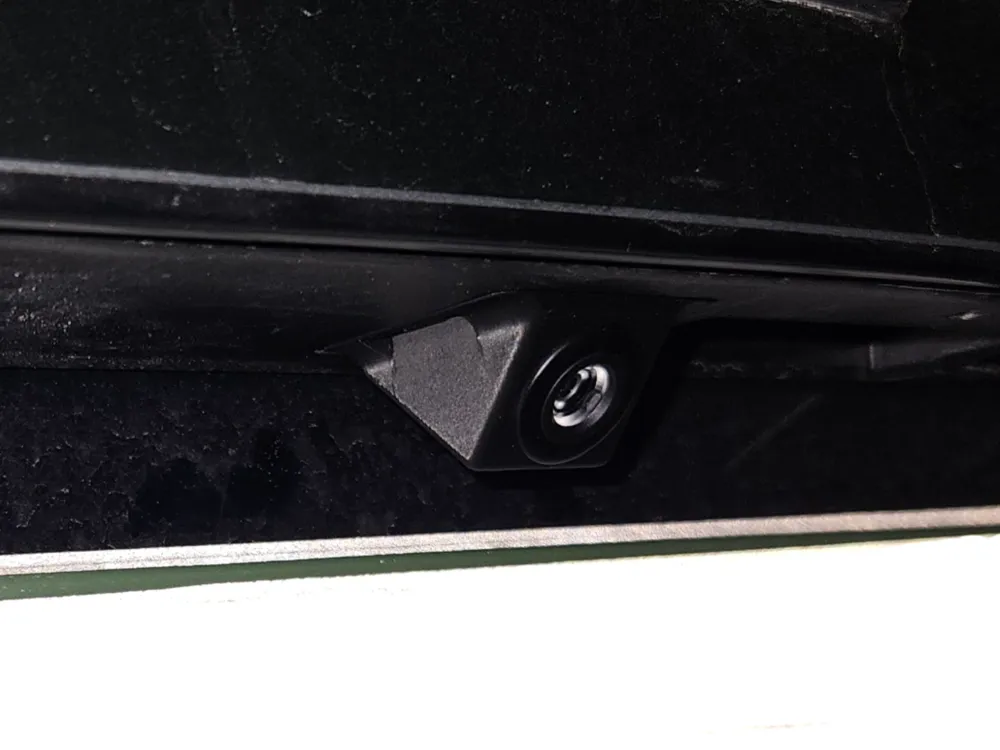

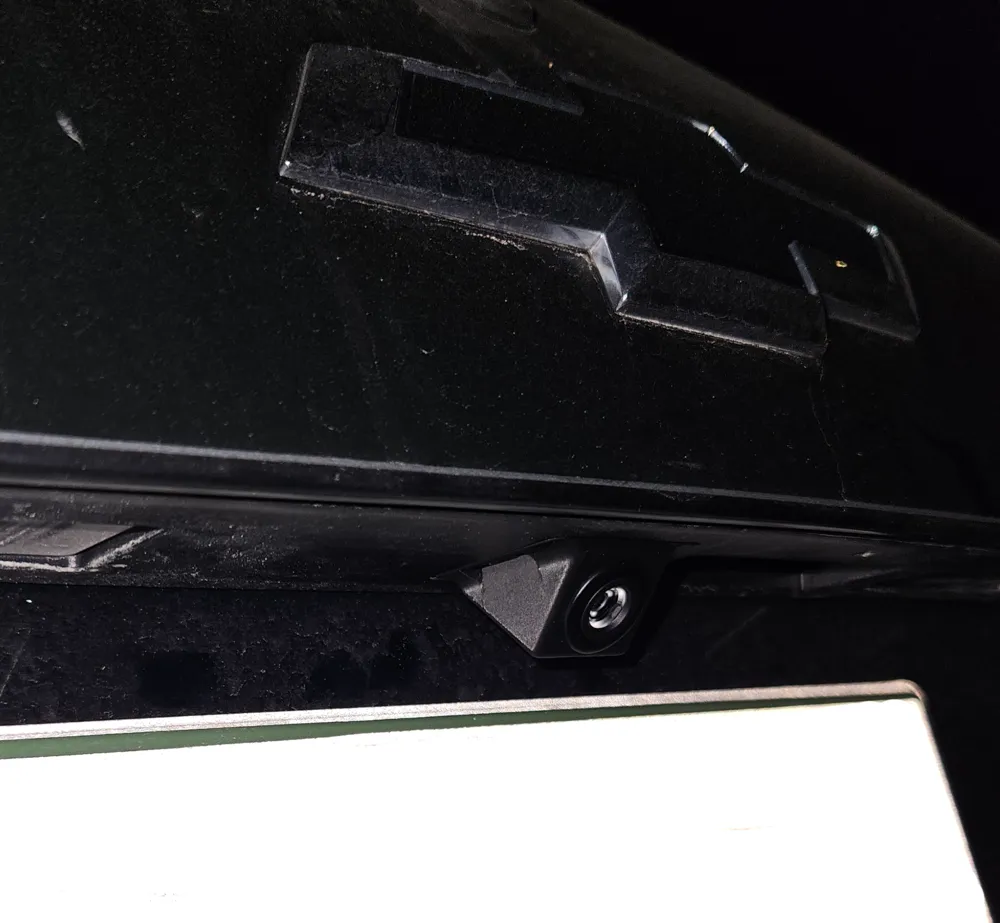

The camera fit exactly in the original hole and with the exact same angle.
Cut the green wire on the camera to remove the mirror effect.
Leave the white wire as is. (This is to add guides lines on the signal, but they are added from the system by default)
I've added a new profile for another model of camera
