Creality K1, K1C, K1 Max Oldham Couplers
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
32
41
6
0
46
2
Released
Description
STILL TESTING!

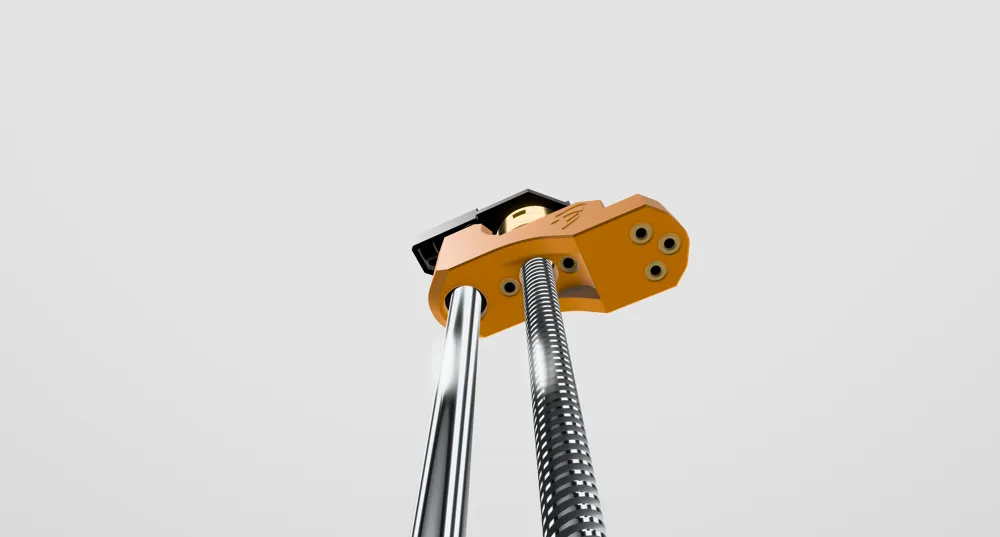

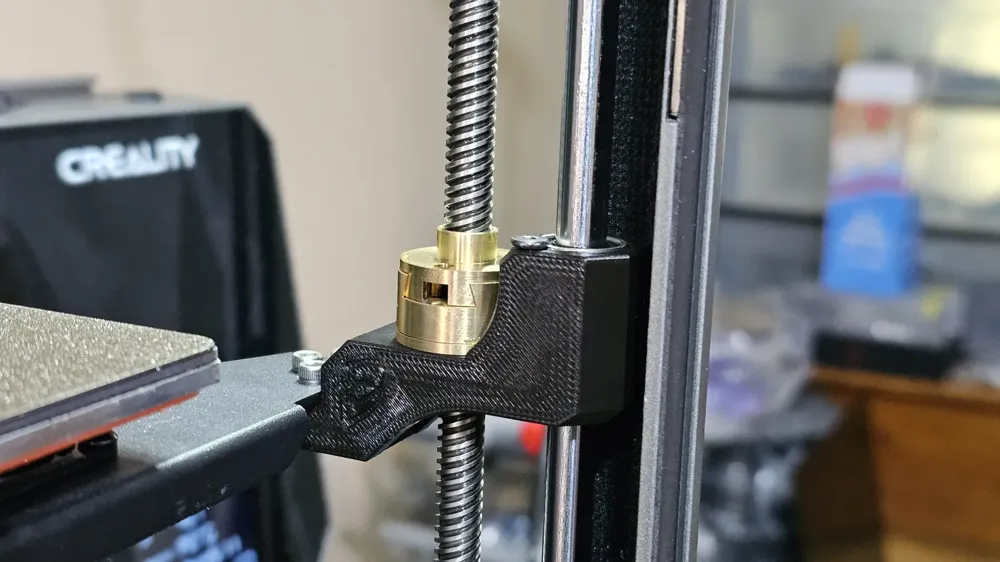

The front two joints are easy to replace. The rear is a bit of a pain. You must remove the large gear in the bottom compartment and lift both the linear rod and lead screw. This is easily done with the rear panel off the printer.
Needed (each):
- M3x4x5 Heat Inserts (x5)
- M3x10mm Screws (x3 - bed)
- M3x12mm Screws (x2 - coupler)

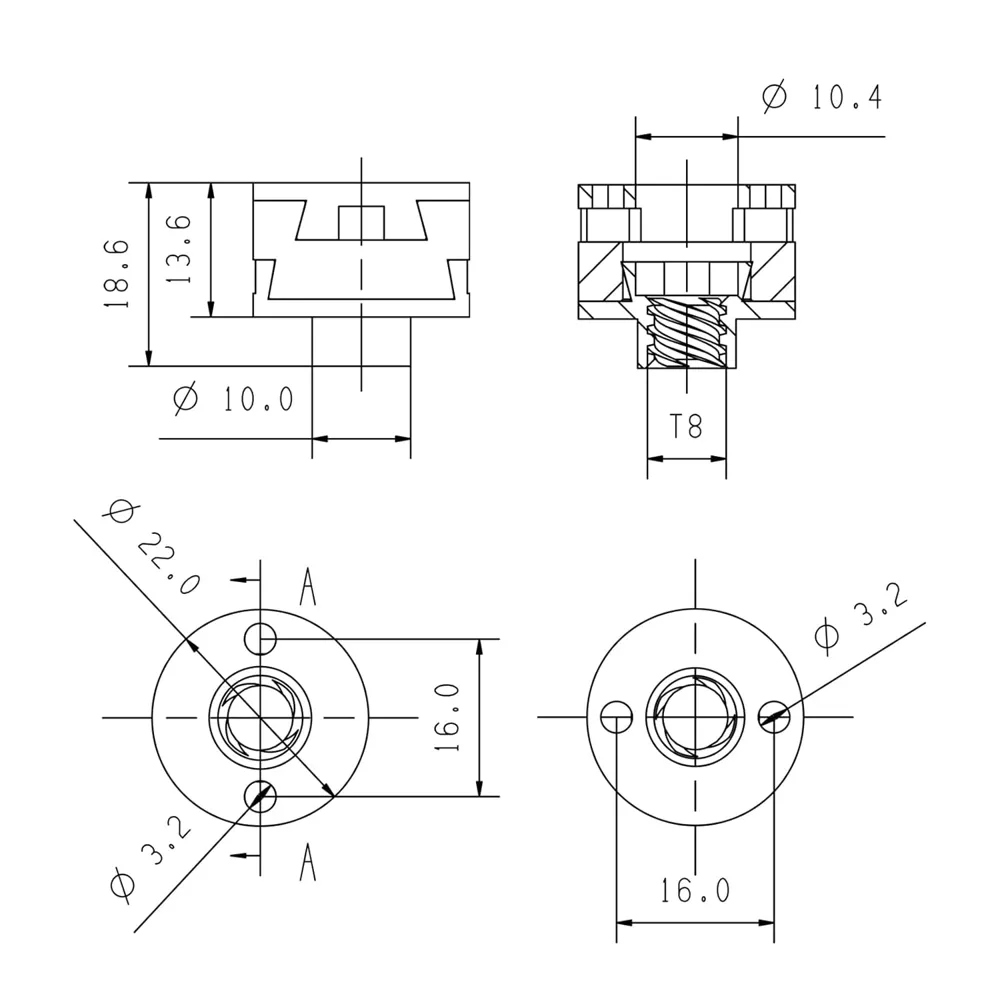

- T8 Oldham Coupler (16mm/not threaded/pictured)
If you like my work consider buying me a ko-fi ☕😊 Your support is greatly appreciated.
Last Updated: Aug 25, 2024
