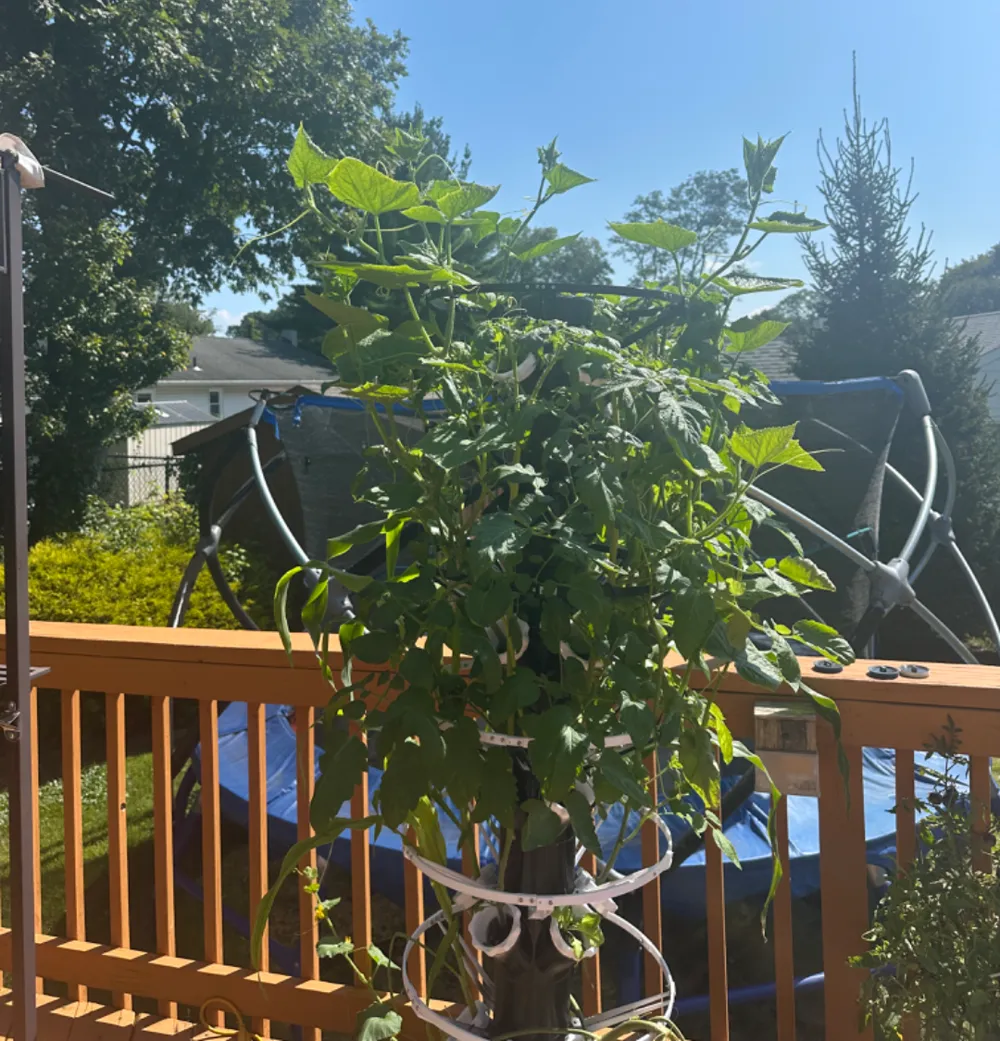

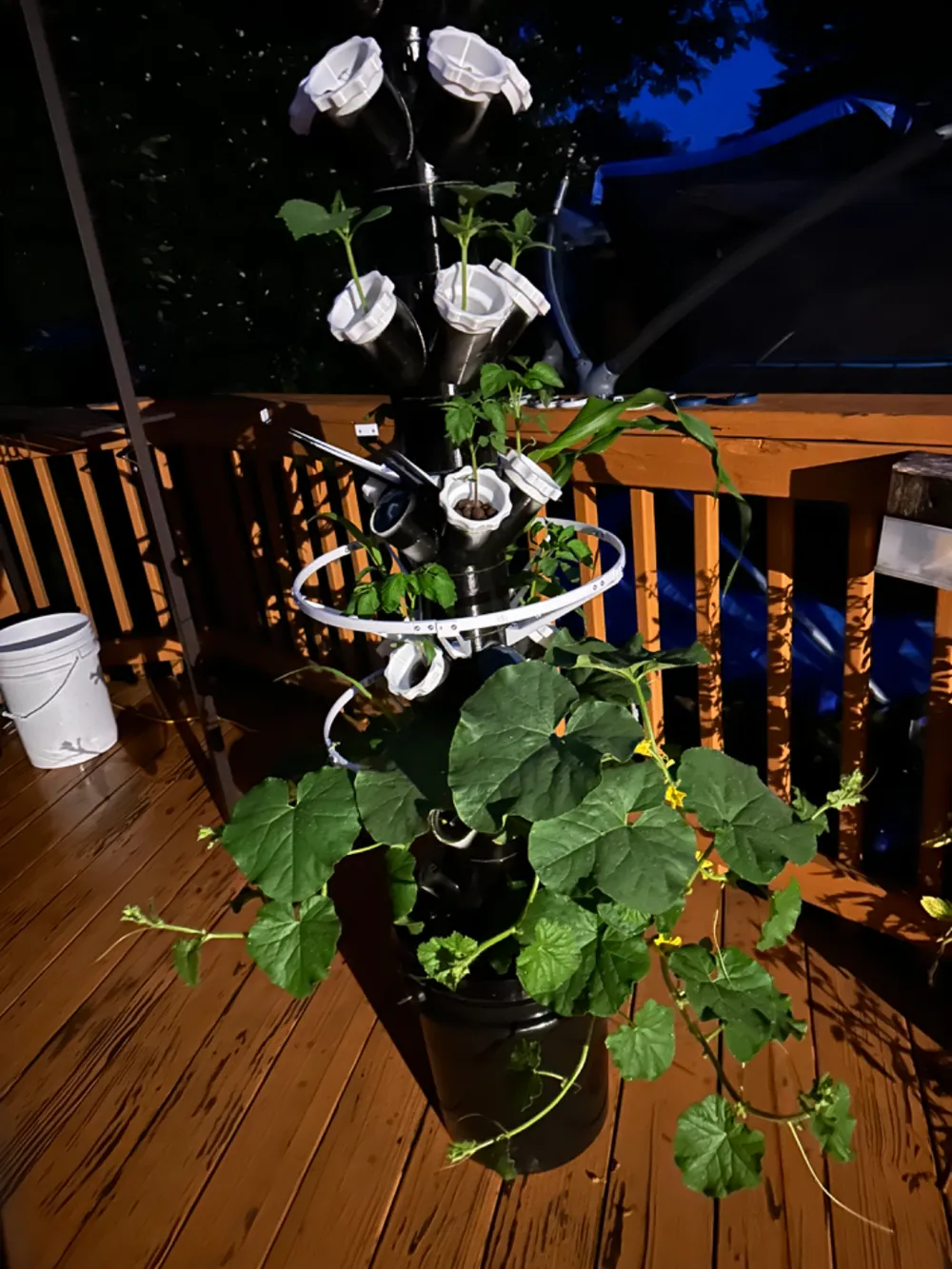

12 pot Hydroponic tower with supports

This is a Remix of the Modular Hydroponic Tower Garden by @christiansotelo. I changed the infill to 10% made the infill the new fast cross hatch and using a .6mm nozzel with a .3 layer height.

In this version i have included a few attachments i have found else ware. I have included the

Aeroponic Tower Shells by

https://www.thingiverse.com/LucidOndine https://www.thingiverse.com/thing:4531175

and

5 Gallon Bucket Lid Adapter Plates

https://www.thingiverse.com/Trevorhirschi https://www.thingiverse.com/thing:4395675

Post-Printing

Assembly

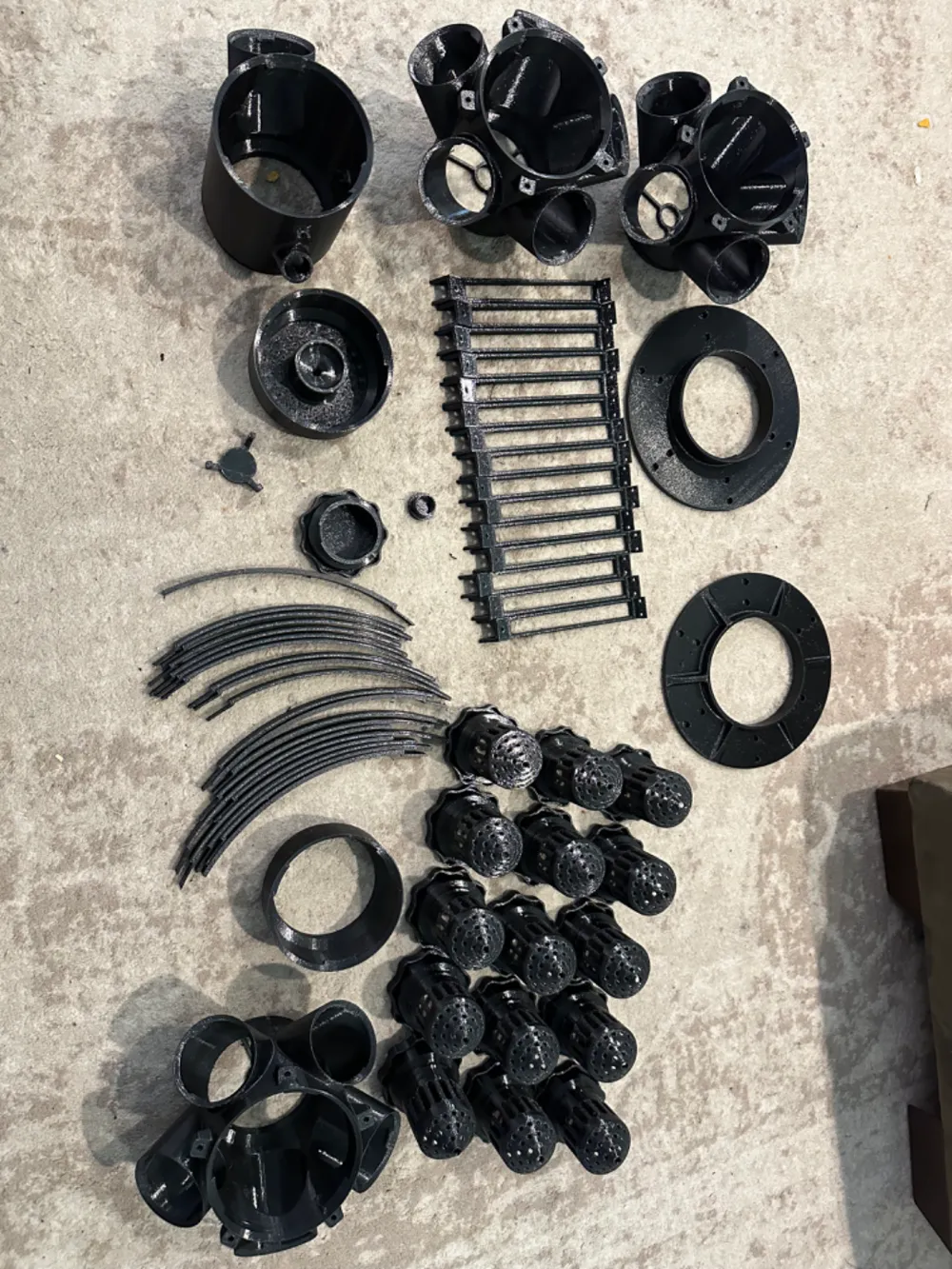

There are two basic pieces which need to be printed several times per shell:

• 4x Arms
• 6x Rings

Additional Hardware

Arm Attachment:

• 4x M3x16 Screws (Stainless Steel)
• 4x M3 Washers (Stainless Steel)
• 4x M3 Nylock Hex Nuts (Stainless Steel)

Ring Assembly:

• 20x M3x12 Screws (Stainless Steel)
• 20x M3 Nylock Hex Nuts (Stainless Steel)

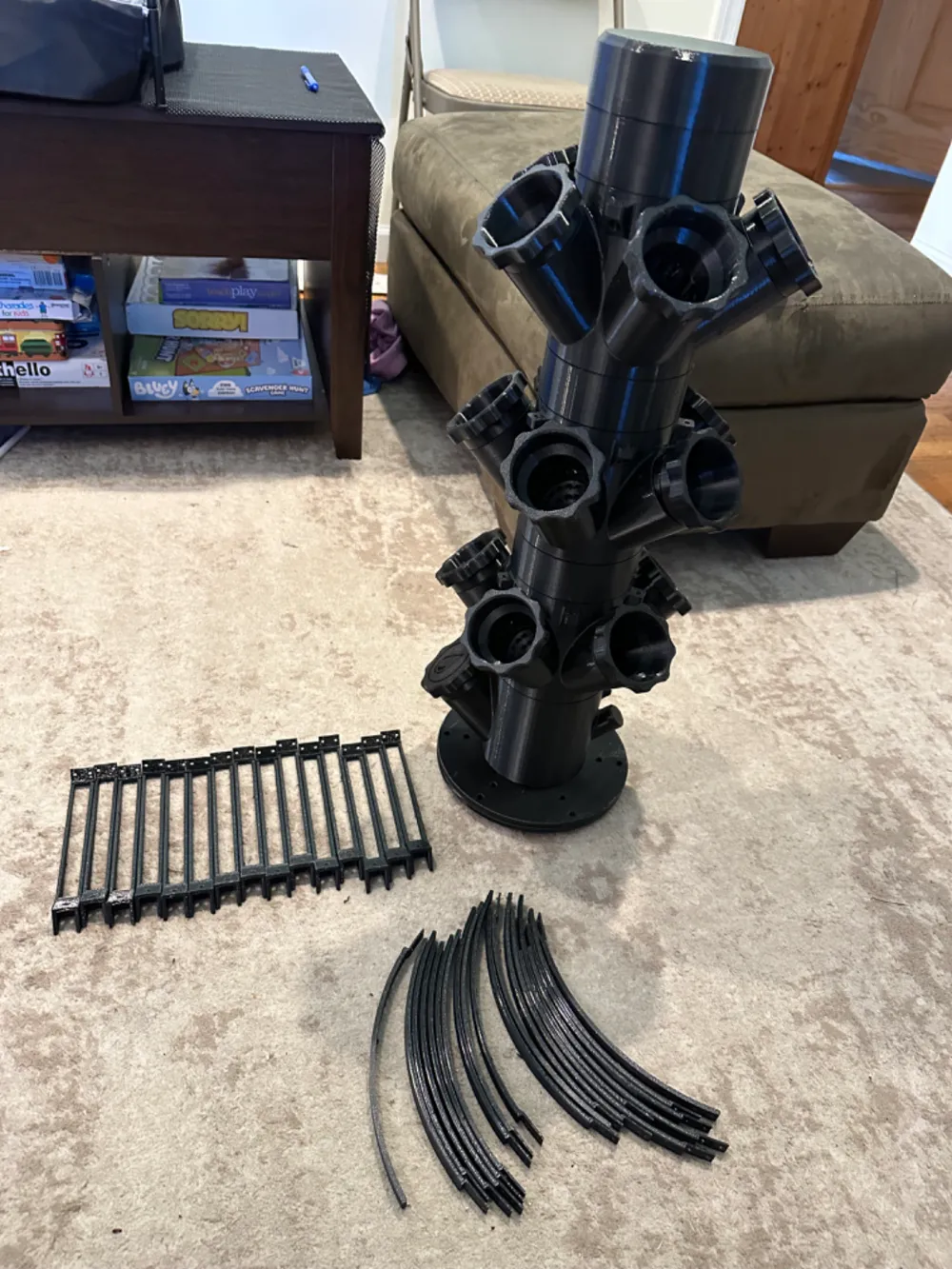

Construction

Attach each arm to the grow module; insert the m3x16 screws through the washer (from the bottom) and into a nylock hex nut on top.

Assemble 4 sets of 2 ring components together using 2x M3x12 and 2x Nylock Hex nuts per pair. Attach each pair together onto the arm components; for each arm, use 2x M3x12 screws through the arm, then the thicker ring component, then through the thinner strip of an additional arm. Secure both screws with 2x Nylock hex nuts.

The holes for the ring may not line up with the holes for the arm. i just took a 3 mm drill bit and drilled threw the ring to attach to the arm.
