Led Matrix Bracket - 64x64 2.5mm Pitch
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
15
46
0
1
103
40
Released
Bill of Materials
List other parts
- RGB LED Matrix Panel – 64x64 2.5mm pitch x 1: https://shop.pimoroni.com/products/rgb-led-matrix-panel?variant=3029531983882
- M3*4 screws x 2: per corner
Description

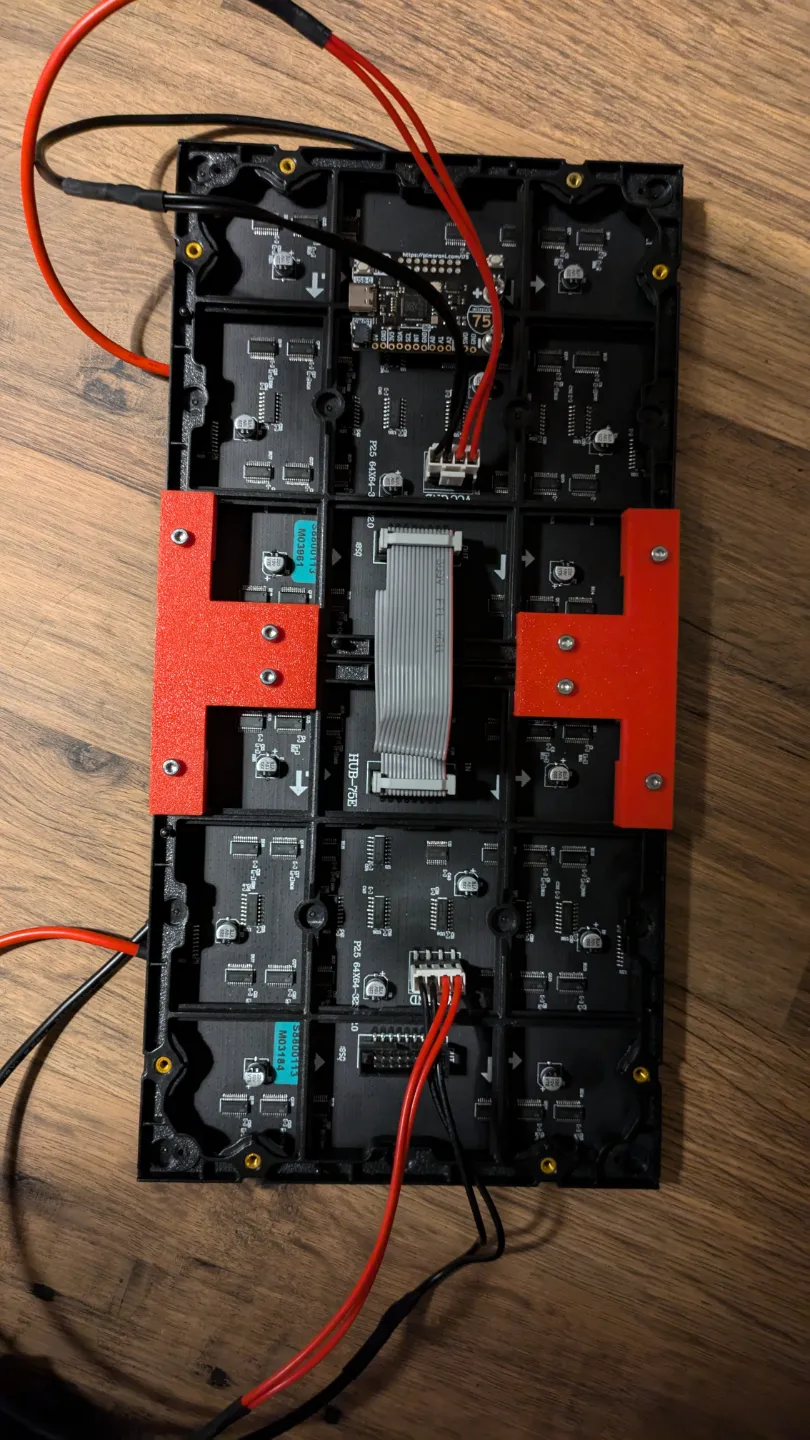

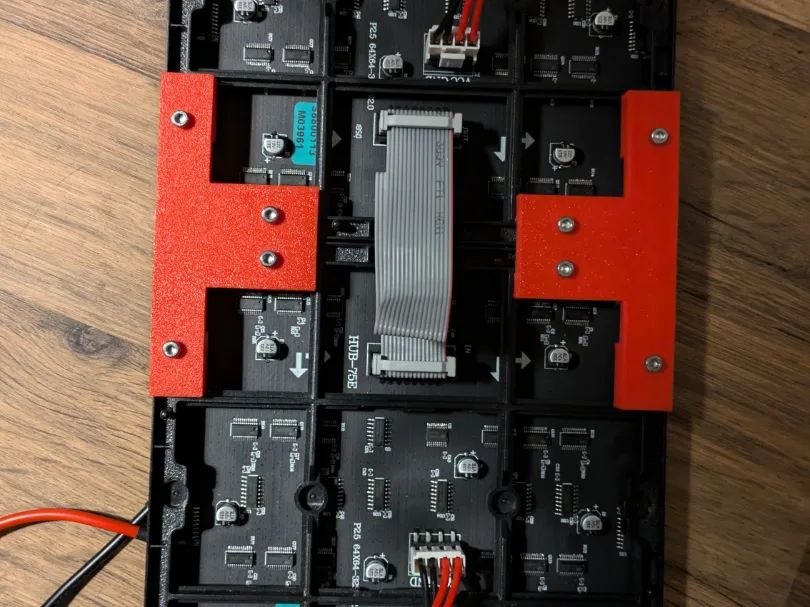

This is a bracket i've designed to connect 2+ LED matrixes together. It may support other RGB matrixes but the only one I've tested on is a RGB LED Matrix 64x64 2.5mm pitch from pimoroni from an unknown manufacture.
