RGB Shield Cell (WIP)
IP Report
GIF
GIF
Print Profile(7)
Shield Cell (black, white)
Designer
3.1 h
1 plate
Shield Cell (blue, white, transparent)
Designer
38.5 h
2 plates
Shield Cell bottum (grey)
Designer
5.1 h
1 plate
Shield Cell (copper)
Designer
7.5 h
1 plate
Click to see more
Open in Bambu Studio
Boost
38
71
0
3
48
6
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
List other parts
- gas spring 30N x 1:
- 45 rgb ring+ controller x 1:
Description
I recommend printing it in PLA. (Gray parts PETG if you want)
I have created a TikTok where I assemble the complete Shield Cell
also YouTube
Material Colour List:
- blue (~500g)
- gray (~300g)
- white (~220g)
- copper/bronze (~160g)
- black (~60g)
- red (~20g)
- metal/ dark gray (~20g)
- translucent (as a cover for the rgb ring) (~2g)
Parts List:
- gas spring 30N
- all-purpose glue / second glue (I use Pattex rxtreme repair)
- 45 rgb ring+ controller

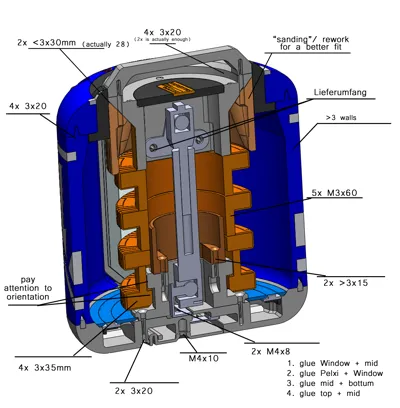

Screws:
- 5x M3x60mm!
- 3x M4x8mm
- 1x M4x10mm
- 2x 3x15mm
- 16x 3x20mm
- 2x 3x<30mm
- 4x 3x35mm
- 3x M4
- 5x M3
I hope thats all.
feel free to ask if you need a different fit, or if something doesn't work out :)
