Star Wars Jedi Fallen Order BD-1 Droid Card Kit

Star Wars Jedi Fallen Order BD-1 Droid Card Kit

NOTES FROM THE ORIGINAL DESIGNER

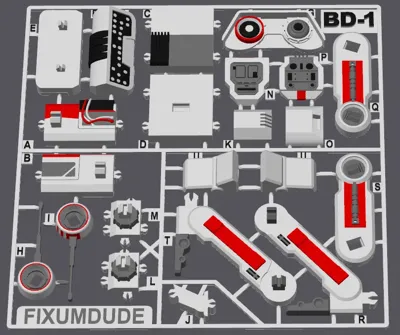

This remix was designed for use with the Bambu Labs AMS. The colors are as accurate as possible to BD-1 in Fallen Order (see reference images) using white, red, silver, and black PLA (PLA+ is recommended for the body and silver).
Some of the clips may break during assembly in PLA due to brittleness.

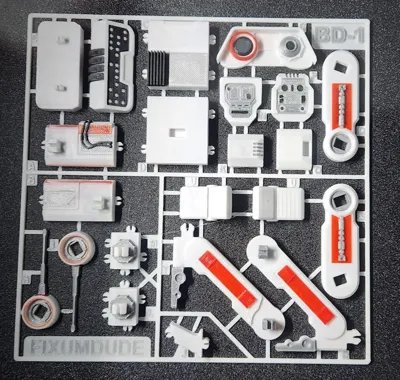

The filament, back of the head, and eye lights are white, allowing you to fill them with a blue marker for a more precise look without needing a fifth color! (The printed version in the photo was my first draft; several color locations have been corrected/added in this .3mf file). The accent color foot and antenna parts are solid color and should be the same color on all sides.

Recommended printing with a 0.3 line width and a layer height of 0.2 or less; I used a 0.4 mm nozzle and a 0.3 line width for the top surfaces and outer walls, 35% infill, no brim, everything else on the standard 0.2 PLA profile. Purge volumes based on the calculator with a 0.5 multiplier yielded good results without bleed between red/white and black; it could likely be further reduced through additional testing.

The model consumes 91 g of material, with 40 g purged to waste (131 g total),
not a bad ratio for approximately 160 color changes.

Network: 3.6 g

White: 73.2 g

Silver: 9.5 g

Black: 4.9 g

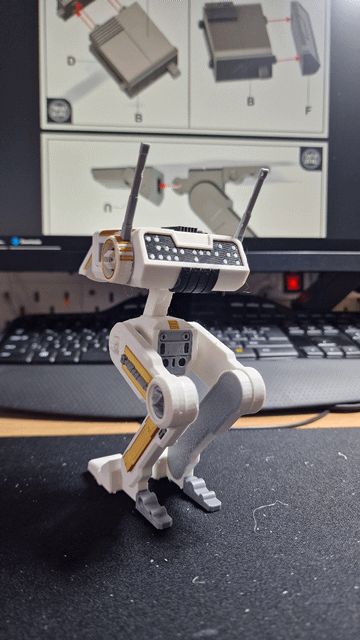

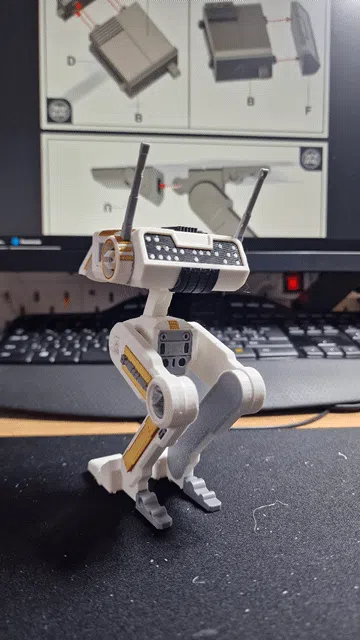

Assembly instructions can be found in the remix source!
https://www.printables.com/de/model/188568-star-wars-bd-1-droid-kit-card

Star Wars BD-1 Droid Kit Card by fixumdude | Free STL Model Download | Printables.com

I have merely optimized the model for the maximum build size for the X1C, A1, and A1 mini

PS.

I have many other 3D models from various areas.
If you can't find something you're looking for, please contact me,

maybe I can create it

If you find errors in my files,

please contact me,

before leaving a bad review.

THANK YOU
