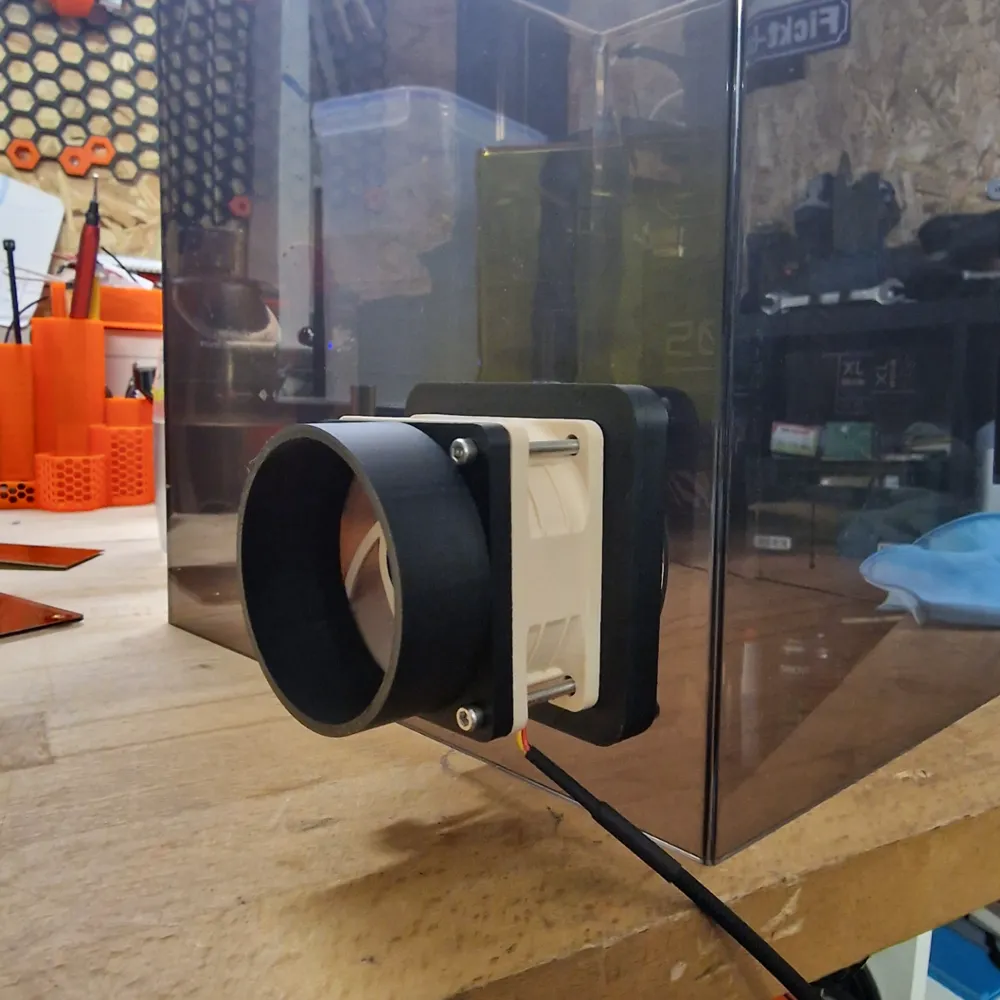

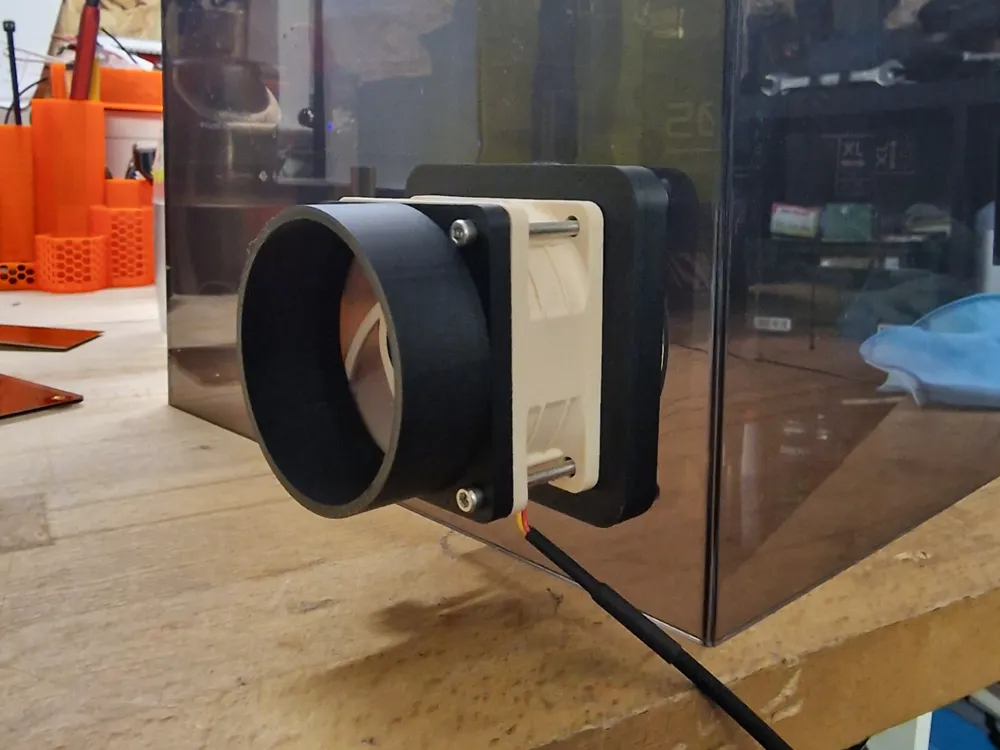

Elegoo Mars 5 Ultra ventilation system
Print Profile(1)
Bill of Materials
- ruthex M3 inserts x 8:
- M3*8 x 4:
- M3*35 x 8:
- Noctua NF-A6x25 x 1:
- 60mm heating hose x 1:
Description

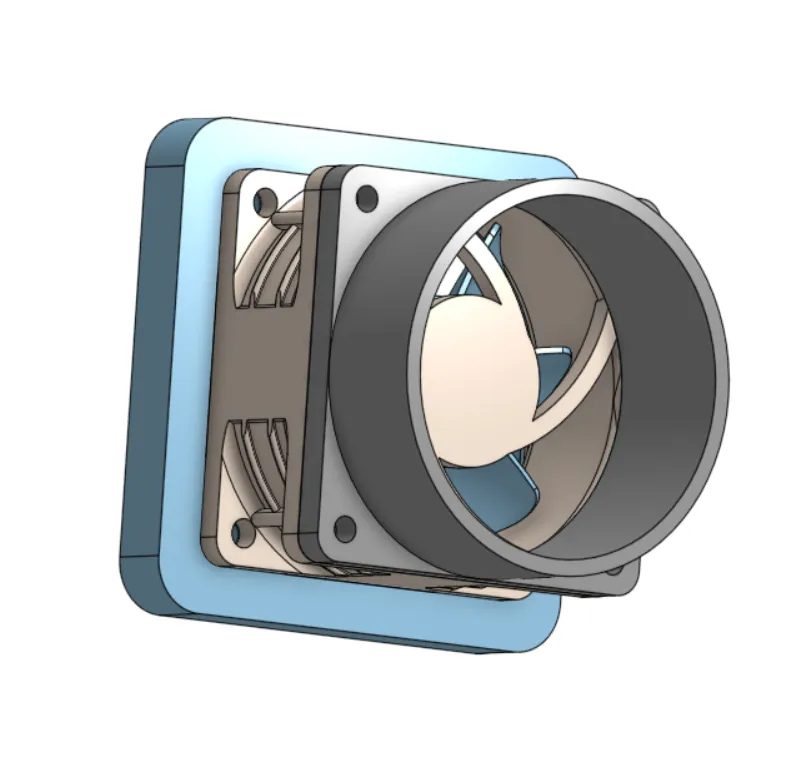

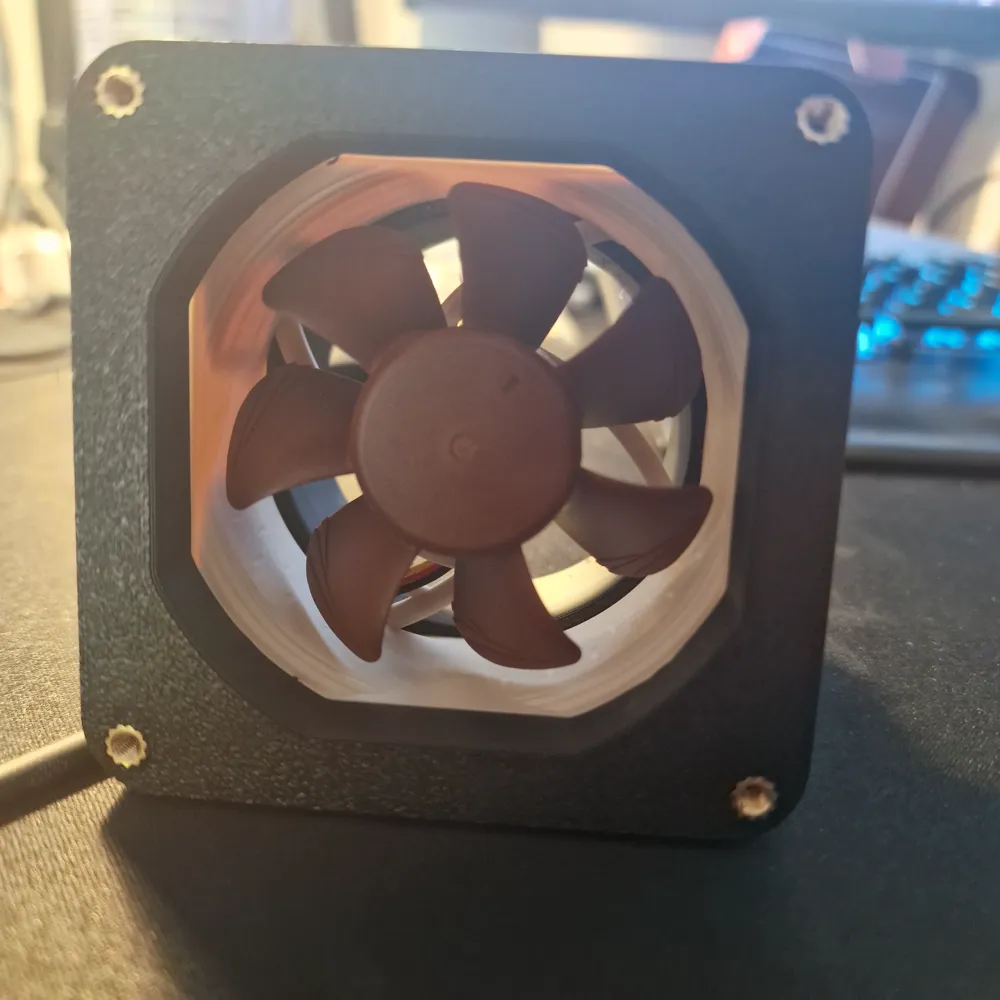

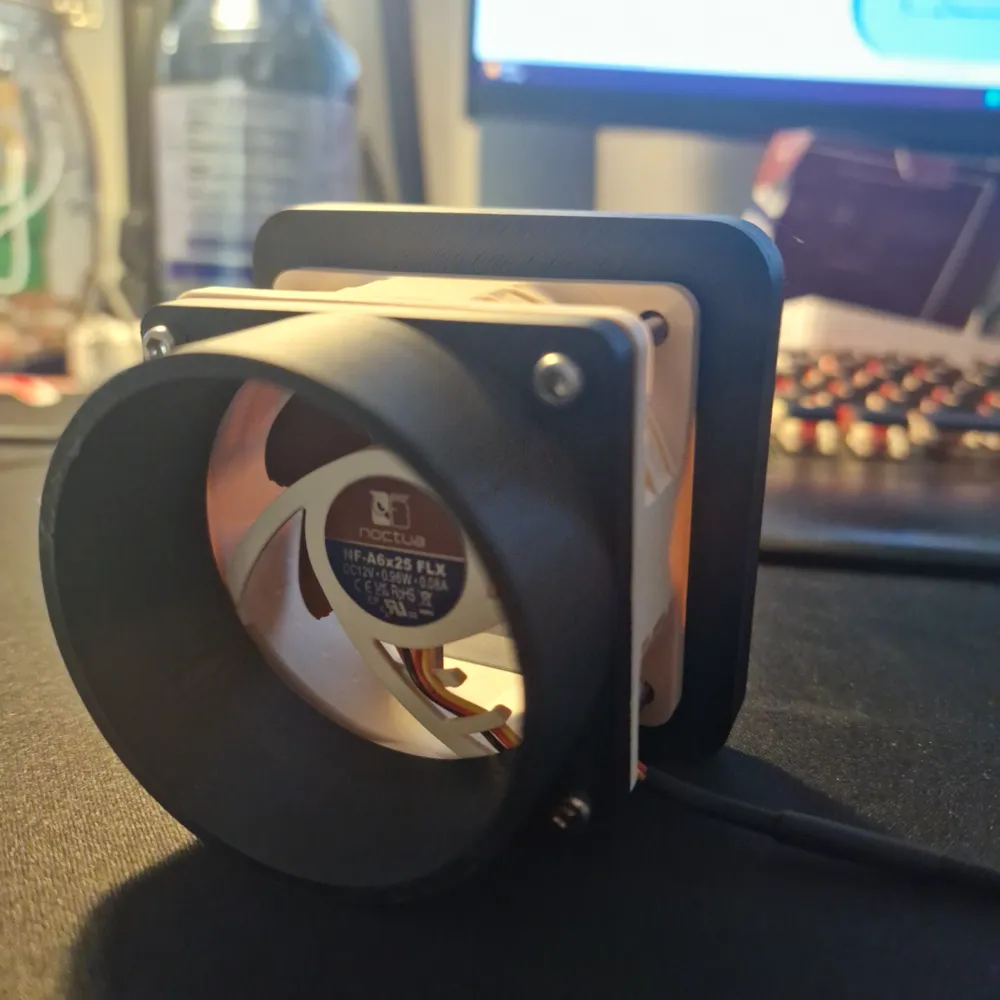

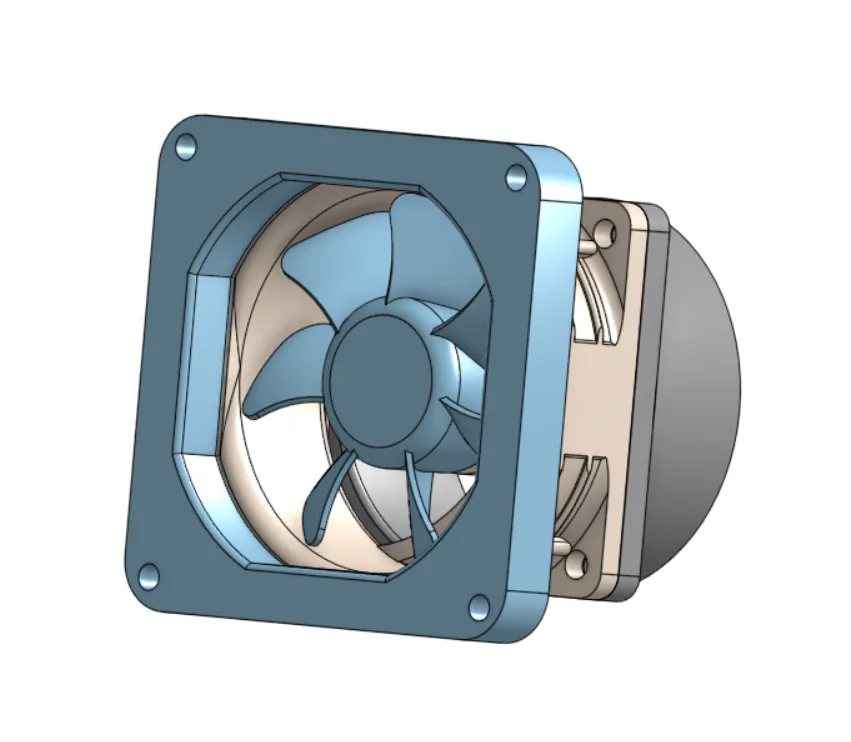

I have designed an exhaust air adapter that is powered by a 60 mm PC fan. Hole spacing from the fan is 50x50 mm and hole spacing to the housing is 65 mm x 65 mm.
The exhaust air connection has a diameter of 60 mm
Drill holes are 7 mm deep and 4 mm wide for ruthex m3 inserts
Components:

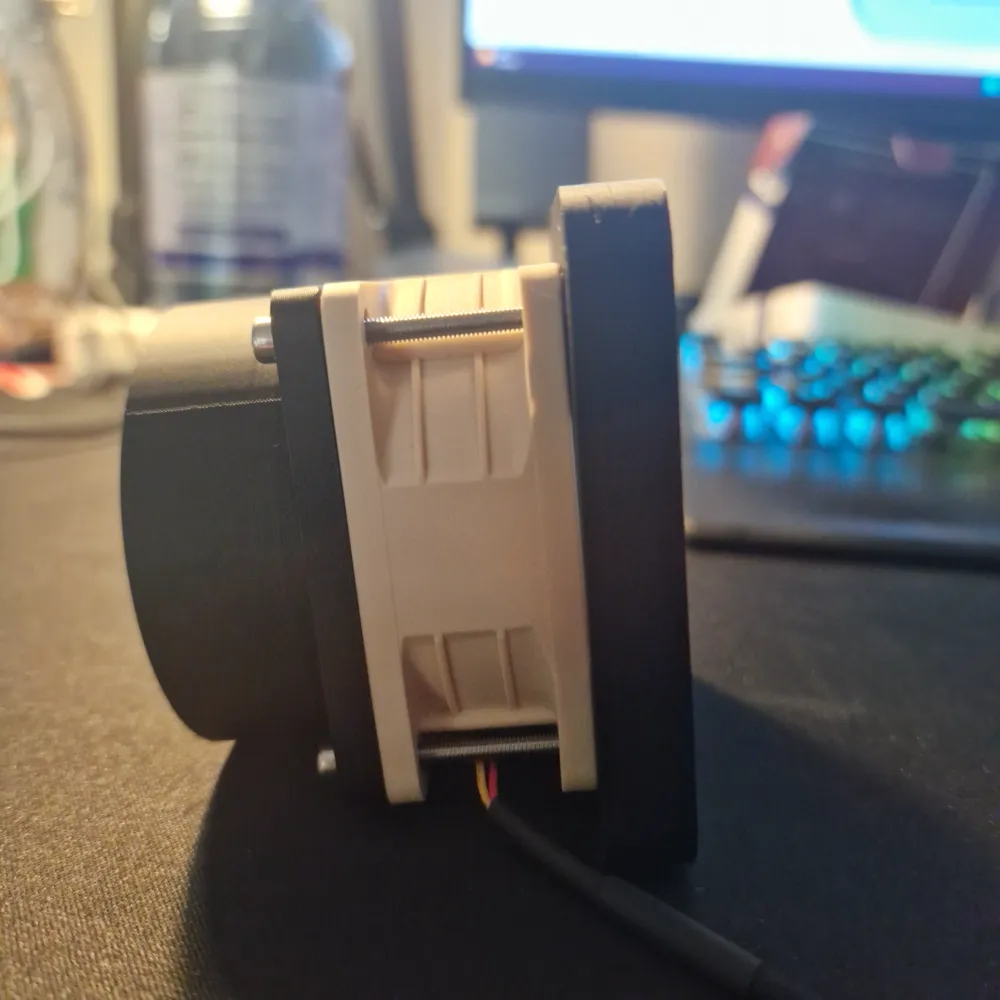

4 x M3 * 35
4 x M3 * 8
8 x ruthex M3 inserts

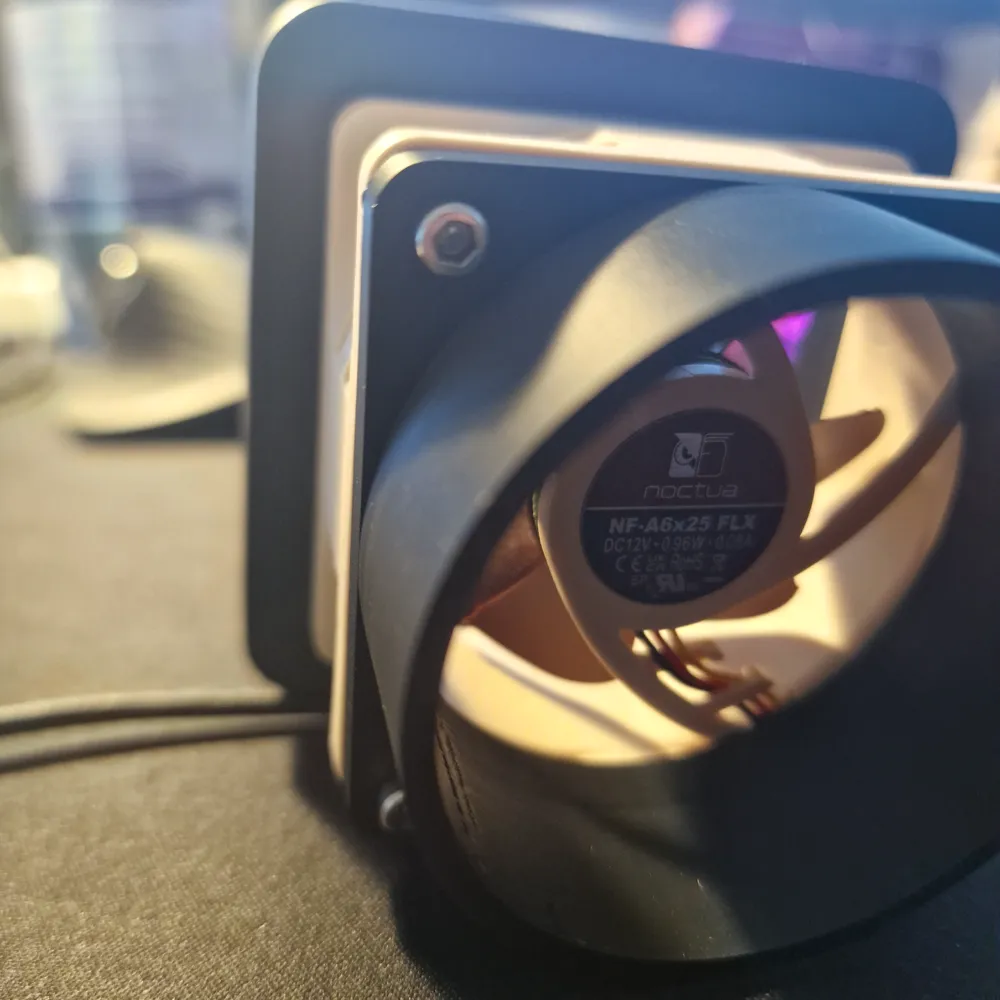

1 x Noctua NF-A6x25

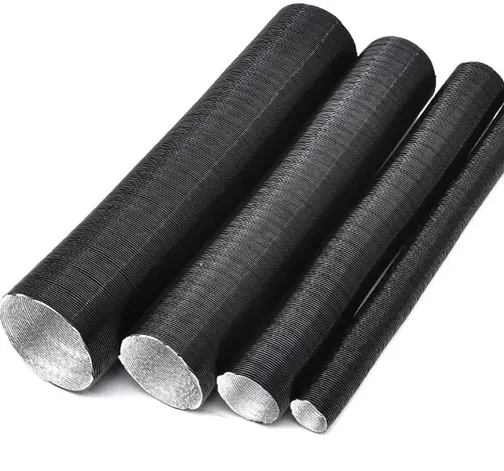

60mm heating hose from Aliexpress
Boost Me (for free)
Up to the Moon!
_______________________________________________________________________
I have constructed an exhaust air adapter that is operated with a 60 mm PC fan. Hole spacing from the fan 50x50 mm and hole spacing to the housing 65 mm x 65 mm.
The exhaust air connection has a diameter of 60 mm
Holes are 7 mm deep and 4 mm wide for ruthex m3 inserts
Exact parts list and photos will be added later.
Components:
4 x M3 * 35
4 x M3 * 8
8 x ruthex M3 inserts
1 x Noctua NF-A6x25
60mm heating hose from Aliexpress
Boost Me (for free)
Up to the Moon!
