1515 European standard aluminum profile 1515Extrusion Connector combination Corner piece
Print Profile(1)
Description

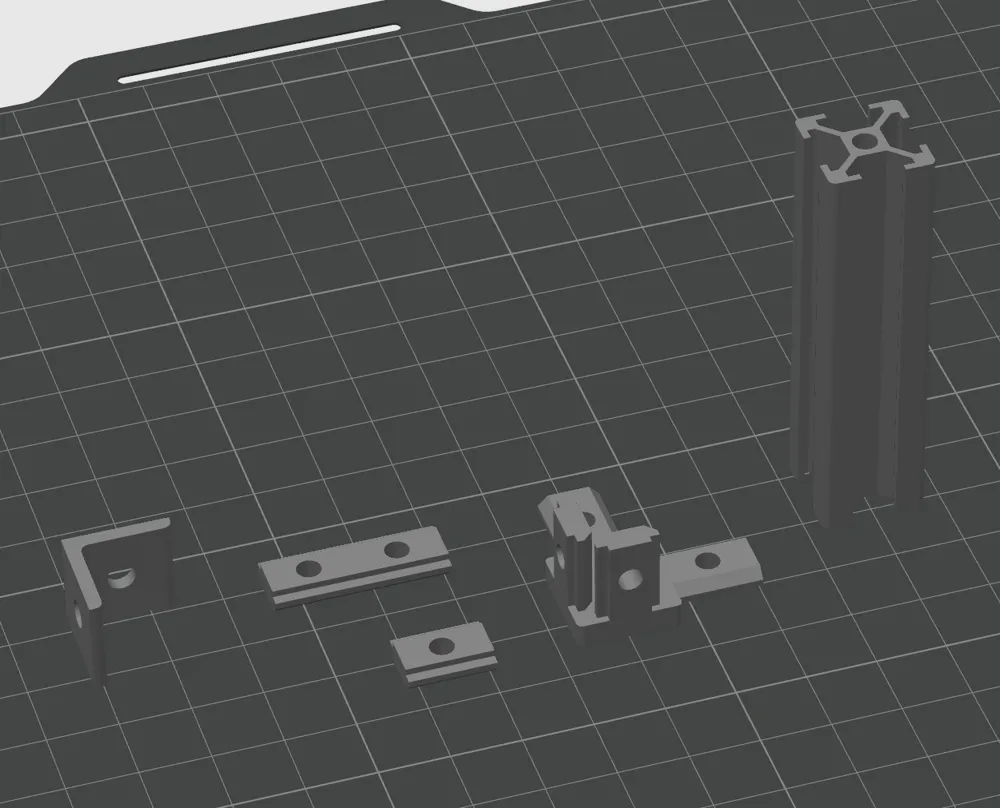

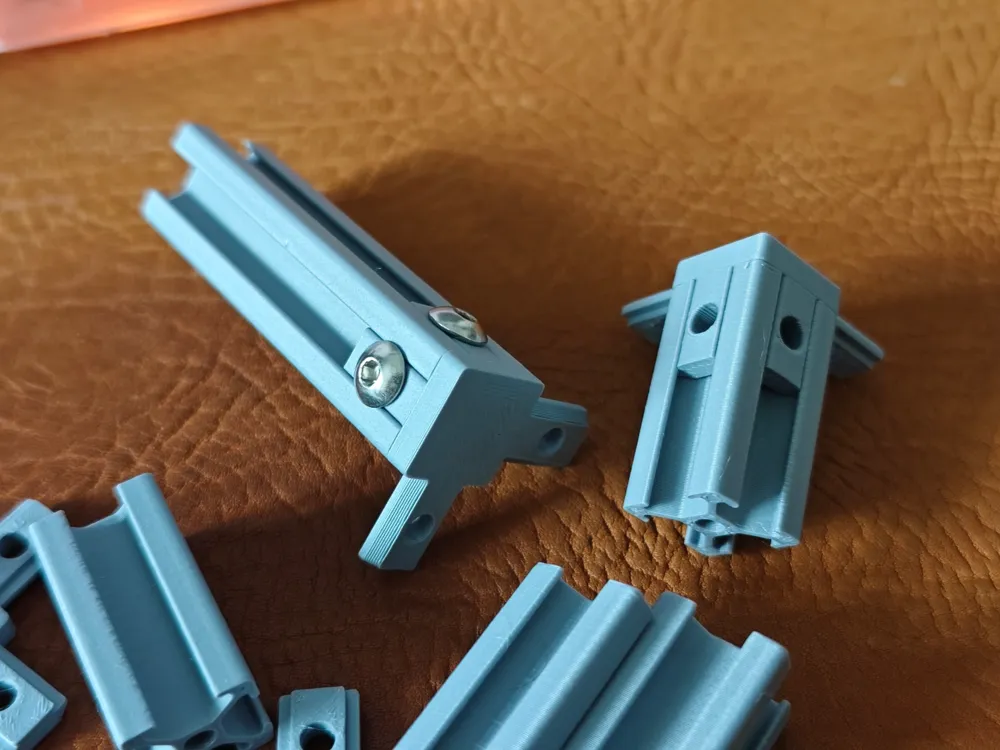

Based on the actual workpiece drawing, 1515 European standard aluminum profile and matching corner pieces are drawn, and the usability has been tested (bambu pla matte), compatibility with the aluminum profile is not guaranteed
Disk 1 is a small hole corner piece with a hole size of 3.5mm, M4 screws are recommended (threading is recommended)
Disk 2 is a large hole corner piece with a hole size of 4mm, M4.5 or 8#-32 British screws are recommended
*The bottom of the three-dimensional corner piece needs to be supported
*It is recommended not to adjust the printing direction of the corner piece. If you don't mind the trouble, you can print the profile horizontally with support to obtain better structural strength
