Sugar Glider Full Print Open Source

Sugar Glider

Cross-frame printed parts Three-inch o3 frame printed parts Including modified parts full open source The frame part can be consulted Xianyu ID " O Explanation Uncle O "

Supports o3, vista digital image transmission and 16, 20, 30mm hole spacing analog image transmission,
Flight control aio supports 16, 20, 25.5mm mounting hole spacing
Height 20mm fully supports mini flight tower installation.
Motor supports 9 and 12mm mounting hole spacing
Camera lens supports DJI o3, Phoenix HD and other cameras, gasket reverse installation supports lens 14mm width,

Printed parts adapted to frame weight reference
The frame with screws weighs about 40 grams
aio with screws about power supply 12 grams
Four motors about 40 grams
Printed parts about 10 grams
o3 image transmission about 37 grams
Excluding batteries about 150 grams

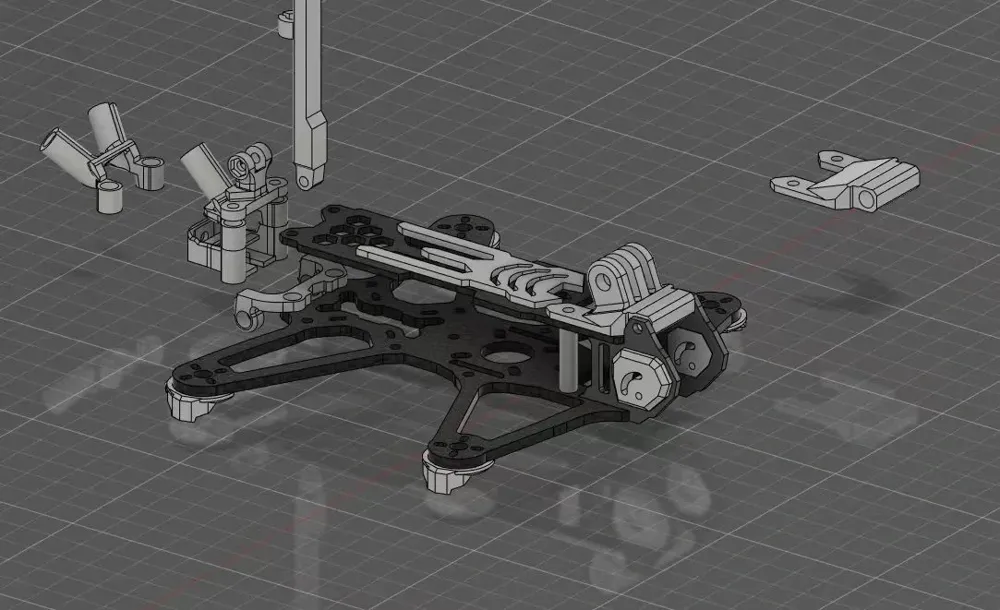

Standard printed parts list (basic installation):
1. Four foot pads
2. A pair of lens side plate pads (inner 14mm, outer 20mm)
3. One receiver installation slot
4. One receiver antenna seat
5. One image transmission antenna seat
