Description

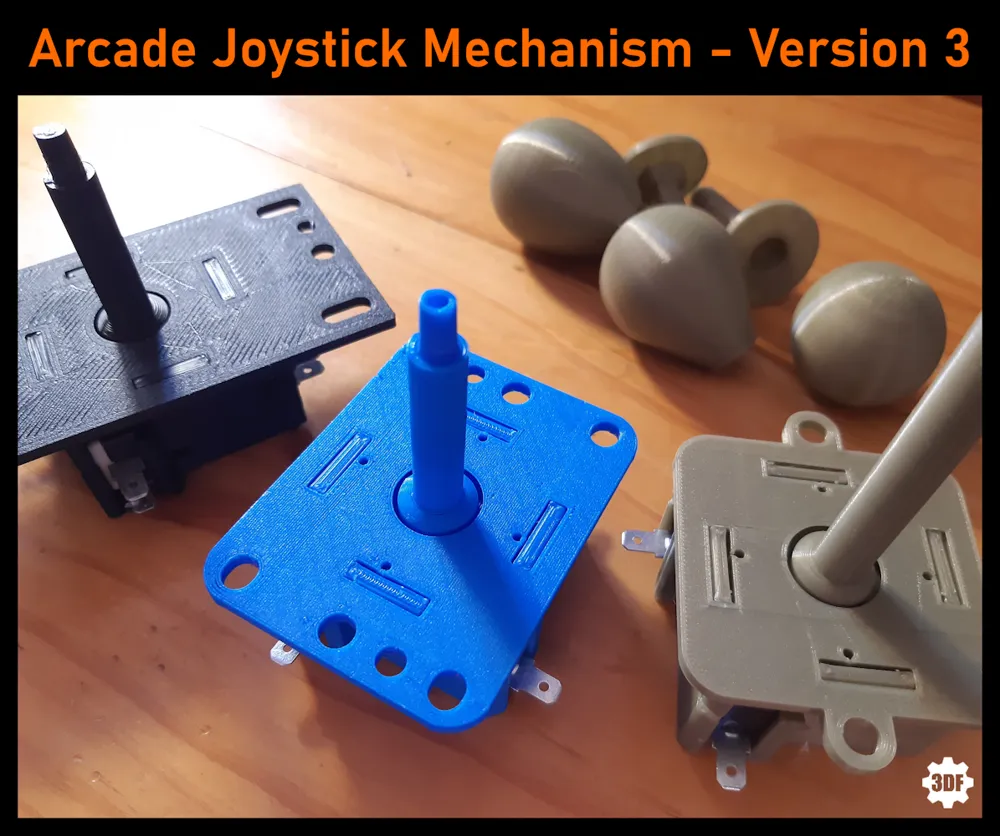

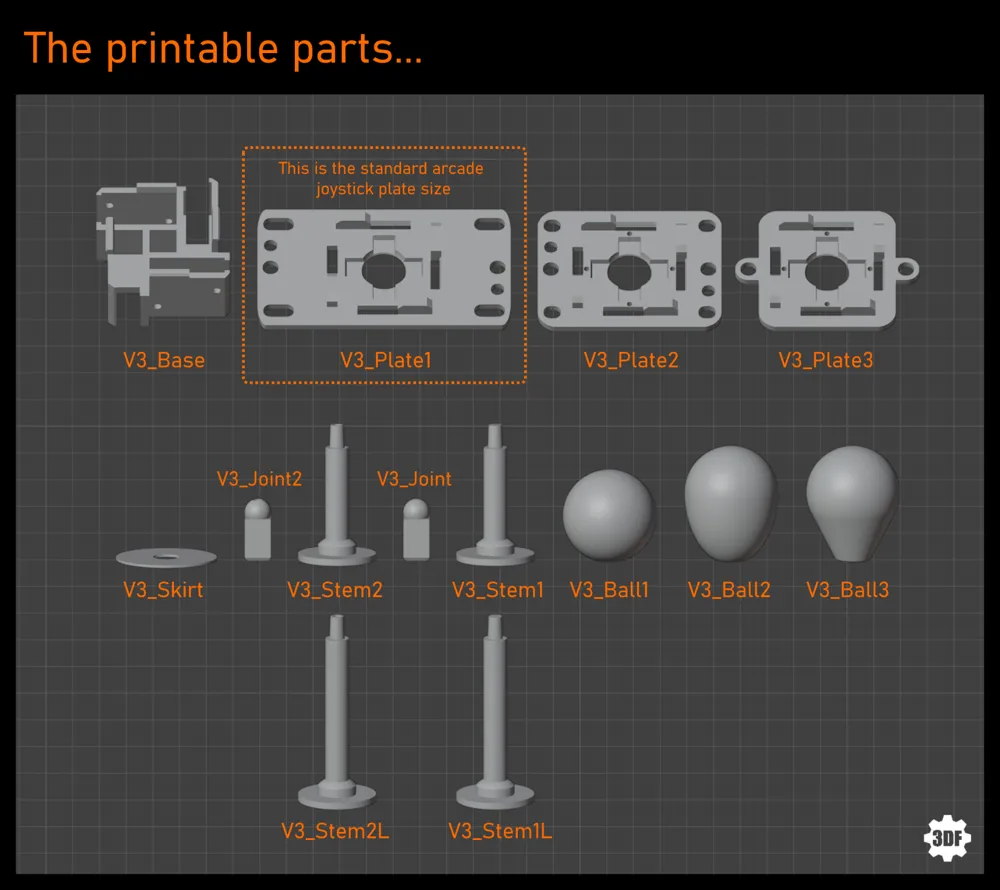

Everything you need to 3D print your Arcade joystick...

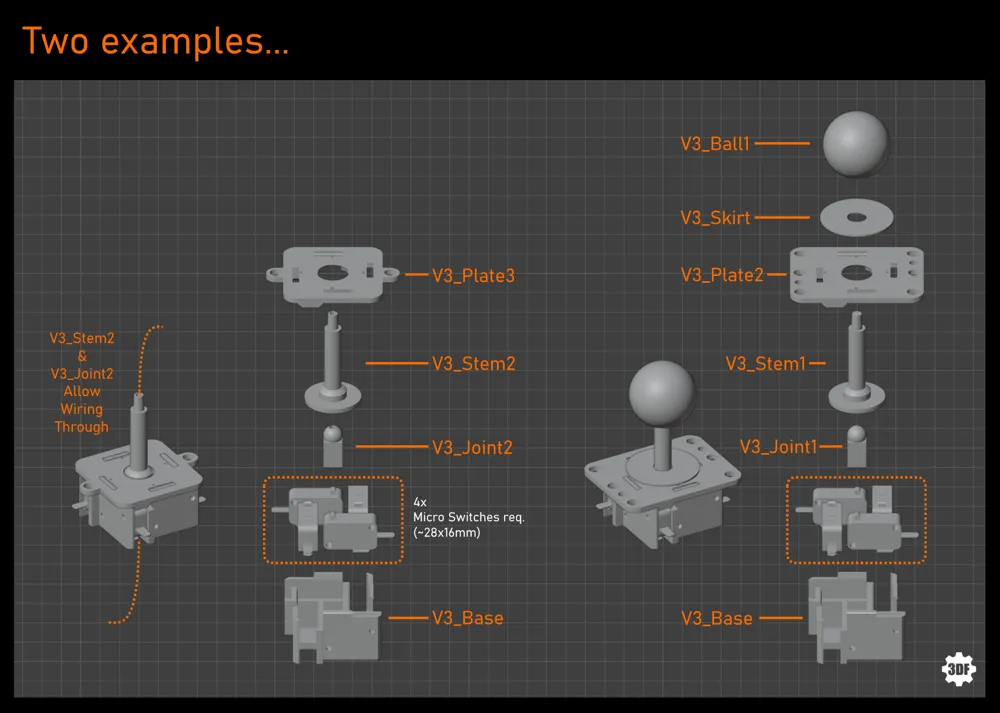

Except for one thing - 4x Micro switches (~28x16mm) per joystick.

Obviously, the higher the infill and stronger the material you use will help with their durability, I print with PLA and find they hold up to quite a bit of use, plus if you do snap one, print another!

Also it takes a bit of force to click the plate and base together the first time but I haven't had one break and they get easier to pull apart (and push together) after that.

The hollow parts work well with:

https://makerworld.com/en/models/626030

Any questions, please just ask.
