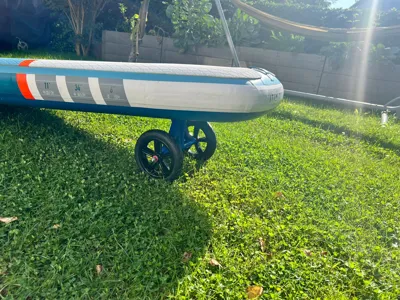

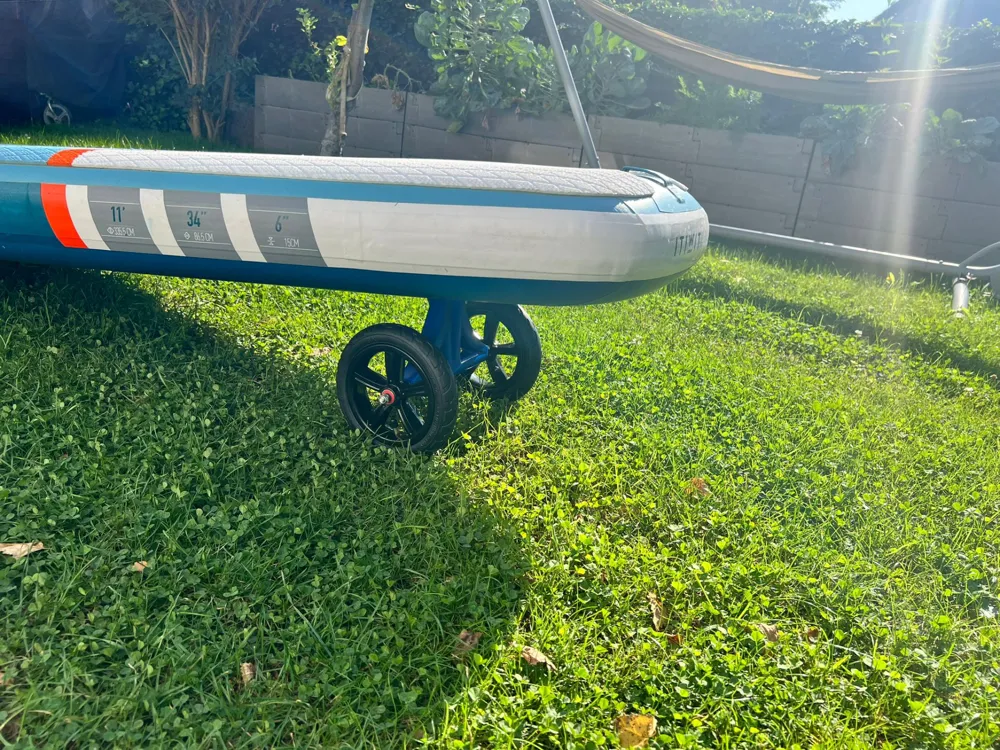

Wagen for the Finnish pickup of a Decathlon Itiwit Stand Up Paddleboard (SUP)
Printed in two parts to better control the print orientation to make the different areas more stable in their stress directions.
Printed in PETG HF with 0.2 mm layer height, 5 walls, organic tree support
Screwed together with two M5 hex screws and matching nuts.

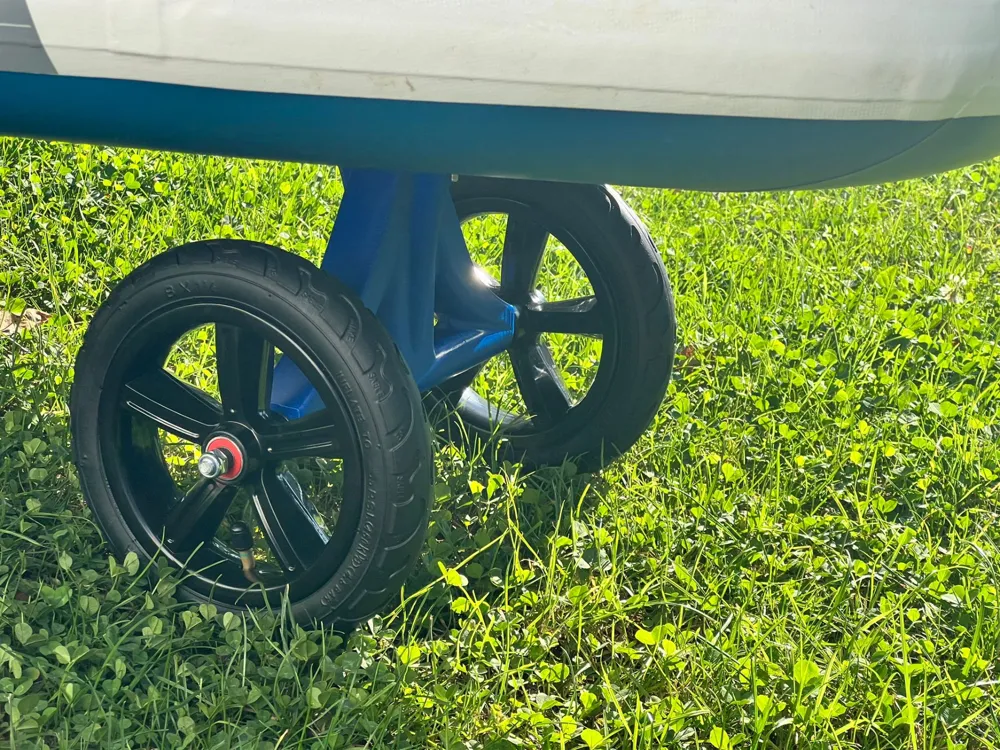

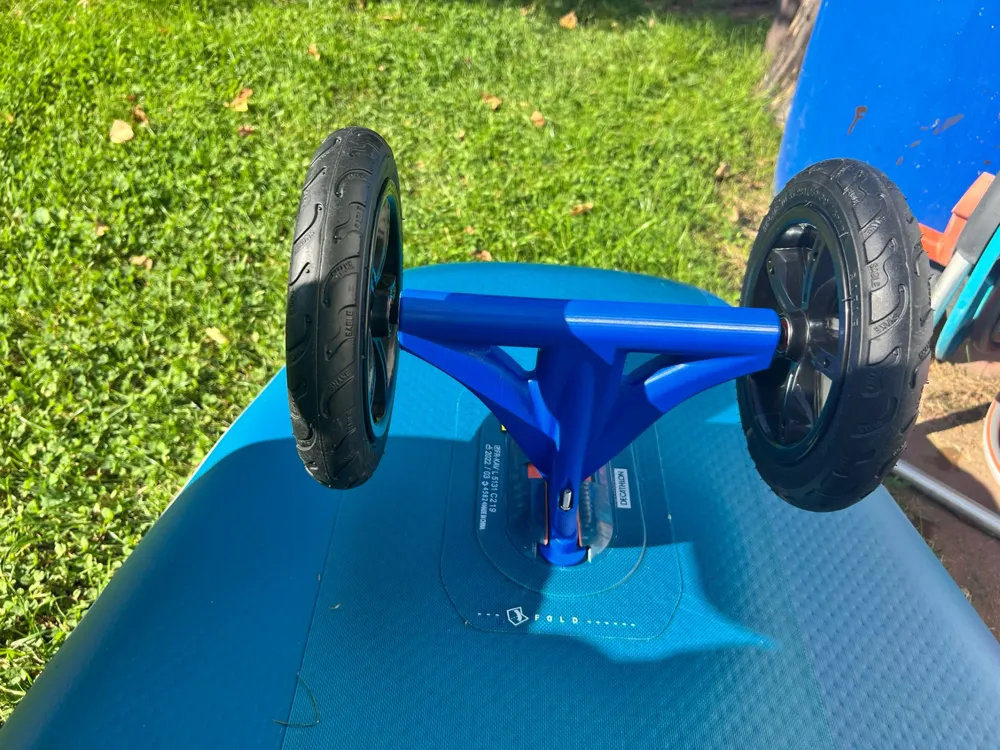

The axle (M8 threaded rod) is guided by two 608 ball bearings. https://amzn.eu/d/0i4ekgQ https://amzn.eu/d/8BuiTux
You may need to slightly rework/deburr the bearing seats.
Air tires were then installed, also with 608 bearings https://amzn.eu/d/divrgKH
