Description

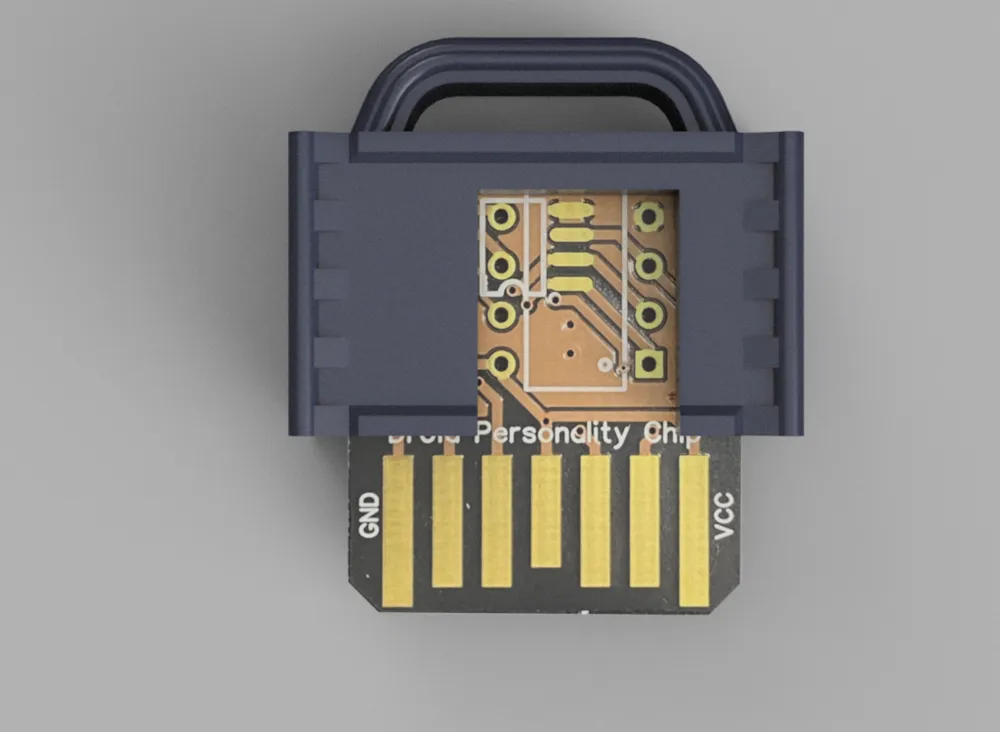

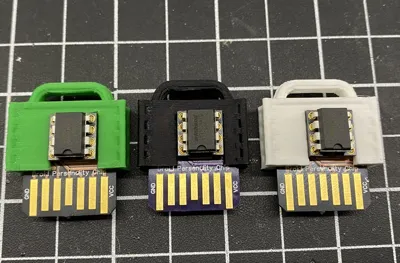

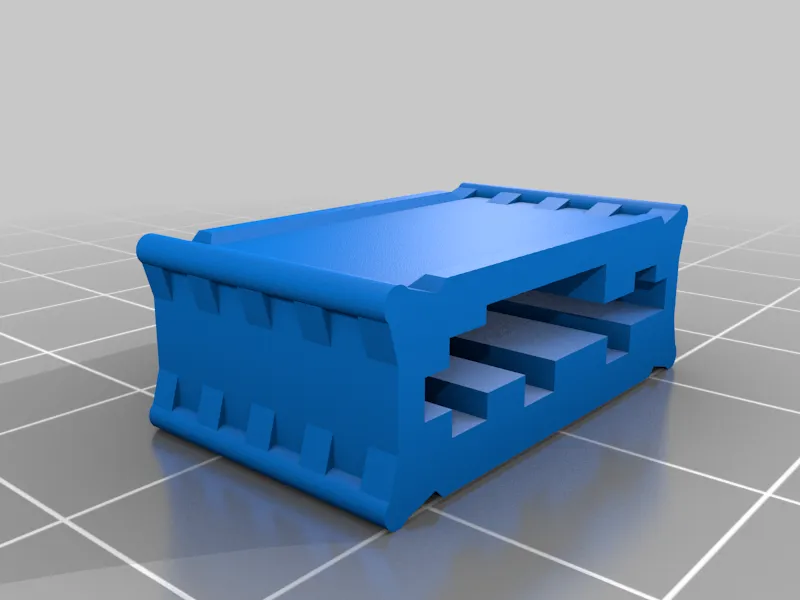

A cover for the customizable droid personality chips designed by Ruthsarian.
Fusion 360 Files: https://a360.co/39yQxIg

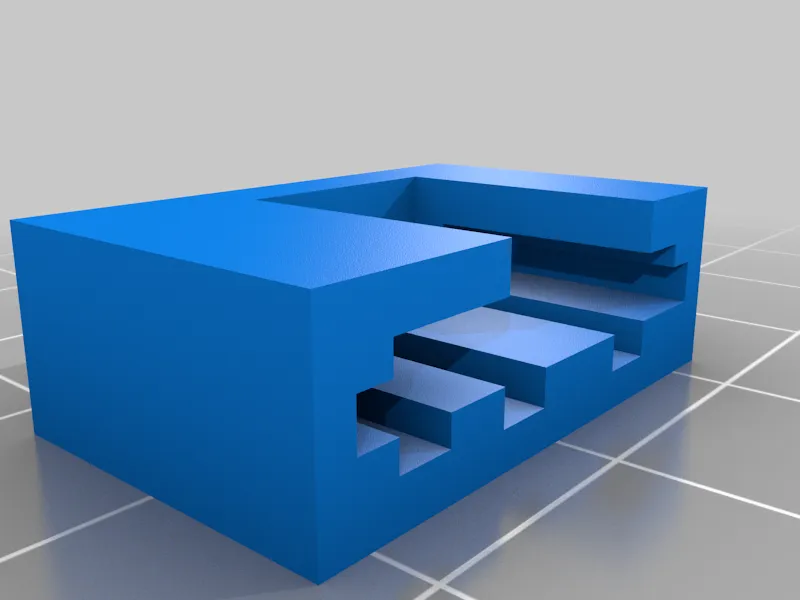

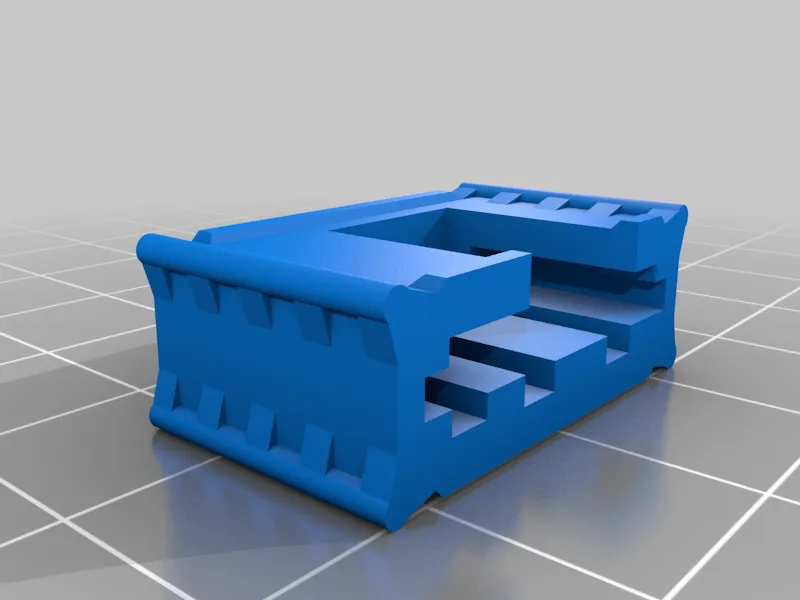

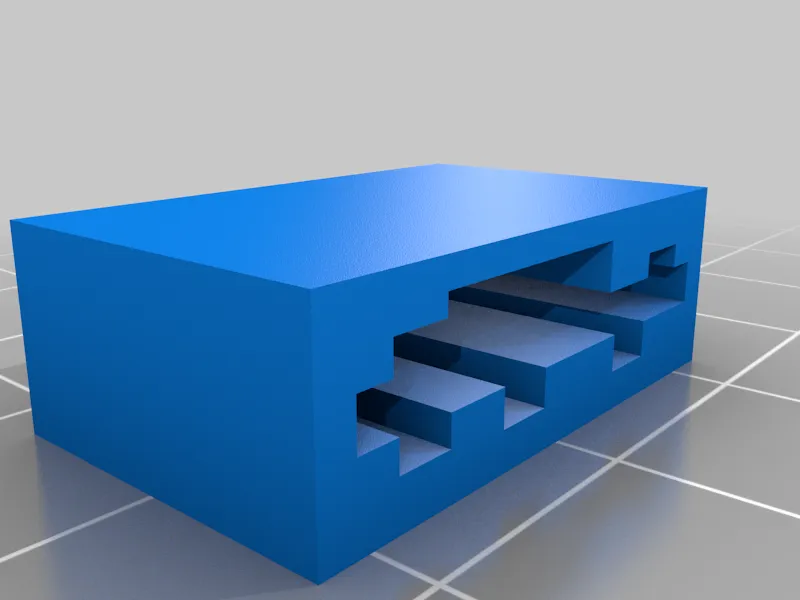

Files include a "plain" and a "fancy" model for both surface mount and through hole PCBs. If you remix this and make your own, please share. I'd love to see it.
Installing

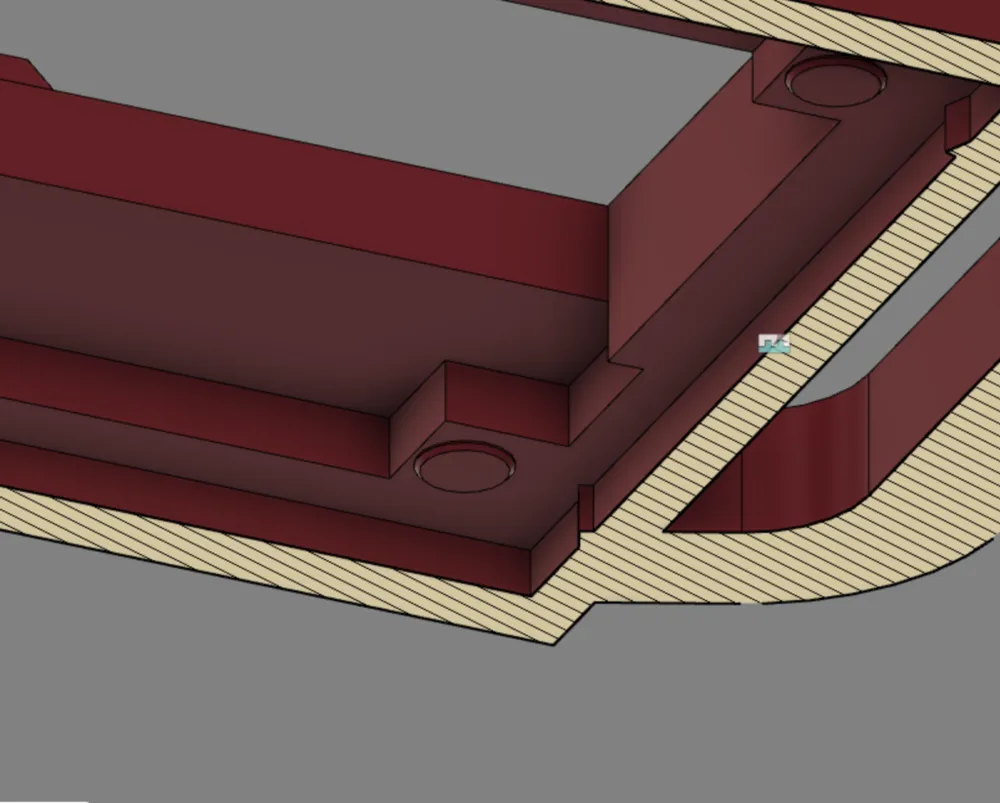

The case is designed to be semi-permanent so that the PCB won't fall out easily. It does take a good amount of force to get the case fully installed.

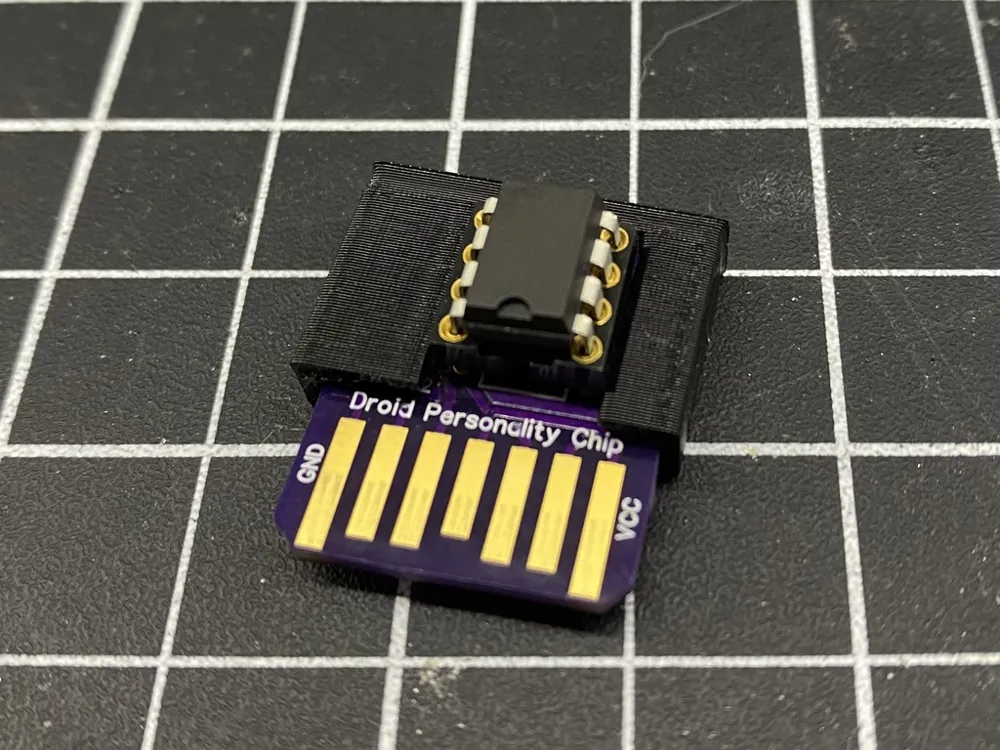

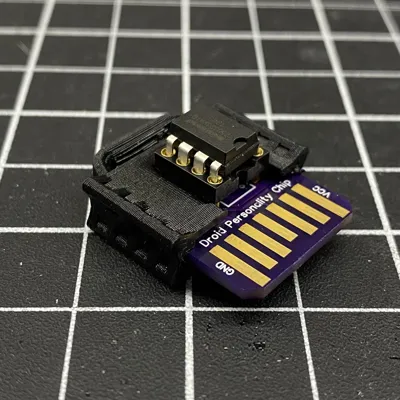

To fully install, press the unit onto a table until you hear a click. You will know the case is fully installed when it slightly covers the silk screen text.
Removing
To remove, use a hook like this one to grab one of the holes of the pcb and pry up.
Ruthsarians pcb tutorial
Related devices

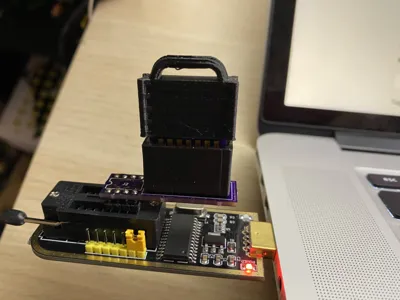

I also highly recomend the following for programming the chips
- https://oshpark.com/shared\_projects/Ri6G2qLx
- https://www.ebay.com/itm/10pc-Industrial-Card-Edge-Slot-Socket-Connector-7x2P-14P-2-54mm-0-1-3A-240-14/141501565005?ssPageName=STRK%3AMEBIDX%3AIT&\_trksid=p2057872.m2749.l2649
- https://www.amazon.com/Organizer-Socket-Adpter-Programmer-CH341A/dp/B07R5LPTYM/ref=sr\_1\_15?keywords=programmer&qid=1583650032&sr=8-15
