Bag Rack

Bag Rack

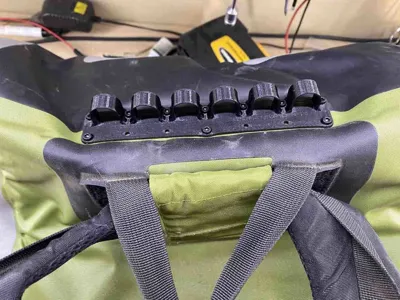

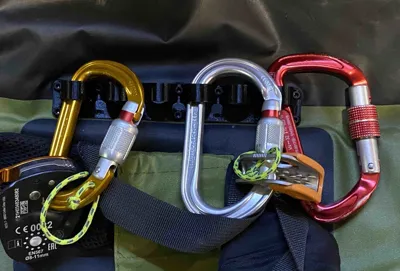

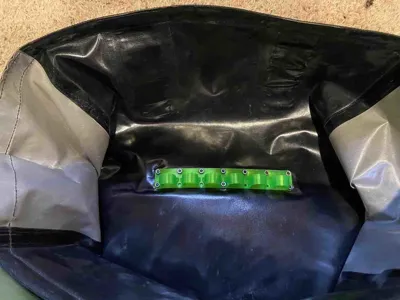

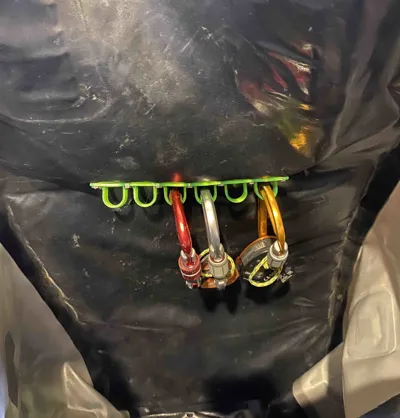

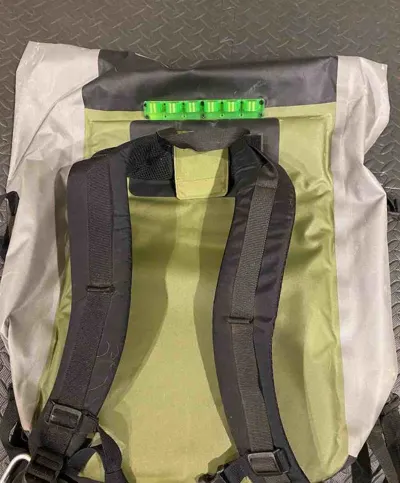

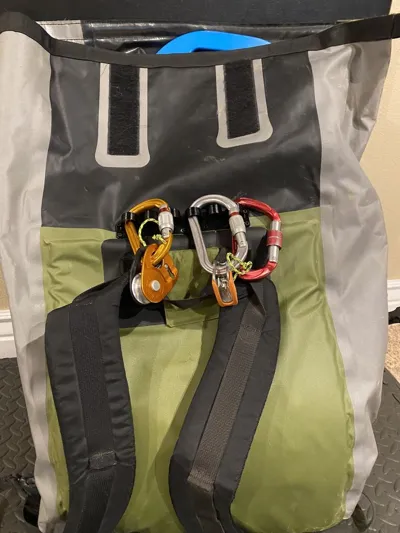

The Bag Rack is a 3d printable holder that can be attached to a bag to allow for convenient storage of gear/carabeeners.

More expensive canyoneering / rope bags often have internal webbing for storage. Add your own storage to your existing bag.

Installation

• [14] M3 x 6mm screws (8mm works for thicker material)
• [14] M3 bolts

• [14] M3 washers (optional) For best rust resistance use only 'Stainless Steel' bolts/screws/washers.
  Avoid Zinc/ Galvanized/ Aluminum (And never mix and match materials)

  To install, print out 2 copies of the BagRack.stl (Or print 1 BagRack.stl and 7x of the BagRackBack.stl). Align on the bag, then poke a hole with an exacto knife.

  ### Printing

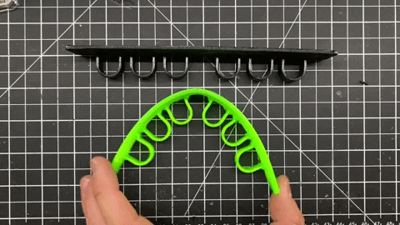

  Print vertically using TPU

  ### Warning

  Not intended to be used as an anchor point. Do not use in any situation that would be hazardous to life or property. Not intended to be weight bearing.

  ### Selling part

  This is released under the creative commons license which means you can modify and change this design and 3d print your own files. However you may not sell 3d prints. (Contact me if you are interested in selling prints)
