Bill of Materials
Maker's Supply Kits and Parts
Select all
List other parts
- M8 hex nut x 1:
- M8 screw at least 30mm x 1:
Description

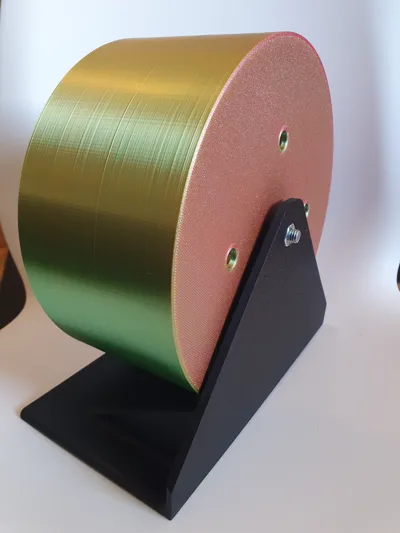

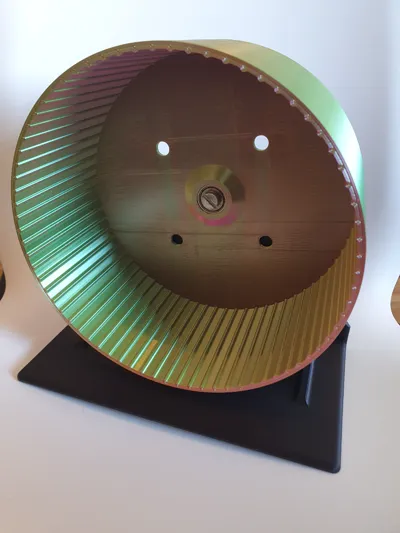

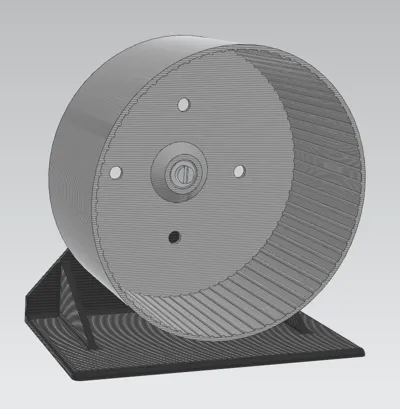

A large free standing hamster wheel with standard 608 bearing.
I needed a large wheel that was free standing with minimal risk of the user doing something stupid and getting harmed.
Dimensions
Wheel 200mm diameter / 95mm height (scale height as see fit).
Scaffold 220 x 135 mm.
Additional hardware:
- 608 bearing
- M8 nut
- M8 screw at least 30mm
The bushing can be scaled so the wheel is not rubbing while rotating. This depends on how rigid your bearing is.
I printed everything in PLA.
Scaffold and bushing printed in black PLA.
Wheel printed in PLA silk tricolor on request of the kids. They like the effect as the wheel is spinning.
